SpeedyBee F7 35A BLS Mini Stack 8-bit Flight Controller User Manual
SpeedyBee F7 35A BLS Mini Stack 8-bit Flight Controller

OverView

Specs Overview

Product NameSpeedyBee F7 35A BLS Mini Stack
Flight ControllerSpeedyBee F7 Mini
ESCSpeedyBee 35A BLS Mini 4-in-1 ESC
BluetoothSupported. For FC & ESC parameter setting
Wireless FC Firmware FlashingNot supported
Wireless Blackbox DownloadNot supported
Power Input3-6S LiPo
Mounting20 x 20mm  3.5mm hole size,Compatible with M2 and M3 screws/Silicone grommets
Dimension32mm(L) x 35mm(W) x 13mm(H)
Weight12.7g

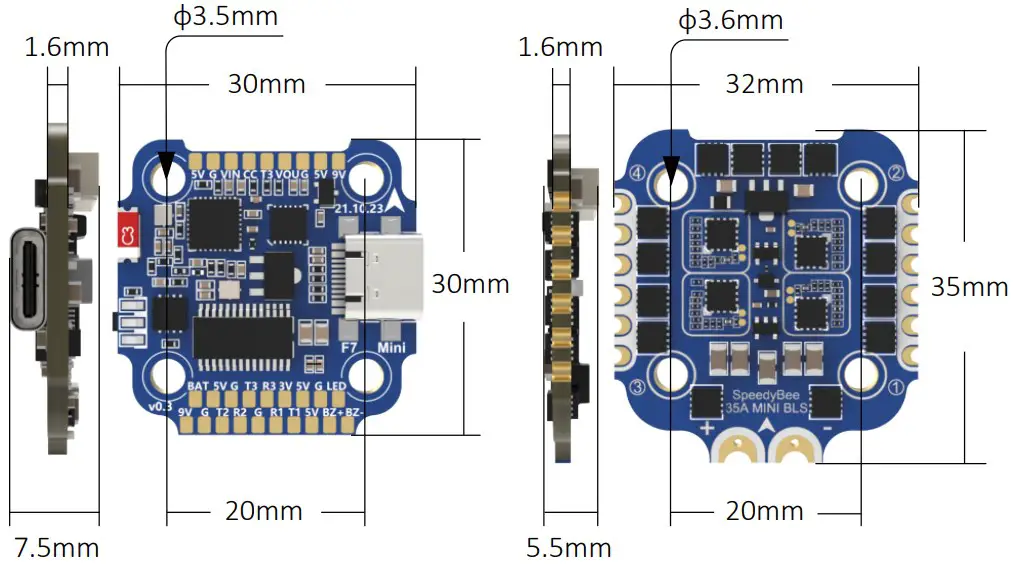

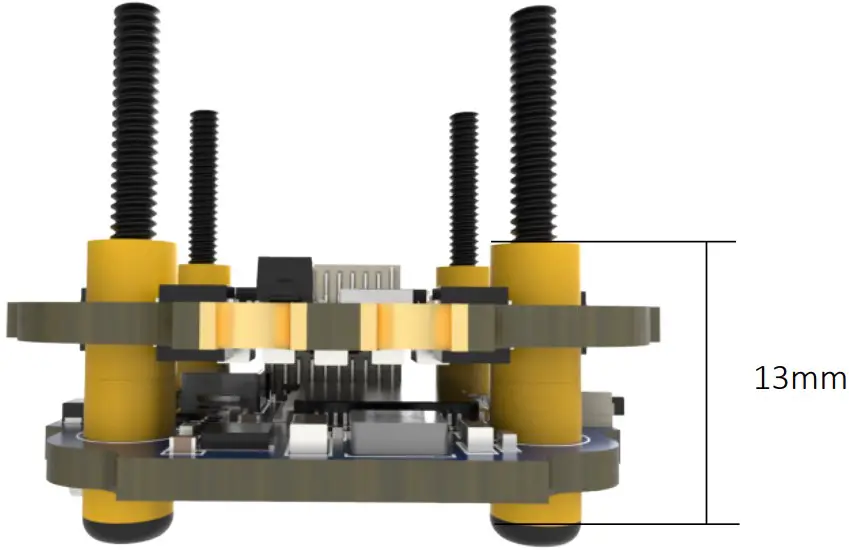

Dimensions
Dimensions
Dimensions

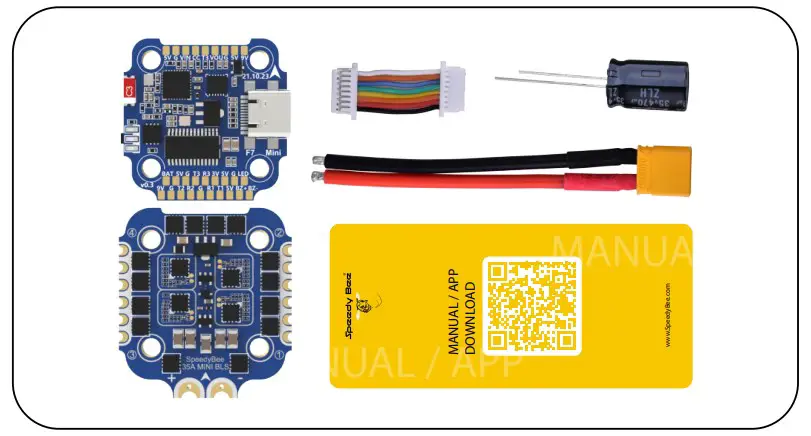

Package

  • SpeedyBee F7 Mini Flight Controller x 1
  • SpeedyBee 35A BLHeli_S Mini 4-in-1 ESC x 1
  • Manual & App Download Card x 1
  • XT30 Power Cable(Length: 7cm) x 1
  • 8pin JST cable(For FC & ESC Connection) x 1
  • 35V 470uF Capacitor x 1

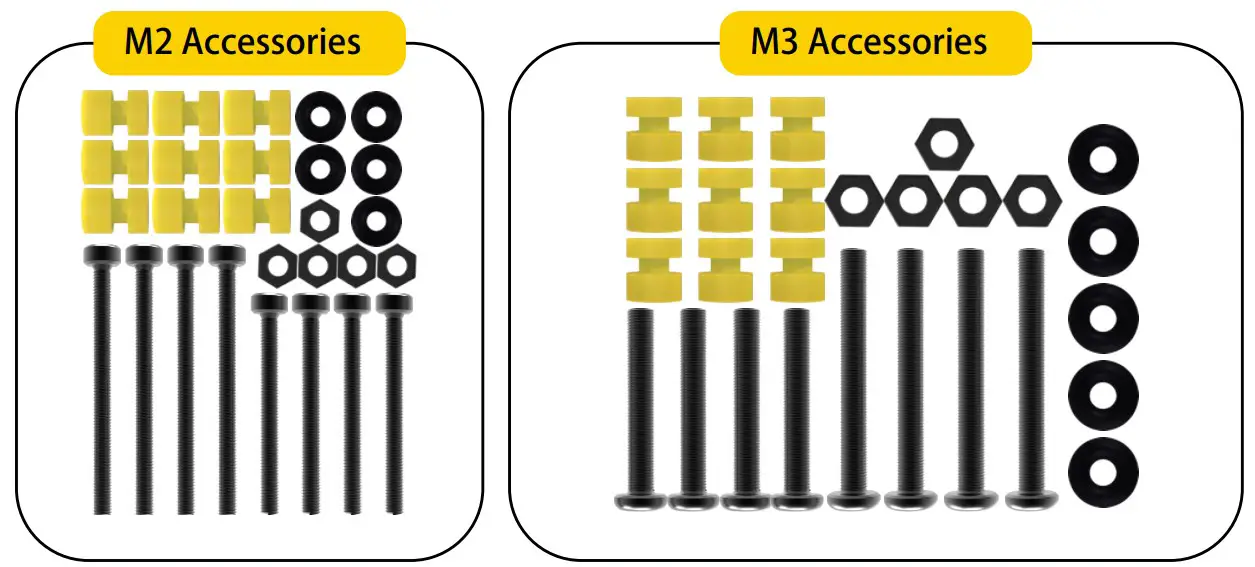

  • M2 Accessories
    • M2(Diameter) * 20mm(Length) Screw x 4
    • M2(Diameter) * 25mm(Length) Screw x 4
    • M2(Hole Diameter) * 6.6mm(Height) Anti-vibration Silicone Grommets x 9
    • M2 Silicone O-Ring x 5
    • M2 Nylon Hex Nut x 5
  • M3 Accessories
    • M3(Diameter) * 20mm(Length) Screw x 4
    • M3(Diameter) * 25mm(Length) Screw x 4
    • M3(Hole Diameter) * 6.6mm(Height) Anti-vibration Silicone Grommets x 9
    • M3 Silicone O-Ring x 5
    • M3 Nylon Hex Nut x 5
      Package
      Package

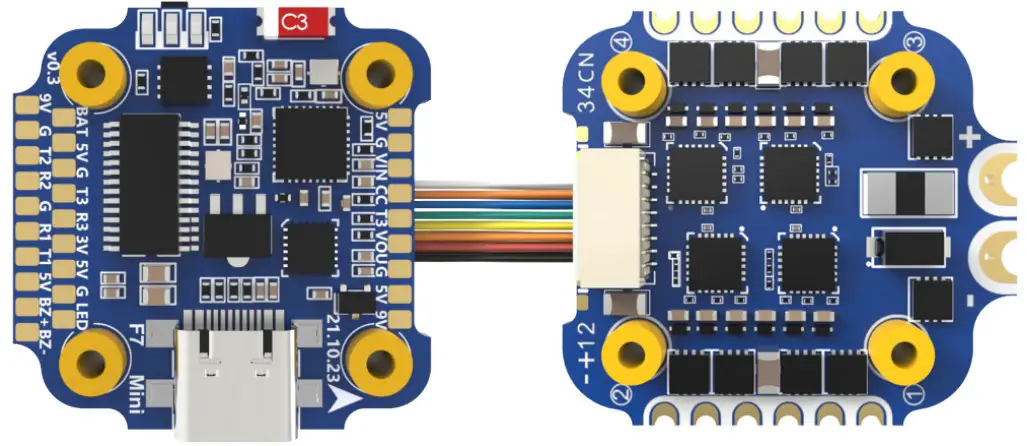

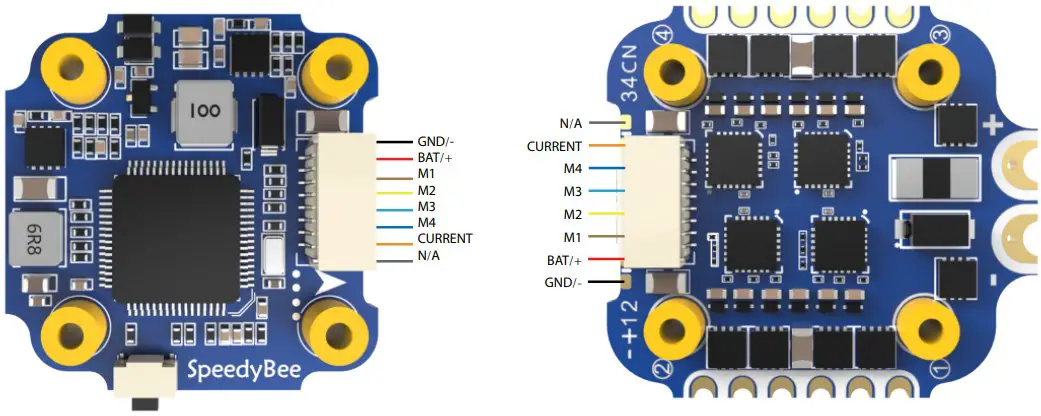

FC & ESC Connection

Use any end of the 8-pin JST cable to connect the FC to the ESC.
FC & ESC Connection
FC & ESC Connection

SpeedyBee F7 Mini Flight Controller

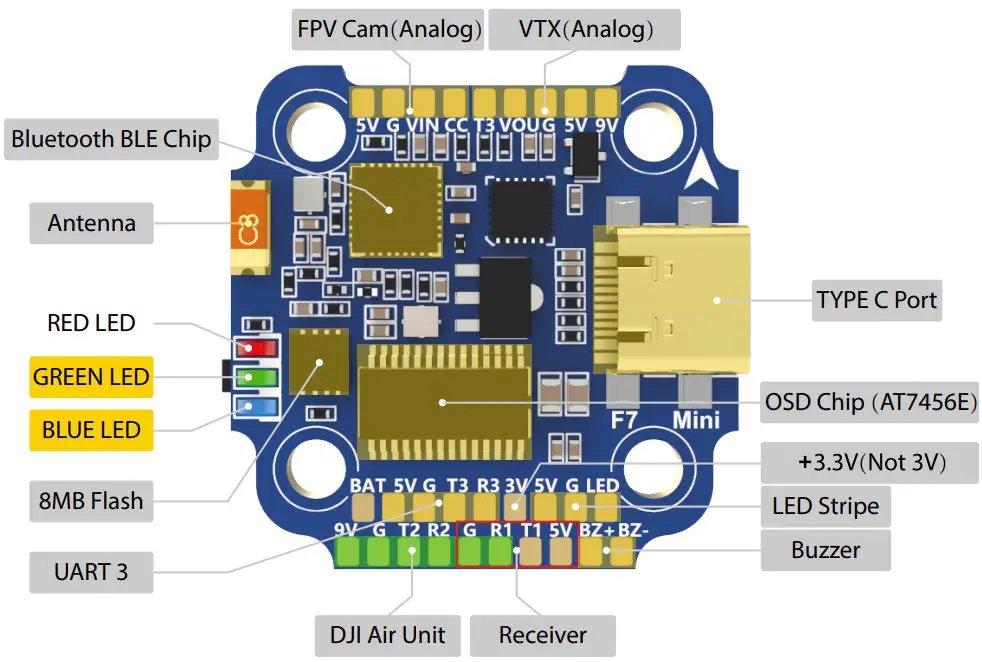

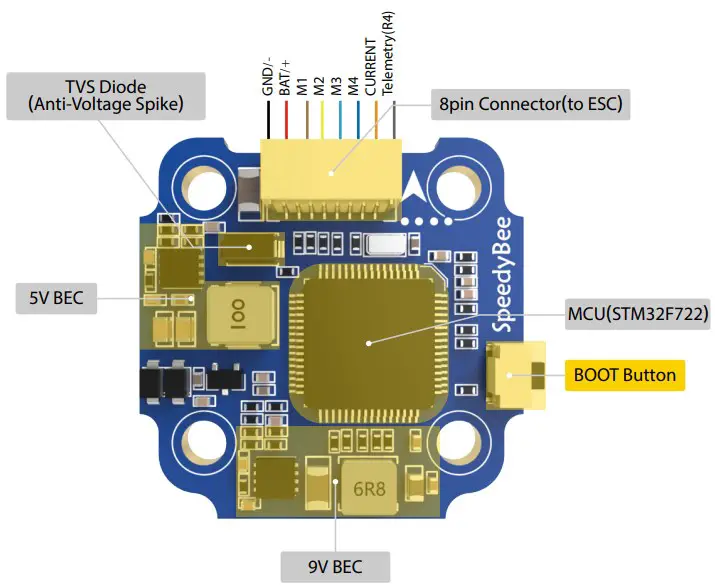

Layout
Layout
Layout

LED Indicator Definition

LED Indicator iconRED LED – Solid Red after powering up.

LED Indicator iconGREEN LED – Blinking Green indicates Bluetooth is open and waiting forconnection; Solid Green indicates Bluetooth is connected.

LED Indicator iconBLUE LED – Flight controller status light which is controlled by the flight controller firmware.

BOOT Button

Only if the flight controller gets bricked and can’t power up, please follow these steps to re-flash firmware for it:

  1. Insert a USB A to TYPE-C cable to your PC.
  2. Press and hold the BOOT button, insert the USB cable into the flight controller, then release the BOOT button.
  3. Open Betaflight/Emuflight/INAV configurator on the PC, go to the ‘Firmware Flashing’ page, choose the target ‘SPEEDYBEEF7MINI’ and flash.

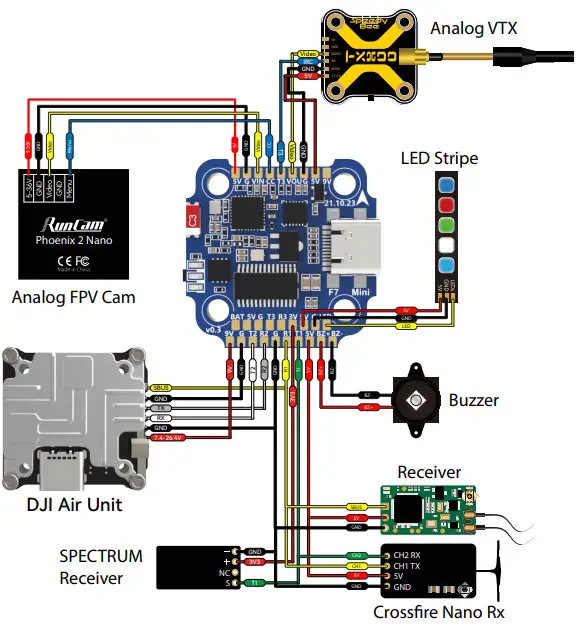

FC’s Peripheral Connection
FC’s Peripheral Connection

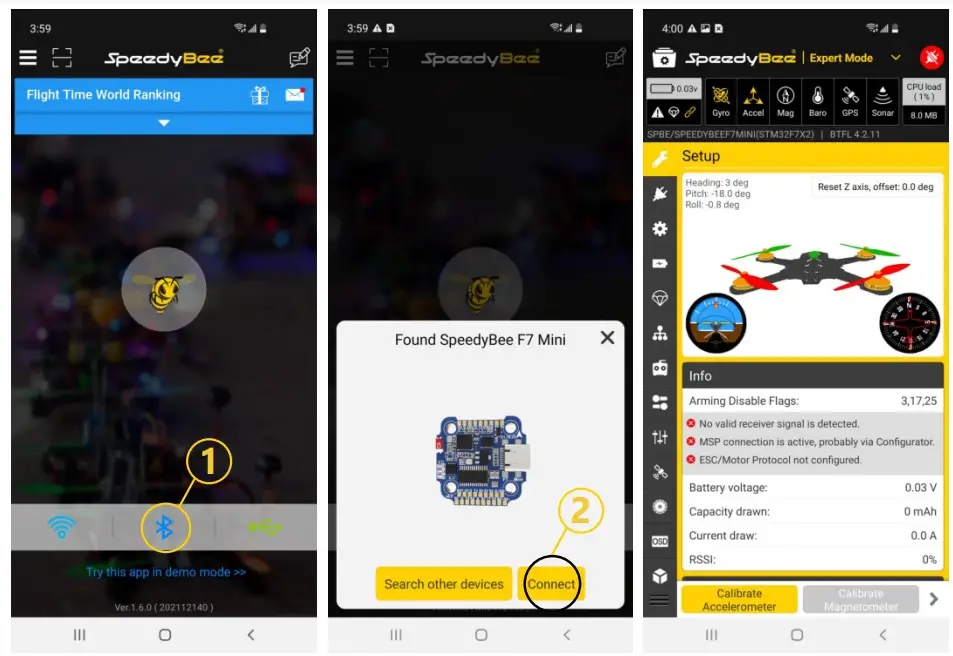

APP

FC Firmware Update

  • SpeedyBee F7 Mini does not support wireless firmware flashing, so please flash firmware for it on your PC following the steps below:
    1. Connect the flight controller to the PC with a USB cable
    2. Open Betafight/Emuflight/INAV configurator on your PC. Take Betaflight configurator as an example, go to the ‘Firmware Flashing’ page, choose the target ‘SPEEDYBEEF7MINI’ and flash
      FC Firmware Update

Parameters

MCUSTM32F722
IMU(Gyro)BMI270 for current batches;MPU6000 for old batches before May 2022.
USB Port TypeType-C
BarometerN/A
OSD ChipAT7456EButton iconchip
BLE BluetoothSupported. Used for Flight Controller configuration(MSP should be enabled with Baud rate 115200 on UART 6)
Flash FC Firmware WirelesslyNot supported. Please update firmware for this FC on the PC
Download/Analyze BlackboxNot supported. Please download and analyze Blackbox data on the PC
DJI Air Unit Soldering PadsSupported
Flash(for BlackBox)8MB
Current SensorSupported, Scale=250 Offset=-500
BetaFlightButton iconCameraButton iconControlButton iconPadYes(CC pad)
Power Input3S – 6S Lipo
5V Output6 groups of 5V output, five +5V pads and 1 BZ+ pad( used for Buzzer). TheButton icontotal current loadButton iconisButton icon2.5A.
9V Output2 groups of 9V output,Button icontheButton icontotal currentButton iconload isButton icon2A.
3.3V OutputSupported. Up to 500mA current load.
ESC Signal PadsM1Button icon– M4
UARTFull UARTButton icon*Button icon3(UART1,Button iconUART2,Button iconUART3)
ESC Telemetry UARTR4(UART4)
I2CNot supported
LED PadUsedButton iconforButton iconWS2812Button iconLED
BuzzerBZ+Button iconandButton iconBZ-Button iconpadButton iconusedButton iconforButton icon5VButton iconBuzzer
BOOT ButtonUsedButton icontoButton iconenterButton iconDFUButton iconmode
RSSI InputNot supported
SmartPortUse any TX pad of UART for the SmartPort feature.
Supported Flight Controller FirmwareBetaFlight(Default), EMUFlight, INAV
Firmware Target NameSPEEDYBEEF7MINIV2 for current batches(Gyro: BMI270); SPEEDYBEEF7MINI for old batches(Gyro: MPU6000) before May 2022.
Mounting20 x 20mm,Button icon 3.5mm hole diameter
Dimension30 x 30 x 7.5mm
Weight5.7g

SpeedyBee 35A BLS 4-in-1 ESC

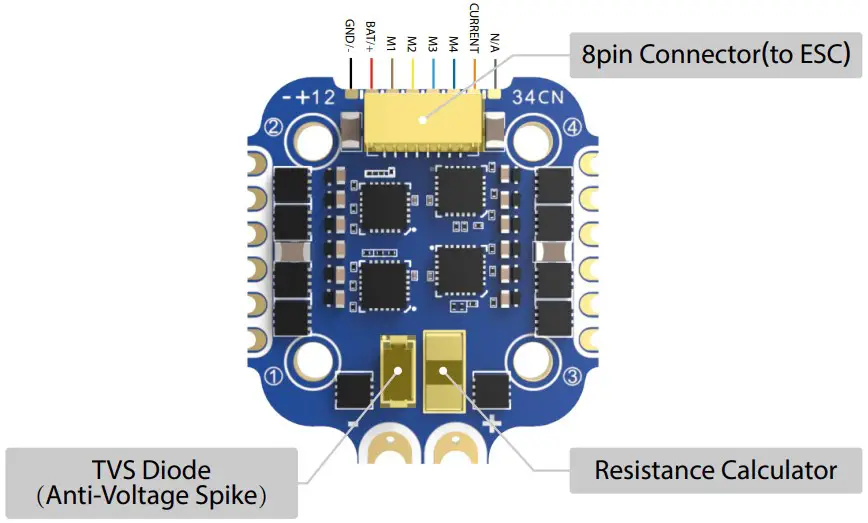

Layout
Layout
Layout

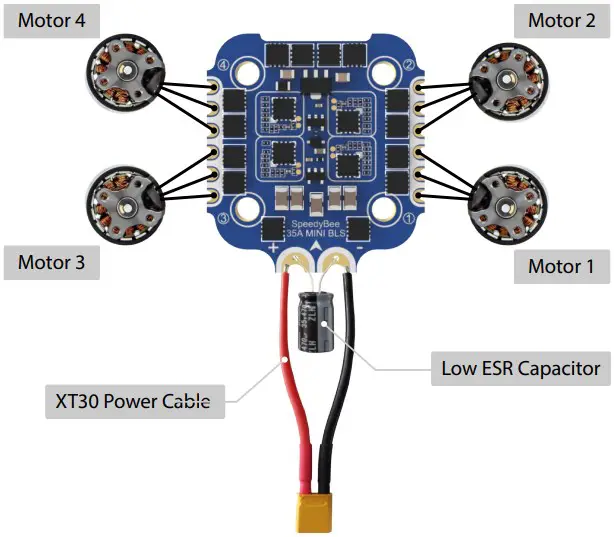

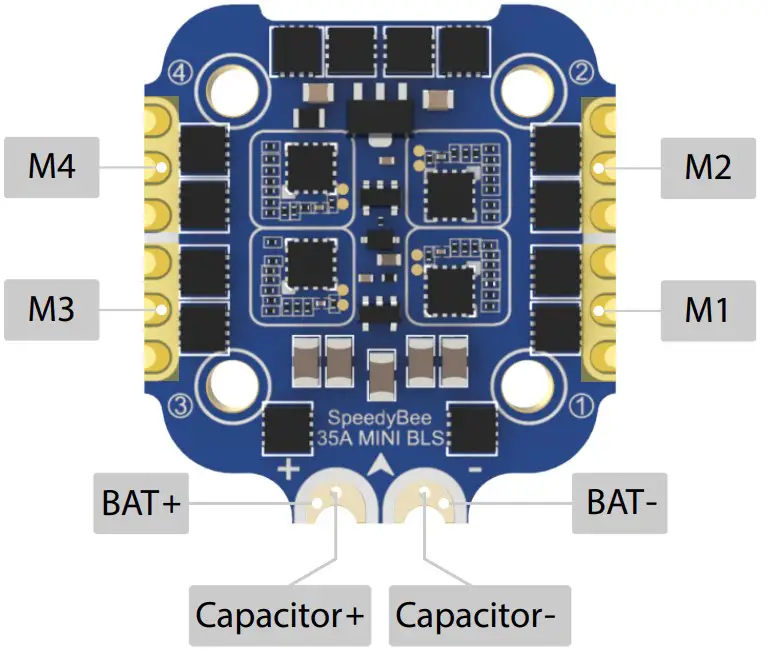

Connection with Motors & Power Cable
Connection with Motors & Power Cable

  • Note: In order to prevent the stack from being burnt out instantaneous voltage spikes on powering up, it is strongly recommended to use the Low ESR capacitor in the package.

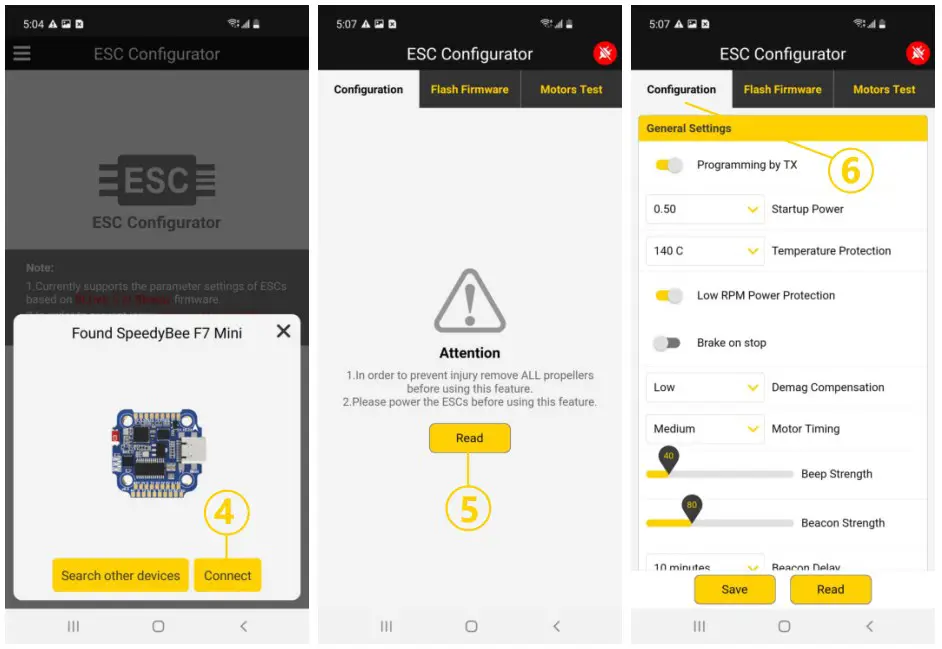

ESC Configuration
ESC Configuration
ESC Configuration

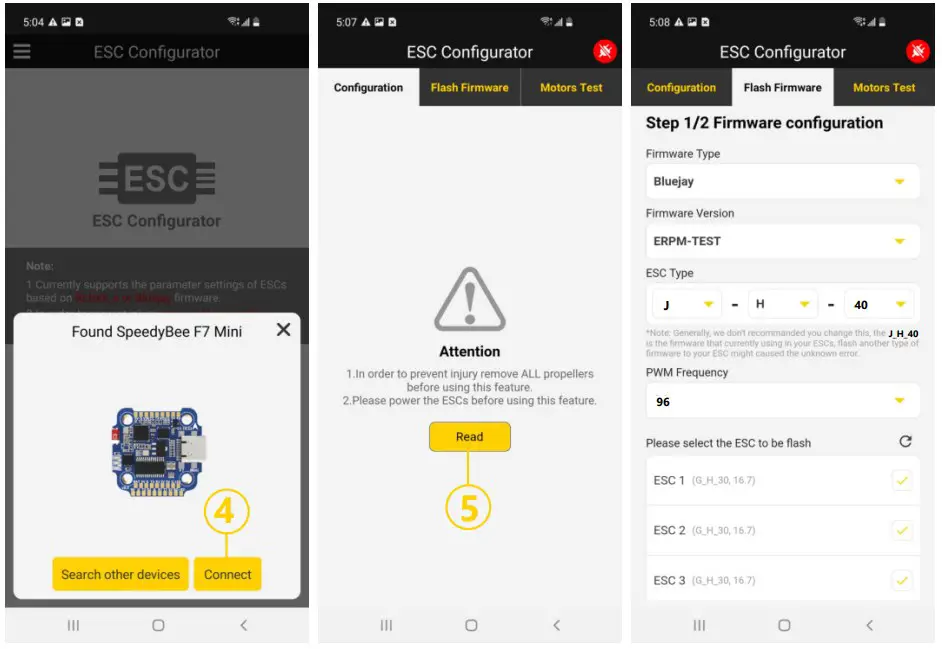

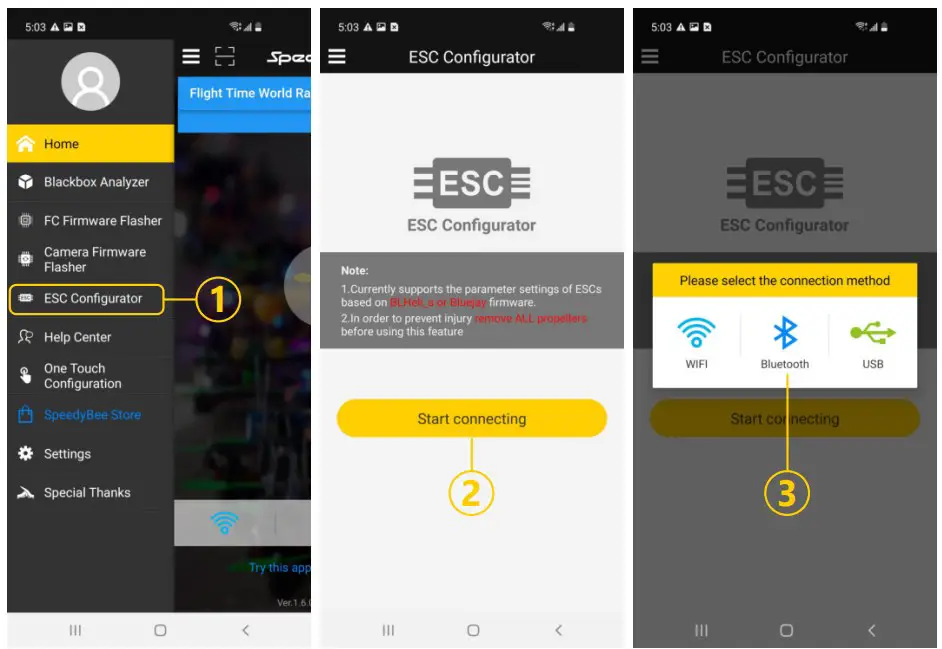

ESC Firmware Update

  • You could flash both BLHeli_S and Blue Jay firmware for this ESC via Bluetooth.Note: ESC Type should be set as ‘J-H-40’.
    ESC Firmware Update
    ESC Firmware Update

Parameters

FirmwareBLHeli_S JH40
Continuous Current35A * 4
Burst Current45A(5S)
ESC ProtocolDSHOT300/600
Power Input3-6S LiPo
Power OutputVBAT
Current SensorSupport (Scale=250 Offset=-500)
Mounting20 x 20mm, 3.6mm hole diameter
Dimension32(L) * 35(W) * 5.5mm(H)
Weight7g
