Speedybee F7 35a Bls Mini Stack Flight Controller Stack User Manual

F7 35A BLS Mini Stack Flight Controller Stack
User Manual

Part 1 – Overview

Specs Overview

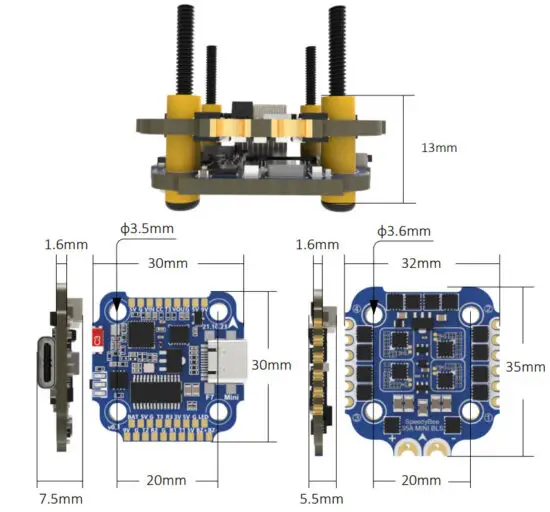

Dimensions

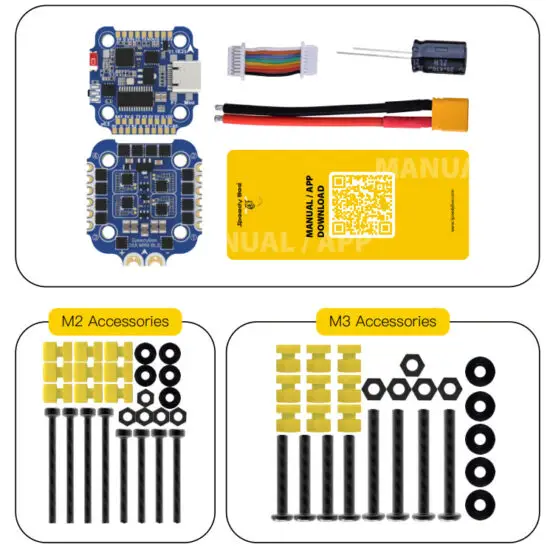

Package

• SpeedyBee F7 Mini Flight Controller x 1
• SpeedyBee 35A BLHeli_S Mini 4-in-1 ESC x 1
• Manual & App Download Card x 1
• XT30 Power Cable(Length: 7cm) x 1
• 8pin JST cable(For FC & ESC Connection） x 1
• 35V 470uF Capacitor x 1
• M2 Accessories
  • M2(Diameter) * 20mm(Length) Screw x 4
  • M2(Diameter) * 25mm(Length) Screw x 4
  • M2(Hole Diameter) * 6.6mm(Height) Anti-vibration Silicone Grommets x 9
  • M2 Silicone O-Ring x 5
  • M2 Nylon Hex Nut x 5
• M3 Accessories
  • M3(Diameter) * 20mm(Length) Screw x 4
  • M3(Diameter) * 25mm(Length) Screw x 4
  • M3(Hole Diameter) * 6.6mm(Height) Anti-vibration Silicone Grommets x 9
  • M3 Silicone O-Ring x 5
  • M3 Nylon Hex Nut x 5

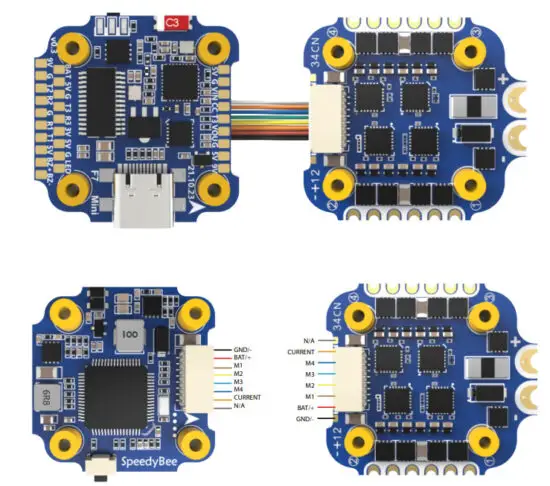

FC & ESC Connection

Use any end of the 8-pin JST cable to connect the FC to the ESC.

Part 2 – SpeedyBee F7 Mini Flight Controller

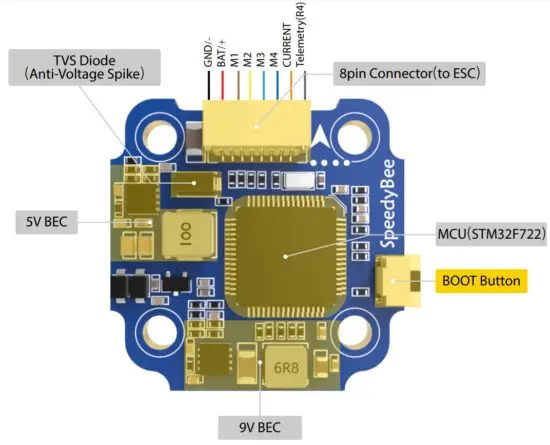

Layout

LED Indicator Definition
RED LED – Solid Red after powering up.
GREEN LED – Blinking Green indicates Bluetooth is open and waiting for connection; Solid Green indicates Bluetooth is connected.
BLUE LED – Flight controller status light which is controlled by the flight controller firmware.

BOOT Button
Only if the flight controller gets bricked and can’t power up, please follow these steps to re-flash firmware for it:

1. Insert a USB A to TYPE-C cable to your PC.
2. Press and hold the BOOT button, insert the USB cable into the flight controller, then release the BOOT button.
3. Open Betaflight/Emuflight/INAV configurator on the PC, go to the ‘Firmware Flashing’ page, choose the target ‘SPEEDYBEEF7MINI’ and flash.

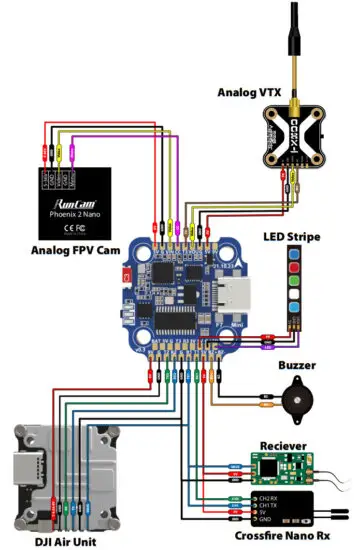

FC’s Peripheral Connection

APP

• Get the SpeedyBee App
  Search ‘SpeedyBee’ on Google Play or App Store. Or download the Android .apk file on our website: https://www.speedybee.com/download.

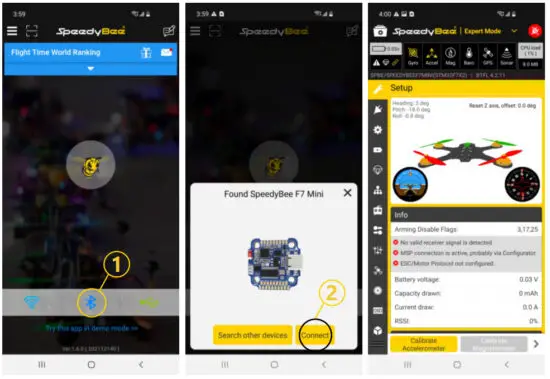

• Connect the App

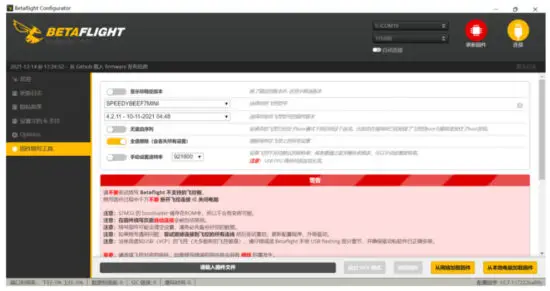

FC Firmware Update

SpeedyBee F7 Mini does not support wireless firmware flashing, so please flash firmware for it on your PC following the steps below:

1. Connect the flight controller to the PC with a USB cable
2. Open Betafight/Emuflight/INAV configurator on your PC. Take the Betaflight configurator as an example, go to the ‘Firmware Flashing’ page, choose the target  ‘SPEEDYBEEF7MINI’, and flash.


Parameters

Part 3 – SpeedyBee 35A BLS 4-in-1 ESC

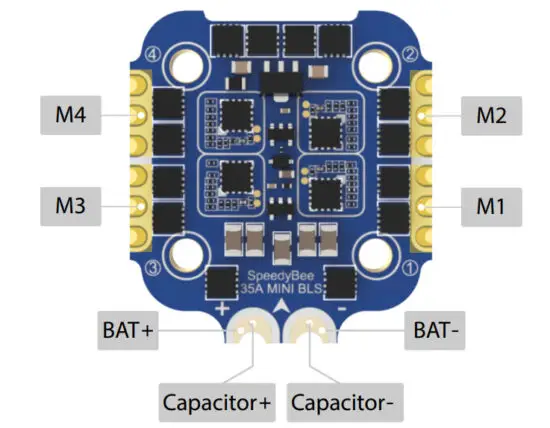

Layout

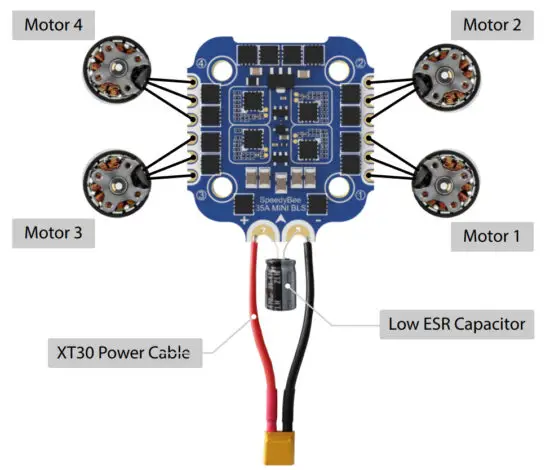

Connection with Motors & Power Cable

Note: In order to prevent the stack from being burnt out instantaneous voltage spikes on powering up, it is strongly recommended to use the Low ESR capacitor in the package.

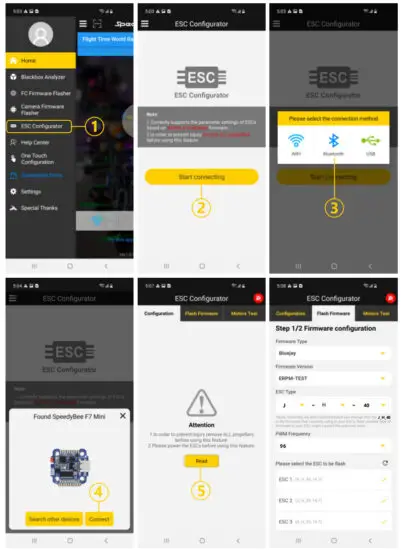

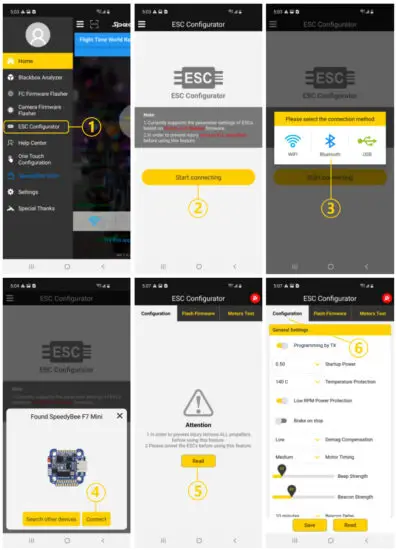

ESC Configuration

ESC Firmware Update

You could flash both BLHeli_S and Blue Jay firmware for this ESC via Bluetooth.Note: ESC Type should be set as ‘J-H-40’.

Parameters
