POTTER FSB-24 Switch Board
Features
- Provides 24 programmable push buttons for phone circuit assignment
- Includes bracket for secure mounting
- Maximum of 4 per FFT-1000R and FFT-1000L
Description

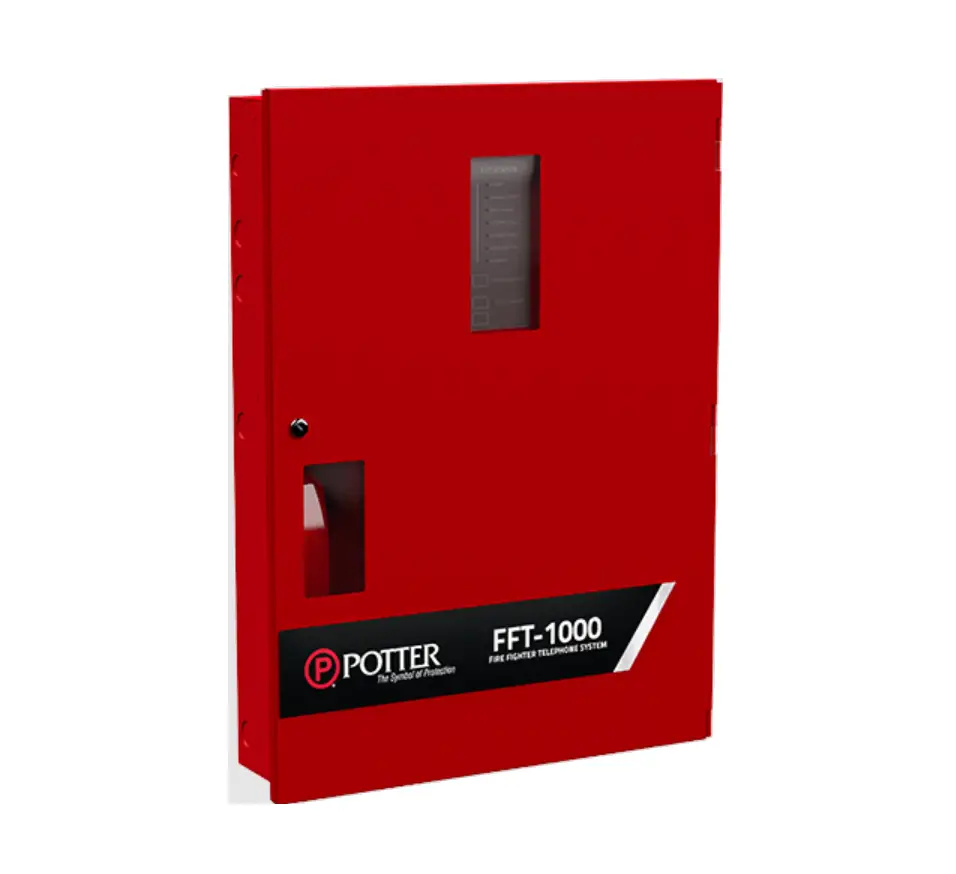

The FSB-24 switchboard provides 24 programmable push buttons for phone circuit assignment. Each button has two corresponding LEDs to indicate activity and trouble conditions. The FSB-24 is equipped with a bracket for secure mounting. A maximum of 4 FSB-24s can be installed within an FFT-1000R and FFT-1000L.
Technical Specifications
| Standby Current | 4 mA |
| Alarm Current | 27 mA |
| Operating Temperature | 0°C-49°C (32°F-120°F) |
| Operating Humidity Range | 10%-93% @ 30°C (86°F) noncondensing humidity |
Installation

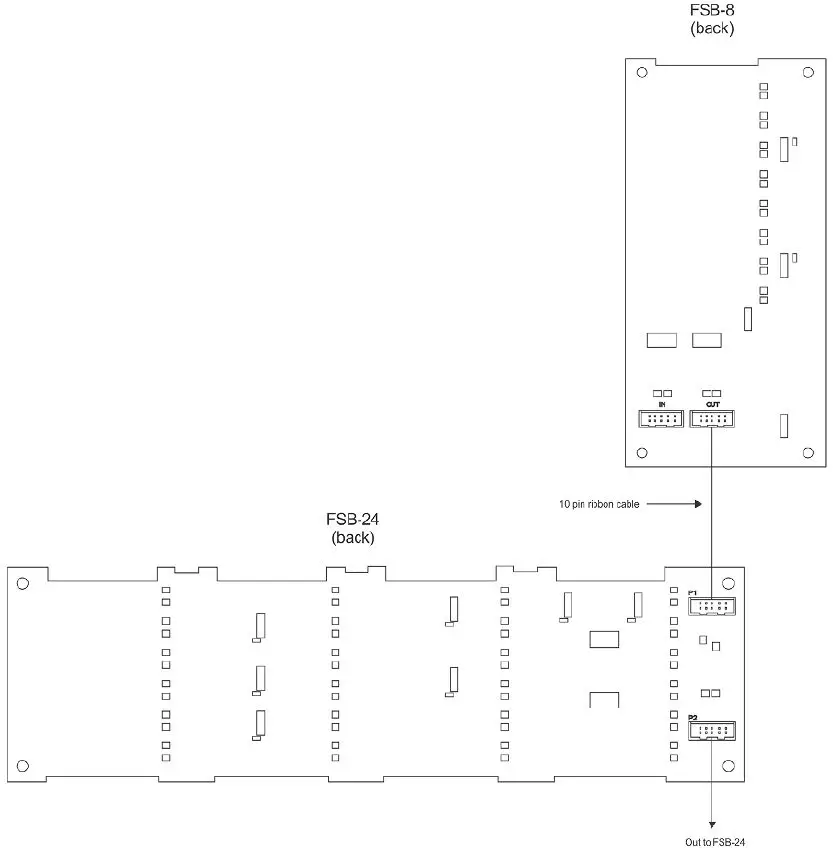

The FSB-24 connects to the FSB-8 through a 10-pin ribbon cable. The connections are power limited and supervised. The FSB-24 is equipped with a bracket to securely mount to the FFT-1000R and FFT-1000L dead front.
Ordering Information
| Model | Description | Stock No. |
| FSB-24 | FSB-24 SWITCH BOARD W/24 PROGRAMMABLE SWITCHES | 3520664 |
Potter Electric Signal Company, LLC
St. Louis, MO
Phone: 800-325-3936
Website: www.pottersignal.com.
Website: firealarmresources.com.
