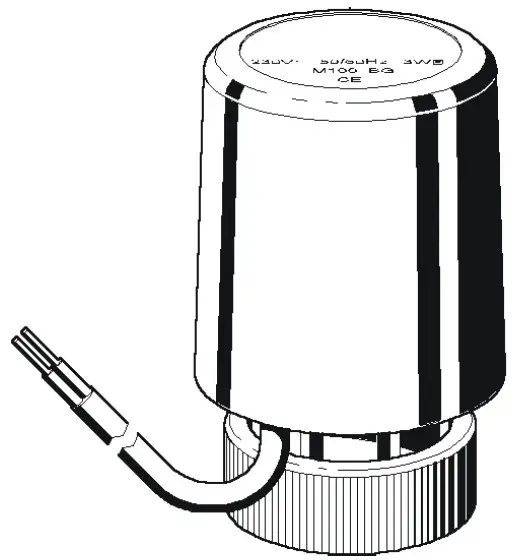

M100
Small Linear Thermoelectric Actuator
PRODUCT DATA
Design
- Available in normally open or normally closed versions
- M30 x 1,5 connection (other connections available on request)
- Fits on specified RESIDEO and Heimeier thermostatic radiator valves and valve inserts for manifolds and compact radiators
- Power supply 24 V or 230 V
- Auxiliary switch models to drive pump or fan
Application
M100 small linear actuators are used with RESIDEO room temperature controllers and/or for time-controlled two-point regulation of heating and cooling systems equipped with fan coil units, radiators, floor heating systems, etc.
Features
- Small size allows limited space installation
- Reliable longtime operation
- No mounting tools required
- Noiseless operation
- Ready-to-wire connection cable
- Visual valve position indicator furnished with actuator
- Overload protection (4 kV) for 230 V versions
Specifications
| Specifications | M100-AG; -AO; -BG; -BO: approx. 3 min M100-AGX; -AOX; -BGX; -BOX: approx. 5.5 min |
| Closing time | see diagram on next page |
| Maximum stroke | 4 mm |
| Stem force | 90 N |
| Ambient temperature | max. 50 °C (122 °F) |
| Power supply | A..-Versions: 24 Vdc ± 20%; 50/60 Hz B..-Versions: 230 Vac ± 20%; 50/60 Hz |
| Initial current | M100-AG; -AO: approx. 0.6 A M100-BG; -BO: approx. 0.3 A M100-AGX; -AOX: approx. 0.2 A M100-BGX; -BOX: approx. 0.05 A |
| Permanent current | M100-AG; -AO: 0.09 A M100-BG; -BO: 0.013 A M100-AGX; -AOX: 70 mA M100-BGX; -BOX: 7 mA |
| Power | M100-AG; -AO; -BG; -BO: 3 W |
| Consumption | M100-AGX; -AOX; -BGX; -BOX: 2 W |
| Protection standard | IP43 |
| Cable length | 1 m (3.3 ft), other cable lengths possible on request |
| Cable wires | 2 x 0.5 mm2 |
NOTE: Opening and closing times depend on ambient temperature. Current values at nominal voltage and resistance.

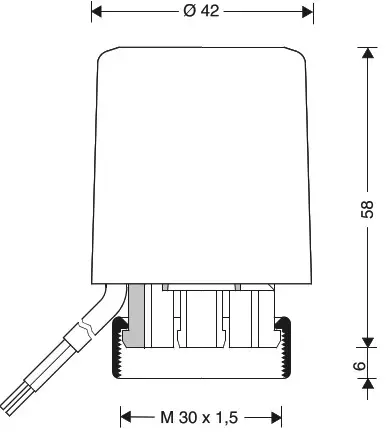

Dimensions
Fig. 1. Dimensions
NOTE: All dimensions in mm unless otherwise stated.
Function
When the operating current is applied, a thermostat containing an expanding medium is heated, which after a pause period causes stroke movement.

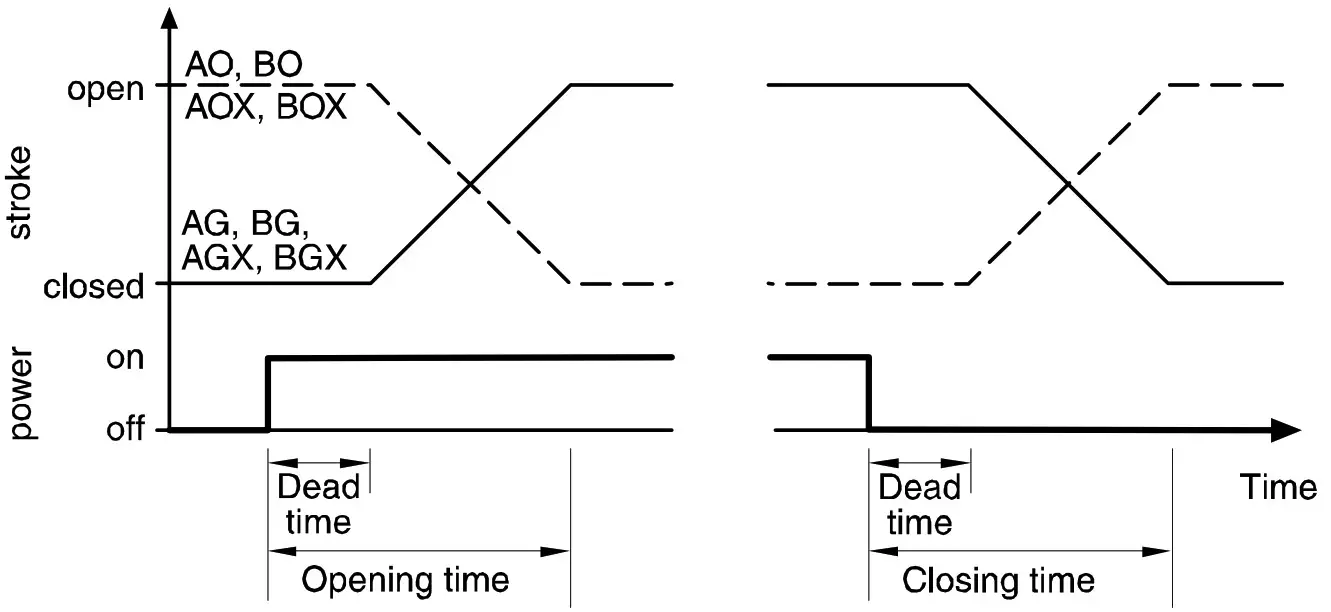

Opening and Closing Time
NOTE: Opening and closing times depend upon ambient temperature and model.
Ordering Information
| OS no. | Description | Valve action (Valve opens when heated) | Voltage | Cable | Power consumption |
| M100-AG | M100 small linear thermoelectric actuator | valve closed without current | 24 V | Lenght: 1 m Wires: 2 x 0.5 mm2 | 3 W |
| M100-AO | valve open without current | 24 V | |||
| M100-BG | valve closed without current | 230 V | |||
| M100-BO | valve open without current | 230 V | |||
| M100-AGX | M100 small linear thermoelectric actuator — low initial power consumption | valve closed without current | 24 V | Lenght: 1 m Wires: 2 x 0.5 mm2 | 2 W |
| M100-AOX | valve open without current | 24 V | |||
| M100-BGX | valve closed without current | 230 V | |||
| M100-BOX | valve open without current | 230 V |

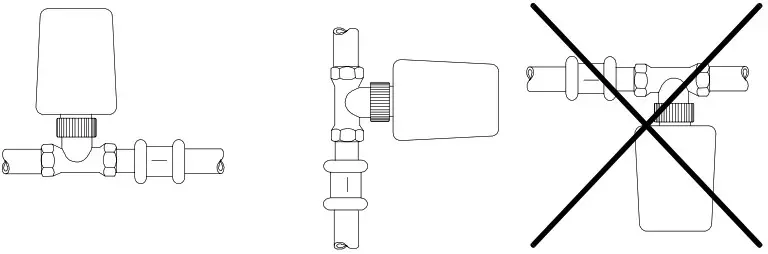

Installation Positions
NOTE: Connection leads must not touch the piping (heat transfer).

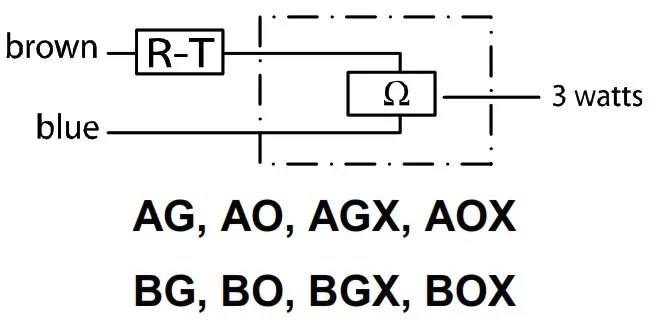

Wiring Diagram
Accessories
ZA100M-D Adapter for Danfoss-Valve RAVL
ZA100M-GD Adapter for Danfoss-Valve RA
