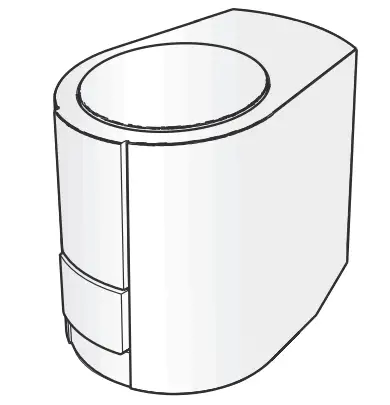

Honeywell M4100E1510 Modulating Thermoelectric Actuator
Assembly

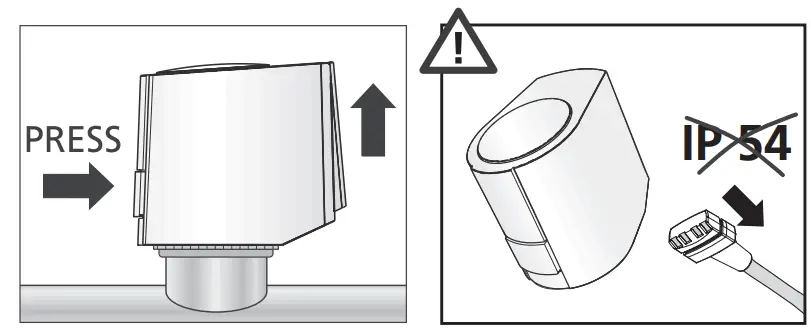

Disassembly
Connection
To protect against overloading, fusing appropriate to the given cable cross-section must be installed.
Supply voltage: Safety transformer (for AC variant) according to EN 61558-2-6 or switching power supply (for DC variant) according to EN 61558-2-16.

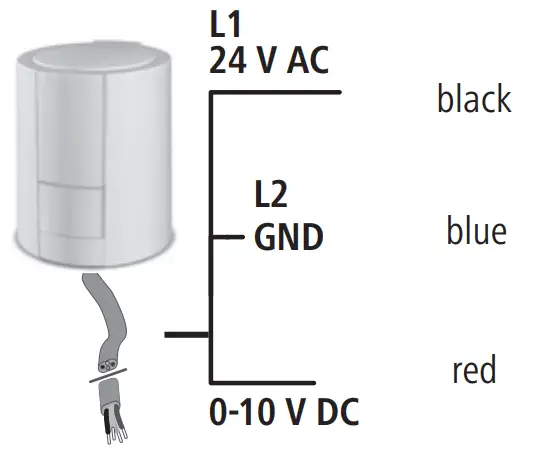

Version AC
M4100E1510

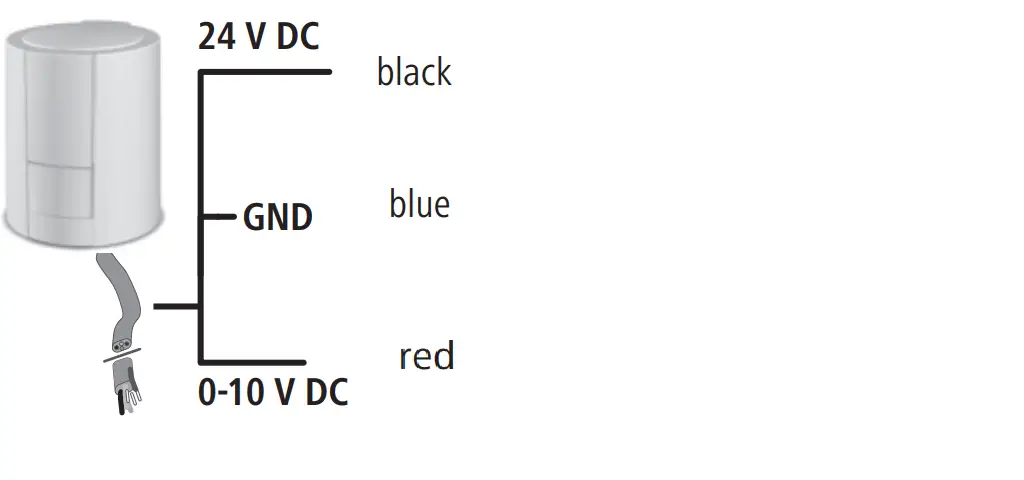

Version DC
M4100K1515

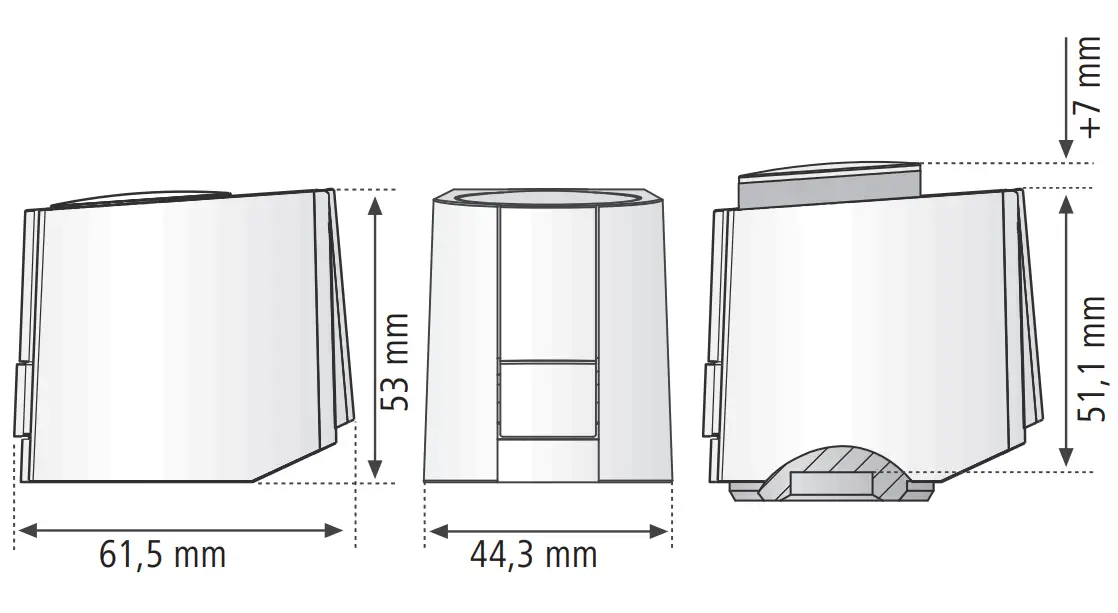

DIMENSION

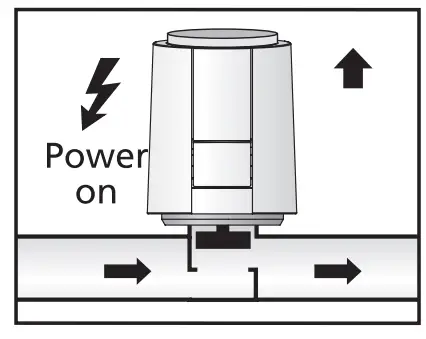

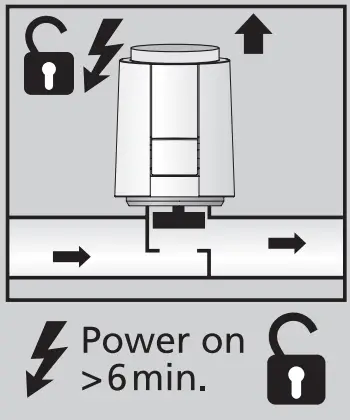

Optional First-Open
Adaption check

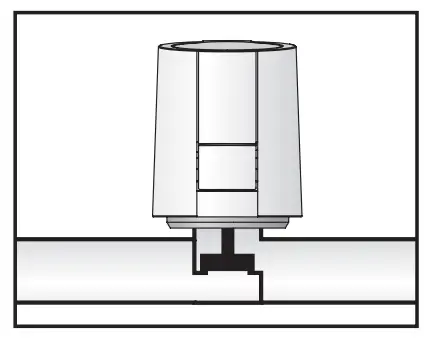

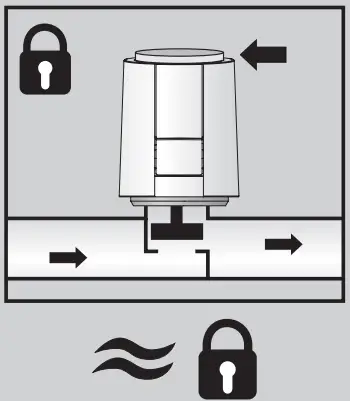

Function mode

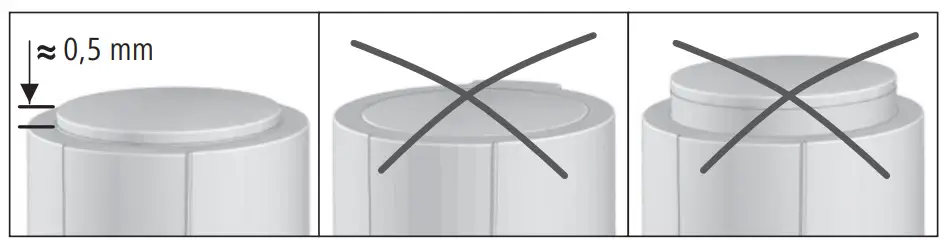

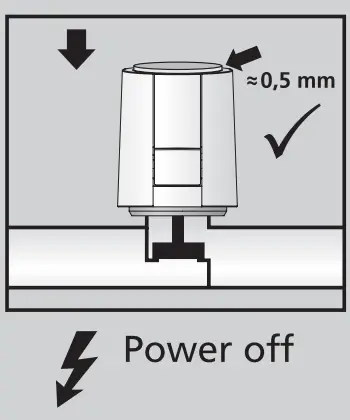

Closing point verification
Dynamical, if the valve is positioned at the closing point.
Technical Specifications
Operating power: 1 W
Max. inrush current: < 320 mA for max. 2 min
Control voltage: 0 – 10 V
Actuating force: 100 N +10 %
Degree of protection: IP 54
Ambient temperature: 0 … +60 °C
Storage temperature: -25 … +60°C
Manufactured for and on behalf of the Environmental & Energy Solutions Division of Honeywell Technologies Sàrl, Rolle, Z.A. La Pièce 16, Switzerland byits Authorized Representative:
Automation and Control Solutions
Honeywell GmbH
Böblinger Strasse 17
71101 Schönaich, Germany
Phone: +49 (0) 7031 637 01
01
http://ecc.emea.honeywell.com
