SABRENT EC-NVME USB Type-C Aluminum Enclosure
FEATURES
- USB 3.1 Enclosure for NVMe PCle M Key M.2 SSD
- Compatible with Sizes: 2230/ 2242/ 2260/ 2280
SYSTEM REQUIREMENTS
- Windows 7 or higher/ Mac 0S 10 5 or higher
PACKAGE CONTENTS
- USB 3.1 Enclosure for NVMe PCle M Key M.2 SSD
- USB Cable
- USB Type-C Adapter
- Set of screws and rubber feet
INSTALLATION

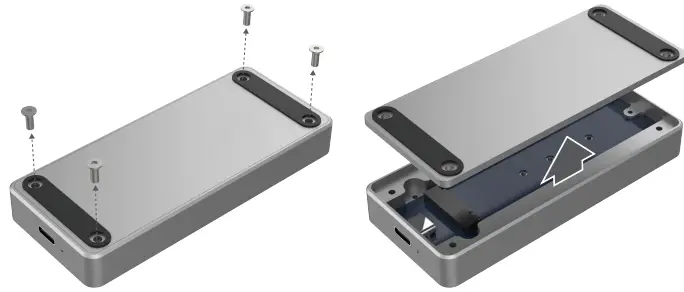

- Remove screws
- Remove bottom plate
WARNING: Only compatible with M Key M.2 PCle NVMe SSD It is NOT compatible with B Key SSD (SATA-based) or the M Key M.2 SSD (PCIe AHCl-based)

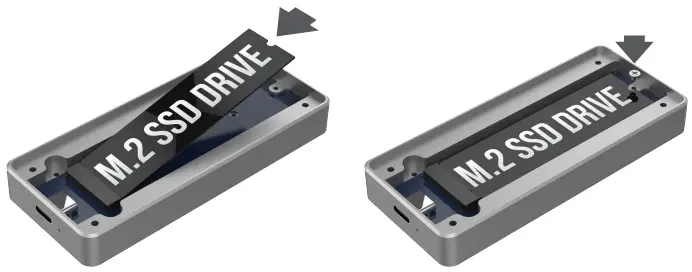

- At a 45-degree angle, slide in your SDD until it is properly seated
- Screw in a retainer screw to hold your SSD in place

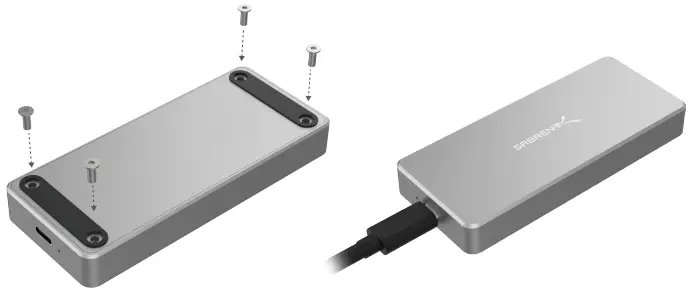

- Reattach the bottom plate and fasten the screws in place
- Connect the USB cable to both the device and the computer
FOR HELP, COMMENTS, QUESTIONS, OR CONCERNS
PLEASE CONTACT OUR TECH SUPPORT TEAM VIA OUR WEBSITE: www.SABRENT.COM
