Wireless Presentation System
Wireless Presentation System
WP Series
Available from Oct. 2020*
*Availability varies depending on country or region
| Easy operation with lust a single press of a button |  |
| More option for transmitter connectivity |  |

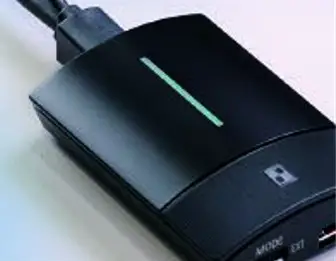

| Installation flexibility with efficient design to fit in various scenes |  |
| Safe and secure performance without stress even in wireless |  |
Heighten our awareness of the value of face-to-face communication as a precious opportunity.

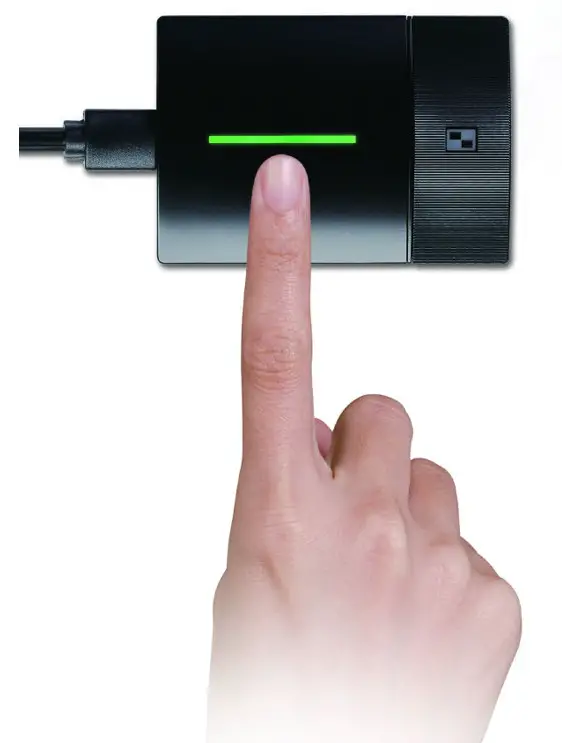

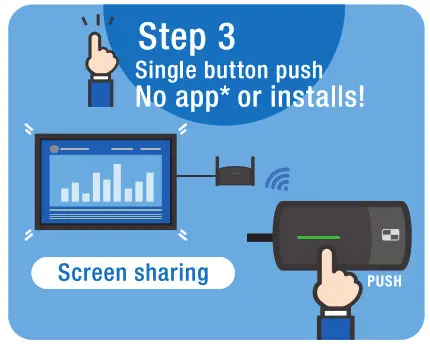

“PressIT” is a Panasonic’s Wireless Presentation System that allows easy screen collaboration with just a single press of a button on a transmitter.
Easy
 |  |  |
Functions
| Connects to mobile devices | *iso devices with lightning terminal require Lightning-Digital AV adaptor (Apple genuine) When using Android devices, It requires PressIT app from Google Play. |  |
| Presents 4 screens in Full HD (supports 4K) |
| |
| Low latency and High-definition video | 1920 ×1090 pixels/ max 60p | |
| Connects up to | 32 transmitters at once | |
| Compact and stylish design | ||
| HDMI CEC | command compatible display/projector | |
| Lock mode | prevents Interrupts | |
| Antibacterial | surface treatment for transmitter | |
Lineup

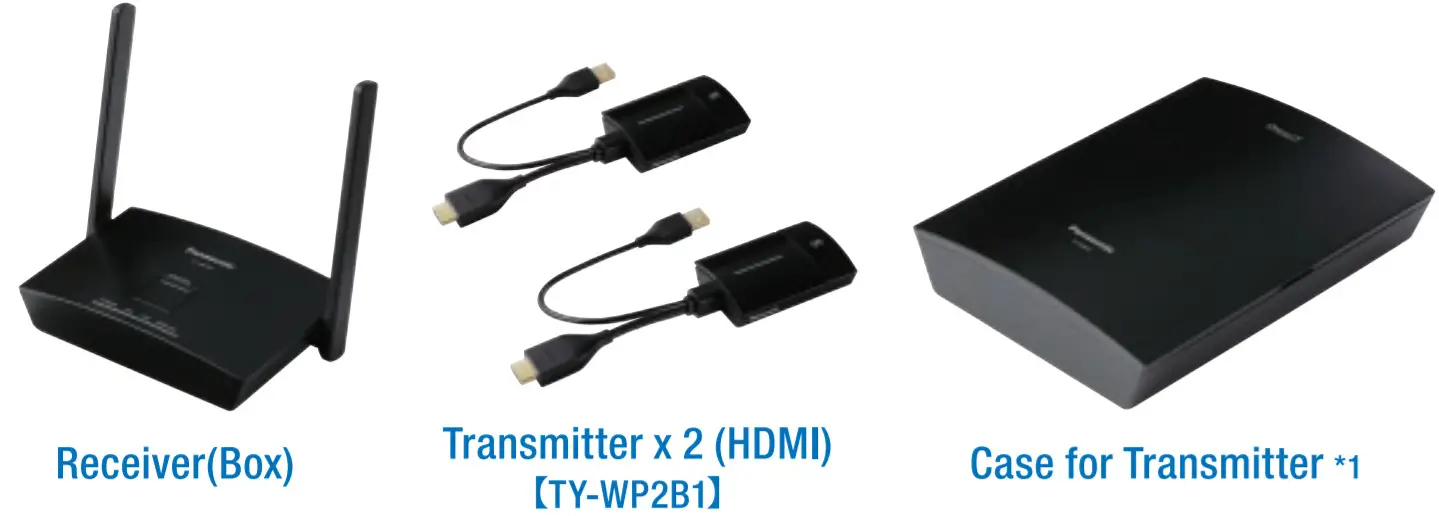

| Basic Set (TY-WPS1) |  |
| Transmitter |  |
| Available later in the year |  |
Specifications

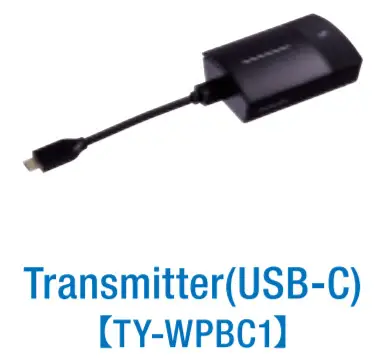

| Product | Receiver | Transmitter(HDMI/USB) [–rv-wPB1] | Transmitter(USB-C) [Tv-WPBC1] | |
| Max. resolution/ Framerate | 1920×1080/60p (max.) , 3840×2160/30p (max.) | 1920 x 1080/60p (max.) | ||
| Number of simultaneous connections | 32 | – | ||
| Number of sources simultaneous on screen | 4 | – | ||
| Data Rate | Wired | 10/100/1000 (Mbps) | – | |
| Wireless | 867 Mbps (max.) | 433 Mbps (max.) | ||
| Frequency band | 5 GHz band , 5,150 MHz – 5,250 MHz , 36 40 44 48 Channel | |||
| Wireless Communication Standard | IEEE802.11/a/n/ac | I IEEE802.11/ac | ||
| Security | WPA/WPA2 | |||
| Reachable distance | 30m (When the line of sight/wave conditions are good) | |||
| Connection terminal | HDMI/USB-A (female) /RJ45(LAN) | HDMI/USB-A (female)/USB-A (male) | I USB-A (female)/USB-C (male) | |
| Power | DC 5V/2A | DC 5V/0.9A | ||
| Power consumption | 10W | 4.5W | ||
| Environment | Operating | Temperature: 0 °C to 35 °C (32 °F to 95 °F) / Humidity: 20% to 80% (No condensation) | ||
| Storage | Temperature: -20 °C to 60 °C (-4 °F to 140 °F) / Humidity: 20% to 80% (No condensation) | |||
| Dimensions (W x H x D) | 120x 26 x 81 mm (4.71″ x 1.03″ x 3.19″) (Excluding antenna) | 51 x 21 x 73 mm (2.0″ x 0.8″ x 2.86″) (Excluding cable) | 51 x26 x73 mm (2.0″ x 1.0″ x 2.86″) (Excluding cable) | |
| Weight | Approx. 181 g / 0.4 lbs | Approx. 110 g / 0.3 lbs | Approx. 110 g / 0.3 lbs | |

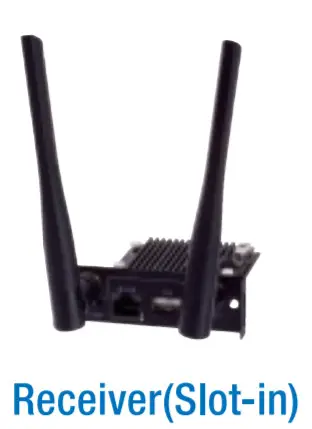

*1 Dimensions W151.3xH41.6xD198.0mm(6.0″x1.6″x7.8″), Weight Approx. 315g/0.71bs
Presse is a trademark of Panasonic Corporation. iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license. Apple is a trademark of Apple Inc. Android and Google plays are trademarks or registered trademarks of Google LLC. The weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice. Product availability may vary in region and country. Intel® is a registered trademark or trademark of Intel Corporation, registered in the U.S. and other countries and regions. This product may be subject to export control regulations. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. USB Type-C and USB-C are trademarks or registered trademarks of USB Implementers Forum. All other trademarks are the property of their respective trademark owners. © 2020 Panasonic Corporation. All rights reserved.
For more information about PressITI
please visit: PressIT Global Website — panasonic.net/cns/prodisplays/pressit
YouTube — www.youtube.com/user/PanasonicProDisplay
https://panasonic.net/cns/prodisplays/pressit
All information included here is valid as of Feb. 2021.
CT20-UO3PF-WPS Printed in Japan.
