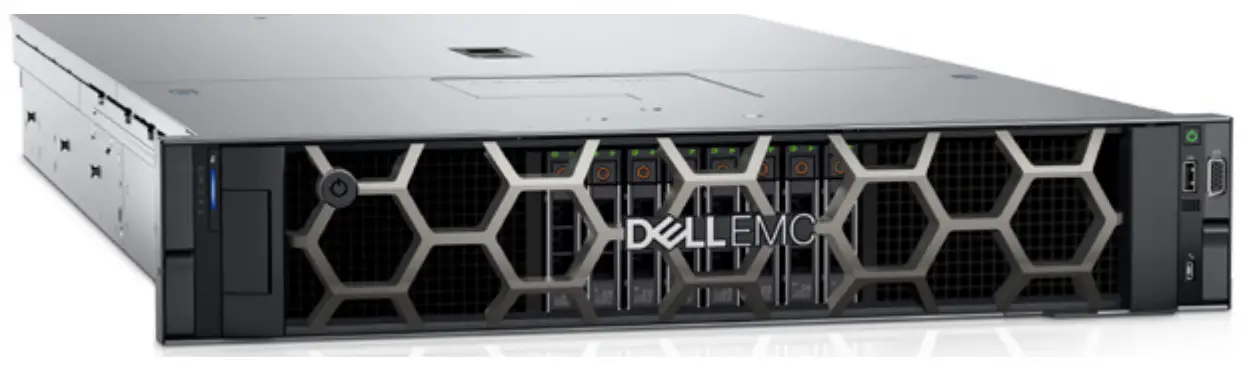

DELL PowerEdge R750xa Rack Server

Contents hide

1 Introduction

2 Innovate at scale with challenging and emerging workloads

3 Increase efficiency and accelerate operations with autonomous collaboration

4 Protect your data assets and infrastructure with proactive resilience

4.1 PowerEdge R750xa

5 Recommended services

6 Dell Technologies on Demand

6.1 Discover more about PowerEdge servers

7 Documents / Resources

7.1 References

8 Related Posts

Introduction

The Dell PowerEdge R750xa, is a purpose-built server designed to boost acceleration performance across the widest range of customer needs.

Innovate at scale with challenging and emerging workloads

The Dell PowerEdge R750xa, powered by the 3rd Generation Intel® Xeon® Scalable processors, is a dual-socket/2U rack server that delivers outstanding performance for the most demanding emerging and intensive GPU workloads. It supports 8 channels/CPU, up to 32 DDR4 DIMMs @ 3200 MT/s DIMM speed. In addition, to address substantial throughput improvements the PowerEdge R750xa supports PCIe Gen 4 and up to 8 SAS/SATA SSD or NVMe drives. With one platform that supports all of the PCIe GPUs in the PowerEdge portfolio, this makes the PowerEdge R750xa the ideal server for emerging workloads including AI-ML/DL Training and Inferencing, High-Performance Computing and virtualization environments.

Increase efficiency and accelerate operations with autonomous collaboration

The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.

Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools

Protect your data assets and infrastructure with proactive resilience

The Dell PowerEdge R750xa server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
Maintain server firmware safety with digitally signed firmware packages
Prevent unauthorized configuration or firmware change with system lockdown
Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase

PowerEdge R750xa

The Dell PowerEdge R750xa offers compelling performance, high-speed memory and capacity and exceptional support for a wide range of GPU offering Ideal for:

AI/ML/DL Training and Inferencing
High-Performance Computing
Virtualization

Feature	Technical Specifications
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
Memory	32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 4 TB max, speeds up to 3200 MT/s Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max Supports registered ECC DDR4 DIMMs only
Storage controllers	Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB External PERC (RAID): PERC H840, HBA355E
Drive Bays	Front bays: Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 6 x 2.5-inch NVMe (SSD) direct-attach max 92.1 TB
Power Supplies	1400 W Platinum AC/240 mixed mode 1800 W Titanium HLAC/240 mixed mode 2400 W Platinum AC/240 mixed mode 2800 W Titanium HLAC/240 mixed mode
Cooling Options	Air cooling, optional processor liquid cooling
Fans	High performance GOLD fa Up to six hot plug fans
Dimensions	Height – 86.8 mm (3.41 inches) Width – 482 mm (18.97 inches) Depth – 894.8 mm (35.22 inches) – without bezel 908.64 mm (35.77 inches) – with bezel
Form Factor	2U rack server
Embedded Management	iDRAC9 iDRAC Service Module iDRAC Direct Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
Open Manage Software	Open Manage Enterpris Open Manage Power Manager plugin Open Manage Support Assist plugin Open Manage Update Manager plugin
Mobility	Open Manage Mobile
Integrations and Connections	Open Manage Integrations BMC True sight Microsoft System Center Red Hat Ansible Modules VMware vCenter and vRealize Operations Manager	Open Manage Connections IBM Tivoli Netcool/OM Nimbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager Nagios Core Nagios XI
Security	Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM
Network Options	1 x OCP 3.0 (x8 PCIe lanes)
GPU Options	Up to four single-width 150 W or four double-width 300 W in the front and two single-width 75 W at the rear
Ports	Front Ports 1 x Dedicated iDRAC Direct micro-US 1 x USB 2.0 1 x VGA	Rear Ports 1 x USB 2.0 1 x Serial (optional) 1 x USB 3. 2 x RJ-45 1 x VGA (optional for liquid cooling configuration)
	Internal Ports 1 x USB 3.0
PCIe	Up to 8 x PCIe Gen4 slots (up to 6 x16 + 2 x8)
Operating System and Hypervisors	Canonical Ubuntu Server LTS Citrix Hyperviso Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi For specifications and interoperability details, see Dell.com/OSsupport.
OEM-ready version available	From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com/OEM.

Recommended services

Dell Pro Support Plus for critical systems or Dell Pro Support for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visit Dell.com/ Service Descriptions.

Dell Technologies on Demand

Consume technology, infrastructure and services any way you want with Dell Technologies on Demand, the industry’s broadest end-to-end portfolio of flexible consumption and as-a-Service solutions. For more information, visit: www.delltechnologies.com/ondemand.
