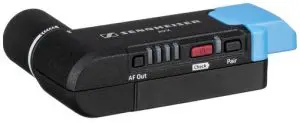

SENNHEISER EKP AVX Camera Mount Plug In Receiver User Manual

Contents hide

1 COMPLIANCE

2 Warranty

3 EU Declaration of conformity

4 Statements regarding the FCC and Industry Canada rules

5 SPECIFICATIONS

6 Documents / Resources

7 Related Posts

COMPLIANCE

System

Europe
USA		SK: FCC ID: DMOSK1G9WE SKM: FCC ID: DMOSKM1G9WE EKP: FCC ID: DMOEKP1G9WE
Canada	SK SKM EKP	IC: 2099A-SK1G9WE IC: 2099A-SKM1G9WE IC: 2099A-EKP1G9WE
Australia / New Zealand
Japan		SKM: 202-SMC049 SK: 202-SMC050 EKP: 202-SMC051
Brazil		SKM: 05799-17-07356 SK: 05811-17-07356 EKP: 05102-18-07356
Russia

NT 5-10 UW

Europe		Commission Regulation (EC) No. 1275/2008
		ENEC 22 SIQ
USA / Canada
Australia / New Zealand		EMC AS/NZ CISPR 22 Safety AS/NZL 60950.1
Japan
Russia

Rechargeable batteries

Europe
USA / Canada	Rechargeable battery cells Accupack	UL 1642 UL 2054
Japan		DENAN Ordinance Article 1; Appendix 9 Lithium Ion
Korea		Safety K 62133
Russia
UN transportation test	according to UN Manual of Tests and Criteria, Part III, section 38.3 Lithium-Ion batteries

Manufacturer Declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product.

For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.

Warranty FOR AUSTRALIA and NEW ZEALAND ONLY:

Sennheiser Australia Pty Ltd provides a warranty of 24 months on these products.

For the current warranty conditions, visit Sennheiser website:
Australia: https://en-au.sennheiser.com/
New Zealand:

Sennheiser goods come with guarantees that cannot be excluded under Australian and New Zealand Consumer law.
You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

This warranty is in addition to other rights or remedies under law. Nothing in this warranty excludes, limits or modifies any remedy available to be consumer which is granted by law

To make a claim under this contract, raise a case via Sennheiser website
Australia: https://en-au.sennheiser.com/
New Zealand: https://en-nz.sennheiser.com/

All expenses of claiming the warranty will be borne by the person making the claim.

Sennheiser international warranty is provided by: Sennheiser Australia Pty Ltd (ABN 68 165 388 312) Level 14, Tower A Zenith Building, 821 Pacific Highway, Chatswood NSW 2067, Australia

Conditions and restrictions for using frequencies

Conditions and restrictions for using frequencies
There may be special conditions and restrictions for using frequencies in your country. Before putting the product into operation, find the information for your country at the following address: www.sennheiser.com/sifa

In compliance with the following requirements WEEE Directive (2012/19/EU) Battery Directive (2006/66/EC & 2013/56/EU)

Notes on disposal

The symbol of the crossed-out wheeled bin on the product, the battery/rechargeable battery (if applicable) and/or the packaging indicates that these products must not be disposed of with normal household waste, but must be disposed of separately at the end of their operational lifetime. For packaging disposal, please observe the legal regulations on waste segregation applicable in your country.

Further information on the recycling of theses products can be obtained from your municipal administration, from the municipal collection points, or from your Sennheiser partner.

The separate collection of waste electrical and electronic equipment, batteries/rechargeable batteries (if applicable) and packaging’s is used to promote the reuse and recycling and to prevent negative effects caused by e.g. potentially hazardous substances contained in these products. Herewith you make an important contribution to the protection of the environment and public health.

EU Declaration of conformity

RoHS Directive (2011/65/EU)

Hereby, Sennheiser electronic GmbH & Co. KG declares that the radio equipment type c is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.sennheiser.com/download.

Statements regarding the FCC and Industry Canada rules

This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:

This device may not cause harmful interference, and
this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void the FCC authorization to operate this equipment.

Radiofrequency radiation exposure information:

This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. The EKP AVX should be installed and operated with a minimum distance of 20 cm between the radiator and your body.

SK AVX, SKM AVX, SKM-S AVX: The radiated output power of the device is far below the FCC radio frequency exposure limits. Nevertheless, the device shall be used in such a manner that the potential for human contact during normal operation is minimized.

Japanese Radio Law and Japanese Telecommunications Business Law Compliance.

This device is granted pursuant to the Japanese Radio Law This device should not be modified (otherwise the granted designation number will become invalid)

SPECIFICATIONS

System

AF frequency response	20 to 20,000 Hz
Dynamic range	> 120 dB (A)
Total harmonic distortion (THD)	typ. 0.1 %
Audio sampling	24 bit/48 kHz
Signal-to-noise ratio	> 90 dB (A)
RF frequency ranges	(Country code)
Europe, Indonesia, Hongkong, Singapore, Malaysia, Vietnam, Australia, New Zealand	1880 – 1900 MHz (-3)
USA, Canada, Argentina, Mexico	1920 – 1930 MHz (-4)
Japan	1893 – 1906 MHz (-5)
Taiwan	1880 – 1895 MHz (-6)
Brazil	1910 – 1920 MHz (-7)
Modulation	GFSK with back channel
Transmission method	TDMA fast switching antenna diversity
Latency	19 ms
Relative air humidity	max. 95 %
Temperature range*	Operation: –10 °C to +55 °C Storage: –20 °C to +70 °C

The temperature range is influenced by the battery characteristics

EKP AVX (Camera Receiver)

RF sensitivity	< –90 dBm
RF output power back channel	typ. 15 dBm e.i.r.p.
Audio output XLR, balanced	adjustable –30 dBu to 0 dBu in 4 steps
Power supply	BA 20 (Li-Ion 3.7 V)
Operating time	> 4 h
AF connection socket	XLR, male
Weight (incl. BA 20)	approx. 87 g

SKM AVX (Handheld Transmitter)

RF output power	adaptive, up to 250 mW (country-specific)
AF frequency response	50 to 20,000 Hz
Input sensitivity	automatic sensitivity adjustment
Power supply	Rechargeable batteries: BA 10 (Li-Ion, 3.6 V) Batteries*: 2 x AA size battery (1.5 V)
Operating time	Rechargeable batteries: typ. 15 h Batteries*: typ. 10 h
Display	LCD
Weight (w/o Rechargeable batteries)	approx. 282g incl. microphone head
optional accessory

SK AVX (Bodypack Transmitter)

RF output power	adaptive, up to 250 mW (country-specific)
AF frequency response	Mic: 50 to 20,000 Hz Line: 20 to 20,000 Hz
Max. input level	Mic: 1.5 V RMS Line: 3.1 V RMS
Line input impedance	1 MΩ
Input sensitivity	automatic sensitivity adjustment
Power supply	Rechargeable batteries: BA 30 (Li-Ion, 3.7 V) Batteries*: 2 x AA size battery (1.5 V)
Operating time	Rechargeable batteries: typ. 15 h Batteries*: typ. 11 h
Display	LCD

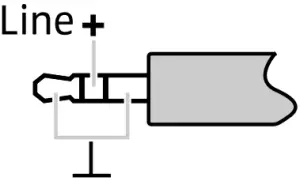

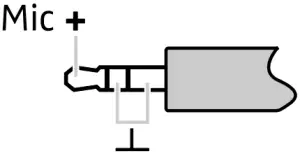

AF connection socket	3.5 mm jack socket, lockable connector assignment:

Weight (w/o Rechargeable batteries)	approx. 87 g
optional accessory

Microphone Modules

	MMD 835-1	MMD 42-1
Microphone type	dynamic
Sensitivity	2.1 mV/Pa	1,8 mV/Pa
Pick-up pattern	cardioid	omni-directional
Max. SPL	154 dB SPL	154 dB SPL

Clip-on microphones

	ME 2-2	MKE 2
Microphone type	pre-polarized condenser microphone
Sensitivity	20 mV/Pa	5 mV/Pa
Pick-up pattern	omni-directional
Max. SPL	130 dB SPL	142 dB SPL

Power supply unit NT 5-10 UW

	NT 5-10 UW
Input voltage	100 to 240 V~, 50/60 Hz
Output voltage	5 V
Output current	1A
Standby power consumption	≤ 0.1 W
Energy efficiency level	VI
Temperature range	Operation: 0 °C to +45 °C Storage: –40 °C to +70 °C
Relative air humidity	max. 95 %
Weight	approx. 55 g

Rechargeable batteries

	BA 10	BA 20	BA 30
Charging capacity	2200 mAh	430 mAh	2030 mAh
Output voltage	3.6 V	3.7 V	3.7 V

	Part Name
	Metal parts	Circuit modules	Cables & Cable assemblies	Non-electrical accessories / consumables	Circuit Breakers	Battery
Pb	x	x	x	x	x	x
Hg	o	o	o	o	o	o
Cd	o	o	o	o	o	o
Cr+6	o	o	o	o	o	o
PBB	o	o	o	o	o	o
P二BDE	o	o	o	o	o	o
SJ/T 11364
o :GB/T 26572 x :GB/T 26572
