OSCA02 / OSCA02L

USB Oscilloscope
Device Family
Data Sheet

June 2019, Version 6.0

Features:

• Hand-held portable, 153(L) x 93(W) x 23(H) mm, up to 210g.
• General Purpose I/O interface (TTL 3.3V).
• Open source hardware interface to support expansion modules.
• Open software API for third party development.
• USB 2.0 interface, USB powered.
• 72 hours long time data logger.
• Waveform recording and playback review.
• Support waveform image import as the comparison reference for real-time waveform.
• Support Serial bus decoding (selected models).
• Support buffer waveform preview and mouse wheel operations.

APPLICATIONS:

General-purpose and precision testing.

Embedded in industrial testing equipment for use.

Embedded electronics courses for the educational market.

Ripple and noise measurements for power supply characterization.

Multi-sensor systems and Serial bus decoding.

Car inspection and maintenance.

Current/Voltage recording and analysis System for Solar Power Supply and Lighting System.

Diagnosis device for field engineers.

Basic equipment for DIY makers to develop their own modules.

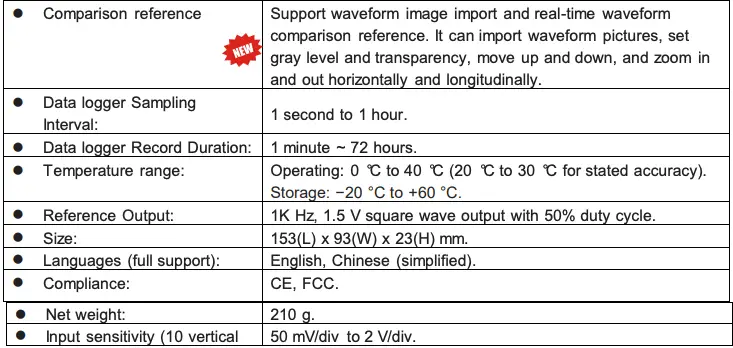

SPECIFICATIONS:

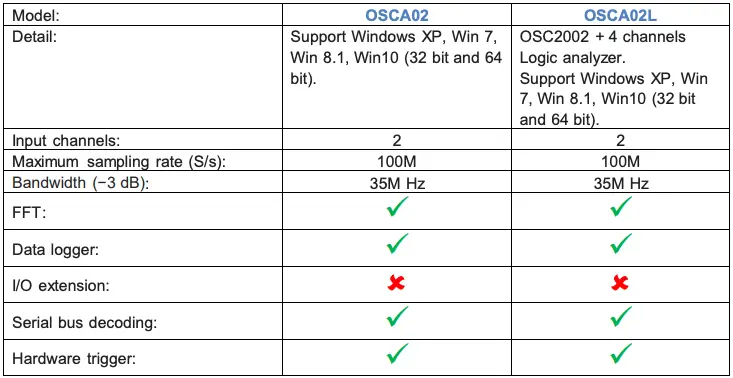

AT A GLANCE

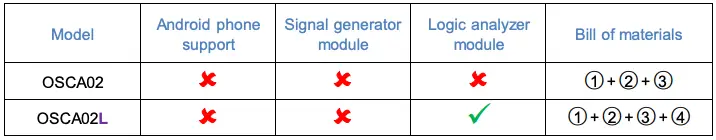

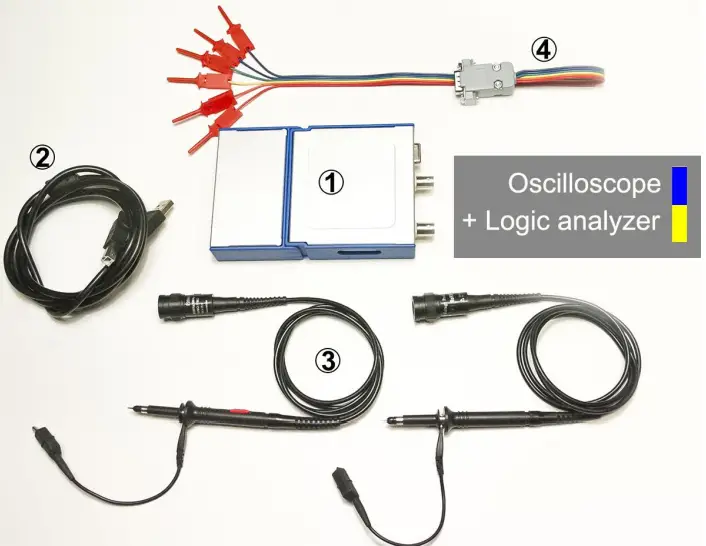

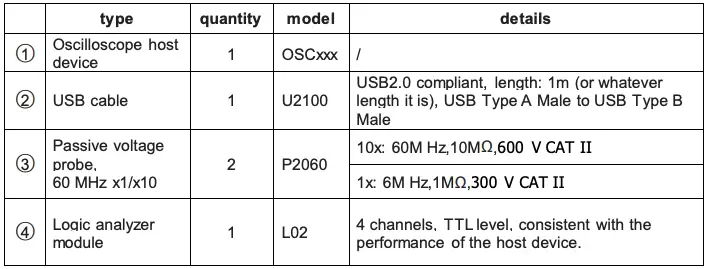

Expansion modules & Accessories:

This 4 is standard or optional, depending on the host you purchased. The host OSCA02L you purchased supports the feature of the module and provide it as standard.

The input voltage between 2V and 3.3V is considered to be high and the input voltage between 0.8V and 0V is considered to be low for the four channels input L0~L3 of the logic analyzer shown above.

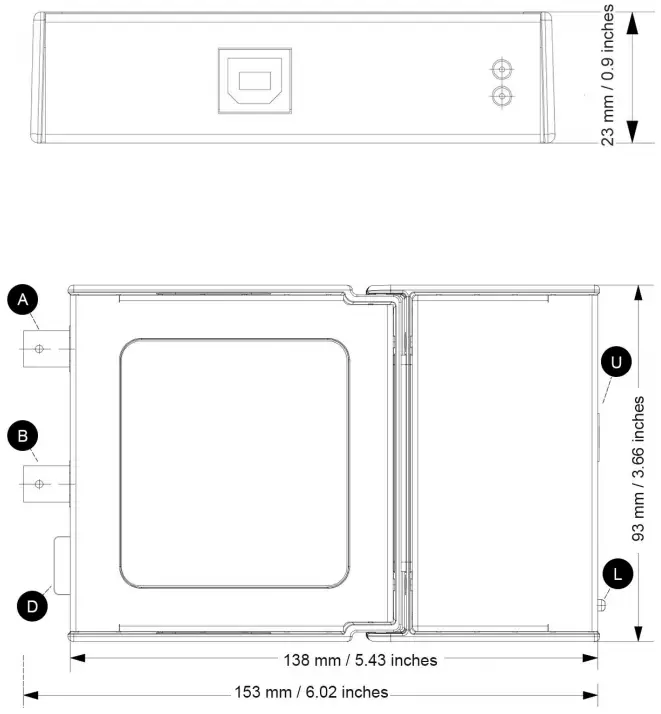

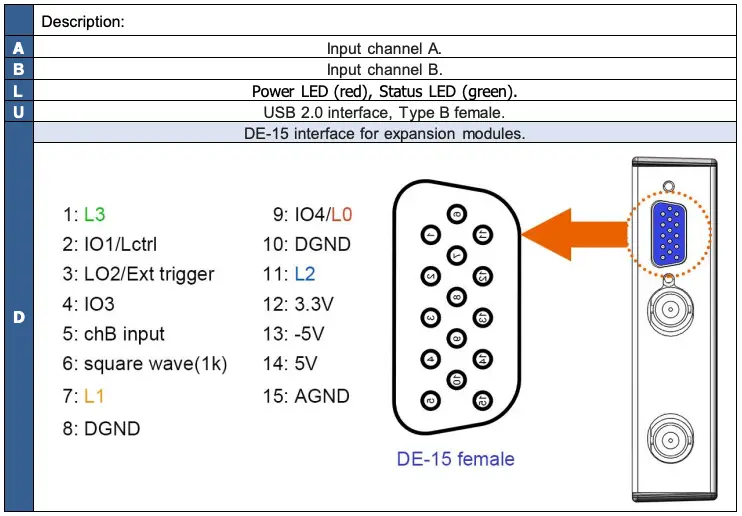

INTERFACES:

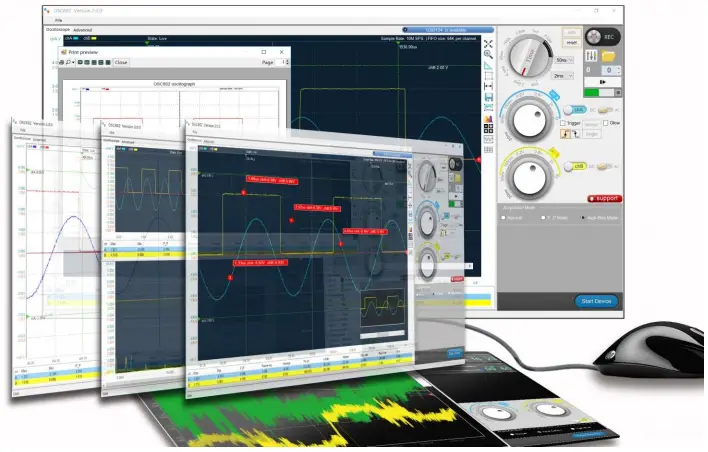

Windows software
