HEARTH HOME ST-CFL-24NG-B 24-Inch See-thru Gas Log Set

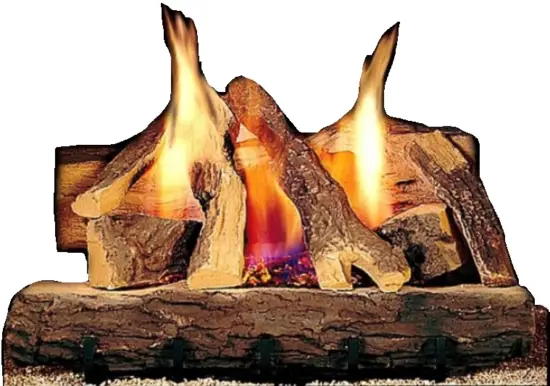

Log Set Assembly
| IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. | Stocked at Depot | |||
ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| Log Assemby | LOGS-STCFL | |||
1 | Log 1 | Pre 5/15/16, Must order complete assembly | SRV569-710 | |
2 | Log 2 | SRV569-711 | ||
3 | Log 3 | |||
4 | Log 4 | SRV481-755 | ||
5 | Log 5 | |||
6 | Log 6 | SRV569-708 | ||
7 | Log 7 | SRV569-709 | ||
8 | Log 8 | SRV569-704 | ||
9 | Log 9 | SRV569-706 | ||
10 | Log 10 | SRV569-707 | ||
11 | Log 11 | SRV569-702 | ||
12 | Log 12 | SRV569-703 | ||
13 | Log 13 | SRV569-705 | ||

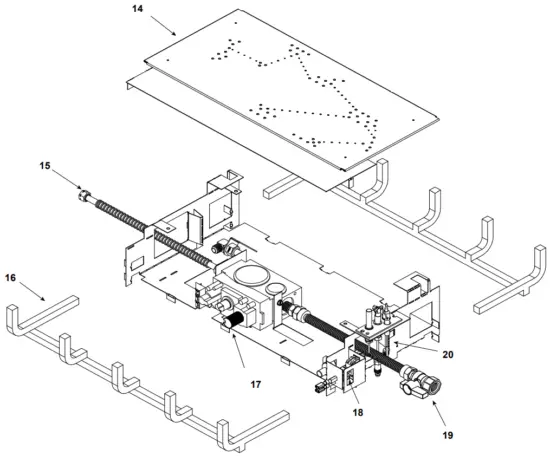

14 | Burner Assembly | 526-011A | Y | |
15 | Flexible Gas Connector | 477-301A | Y | |
16 | Grate Assembly | SRV526-360 | ||
17 | Valve NG | 418-500 | Y | |
| Valve LP | 418-501 | Y | ||
18 | ON/Off Switch | 060-521A | Y | |
19 | Flex Ball Valve Assembly | SRV302-320 | Y | |
20 | Pilot Assembly NG | 2103-010 | Y | |
| Pilot Assembly LP | 2103-011 | Y | ||
| Mineral Wool | 050-721 | |||
| Orifice NG (1.55) | 526-801 | Y | ||
| Orifice LP (2.30 mm) | 526-800 | Y | ||
| Piezo Ignitor | SRV14D0503 | Y | ||
| Pilot Orifice NG | SRV2103-116 | Y | ||
| Pilot Orifice LP | 2103-117 | Y | ||
| Remote Heat Shield | 526-199 | |||
| Thermocouple | 2103-511 | Y | ||
| Thermopile | 2103-512 | Y | ||
| Vermiculite | 060-720 | |||
| Wire Assembly 24 in | 089-550A | Y | ||
| Single Wire Assembly, 24 in | 049-555A | Y | ||
