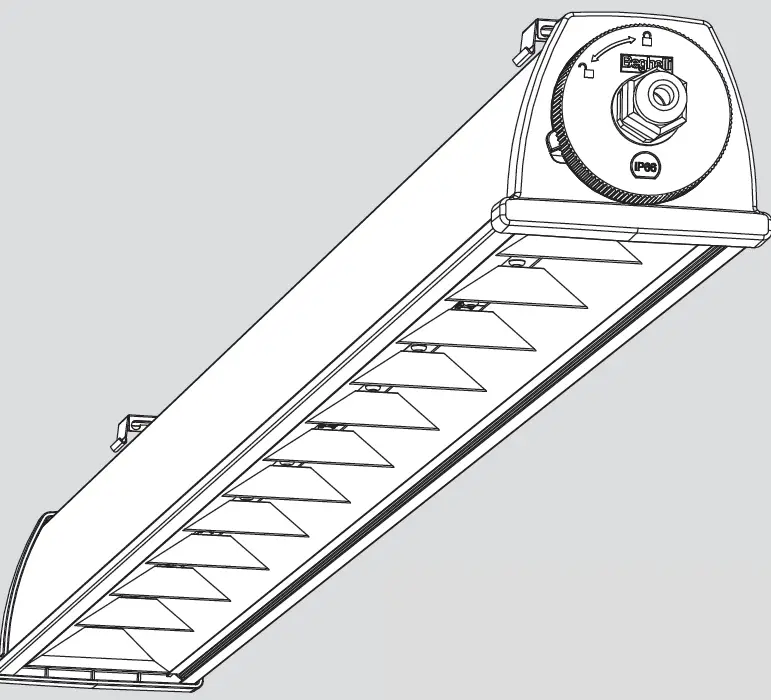

Beghelli Steel ECO Adjustable LED

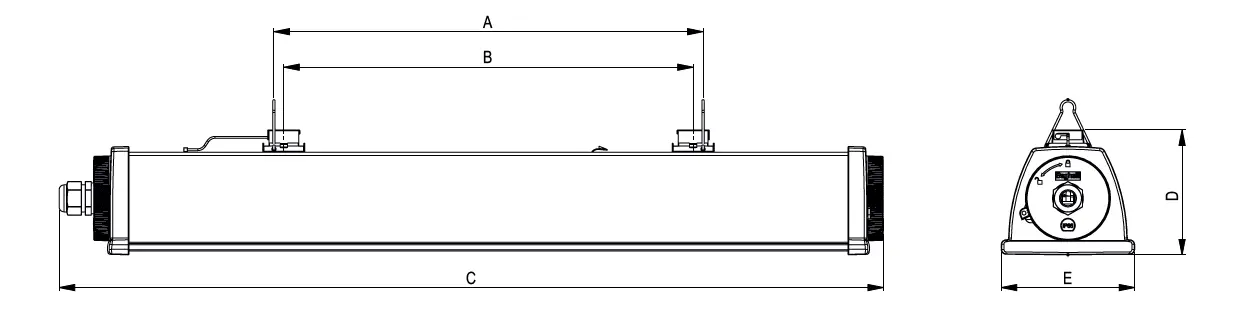

DIMENSION
| A (SUSPENDED) | 347 | 916 | 1200 |
| B (CEILING) | 331 | 900 | 1184 |
| C | 667 | 1236 | 1563 |
| D | 101 | 101 | 101 |
| E | 108 | 108 | 108 |
| PESO (WEIGHT) Kg | 1,7 | 3,1 | 3,9 |

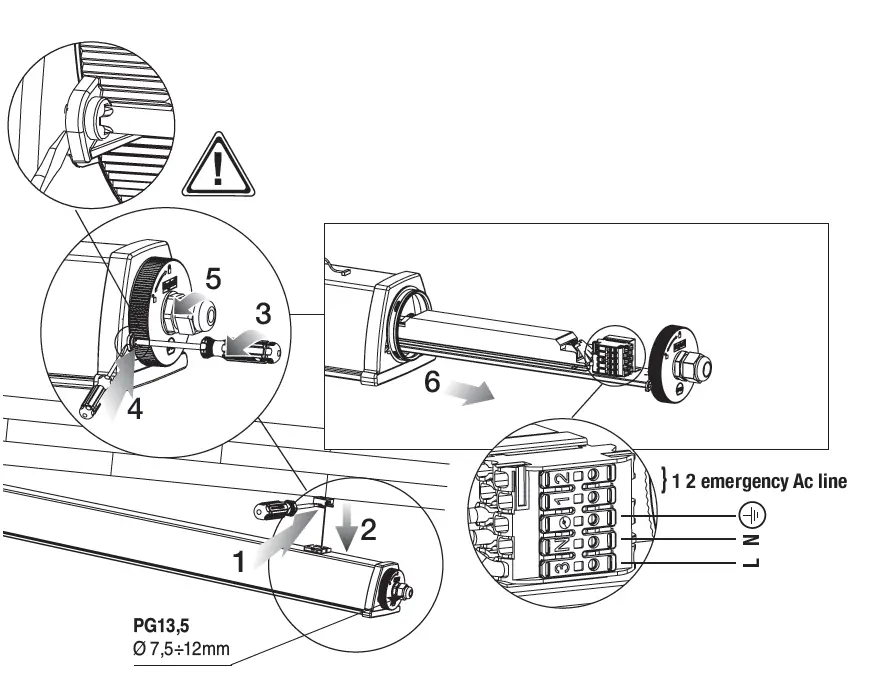

MOUNTING
WIRING
| Irated(mA) | Power % |
| 200mA | 60% |
| 250mA | 74% |
| 300mA | 88% |
| 350mA | 100% |
EMERGENCY KIT MOUNTING (OPTIONAL)
WARNINGS GUARANTEE
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
- This device shall be used exclusively for the purpose for which it has been designed. Any other use is considered improper and therefore dangerous.
- Contact an authorised technical service centre for any repairs possibly required use only original spare parts. The lacked respect of the above conditions may compromise the safety of the device.
- Caution: electric shock
