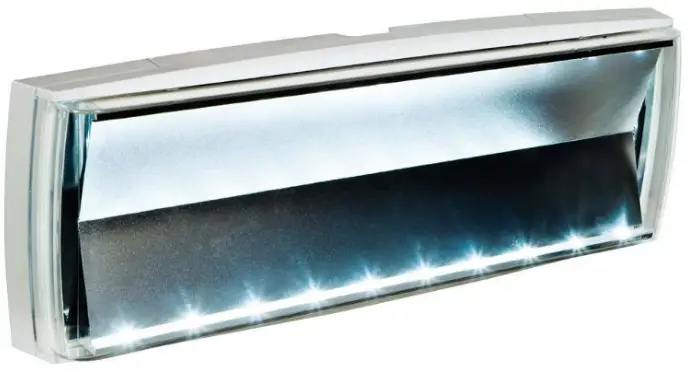

Beghelli 12182 Logica LED Luminaires

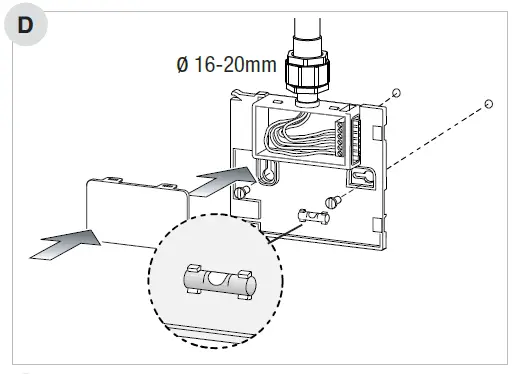

FITTING

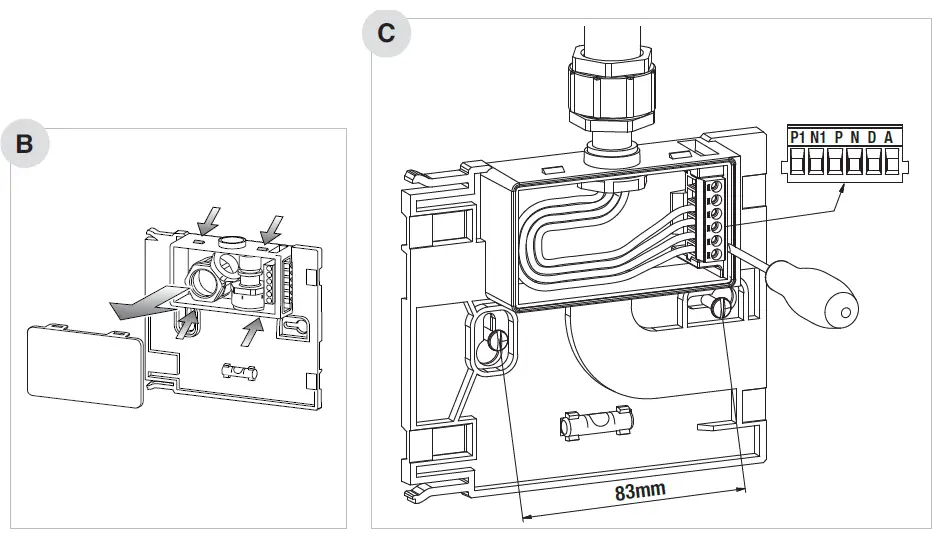

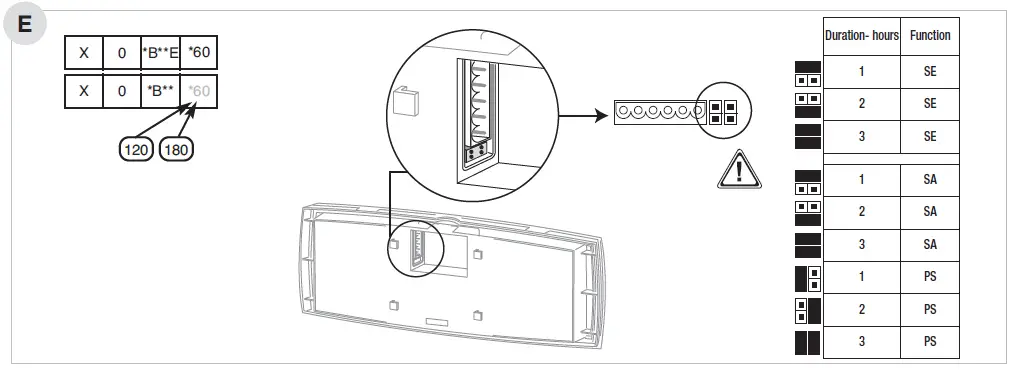

WIRING

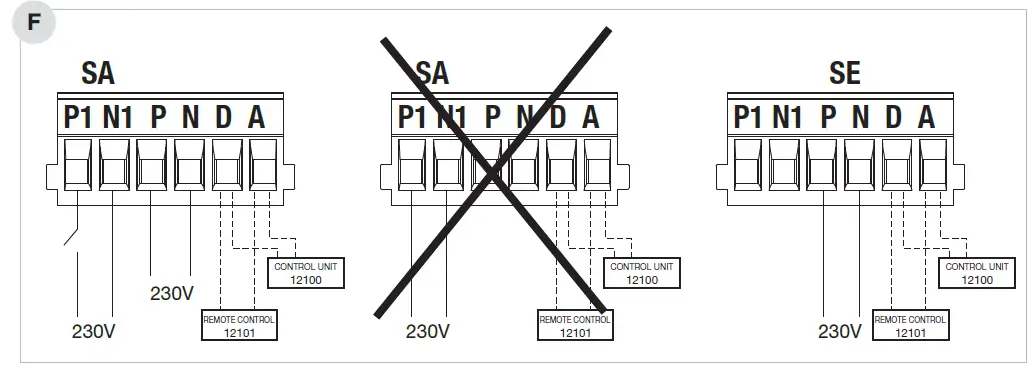

CONNECTION

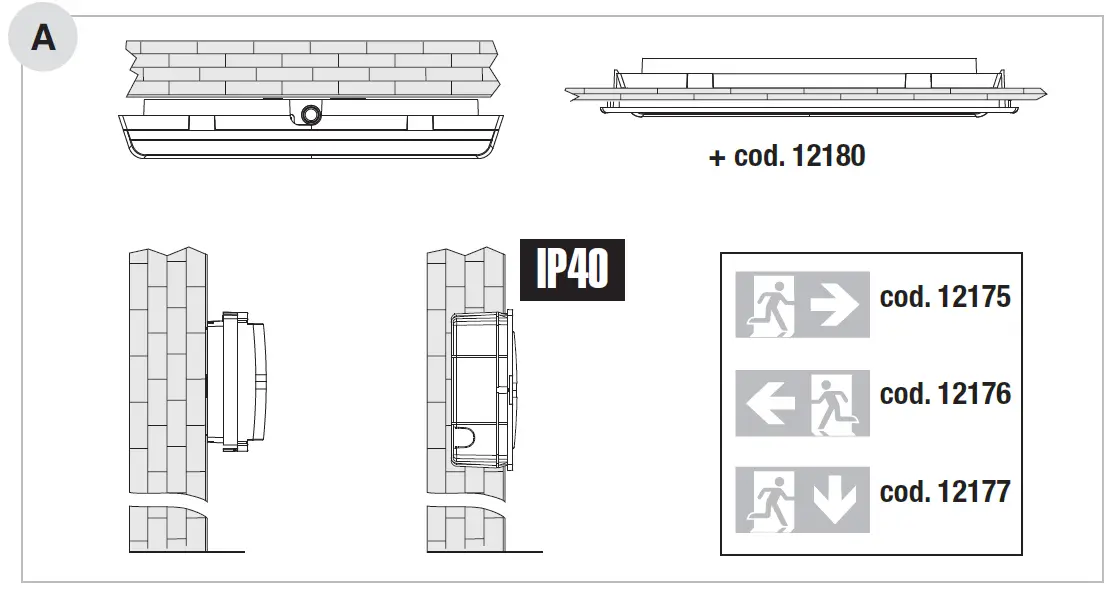

DIMENSIONS

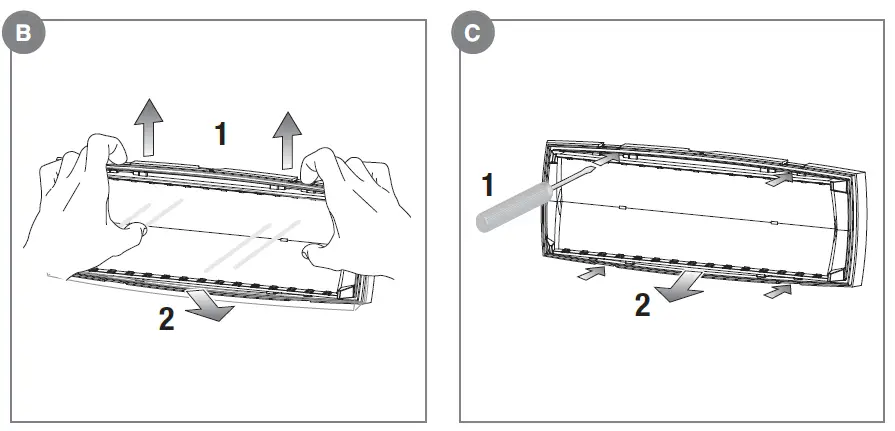

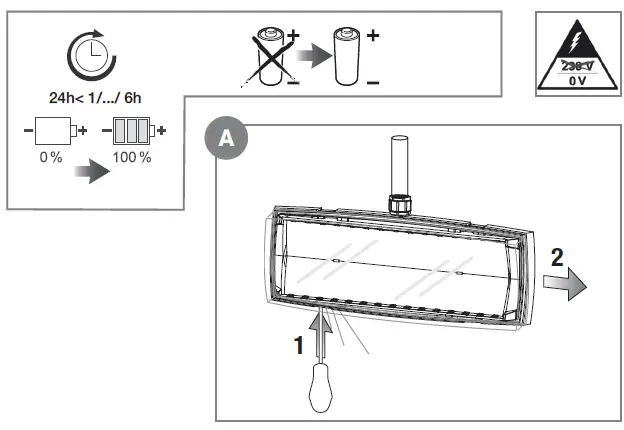

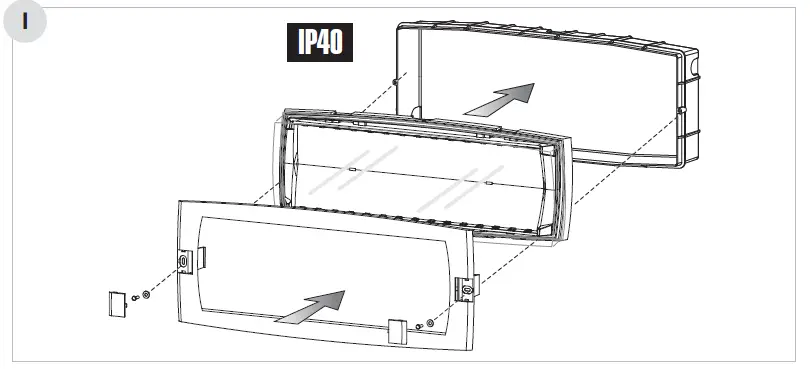

INSTALLATION INSTRUCTIONS
RECYCLING
FEATURES
AUTOMATIC TESTS PERIODICITY
- FUNCTIONAL TEST (30 sec): every 28 days
- AUTONOMY TEST (1h): every 26 weeks

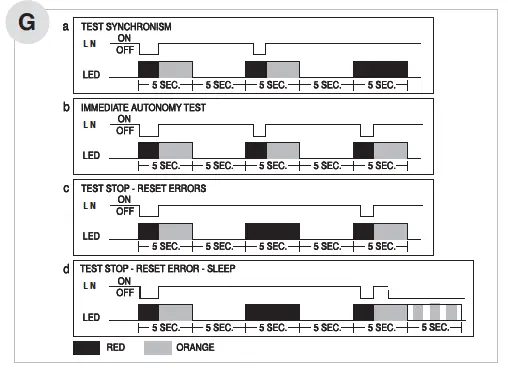

Even lamps carry out the autonomy test 1 week after the odd lamps. (0,2,…,8,A,C,E)= even; (1,3,…,9,B,D,F)= odd. To perform the functions shown on the diagrams turn on and off the power when the red LED is lit.
LED SIGNALS
- FIXED GREEN: BATTERY CHARGED
- FLASHING GREEN: BATTERY CHARGING
- ONE RED FLASH: BATTERY ERROR DURATION
- TWO RED FLASHES: LIGHTING LED TO ERROR

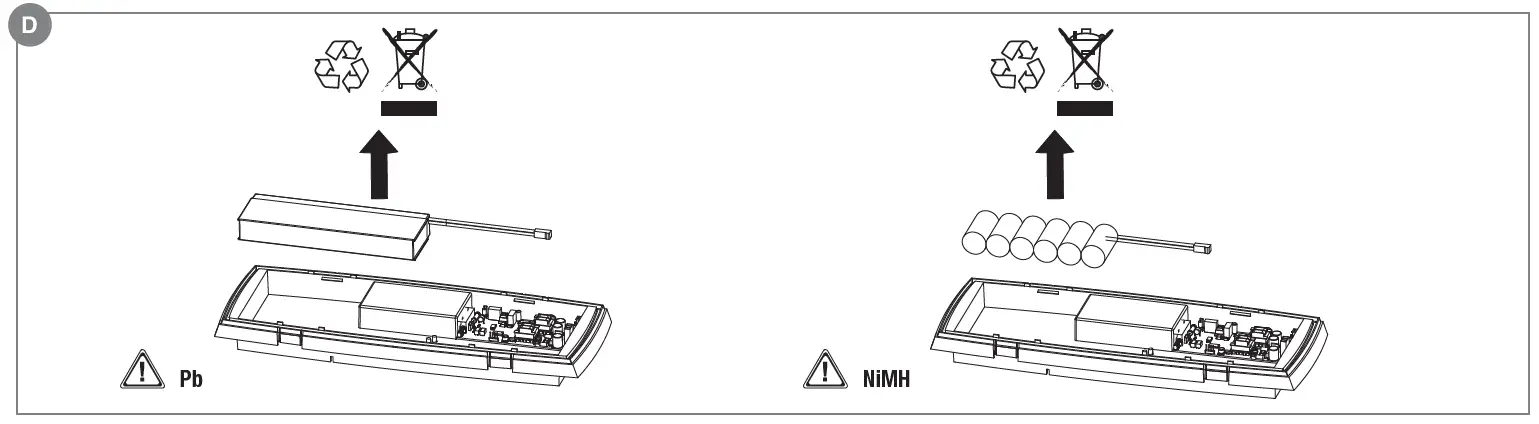

BATTERY RECYCLING
