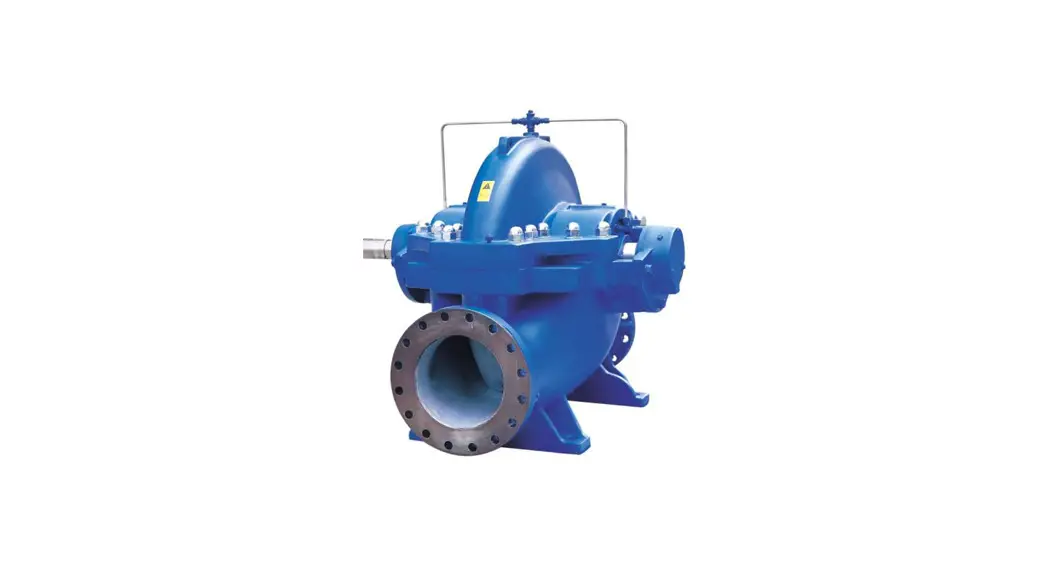

TDSF Split Casing Pumps
User Guide
TDSF Split Casing Pumps
TDSF Split Casing Pumps
MAIN FEATURES
- SEALING SYSTEMS
• Stuffing box
• Single or double mechanical seal
• Cartridge seal
• Split seal for short maintenance times
• Replacement of seals without dismantling the casing - SPLIT VOLUTE CASING
• Sealing of the upper and lower parts with O-rings ensures short maintenance times - DOUBLE SUCTION IMPELLER
• Efficiency of up to 91%
• Impeller with or without staggered blades (according to specific design)
•For P&P, low pulsation impeller with staggered blades - SHAFT BEARING FOR OIL OR GREASE LUBRICATION
• Compact and robust bearing ensures ease of installation and long life - SECOND SHAFT END
• For flexible choice of drive side
• Provided as standard - CONNECTION FLANGE
• According to DIN, ANSI, mating-flange with polishing on demand - PEDESTAL/LEGS
• Flexible and easy pump mounting
• Foundation with motor available on request

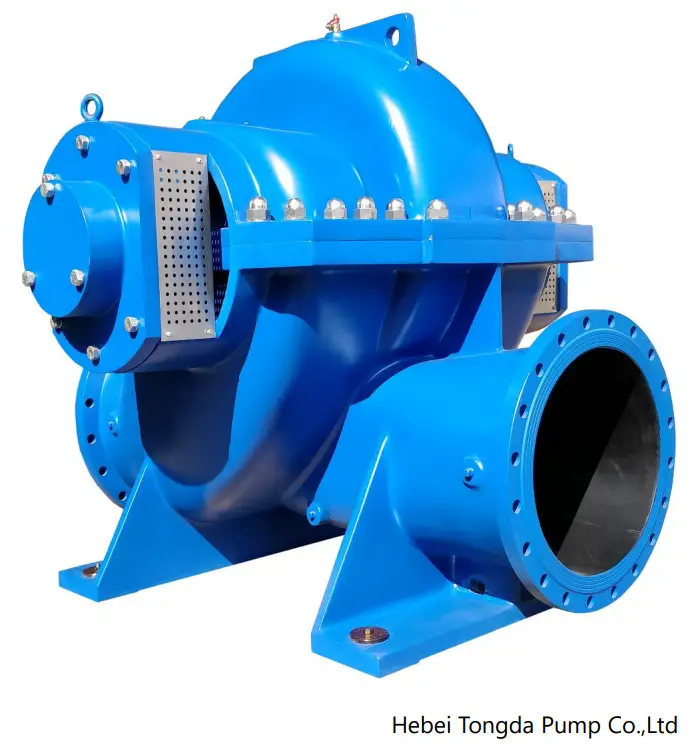

TDSF SPLIT CASING Pumps

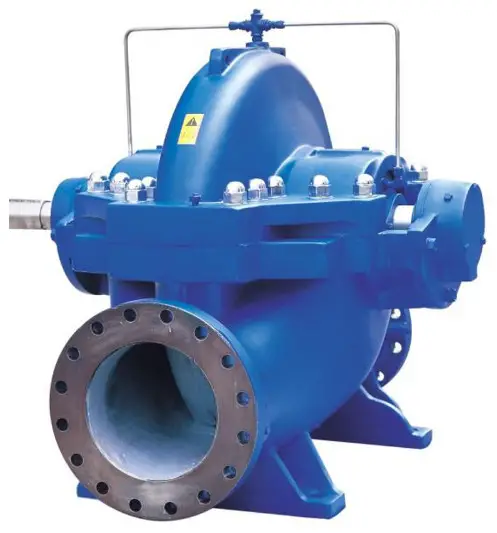

With efficiencies of up to 91%, TDSF Double-flow impeller axial split case water pump in-line casing for industry help to save valuable energy. All pumps are fitted with a double-flow radial impeller which achieves very favorable NPSH values. Due to the axial split case design, maintenance is fast and easy. Designed with a double-flow radial impeller and in-line casing, the pump can be installed horizontally or vertically (with horizontal installation, the motor can be placed on the left and/or right). These pumps can be used in a wide range of industrial processes. In the water sector, TDSF split case pumps operate in water treatment and water supply systems as well as in irrigation, flood control, and desalination. They can also be used as circulation water or cooling water pumps for power stations, industrial plants and district heating networks.

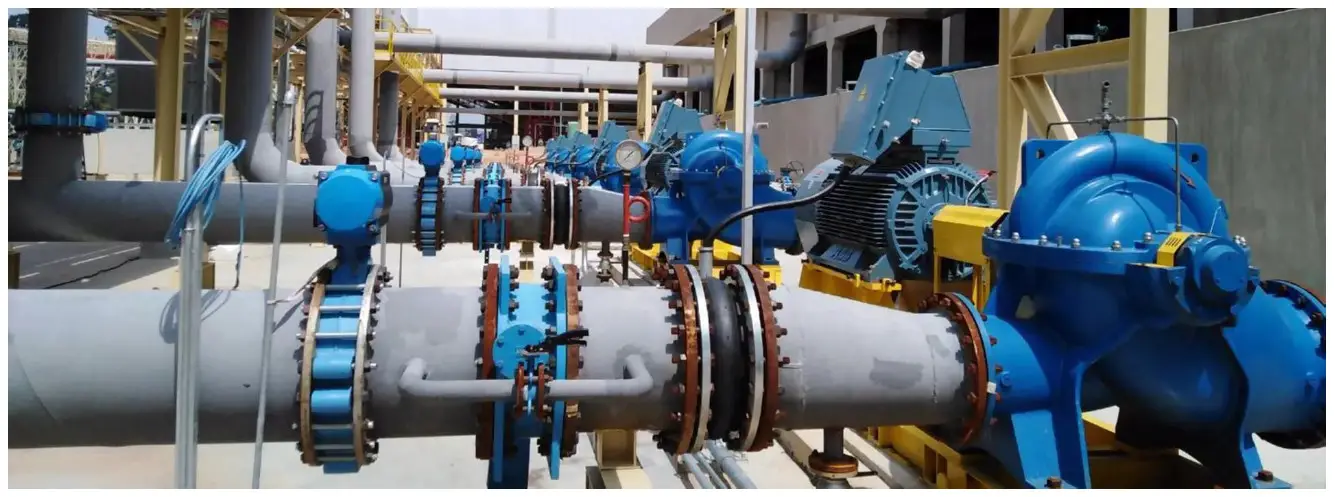

APPLICATION AREA
TLNH series high-efficiency double-suction centrifugal pump is generally used to transport clean water without solid particles or other liquids with physical and chemical properties similar to water. It can be widely used in: high-rise water supply, building fire protection, central air-conditioning water circulation, circulating water supply in engineering systems, cooling water circulation, boiler water supply, industrial water supply and drainage, water conservancy irrigation, especially in water plants, paper plants, power plants, thermal power plants, steel plants, chemical plants, water conservancy projects Irrigation area water supply, etc.

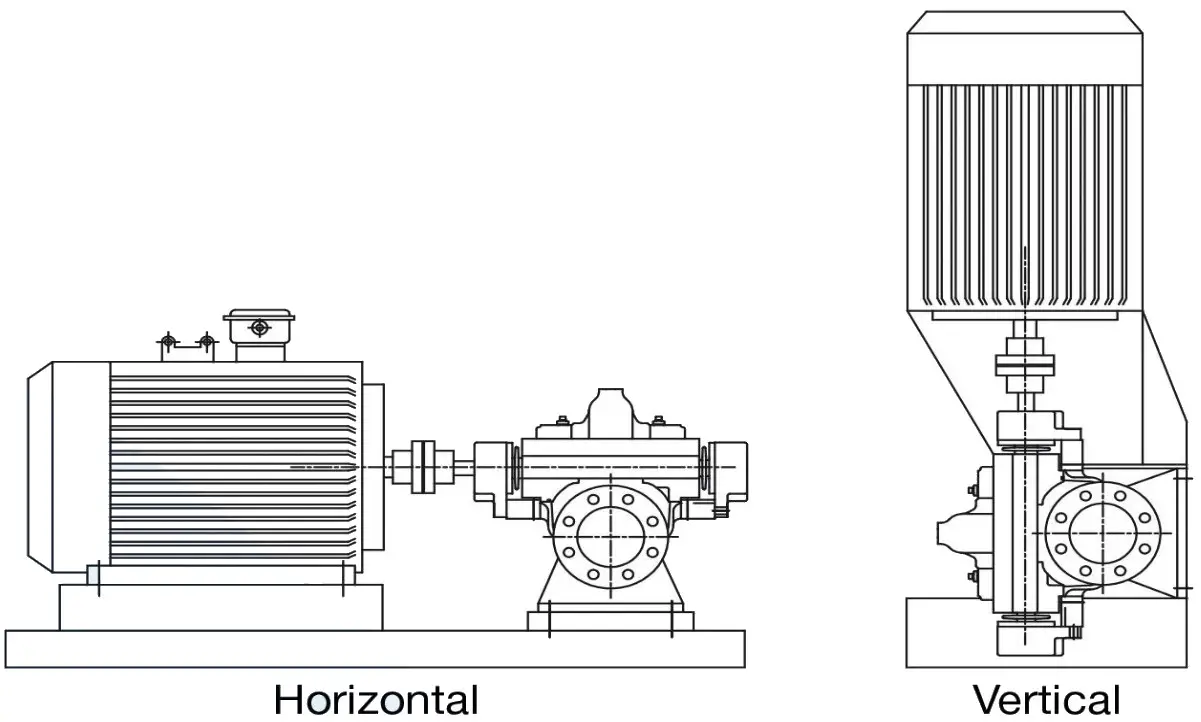

Different pump and motor arrangement and orientation

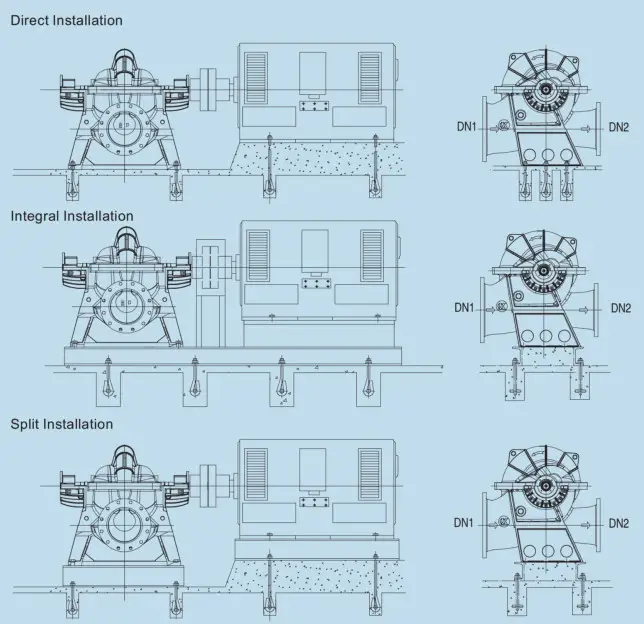

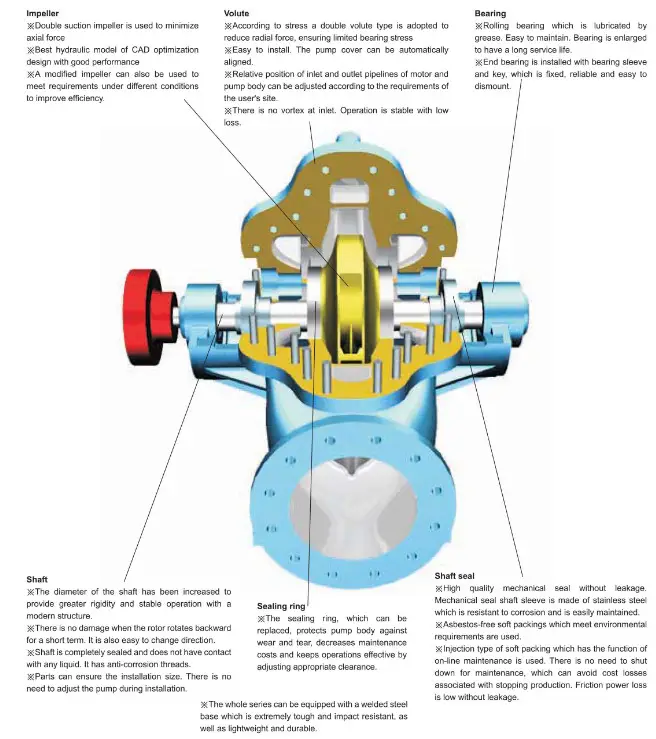

STRUCTURE
MATERIAL
| Cast iron | Cast steel | SS304/L | SS316/L | |
| Casing |  | | | |
| Impeller | | | | |
| Cover | | | | |
| Machine seal |  | | | |
| Shaft sleeve | | | | |
Also producing according to the material requirements of customers.
PERFORMANCE
Flow: 112-17000m ³/ h
Head: 10-155m
Power: 30-1800kw
Inlet dimater:150-1000mm
