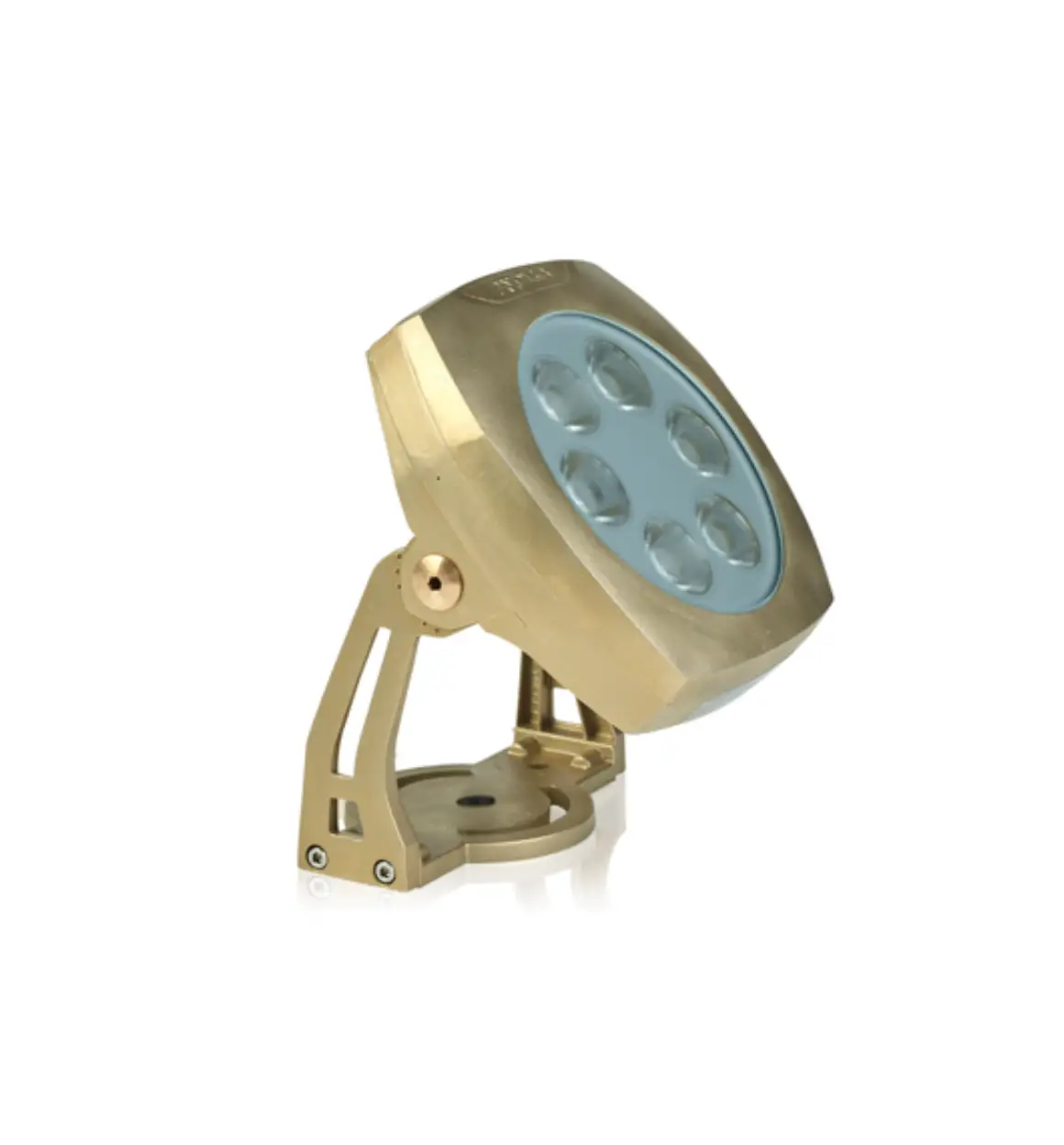

ArcSource 24 MC Submersible
Product Information:
The ArcSource 24 MC Submersible is a high-quality marine grade
bronze housing fixture designed to withstand harsh environmental
conditions. It is equipped with an LED module and can be mounted in
any position orientation. The fixture has a tilt adjustment feature
and can be fastened to a flat surface using three holes or two
semicircle slots. The wiring includes a red wire for +24V, a blue
wire for ground, and an orange wire for communication. The fixture
can be connected to a control unit with a maximum distance
depending on the operating mode. The product comes with various
technical specifications including light source, input voltage,
maximum power consumption, compatible control unit, lumen
maintenance, cooling system, available beam angles, color variants,
protection factor, impact rating, construction, weight, LED module
tilt adjustment range, mounting options, connecting cable length,
operating ambient temperature, and optional accessories.
Product Usage Instructions:
- Mounting the ArcSource 24 MC Submersible:
- Use a spanner no.13 and an Allen key no.6 to adjust the desired
tilt position of the LED module. - For fastening the fixture to a flat surface, use either three
holes or two semicircle slots for fine adjustment in a pan
direction.
- Use a spanner no.13 and an Allen key no.6 to adjust the desired
- ArcSource 24 MC Submersible connection with a control unit:
The maximum distance between the ArcPower 24 MC (24V) and the
ArcSource 24 MC Submersible depends on the operating mode:- Minimum mode: 75 m
- Medium mode: 50 m
- Maximum mode: 25 m
- Cleaning and maintenance:
- Disconnect the fixture from the mains before starting any
maintenance work. - Rinse off loose dirt with a low-pressure water spray.
- Wash the housing with a soft brush or sponge and a mild,
non-abrasive washing detergent. - Rinse the housing.
- There are no serviceable parts inside the device, so
maintenance and service operations should only be carried out by a
qualified person. - If spare parts are needed, please use genuine parts.
- Disconnect the fixture from the mains before starting any
Version 2.2 1
ArcSource 24 MC Submersible
Table of contents
1. Introduction …………………………………………………………………………………..3 2. Safety information …………………………………………………………………………3 3. Mounting………………………………………………………………………………………..3 4. ArcSource 24 MC Submersible connection with a control unit………….4 5. Technical specifications………………………………………………………………….5 6. Mounting the ArcSource 24 MC Submersible into installation sleeve..7 7. Cleaning and maintenance ……………………………………………………………..7
2
1. Introduction
The ArcSource 24MC Submersible has a housing crafted from the highest quality marine grade bronze meaning its is capable to withstand the very harshest environmental conditions.
2. Safety information
The unit must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. Do not install the module near high inflammable liquids or materials Do not allow anything to rest on the module Do not install the module near the naked flames Do not install the module in dirty, dusty or badly ventilated location Avoid using the unit in locations subject to possible impacts. The unit is suitable for underwater installation up to depth of 10 m. Do not let the unit in frozen water Avoid looking directly into the LED light beam at close range. Sufficient air accessing to the housing of the unit has to be ensured, there must not be any heat or anti-noise insulation within a 0.6m x 0.6m area around the unit (non-IC rated fixture). Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard EN55103-2 ed.2 Electromagnetic compatibility. Product family standard for audio, video, audiovisual and entertainment lighting control apparatus for professional use. Part 2: Immunity. The installation company should check levels of possible interferences above the tested levels E1,E2,E3 given by this standard (e.g. transmitters in surrounding area) before installing the equipment. Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility of multimedia equipment Emission Requirements according to class B.
Potential air bubbles streaming from either the screw heads or the seam between the body and the LED face after immersing the fixture into water does not influence function of the fixture and does not subject to complaint.
3. Mounting
The ArcSource 24 MC Submersible can be arranged in any position orientation. The LED module body is mounted on a bronze bracket for “tilt” adjustment . Use a spanner no.13 (pos.1) and Allen key no.6 (pos. 2) to adjust desired tilt position of the LED module. For fastening the ArcSource 24 MC Submersible to the flat surface use either three holes or two semicircle slots which allows fine adjusting the fixture in a “pan” direction.
3
Wiring of the ArcSource 24 MC Submersible:
Wire
Red wire
Blue wire
Meaning
+24V
Ground
Orange wire Communication
4. ArcSource 24 MC Submersible connection with a control unit
Maximum distance between the ArcPower 24 MC (24V) and the ArcSource 24 MC Submersible depends on the operating mode:
Minimum mode: 75 m Medium mode: 50 m Maximum mode: 25 m
4
5. Technical specifications
Light source: Input voltage : Maximum power consumption: Compatible control unit: Typical Lumen maintenance: Cooling system: Available beam angles: Colour variants: Protection factor:
Impact rating: Construction: Weight: LED module tilt adjustment range: Mounting options: Connecting cable (custom length):
Operating ambient temperature:
6 x high power LED multichip 24 V DC 35W (Minimum mode); 70W (Medium mode); 80W (Maximum mode) ArcPower 24 MC (24V) 60 000 hours Convection 7°, 24°, 34°, 60° RGBCW, RGBA, SW for CE: IP68 10m rating for cETLus: maximum depth of 10 m. IK10 Marine bronze, transparent cover-tempered glass 10.5 kg (23.1 lbs) 125° Stirrup CE: PROFIPLAST PBS-USE 3 X 1.5 mm2 BLACK (P/N13052450) cETLus: P7342-SP-600V RND PORTAVLE CORD RUBBER 50mtr (P/N 13052148) -20°C +40°C (-4°F +104°F)
Optional accessories:
Installation sleeve (P/N 10980285) Floor Stand ArcSource 24 MC Submersible 5mm (P/N10980315)
Dmensions (mm)
ArcSource 24 MC Submersible
5
Installation sleeve Weight: 10 kg
6
6. Mounting the ArcSource 24 MC Submersible into the installation sleeve
1. Unscrew a bracket from the ArcSource 24 MC Submersible. 2. Insert the ArcSource 24 MC (4) Submersible into chassis (5) and fasten it on both sides it by means of two
bolts (7) with rubber washers (6), 6 mm long spacers ( 10) and nuts M8 (9). These parts (6,7,9,10) are components of the installation sleeve (8). 3. Insert Allen bolts M5x45 (1) with spring washers (2) to the 30mm spacers (3) and used them to screw the chassis (5) to the installation sleeve (8) (before inserting chassis, pull the ArcSource 24 MC Submersible´s cable through the aperture in the installation sleeve. 4. Screw the metal collar (13) to the chassis (5) with two Allen keys M4x12 (11) and washers (12). 5. Insert the flat rubber gasket (14) into metal collar (13). 6. Put the glass (15) on the rubber gasket (14). 7. Put the shaped rubber gasket (16) on the glass (15). 8. Screw the top metal flange (17) by means of the six flat head screws M6x30 (18) to the installing sleeve. 9. Connect the ArcSource 24 MC Submersible to the ArcPower 24 MC (24V).
7. Cleaning and maintenance
Disconnect from the mains before starting any maintenance work
Rinse off loose dirt with low pressure water spray. Wash the housing with a soft brush or sponge and a mild, non-abrasive washing detergent. Rinse it. There are no serviceable parts inside the device. Maintenance and service operations are only to be carried out by a qualified person. Should you need any spare parts, please use genuine parts.
January 19, 2023 Specifications are subject to change without notice. Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici
7
