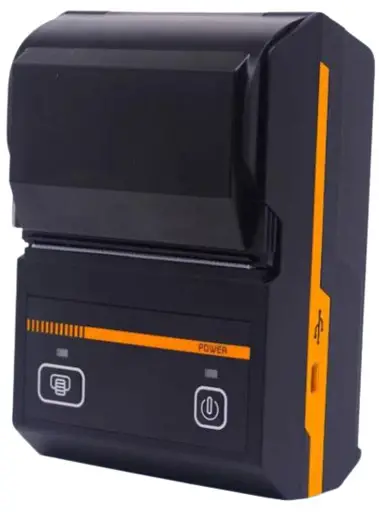

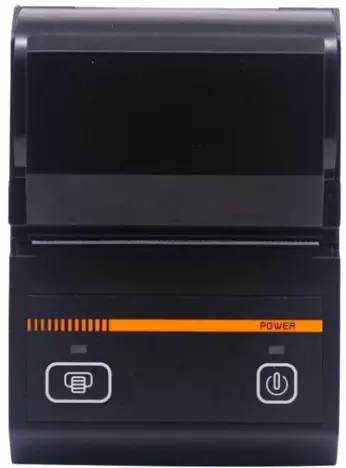

58mm Android IOS Bluetooth Thermal label Printer
(Model: OCPP-M11)
Instructions
 |  |
Features:
Mini size suitable for portable application;
Provide Android App more suitable for end users;
Compatible with bartender software
Support label interval sensor
Can change the printer name, password, baud rate online;
40mm diameter paper warehouse;
Loading paper width can be adjusted
One printer can connected with up to 8 smart devices
(7 Android, one Apple device) visa blue tooth(optional);
18650 Battery easy to replace
90mm/sec print speed;
TSPL command compatible;
Specification:
| Print method | Thermal line printing |
| Print commands | TSPL command |
| Effective print width | Max=48mm |
| Print speed | Up to 90mm/sec |
| Resolution | 8 dots/mm(203dpi) |
| Paper dimensions | 58.0±0.1mm x diameter 40.0mm |
| Paper thickness | 0.06 to 0.08mm |
| Character set | Alphanumeric/ Chinese |
| Interface | USB,and Bluetooth |
| Flash | 256KB |
| Power Adapter | 9V DC/2A |
| Battery Power | 2 pieces 3.7V 1300mAh18650 Battery series connected to7.4V |
| Other features | Paper detection, manual shut down |
| Working conditions | Temperature:-10-50 degC, Humidity:10%090% |
| Storage conditions | Temperature:-20-70 degC, Humidity:5%095% |
| Device name | Can be customized, letter and digital for option, at max 30 ASCII characters. |
| Password | Enter default pairing code “1234”, it can be customized or change by customer itself. At max 6 digitals. |

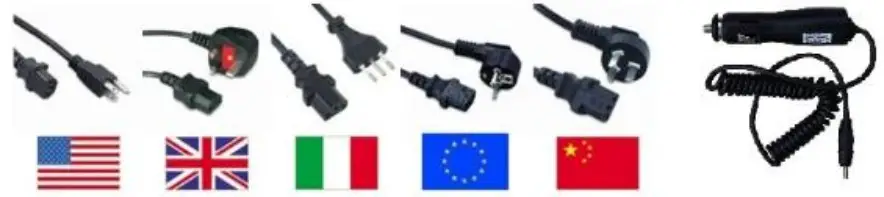

Power adaptor for option:
Application Area:
Compared to the traditional thermal printer, mini printer has smaller body, more reliable capability, more steady printing and portable advantages. The Mini printer can work on a lot of locations, such as the TAXI bill printing, administrative fees receipt printing, post receipt printing, restaurant ordering information printing, online payment information printing, etc. With the rapid popularity of smartmobile, tablet and so on, Mini printer will be more widely used in the near future.
