Android IOS Java Windows Supported 80mm Mini Portable Bluetooth Receipt Printer
(Model: OCPP-M082)

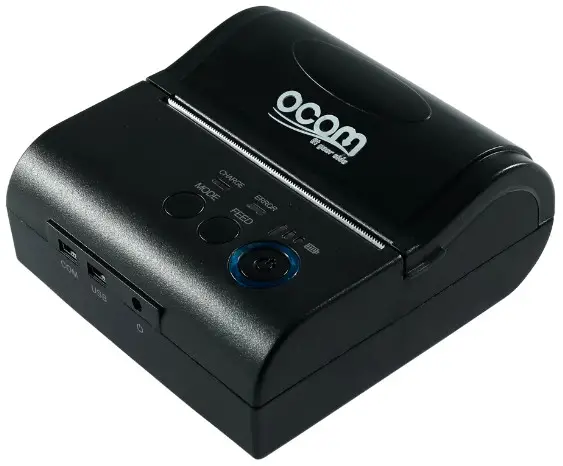

OCOM OCPP-M082 Mini Portable Bluetooth Receipt Printer

Contents hide

7 Relevant documents:

8 Documents / Resources

8.1 References

9 Related Posts

Speciﬁcations:

Dimensions (W × D × H)	98 × 103 × 45mm
Weight	280 g
Color	Black
Eﬀective print width	72 mm
Printing method	Thermal Line Printing
Print command	ESC / POS compatible instruction set
Print speed	To 90mm/sec
Resolution	8 dots / mm (203DPI)
Print Font	In 12X24 / 24×24 in
Column capacity	48/ 24columns
Character size	1.5 × 3.0 mm (width x height) / 3.0×3.0mm (width x height)
Paper Size	Diameter of 80.0 mm to ± 0.1mm x40.0
Paper Thickness	0.06 to 0.08 mm
Character set	Alphanumeric / Chinese Text
Interface	USB, RS-232, Bluetooth (optional)
Flash	256KB
Power Adapter	9V DC/2A
Battery Power	DC / 2000 mA 7.4V; battery can stay in 4-5 days, when it is full of strength, it can print 120-150M Paper
Other Features	Paper detection, power detection, manually shut down
Working conditions	Temperature: -10degreeC~50degreeCHumidity: 10%~90%
Storage conditions	Temperature: -20degreeC~70 degreeC Humidity: 5%~95%
Device Name	Can be customized to select letters and numbers up to 30 ASCII characters.
Password	Default Input pairing code “1234”It can be customized. Maximum 6 digitals.
Size of the power plug	3.5 * 1.1 mm

Ordering information	P/N	Description
	OCPP-M082-BB	With Bluethooth and battery, supprot Android
	OCPP-M082-BB-AI	With Bluethooth and battery, supprot Android and IOS
	OCPP-M082-UB	With Barrery USB Communication,
	OCPP-M082-U	USB Communication, without BT, Battery
	OCPP-M082-B	Blutooth Communication, without Battery
	OCPP-M082-UC	USB Communication, with Car Charger
	OCPP-M082-BC	Bluetooth Communication with Car Charger
	OCPP-M082-C	Other Customized

Product Details:

80mm Bluetooth Thermal Receipt Printer for Andriod or IOS OCPP-M082 OCOM OCPP-M082 Mini Portable Bluetooth Receipt Printer

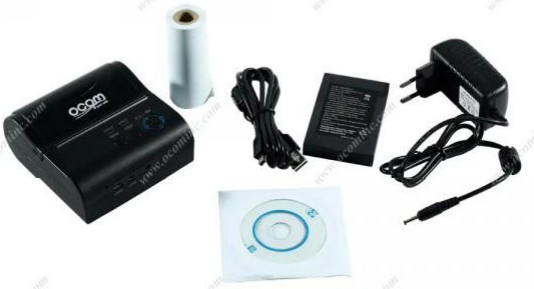

Product Picture

OCOM OCPP-M082 Mini Portable Bluetooth Receipt Printer - fig 1

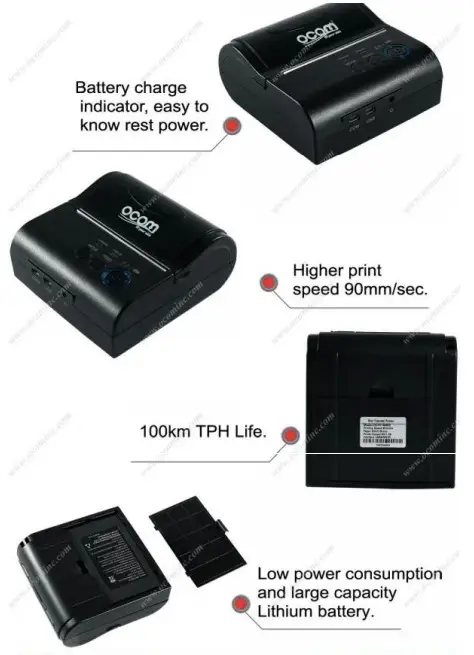

Features

Simple but not easy

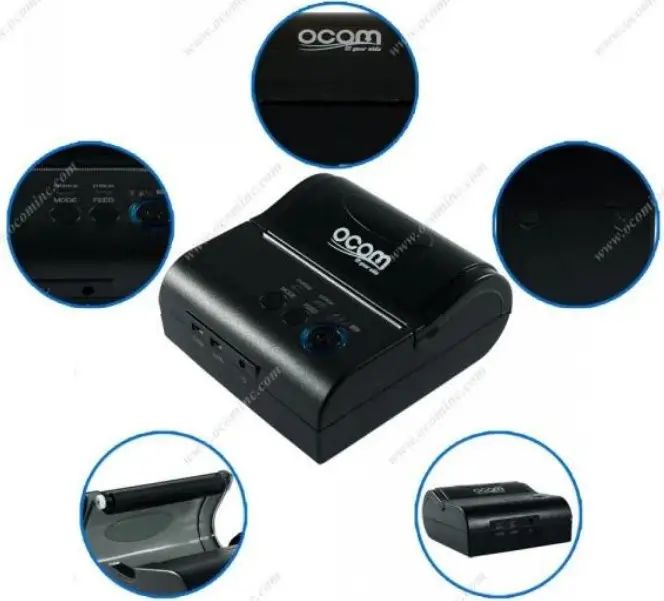

All-round show

OCOM OCPP-M082 Mini Portable Bluetooth Receipt Printer - fig 4

Application Area

Bus/Taxi receipt Traffic Citation, Logistics, Transportation, Warehouse management, Delivery, Illegal Parking Ticket Drugstore, Food delivery, restaurant, Price Tag, Retail/Farm OCOM OCPP-M082 Mini Portable Bluetooth Receipt Printer - fig 5

Relevant documents:

*Speciﬁcation
*Program Manual
*Instruction Manual
*Driver for Windows
*Printer Parameters Setting Tools
*USB Printdemo(Application Software demo)
*Bluetooth Printdemo(Application Software demo)
*SDK for Android
*CD Files
