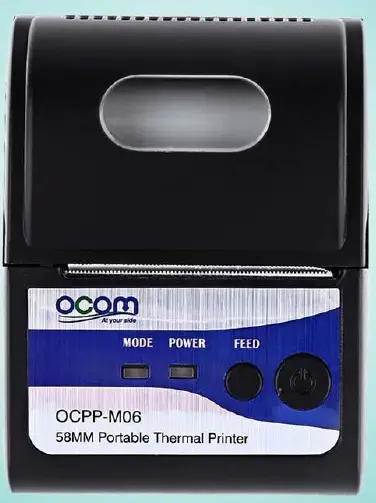

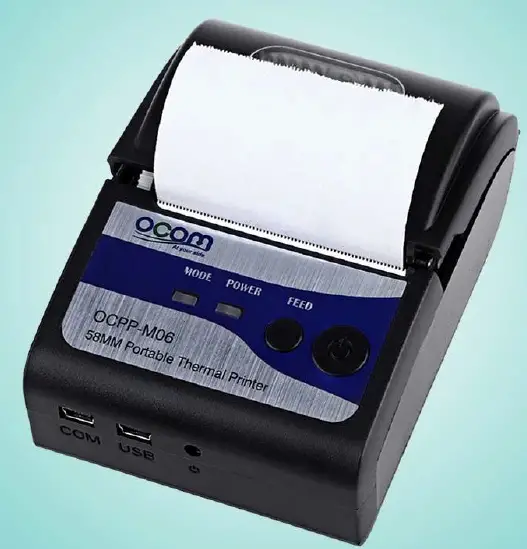

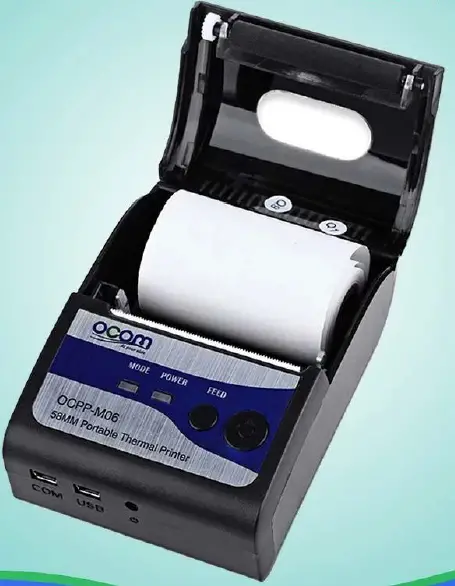

OCOM OCPP-M06-BB Mini Portable Bluetooth Thermal Android Printer for POS
58mm mini portable bluetooth thermal android printer for POS (OCPP-M06)
bluetooth pos printer,android thermal printer,pos receipt printer pos58.
This mini printer OCPP-M06 is a Android (or IOS+ Android ) ,Window, Linux, JAVA compatible battery powered 58mm portable mobile thermal pos printer which combines USB,RS232 Serial and Bluetooth (optional) communication ways together. This printer could be powered by rechargeable battery, power adapter, or car charger (depending on specified models) . Special model can connect with 8 smart devices for printing at same time. We have CE, FCC and other required certifications.
Specification
| Overall Dimension (W×D×H) | 105×75×45mm | |
| Weight | 134g | |
| Color | Black | |
| Print method | Thermal line printing | |
| Print commands | ESC/POS compatible command set | |
| Effective print width | 48mm | |
| Print speed | Up to 90mm/sec | |
| Resolution | 8 dots/mm(203dpi) | |
| Print font | 12×24/ 24×24 | |
| Column capacity | 32 columns/ 16columns | |
| Character size | 1.5 x 3.0 mm(W x H)/ 3.0×3.0mm(WxH) | |
| Paper dimensions | 58.0±0.1mm x diameter 40.0mm | |
| Paper thickness | 0.06 to 0.08mm | |
| Character set | Alphanumeric/ Chinese Kanji | |
| Interface | USB, RS-232，Bluetooth (optional) | |
| Flash | 256KB | |
| Power Adapter | 9V DC/2A | |
| Battery Power | 7.4V DC/ 1500mAh; battery can stay by for 4-5 days, when it is full power, it can print 120-150m paper | |
| Other features | Paper detection, manual shut down | |
| Working conditions | Temperature:-10~50 degC, Humidity:10%～90% | |
| Storage conditions | Temperature:-20~70 degC, Humidity:5%～95% | |
| Device name | Can be customized, letter and digital for option, at max 30 ASCII characters. | |
| Password | Enter default pairing code “1234”, it can be customized or change by customer itself. At max 6 digitals. | |
| Power plug dimension | 3.5*1.1mm | |
| Ordering Info. | OCPP-M06-BB | Android, USB+COM+Bluetooth, Battery. |
| OCPP-M06-BB-AI | Android+IOS, USB+COM+Bluetooth, Battery. | |
| OCPP-M06-B | Android, USB+COM+Bluetooth, without Battery; | |
| OCPP-M06-U | Mini printer, Android, USB+COM, without Battery. | |
| OCPP-M06-BB-AA | Android+IOS, USB+COM+Bluetooth, Battery, 7 android +1 apple devices supported | |
INSTRUCTION
Application Area
Compared to the traditional thermal receipt printer, mini printer has smaller body, more reliable capability,more steady printing and portable advantages. The Mini printer can work on a lot of locations, such as the TAXI bill printing, administrative fees receipt printing, post receipt printing, restaurant ordering information printing, online payment information printing, etc. With the rapid popularity of smartmobile, tablet and so on, Mini printer will be more widely used in the near future.
