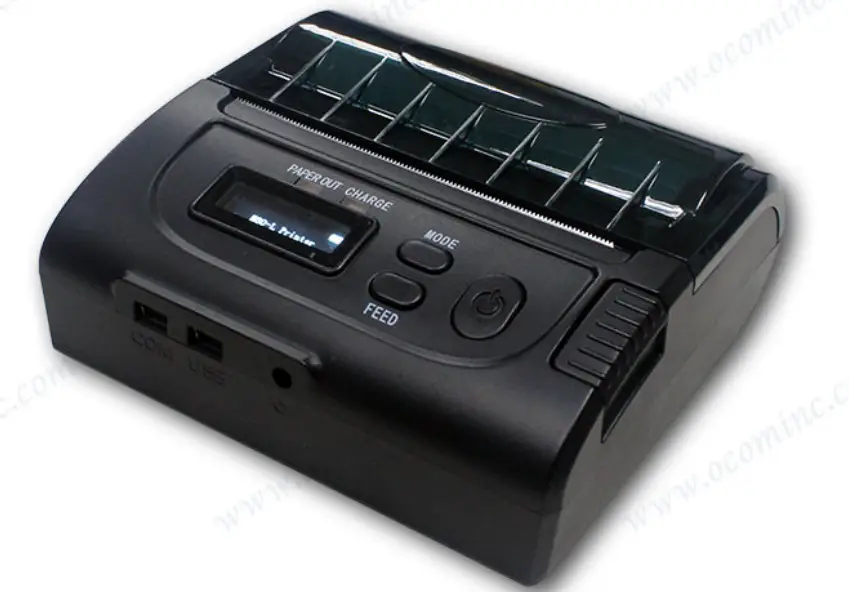

OCPP-M083 Direct Thermal Android Portable Printer
Feature

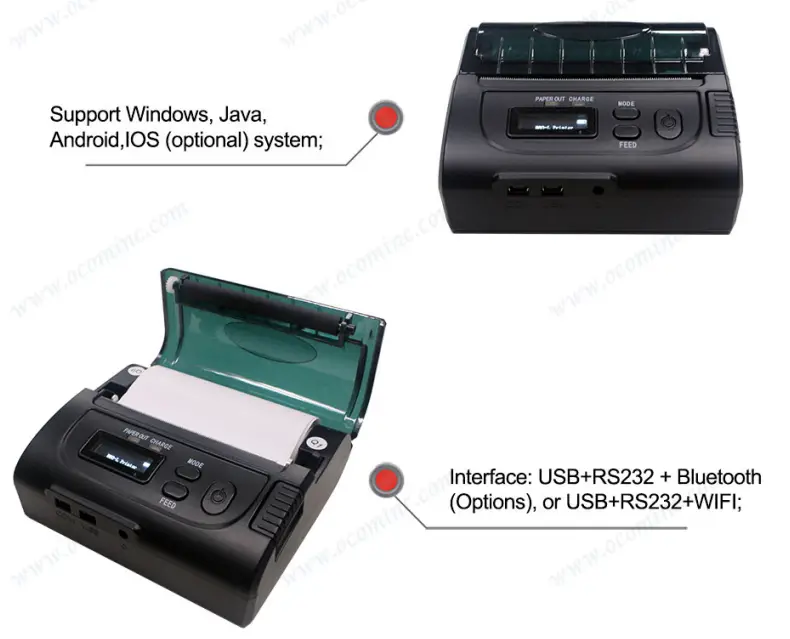

android usb thermal printer, android portable printer, Bluetooth thermal printer Support Windows, Java, Android, IOS (optional) system
Interface: USB+RS232 + Bluetooth(Options), or USB+RS232+WIFI;
USB and DC charging;
OLED display the printing status;

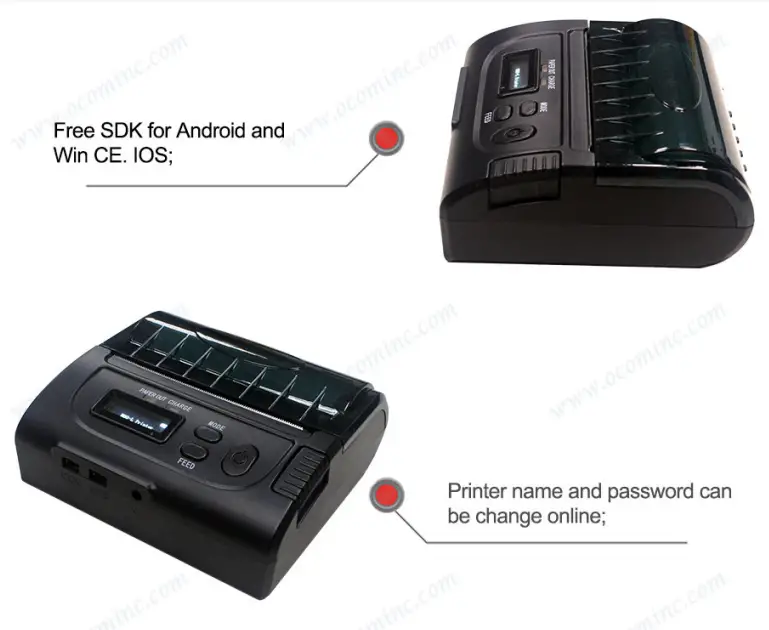

Support 2D,1D barcode printing One printer can connect to Multi smart devices(upto 7 android devices+1 ios device) (Optional) Printer name and password can be change online Free SDK for Android and Win CE 2000mAh large capacity Lithium battery Special battery indicator to monitor power status
Cutter: manual cutter
Printing Speed: upto 90mm/sec
MCBF(life): 100km
Specification
android usb thermal printer, android portable printer, bluetooth thermal printer
| Model | OCPP-M083 |
| Weight | 280g |
| Color | Black |
| Effective print width | 72mm |
| Print method | Thermal line printing |
| Print commands | ESC/POS compatible command set |
| Print speed | Up to 90mm/sec |
| Resolution | 8 dots/mm(203dpi) |
| Print font | 12×24/ 24×24 |
| Column capacity | 32 columns/ 16columns |
| Character size | 1.5 x 3.0 mm(W x H)/ 3.0×3.0mm(WxH) |
| Paper dimensions | 80.0±0.1mm x diameter 30.0mm |
| Paper thickness | 0.06 to 0.08mm |
| Character set | Alphanumeric/ Chinese Kanji |
| Interface | USB, RS-232, Bluetooth, wifi (optional) |
| Data buffer | Up to 5K bytes |
| Power Adapter | 9V DC/2A |
| Battery Power | 7.4V DC/ 2000mA; battery can stay by for 4-5 days, when it is full power, it can print 120-150m paper |
| Other features | Paper detection, power detection, Manual shut down |
| Working conditions | Temperature:-10℃～50℃,Humidity:10%～90% |
| Storage conditions | Temperature:-20℃～70℃,Humidity:5%～95% |
| Device name | Can be customized, letter and digital for option, at max 30 ASCII characters. |
| Password | Enter default pairing code “1234”, it can be customized. At max 6digitals. |
| Power plug dimension | 3.5*1.1mm |
Product Details
android usb thermal printer, android portable printer, Bluetooth thermal printer
Product Picture
Features

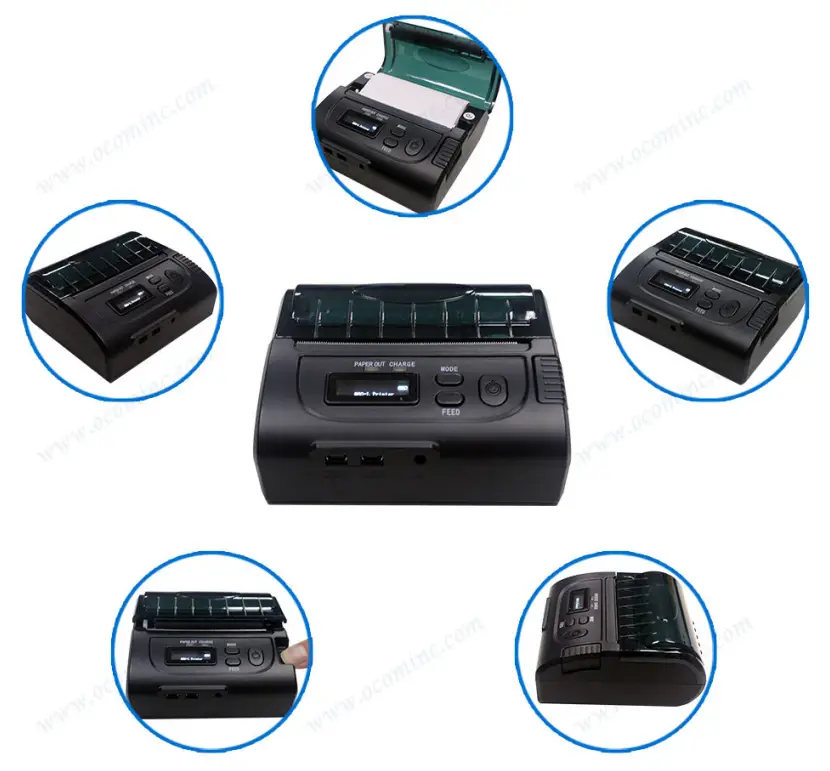

All-round show
Application Area
| Model | OCPP-M083 |
| Weight | 256g |
| Color | Black |
| Effective print width | 72mm |
| Print method | Thermal lineprinting |
| Print commands | ESC/POS compatible command set |
| Print speed | Up to90mm/sec |
| Resolution | 8dots/mm(203dpi) |
| Print font | 12×24/ 24x24dots |
| Column capacity | 32 columns/ 16columns |
| Character size | 1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(W*H) |
| Paper dimensions | 80.0±0.l mmx diameter 30.0mm |
| Paper thickness | 0.06 to0.08mm |
| Character set | Alphanumeric/ Chinese Kanji. |
| Interface | USB, RS-232, Bluetooth , wife (optional) |
| Data buffer | Up to 5K bytes |
| Power Adapter | 9VDC/ 2A |
| Battery Power | 7.4V DC/ 2000mA; battery can stay by for 4-5 days, when it is full power, it can print 120.l50m paper |
| other features | Paper detection power detection Manual shut down |
| Working conditions | Temperature:-10C~ 50t,Humidity:1096,. 90% |
| storage conditions | Temperature: 2ot ~ 7ot,Humidity:5%~95% |
| Device name | Can be customized, letter and digital for option, at max 30 ASCII characters. |
| Password | Enter default pairing code “1234”, it can be customized. At max 6 digital . |
| Power plug dimension | 3.5*1.l mm |

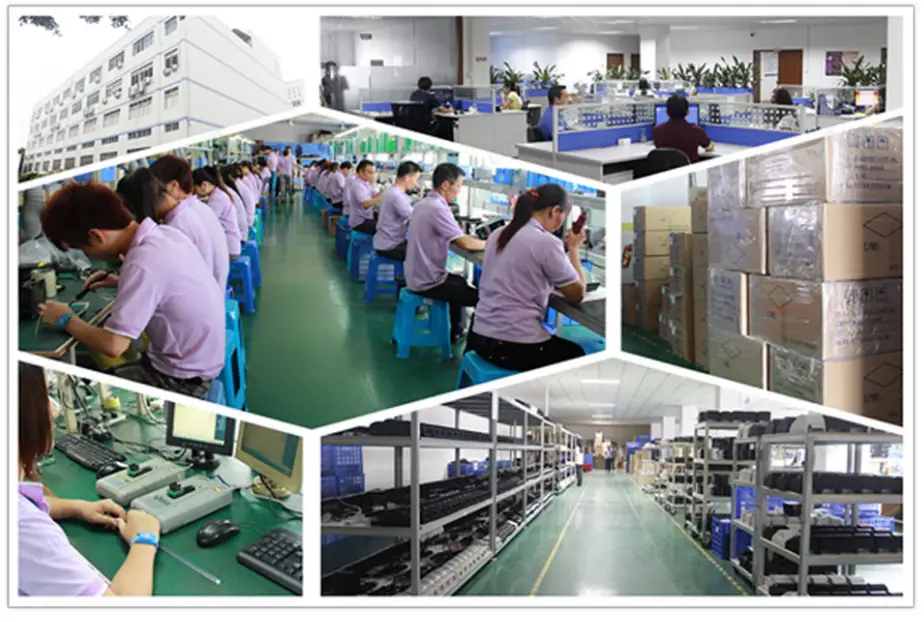

Product Line

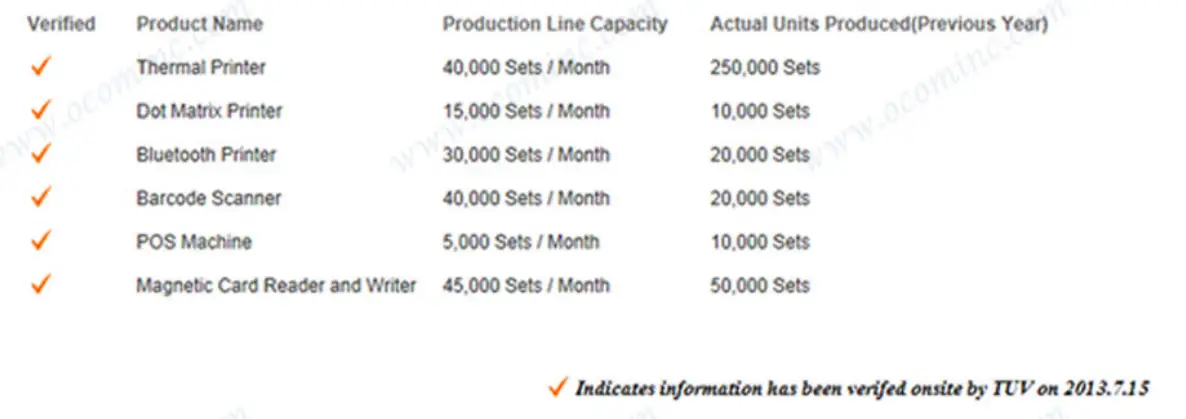

Capacity
Quality Assurance
OCOM is dedicated to providing most cost-effective products and services with highest quality that will meet customers ratification.
Since the establishment, OCOM has been sticking to the standard and requirement of ISO90001:2000 in the processes of research, design , manufacturing and services. OCM’S products have passed CE, FCC, TUV , RoHS and other certifications
We make Strictly IQC and IPQC and OQC Inspection per industrial standard ,All the product must pass 24-28 hours aging last before shipment , some designated models can have as long as 24 months warranty.
Test Equipments
Certifications
Packing and Shipment
Payment
Customers Reference
Why you choose us?
Company Profiles
OCOM has a professional teams including marketing , R&D , quality control , production and sales service , the management members have worked in the fortune 500 compaines as senior manager for many year , All of the sales have more the 5 yeas experience , which help us to meet and exceed the customer’s satisfaction.
OOCOM has been sticking to the quality system of ISO9001 :2008. We make strictly IQC, IPQC and OQC inspection per industrial standard. All the products must pass 24-48 hours aging test before shipment. Some designated models can have as long as 24 months warranty. We have the mass production capabilities that produce thousands of printers and scanners a week. Based on our strong capacity, the normal lead time for main products is about 3 to 7 days even for bulk order.
“Integrity based, Strive for excellence, Win-win cooperation”. We would like establish stable and reliable partnerships with customers all over the world. OEM/ODM is welcome.
Contact us
Contact usAny queries, please contact us immediately, big supprise is waiting for you.
Address: 4/F, Block 10, Zhongxing Industrial Park, Chuangye Road, Nanshan District, Shenzhen 518054, China;
Websites: http://www.possolution.com.cn ; http://www.ocominc.com ;
E-mail: [email protected] , [email protected] ;
Skype: ocominc2000, ocominc;
MSN: [email protected], [email protected];
Trademanager: szocominc, cn1500439666;
QQ: 2485890637, 190852203;
Tel/Fax: +86.755.8605.3207.
