FIXED READERS

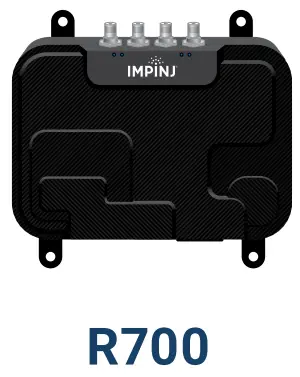

Impinj R700 RAIN
RFID Reader
for Enterprise-grade IoT Solutions
The Impinj R700 reader is designed to support global RAIN deployments that need industry-leading performance, enterprise-grade reliability and security, and support for next-gen RAIN tags.

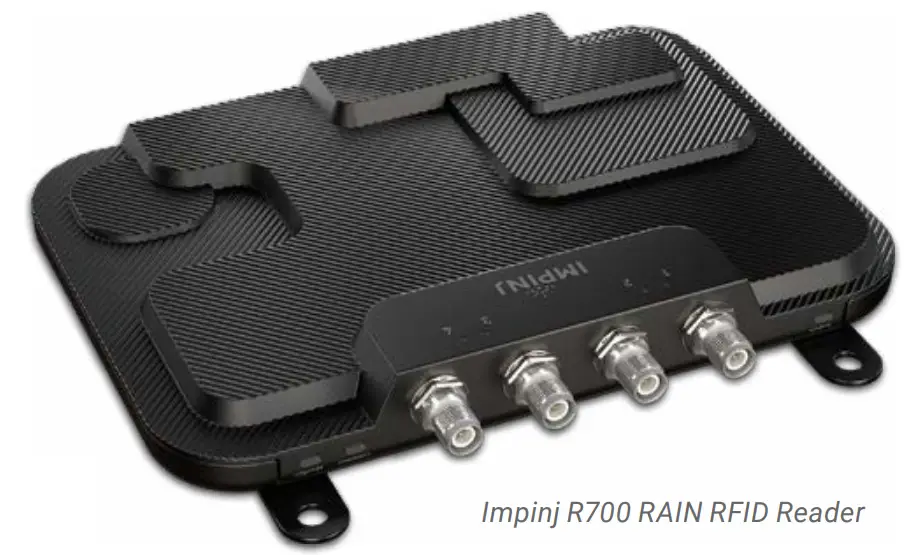

Empowers reading tags farther and faster, and speeds time-to-solution
The Impinj R700 reader provides industry-leading performance, enterprise reliability and security, and modern developer tools. IoT developers can easily build and deploy custom enterprise applications with a Linux OS, REST API, and native support for industry-standard data formats and protocols, such as MQTT.

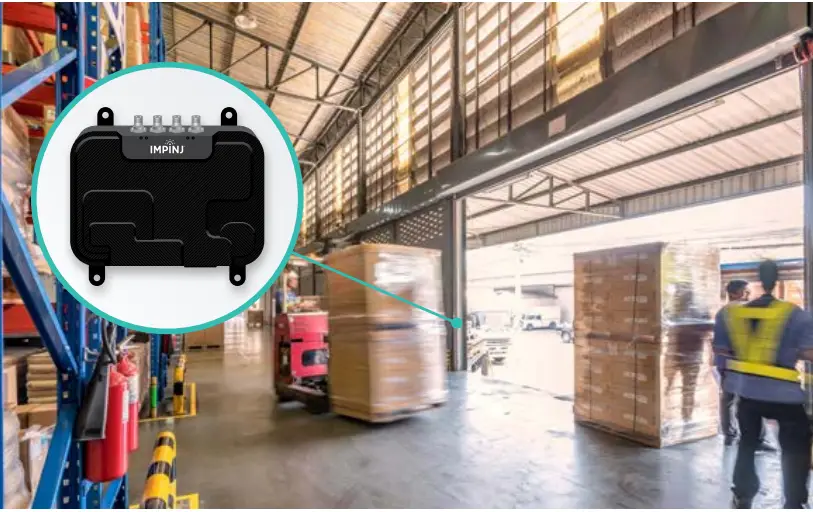

The Impinj R700 delivers increased support for on-reader applications—including 10x the processing power. Plus, when combined with tags based on Impinj M700 series tag chips, the Impinj R700 advances RAIN RFID performance at dock doors, conveyors, and store exits.
The Impinj R700 reader builds on the heritage of the Impinj Speedway reader family, which has been proven reliable for 15 years in the field.
Why use the Impinj R700 reader
Suitable for global RAIN RFID deployments, Impinj R700 readers deliver the performance and ease of use needed by enterprise deployments.
Deliver industry-leading performance: leverage industry-leading sensitivity, powerful edge processing, and highspeed network connectivity to enable fast reading of small, global RAIN RFID tags and open up new use cases.
Simplify RAIN deployments with IoT edge device: speed time-to-solution with increased on-reader memory, plus the Impinj IoT device interface that empowers IoT developers to easily connect applications to configure and control devices, and to consume RAIN data.
Meet demands of next-generation RAIN solutions: future-proof investments in RAIN RFID and next-gen tag chips with performance, reliability, and deployment simplicity for enterprise-grade solutions.
Connect everything with features that deliver industry-leading performance
Industry-leading sensitivity
Empowers reading tags farther and faster, and futureproofing of IoT solutions.
Powerful edge processing
Enables intelligent, on-reader, RAIN tag-processing algorithms.
Secure, upgradable Linux OS
Delivers enterprise-grade security and reliability, and the flexibility to customize with on-reader applications.
Simple IoT device interface
Easily connects IoT applications to configure and control devices, and to consume RAIN data, with native support for MQTT.
Optimized design for inventory
Increases read rate and improve read zone control at lower transmit power.
Rich peripheral and accessory support
Provides versatility with support for USB drives, Wi-Fi adapters, and up to 32 antennas via an optional antenna hub.
SPECIFICATIONS
FEATURES
| Impinj Fixed Reader Portfolio |  |  |  |
| Air interface protocol | RAIN RFID / ISO 18000-63 and EPCglobal Gen2v2 compliant | ||
| Antenna ports | 4 | 4 | 2 |
| Read zones (max) | 32 | 32 | 16 |
| Read rate (max per-second) | 1,100 | 1,100 | 200 |
| Transmit power (max, dBm) | 33 | 32.5 | 32.5 |
| Receive sensitivity (dBm) | -92 | -84 | -84 |
| Processor speed (GHz) | 1 (Dual-core) | 0.4 (Single core) | 0.4 (Single core) |
| Random-access memory (MB) | 1,024 | 256 | 256 |
| Custom-application partition (CAP) size (MB) | 128 | 32 | 32 |
| Impinj IoT device interface | √ | ||
| Support for USB peripherals (slots) | 3 | 1 | 1 |
| General-purpose input/output (GPIO) connector | Integrated | Accessory | Accessory |
| Gigabit Ethernet network connectivity | √ | ||
| Power Sources | 802.3af PoE/ 802.3at PoE+ | All regions: AC-DC adapter All regions except EU2: IEEE 802.3af PoE EU2: IEEE 802.3at PoE+ | |
Impinj product performance is based on Impinj’s modeling and test data, actual results may vary.
For a list of supported regions and geographies please go to: www.impinj.com/supported_regions.
