C 1070V IC 1090VK Series
70/25 Volt 8″ Commercial
Ceiling Speakers with Transformer

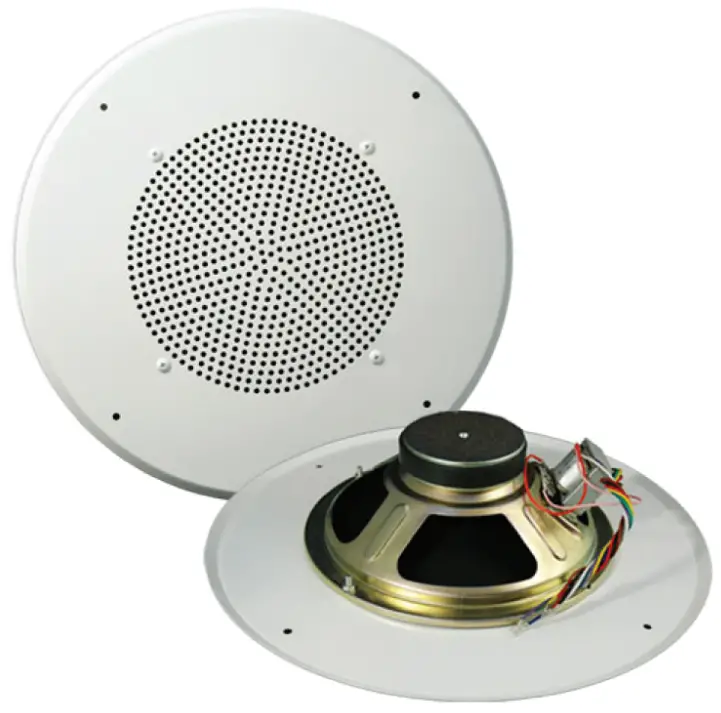

Our 8″ dual cone speaker with 6 oz. magnet features a dual 70/25V transformer and a white metal grille combination. The transformer, which is wired and mounted, has 5, 2.5, 1.25, .63, & .32 Watt taps. A version of this speaker with volume control and grille combination can be found under model number OSD-C1090VK.
Features:
- 8″ speaker combination with transformer & mounted grille
- 8 Ohm impedance
- 1 OW RMS power (with taps: 5, 2.5, 1.25, .63, and .32 tap & 8 Ohms)
- 15W max. power
- 6 oz. magnet
- 5W Dual 70/25V transformer
 | C1070V 8″ Dual Paper Cone Ceiling Speaker with Transformer |
 | C1090VK 8″ Dual Paper Cone Ceiling Speaker with Transformer & Volume Control |
Specifications:
Frequency Response:
Sensitivity:
Outer Dimensions:
Cutout Dimensions:
Mounting Hardware:
| C1070V | C1090VK |
| 40Hz-18kHz | 40Hz-18kHz |
| 90±3dB 1W/1m | 90±3dB 1W/1m |
| 12″ Diameter X 3.25″ Depth | 12″ Diameter X 3.25″ Depth |
| 10.75 “ | 10.75″ |
NCC1070 Ceiling Tile Bracket (Optional – Sold Separately)
Wiring Color Codes: 25V/70V Taps
| C: Common Ground 70V Black 25V-5W Red 25V-2.5W Y25V-1. 25W Gr25V-0.63W/70V-5W 25V-0.32W/70V-2.5W 70V-1.25W Y 70V-0.63W White 70V-0.32W Gr 8Ohm: Positive Common Ground/8Ohm | Black Red Yellow Green Blue Brown Yellow White Grey Orange Black |
OSD Audio is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation.

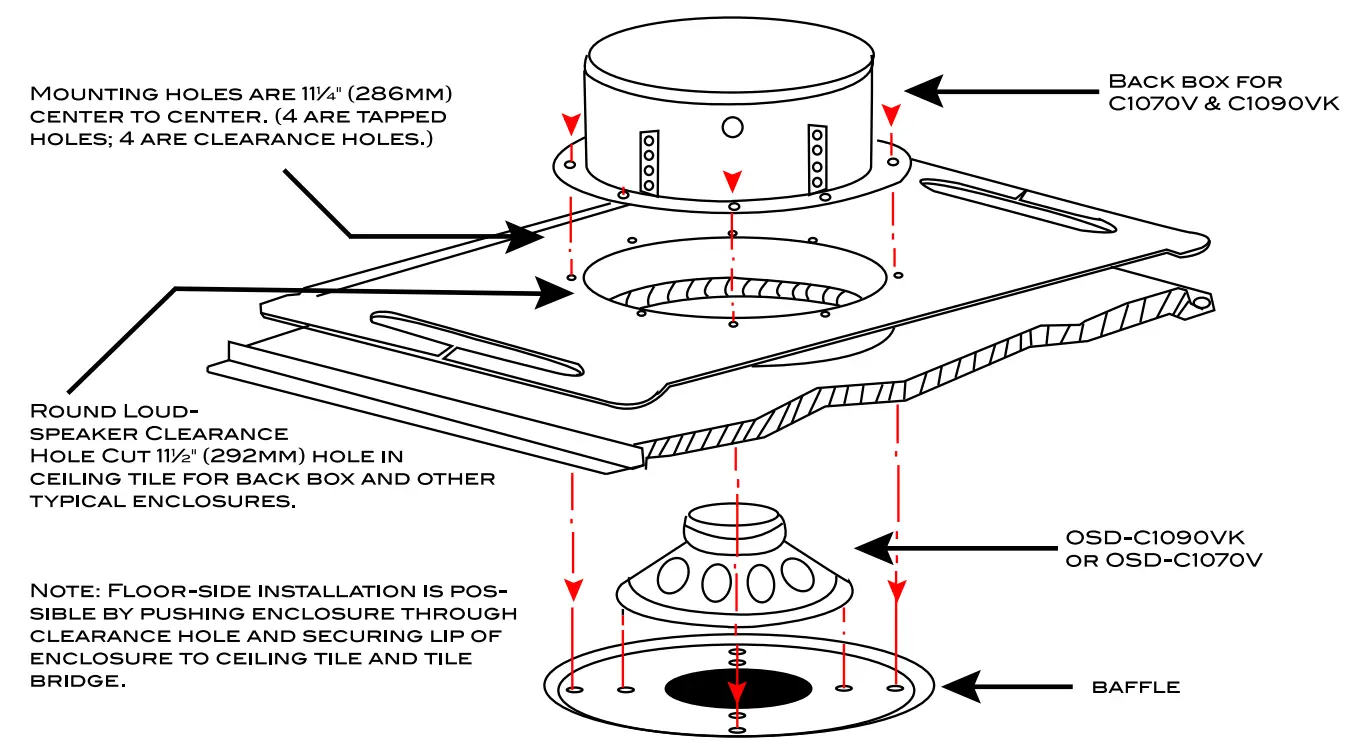

TYPICAL ASSEMBLY FOR C1070V & C1090VK
THE BACK BOX DOES NOT INCLUDE SLOTS FOR MOUNTING TORSION SPRING GRILLES.
