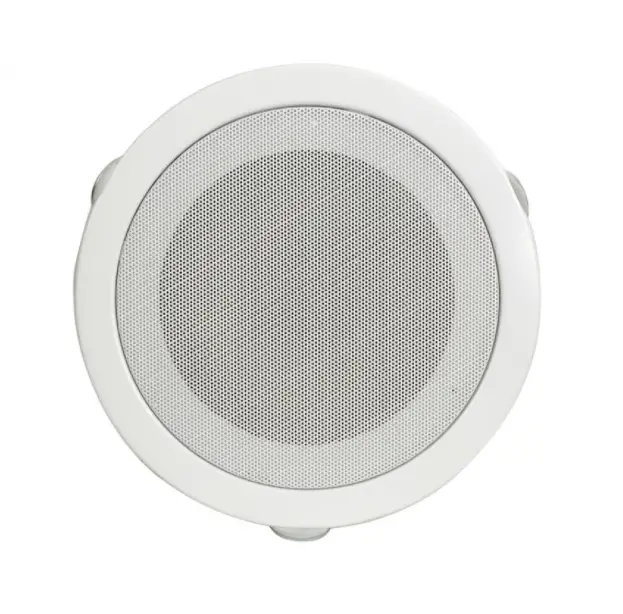

adastra EC46V 4.5 Inch 6W 100V Ceiling Speaker
Features
The EC46V is a low-profile, high-quality ceiling loudspeaker, equipped with a high-efficiency 6 Watt 100 Volt transformer with three power tappings. It can be used with high ceilings or places where More background noise is present. This makes the EC46V suitable for the distribution of voice paging and background music. The housing and grille are made of high-quality steel in a hard-wearing white finish. The housing is flush mount and moisture resistant with a 155° dispersion angle. Heavy-duty steel perforated grille and edge trim. Installation is very straightforward via 3 spring clips.
Specifications
| Woofer | 115mm (4.5”) |
| Dispersion angle | 155° |
| Frequency response | 110Hz – 13kHz |
| Power rms : 100V line | 6W |
| Cutout | 135mmØ |
| Mounting depth | 57mm |
| SPL @ 1W/1m | 90dB (±3dB) |
| Tappings | 1.5, 3, 6W |
| Material | Metal |
| Dimensions | 60 x 180mmØ |
| Weight | 640g |
Disposal:
The “Crossed Wheelie Bin” symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste
at the end of its useful life. The goods must be disposed of according to your local council guidelines.
Caution:
Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty
