Ceiling And Wall Mount Speaker - 6.5” 2-way 70v Audio Stereo Sound Subwoofer-complete Features/owner's Manual

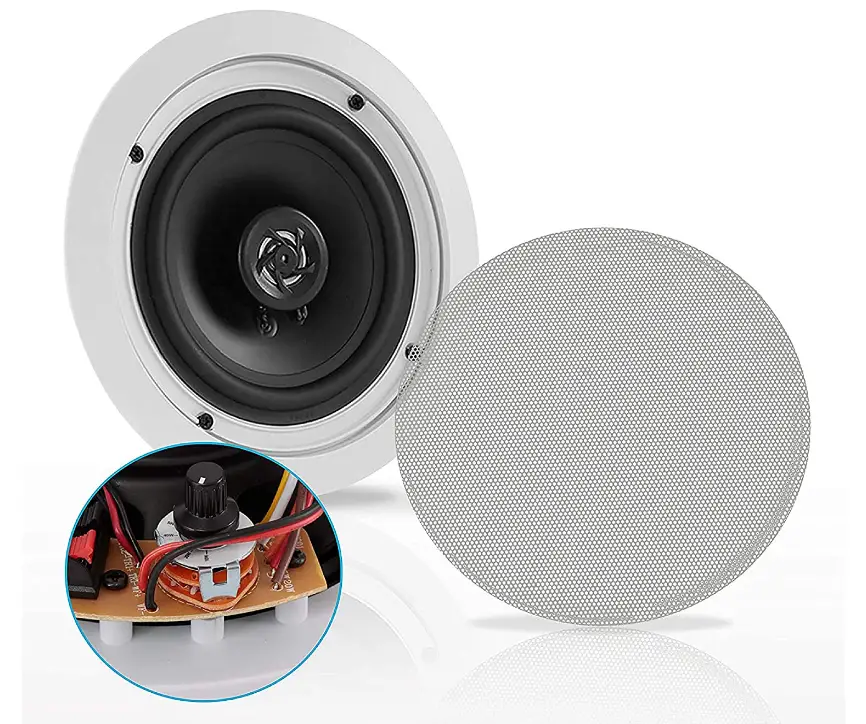

Pyle Ceiling and Wall Mount Speaker – 6.5” 2-Way 70V Audio Stereo Sound Subwoofer

Specifications

• Product Dimensions
  3.23 x 8.94 x 3.63 inches
• Item Weight
  2.52 pounds
• Connectivity technologies
  Wired
• Other display features
  Wireless
• Speaker Type
  Subwoofer
• Speaker Maximum Output Power
  500 Watts
• Brand
  Pyle

Introduction

These are for those of you who want the most covert audio installation imaginable. The ceiling above your room is cut, and speakers are installed there. In-ceiling speakers come in a variety of quality levels, from background listening alternatives to complete audiophile speakers. When compared to wall speakers, in-ceiling speakers are more portable and compact. In-ceiling speakers assist give your sound a new dimension and improving your sound system. Multi-Dimensional Sound System You may reproduce the three-dimensional sound from movie theatres in your home with the aid of in-ceiling speakers.

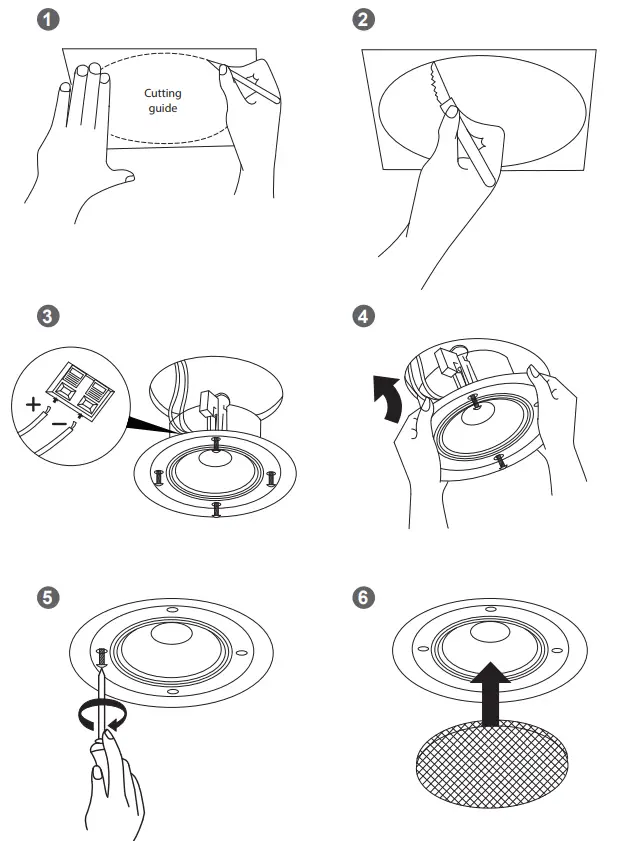

Speaker Installation

1. Position the cutting guide against the required speaker placement and trace around.
2. Cut out the traced area using a pad saw or other suitable tool.
3. Take the speaker unit out of the packaging and remove the grille. Connect the speaker wire to the appropriate “+” and “-” connections (select the desired tapping for the 70V device).
4. Locate the speaker unit into the cut-out, ensuring that the 4 rotating Mixing clamps stay turned inward.
5. Once located, turning the 4 xing screws clockwise will cause the xing clamps to rotate outward and tighten onto the mounting surface.
6. Push the speaker grille into place by applying even pressure around the rim.

Features

• In-Wall / In-Ceiling Speaker System
• Built-in 70 Volt Transformer Tapping
• Flush Mount, Slim Low-Prole Design
• 2-Way Full Range Stereo Sound
• High-Impedance, Line-Matching Transformer
• Used for Amplifier / PA Speaker Public Address Systems
• Mounts Flush on Walls or Ceilings
• 1/2” High Compliance Dome Tweeter
• Poly Mica Cone with High-Sensitivity Foam Edge
• Cut-Out Size Template for Easy Installation
• Environmentally Friendly ABS Construction
• Used for Home, Once & Business Applications

Technical Specs

• Power Output: 500 Watt MAX
• Speaker Size: 6.5’’ -inches
• 70V Transformer Tapping at 20W/15W/10W/5W/2.5W and 8OHM
• Impedance: 8 Ohm

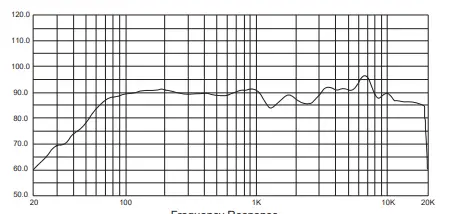

• Frequency Response: 75Hz-20kHz
• Sensitivity: 89 dB
• Magnet: 16 oz.
• Cut-Out Diameter: 7.64” -inches
• Mounting Depth: 3.23” -inches
• Total Speaker Size (Diameter x Depth): 8.94″ x 3.62″ -inches
• Sold as: 1

Frequently Asked Questions

• Is it possible to just order new grills or speaker covers?
  I didn’t see another cover available for the speakers.
• How do I connect my phone to the speaker? Installers three directions away?
  These speakers are not Bluetooth enabled. You cannot connect to your phone.
• Is this a pair of speakers?
  Hi, it is for 1 speaker only.
• What is the 70-watt transformer for?
  Hi, the 70 watts transformer is for an amp with 70 watts system.
• How do I locate an installer in my area?
  These speakers are not blue tooth enabled. You cannot connect to your phone.
• Can I use it as a subwoofer for a surround sound system?
  No, you are better off buying the subwoofer for that bass that you will need but is not necessary.
• Can I mount this speaker to light input? And do I need a receiver for it?
  Hi, you have to use an amp or receiver for this unit.
• I gonna buy 2pair and connect to the video projector and TV separately, which means switch automatically to each device is on, what else should I buy?
  Nothing else, just make sure the receiver can do the input change. also, note that the receiver is the total among all speakers even though you will not meet that max unless you want to deaf yourself.
• Can you put them on a bicycle speaker box?
  The speakers are not waterproof. You should look for outdoor or waterproof speakers.
• Are the in-wall speakers audible?
  How Well Do They Sound? Numerous in-wall speakers produce superb sound. The only thing you give up with a stereo configuration is that the sound quality might not be nearly as high if you install them properly and use a good speaker. However, in-ceiling speakers are a sonic trade-off. How Well Do They Sound? Numerous in-wall speakers produce superb sound. The only thing you give up with a stereo configuration is that the sound quality might not be nearly as high if you install them properly and use a good speaker. However, in-ceiling speakers are a sonic trade-off.
• Where are speakers mounted?
  Remove your speakers from the closest wall by at least two to three feet. This will reduce sound reflections, which might impair the clarity of playback. the speaker’s stance (toe-in). In particular, aim your speakers at a spot immediately behind the listener’s head. Do this by angling your speakers inward.
• Do ceiling speakers require a subwoofer?
  Even if ceiling speakers are capable of producing all the bass and low-end frequencies, a subwoofer will be helpful in handling them. Additionally, it significantly improves the overall sound quality of your sound system.
• Are TV ceiling speakers suitable?
  If installed properly, ceiling speakers can significantly enhance the sound from your TV.
• Do speakers in the ceiling have bass?
  There is never a bass response point and a background sound field with in-ceiling speakers. They are designed for the atmosphere. my opinion.
• Do ceiling speakers require a receiver?
  It is necessary to connect passive in-ceiling speakers to a receiver or amplifier. Speakers installed in walls and ceilings are typically passive speakers. They are thus not required to be connected to a power source. They just require a connection to a receiver or amplifier that can also serve as a power supply.
