Pyle PWRC65BT Ceiling Wall Mount Speakers
Installation Guide
LED INDICATOR
| Status | Active Speaker |
| POWER ON | RED |
| Bluetooth Connection |
BLUE |
| RCA/AUX-IN | GREEN |
Please read these instructions carefully before using this product, and save this manual for future use.
State of the art product carefully designed and manufactured for vehicle use and has been thoroughly tested to ensure consistent and reliable performance. If you have any question about the installation or operation of your PYLE speaker system which are not answered by this user manual, contact your dealer in First instance
PWRC55BT _ PWRC65BT _ PWRC85BT INSTALLATION
Ways to connect
Bluetooth Connection

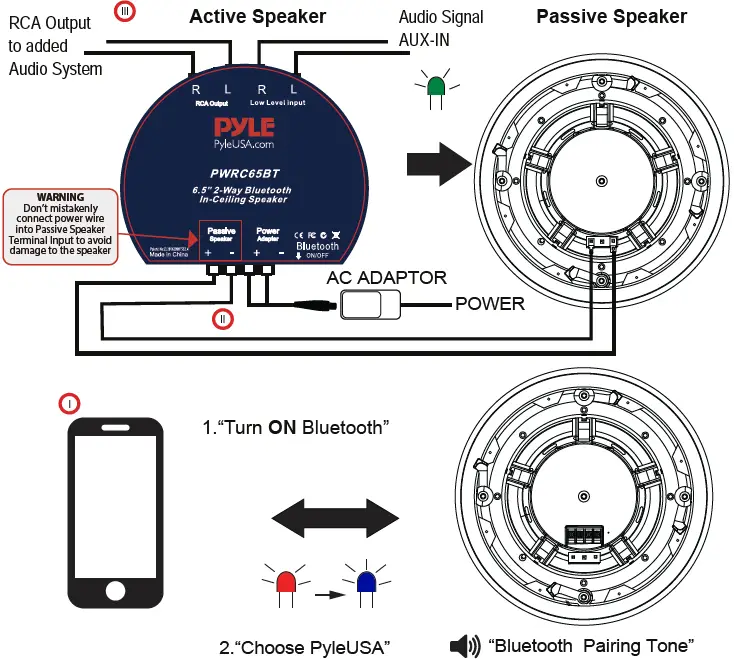

Connect the active speaker to a power source via an included power adapter. Upon successful connection a red light will illuminate in active speaker. Switch ON Bluetooth on your phone/tablet and select the Bluetooth connection name of ‘Pyle USA’. Upon successful connection you will hear a connection tone and blue light will illuminate on active speaker. Conversely upon Bluetooth disconnection, you will hear a disconnection tone and red light illuminates on active speaker.
- Using included speaker wire to daisy Chain connection in between Active and Passive speakers to build up the complete stereo system
- RCA Low level input allow user to have any AUX-IN option additionally while Bluetooth feature is disconnected. The active speaker stays green light illumination while RCA AUX-IN. Vice Versa, while Bluetooth is connected, the Bluetooth signal dominates the audio system.
- Optional ‘RCA Output’ allows user to wire and extend wider audio system. The added pair is to receive audio signal via ‘Low Level Input’ and turn Bluetooth pin OFF on added active speaker to avoid Bluetooth connection confusion. The way of daisy chain connection in between active and passive speaker on added pair audio system is same as above point 2 method. The active speaker on added speaker system stays at green light illumination. User can use ‘RCA Output’ and ‘Low Level Input’ to add up numerous pair speakers to build up optimal audio system for di_erent places.

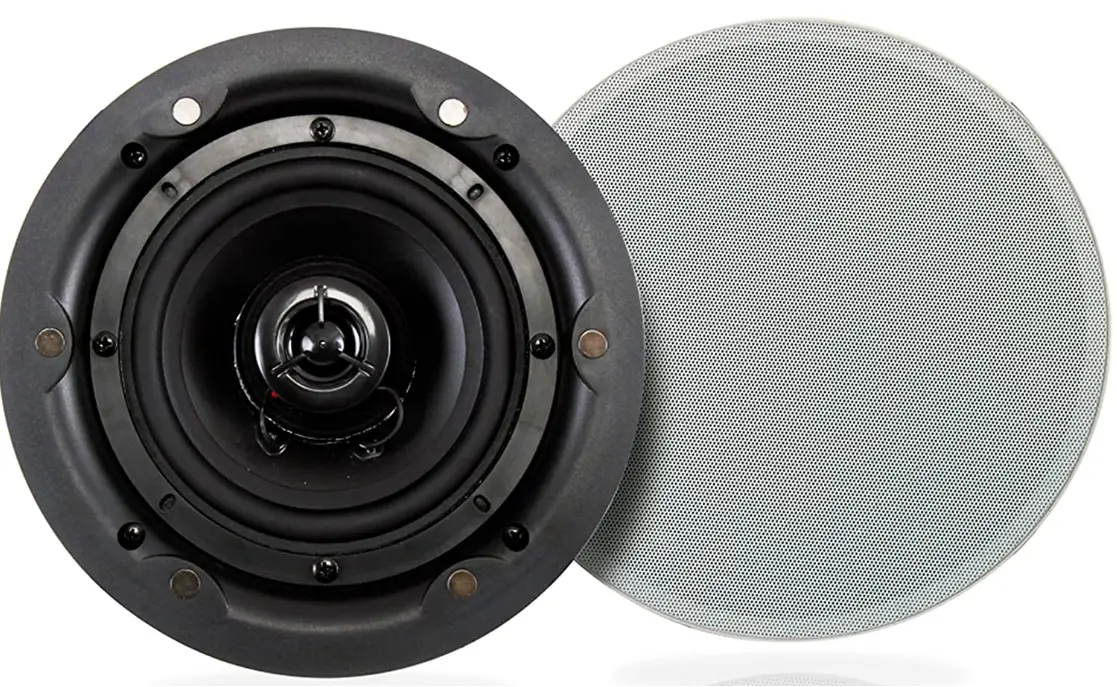

Dual In-Wall / In-Ceiling Bluetooth Speaker System 2-Way Full Range Stereo Speakers
With Wireless Streaming Ability, Magnetic Grill
| MODEL | PWRC55BT | PWRC65BT | PWRC85BT |
| Speaker Size | 5.25’’ inch | 6.5’’ inch | 8’’ inch |
| Power Output | 240 Watt MAX | 300 Watt MAX | 360 Watt MAX |
| Frequency Response | 80Hz-20kHz | 70Hz-20kHz | 55Hz-22kHz |
| Sensitivity | 87 +/- 2 dB @ 1W/1M | 89 +/- 2 dB @ 1W/1M | 91 +/- 2 dB @ 1W/1M |
| Cut-out Diameter | 4.7” -inches | 5.77” -inches | 7.25” -inches |
| Active Speaker Mounting Depth | 2.94” -inches | 3.15” -inches | 4.4” -inches |
| Passive Speaker Mounting Depth | 2.78’’ -inches | 2.90” -inches | 3.76” -inches |
| Power Supply | 110/240V
(12V Power Adapter) | 110/240V
(12V Power Adapter) | 110/240V
(18V Power Adapter) |
| MODEL | PWRC55BT | PWRC65BT | PWRC85BT |
| Speaker Size | 5.25’’ inch | 6.5’’ inch | 8’’ inch |
| Power Output | 240 Watt MAX | 300 Watt MAX | 360 Watt MAX |
| Frequency Response | 80Hz-20kHz | 70Hz-20kHz | 55Hz-22kHz |
| Sensitivity | 87 +/- 2 dB @ 1W/1M | 89 +/- 2 dB @ 1W/1M | 91 +/- 2 dB @ 1W/1M |
| Cut-out Diameter | 4.7” -inches | 5.77” -inches | 7.25” -inches |
| Active Speaker Mounting Depth | 2.94” -inches | 3.15” -inches | 4.4” -inches |
| Passive Speaker Mounting Depth | 2.78’’ -inches | 2.90” -inches | 3.76” -inches |
| Power Supply | 110/240V
(12V Power Adapter) | 110/240V
(12V Power Adapter) | 110/240V
(18V Power Adapter) |
Features
- In-Wall / In-Ceiling Home Speakers
- Active + Passive Speaker System
- Built-in Bluetooth Wireless Receiver
- Universal Flush Mount for Any Flat Surface
- Flat & Thin, Slim-Style Removable Speaker Grill
- Convenient Magnetic Speaker Grill Quickly Attaches / Detaches
- Digital Sound Processing Amplifier
- Ability to Connect External Devices
- RCA Audio Aux (L/R) Connectors
- 2-Way Full Range Stereo Sound Reproduction
- 1/2” High Compliance Polymer Tweeter
- Polypropylene Cone with Rubber Edge
- Cut-Out Template for Easy Installation
- Integrated Clamp-Type Mounting Brackets
- Environmentally Friendly ABS Construction
- Perfect for Custom Audio Applications
- Used for Home, O_ce & Business
What’s in the Box?
- (1) Active Speaker
- (1) Passive Speaker
- (2) Speaker Connection Wires, 9.8’ ft.
- Cut-Out Template
- Power Adapter
Technical Specs
- Speaker Style: Round / Circle
- Impedance: 8 Ohm
Frequently Asked Questions
An iPhone and an Amazon Echo are both connected. Any device that supports Bluetooth can connect to it.
How can I adjust the speakers’ level while they are connected to my Samsung smart TV?
Hello, if you’re TV and Bluetooth are linked, you can adjust the volume using the TV’s remote. Visit our website, pyleaudio.com, to view the unit’s further specifications. For further information, enter the model number PWRC65BT in the search box. I’m grateful.
Hello, you need to connect your amplifier to both speakers. Visit our website, pyleaudio.com, to view the unit’s further specifications. To find out more, enter the model number, PWRC65BT, in the search field. Thanks.
We don’t advise it.
I bought six; three are passive and three are Bluetooth speakers that we connected to a receiver and they sound fantastic.
Hello, this device does indeed have a built-in amplifier. Visit our website, pyleaudio.com, to view the unit’s further specifications. Put PWRC65BT in the search box as the model number for further information. I’m grateful.
These speakers are Wi-Fi tethering. If your TV has a Bluetooth output, they will function. If not, you can purchase a Bluetooth transmitter that is optional and attach it to the audio line out.
There are two speakers included.
No, ceiling speakers typically function as passive speakers, which means they lack internal amplifiers andare powered by speaker cables connected to an external amplifier. Each ceiling speaker is connected to the binding posts on the amplifier to do this.
You must first navigate to the NFC section on your Android device, F2, in order to pair the speaker with your phone. You can purchase a Bluetooth transmitter that connects straight into your TV’s audio-out jack (3.5mm headphone jack, RCA connectors, USB, or optical) if your TV does not support Bluetooth.
Easy Instructions for Connecting Ceiling Speakers to a Receiver
Switch off everything.
Assemble your cables.
Cut the wires’ ends apart.
Look at the recommended wiring for the speakers
As soon as you get your wires, attach them to the correct sockets.
Attach the sockets’ cables with locks.
Every TV will have some sort of connected audio output. It will most likely be a digital optical output presently. You can enjoy TV sound through your ceiling speaker system by connecting an analogue cable from yourTV to the amplifier, plugging it in, and setting your TV to line output.
Ceiling speakers are indeed excellent for playing music. Similar to being at a concert hall or live music event, they have the power to immerse you in a surround sound experience.
The speaker may need to be unpaired, then repaired with your device.
Before starting the connecting process, make sure the Bluetooth Speaker is ON.
