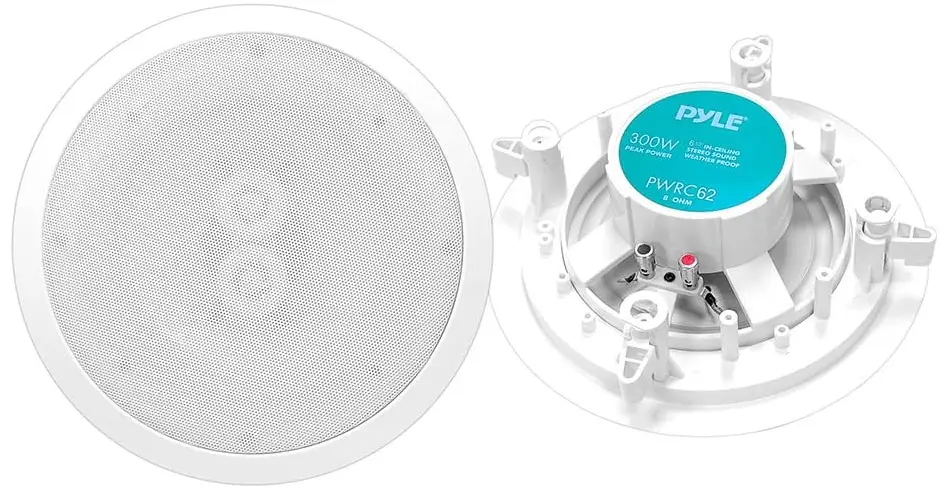

Pyle PWRC62 Ceiling Wall Mount Speakers
Specifications
- Product Dimensions: 25 x 4.53 x 9.65 inches
- Item Weight: 2 pounds
- Item model number: PWRC62
- Speaker Type : Outdoor, Woofer
- Connectivity Technology: Wired
- Recommended Uses For Product: Construction, Indoor, Outdoor
Product Descriptions
Without taking up valuable floor space, the Pyle PWRC62 dual-channel speaker system delivers stereo music to every room in your house or place of business. This 6.5″ marine grade speaker is moisture resistant and can be used indoors, outdoors, or anyplace there is a risk of exposure to severe moisture. A broader, richer sound is produced by the PWRC series speakers because to its exceptional power handling capacity, heavy-duty voice coils, and high response rates can be used for applications in walls and ceilings for a clean appearance. Push-type speaker terminals make it simple and quick to connect speaker wire. For simple installation, the kit comes with mounting hardware and a cut-out template. The Pyle PWRC Speaker Systems will produce the best sound quality and improve your overall audio experience.
Features
- Marine Grade Construction Weather Resistant for High Moisture Areas For Indoor & Outdoor Use 6.5″ Dual Channel Voice Coil Speaker
- Push-Type Speaker Terminals that are Practical
- Easy Installation Including Hardware & Cut-Out Template
- Grill That Resists Stains
- Technical Details
- Peak Power Handling of 300 Watts
- (2) 12″ Polycarbonate Tweeters, 150 Watt RMS Power Impendence frequency of 8 Ohm Input: 60Hz–22kHz
- 9″ Outside Diameter, 7 2/3″ Cut Out Diameter, and 2 3/4″ Mounting Depth
WEATHER RESISTANT SPEAKERS
The twin channel Pyle 6.5″ ceiling wall mount speaker has weather resistance for high moisture locations. The product’s marine-grade structure makes it ideal for installation both inside and outside.
60Hz – 22kHz FREQUENCY RESPONSE
The Pyle ceiling speaker system has a frequency response and two 1/2″ polycarbonate tweeters. This product has a remarkable 8 ohm impedance rating and an astounding 300 watts of power handling capacity.
FLUSH MOUNT FORM
A single flush-mount stereo speaker for quick and easy installation in walls or ceilings. The item incorporates handy push-type speaker connectors that make speaker wire connections quick and simple.
Pyle in-wall speaker systems were deliberately paired to provide sound clearly and with exceptional response at a peak power of 300 WATTS. The long lifespan of the product and wide-ranged sound performance are both made possible by the heavy-duty voice coil.
Installation
Easy installation is made possible by the product’s cut-out template. The cut-out template has a diameter of 7 2/3″ and a mounting depth of 2 3/4″. Additionally, the item comes with mounting hardware for accurate application or installation.
Frequently Asked Questions
It has two sets of terminals: the ones shown in the image and the ones on the other side that are not. I bought two of them for a little bathroom installation, and they sound great, are crystal clear, and have just the proper amount of bass.
Only one channel may connect to my set at a time (a push terminal for the common speaker wire marked black and a push terminal for the positive speaker wire marked red). I guess my speakers are different from yours.
There isn’t a switch for individual speaker control. At the receiver unit, modifications are made in all areas. at the very least on mine.
Left and right channels are included on each speaker. Each speaker can receive both channels. If you decide not to, I believe one of the tweeters will be inactive, which most likely won’t have an impact on the bass. On my patio, I connected them such that each had a channel from both. Although there is no stereo separation, if you are directly underneath one, the whole sound is heard.
I’m powering mine with a straightforward Sherwood receiver/amp that I spent between $100 and $200 on at Radio Shack. Sounds fantastic. On the back of this speaker, there are two sets of speaker wire inputs; the right speaker wire should be connected to one set, and the left speaker wire to the other. This sounds better than the speakers I used to have in my bathroom. The stereo separation provided by two speakers is not at all missed. It is actually preferable to have the L&R channel coming from the same location in a bathroom since you can hear the music equally across the space. I flush mounted it in the ceiling over my two sinks and ran the wiring to it through the attic.
In a technical sense, you can. There are various options: you can choose not to connect one of the coils, connect them in parallel (doubling the impedance, making 8 ohm speakers 16 ohm), or connect them in series, halving the resistance (8ohm becomes 4ohm). Visit this website (http://www.diyaudioandvideo.com/FAQ/Wiring/) for a more thorough discussion of series and parallel wiring as well as the significance and effects of speaker resistance. When I started wiring my house, it was quite helpful in getting the idea through my head.
Hello, these speakers have a dual channel configuration, which means that the left and right channels are combined into a single cylinder. Connect your amplifier’s left and right channels to the relevant terminals. Visit our website, pyleaudio.com, to view the unit’s further specifications. For further information, enter the model number PWRC62 in the search box. Many thanks
Unlike Bluetooth
Standard speaker cable must be used to connect the speakers. An audio jack port is not present. You could utilise them if your shelf system connects the speakers using conventional speaker cable. If your shelf system calls for an audio cable port, you just can’t plug them in that way.
Hello, sadly not. There is only one speaker in the item. I’m grateful.
