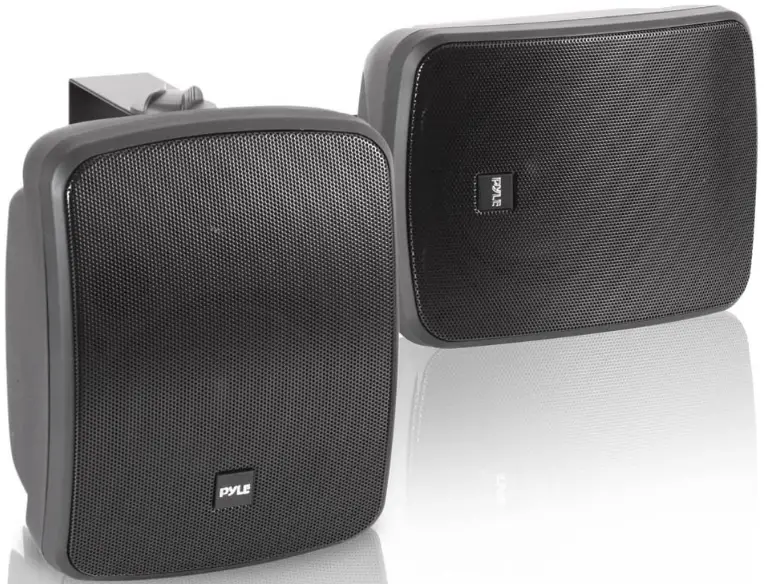

Pyle PDWR55BTRFB 5.25″ Wall-Mount Marine Speakers Black
Features
- Includes (2) Active Speakers
- Wireless BT Streaming Music Streaming
- Digital Audio Power GX Sound Processing Amplifiers
- 2-Way Full Range Stereo Sound with Bass Reflex
- Rugged Marine Grade Water-Resistant Construction
- Integrated Wireless RF Audio Module Streaming Ability
- Selectable Radio Frequency Switches to Connect Additional Systems
- Gold Plated Binding Post Speaker Plugs
- Aux (RCA) Input Jacks
- Connect & Stream Audio from External Devices
- Custom Tooled Design for High Power & Deep Bass Response
- Heavy Duty Cabinet Enclosures
- Built-in Capacitor Speaker Protection
- Stain Resistant & Rust Proof Speaker Grills
- Integrated Wired Power Cable
- Adjustable Rotary Volume Controls
- Universal & Detachable Wall-Mount Brackets
- For Indoor / Outdoor Use with Audio Monitor, Surround Sound Applications
- Water & Weather-Resistant Design for the Boat or Backyard
What’s in the Box
- 25’’ Active Master Speaker
- 25’’ Active Support Speaker
- Audio Connection Cable (AUX-RCA) 6′ ft.
Built-in BT Wireless Audio Streaming
- Simple Setup & Hassle-Free Pairing Ability
- Instantly Stream Wireless Music from Your Connected Device
- Works with All of Your Favorite Devices
- (iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
- LED Connection Indicator Light
- Wireless BT Streaming Network Name:”PYLE Audio”
- Wireless Range: 100’+ Ft.
Technical Specs
- Marine Grade IP-X4 Rating
- 25”’ Long Throw Woofers
- MAX Power Output: 240 Watt
- RMS Power Output: 40 Watt + 40 Watt
- 5” Neodymium PEI Dome Tweeters
- Magnet Size: 10 oz.
- Cone Material: PP Mica + Rubber Surround
- Frequency Response: 80Hz-20kHz
- 8 Ohm Impedance
- Power: 110/240V
- Single Speaker Dimensions (L x W x H): 3” x 6.3” x 9.6” -Each
- Single Speaker Weight: Master Speaker 5.50 lbs. (Slave Speaker 5.05 lbs.)
- Weight: 11.2 lbs.

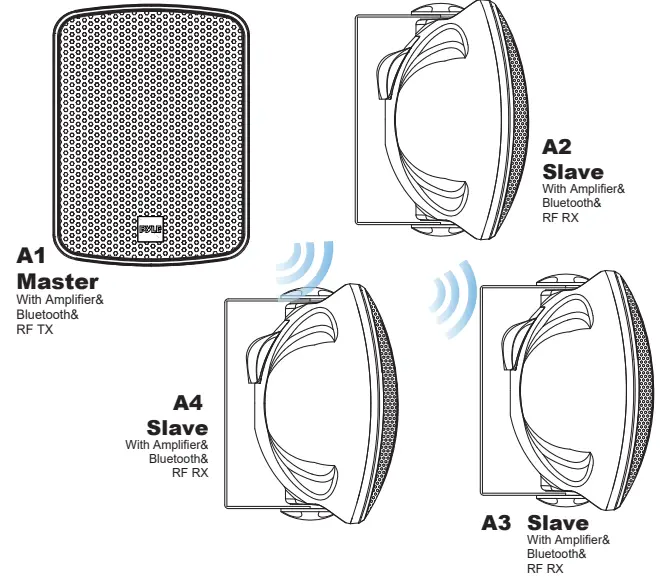

UNLIMITED SLAVE SPEAKER(A2,A3,A4…..)
CONNECTION QUANTITY AS LONG AS THEY ARE WITHIN 30M OF RADIUS AWAY FROM MASTER SPEAKER (A1)

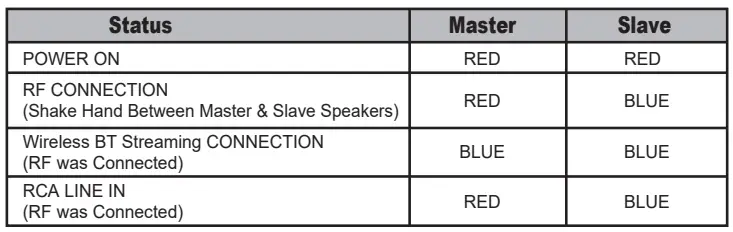

LED INDICATOR
WIRELESS BT STREAMING CONNECTION
Please be sure the Wireless BT Streaming is turned on at your device. When the device is in Bluetooth range it will connect Bluetooth automatically and will be disconnected automatically when it is out of Bluetooth range.

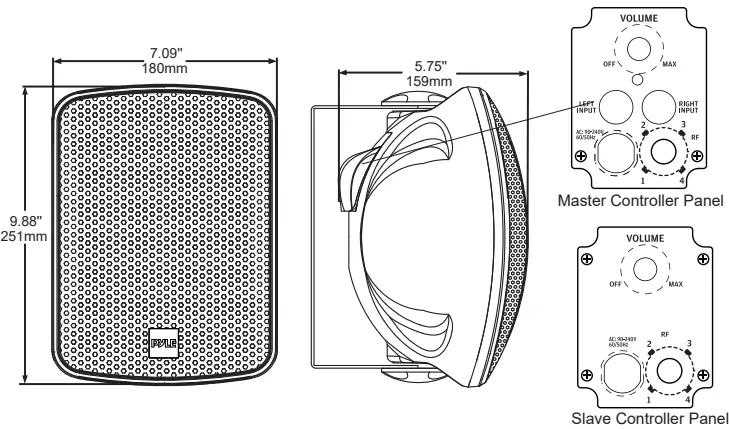

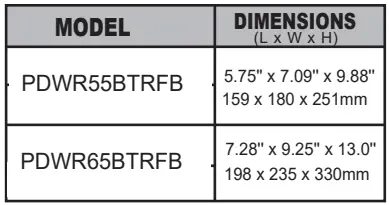

OVERALL DIMENSIONS
RF Frequency
- Rotray to 1 Frequency: 865MHz
- Rotray to 2 Frequency: 865.5MHz
- Rotray to 3 Frequency: 866MHz
- Rotray to 4 Frequency: 866.5MHz
4 RF Points Selection to Avoid Interference In Case Nearby it has same System but Different User Installed Immediate Connection When RF Point is Selected in Between Master & Slave Speakers

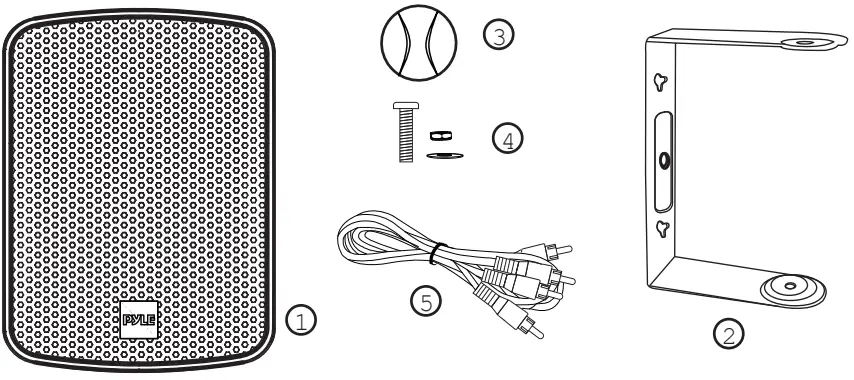

PACKAGING CONTENTS
- 2 Loudspeakers
- 2 Brackets
- 4 Bracket Bolts
- 4 Screws
- 1 RCA Wire
MOUNTING
MOUNTING THE BRACKET
- Remove the bracket knobs and the bracket from the speaker.
- Hold the bracket up to the mounting surface. The speaker can be mounted either horizontally or vertically. Hold the bracket so that the speaker wire fits through the large, circular wire hole in the bracket. Align the bracket to be square with the surroundings (use a level for accuracy).
- Mark the locations of the three shaped screw holes. Use all of the holes.
- Drill pilot holes into the mounting surface.
- Gently pull the speaker wire through the wire hole in the center of the mounting bracket. Align the bracket so that the holes all line up.
- Use your hardware to attach the bracket to the mounting surface.

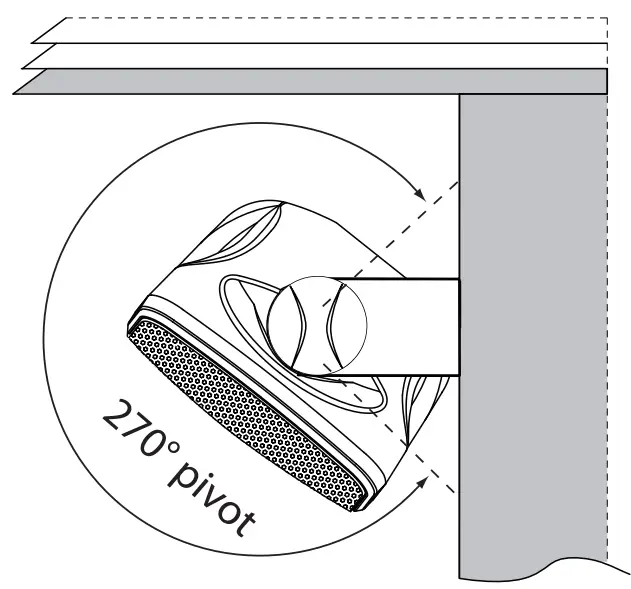

FINAL ADJUSTMENTS
- After checking that the speaker is in-phase and works correctly, angle the speaker for the best sound.
- Hand tighten the bracket knobs only. Power tools may over-tighten the knob, and strip the threads of the insert.
- Check that the entire installation is safe and secure.
Support
VISIT US ONLINE:
Have a question?
Need service or repair?
Want to leave a comment PyleUSA.com/ContactUs
FAQs
Marine speakers are made for outdoor use where they may be exposed to splashes, rain, or even hose water. They are watertight, as we like to say.
Activate the device. To turn on Wireless BT, press the ON/OFF switch on the front panel until the indicator light is on. Search for the Wireless BT name “PYLE SPEAKER” using your Wireless BT phone or another device. Choose the Wireless BT name “PYLE SPEAKER” and wait for the device to pair on its own.
How Should My Pyle usa Speaker Be Connected? Using NFC If your device is NFC-capable, turn it on. To link the speaker with your Android device, touch the NFC region on your Android device F2. The speaker and the speaker are paired automatically when an Android device is inserted into the speaker.
Since maritime speakers are not specifically made for your automobile, they will obviously not fit there exactly. You may need to make room in your car if your marine speaker is too large, or it may not mount at all. The identical issue may arise if you use your vehicle’s speakers for your vessel.
You must first navigate to the NFC section on your Android device, F2, in order to pair the speaker with your phone. You can purchase a Bluetooth transmitter that connects straight into your TV’s audio-out jack (3.5mm headphone jack, RCA connectors, USB, or optical) if your TV does not support Bluetooth.
Your TV might include a headphone out port if it doesn’t output audio using RCA connectors (3.5mm port). This allows you to connect your TV to your speakers. The same connector is utilised by laptops, tablets, smartphones, and other devices. A 3.5mm audio jack on the TV end and an RCA jack on the speaker end are required for this.
Simply attach the AUDIO OUT to the HDMI connector on the TV. After that, connect the speaker to the amplifier via the output connection. The two-channel amplifier practically behaves in the same way as a receiver if you think about it, therefore there isn’t much of a difference in terms of connectivity.
A speaker wire should be connected to each speaker’s positive terminal. The positive wires for both speakers should be connected to the same positive terminal. A speaker wire should be connected to each speaker’s negative terminal. Both ought to be connected to the same negative terminal on the amp’s output.
8-10 Hours The system has a battery life of about 8 hours. 8 to 10 hours on average for charging.
The speaker may need to be unpaired, then repaired with your device. 1. Before starting the connecting process, make sure the Bluetooth Speaker is switched ON.
Using an AV Receiver to Power Passive Speakers. Since AV receivers have the power to amplify passive speakers, they can frequently take the role of an external amplifier. For instance, you can use a phono cable to link your passive speaker wire to the device and then to the computer’s sound output.
Unless you’re adding a subwoofer to a system, a single-channel amp will do as you need one channel for each speaker. Purchase a head unit with preamp outputs and an amplifier with line-level inputs when assembling your own automobile audio system.
If you play music through your Bluetooth speaker while it’s charging, it will keep going until the battery is fully charged. The speaker will turn off on its own when the battery is fully charged.
Turn on BT mode on your phone before starting the pairing process. The “PYLE” name will appear when the phone locates this ship/car audio system. In order to pair and connect with this ship/car audio system, select the “PYLE” from the device list. The BT logo will stop flashing after you confirm.
Active loudspeakers need a power source because they feature built-in amplifiers. There are two types of loudspeakers: active and passive. Active loudspeakers have an integrated amplifier that is powered and matched to the speaker driver units suitably.
