Schlage Co-100 Keypad Electronic Lock Instruction Manual

SCHLAGE CO-100 Keypad Electronic Lock

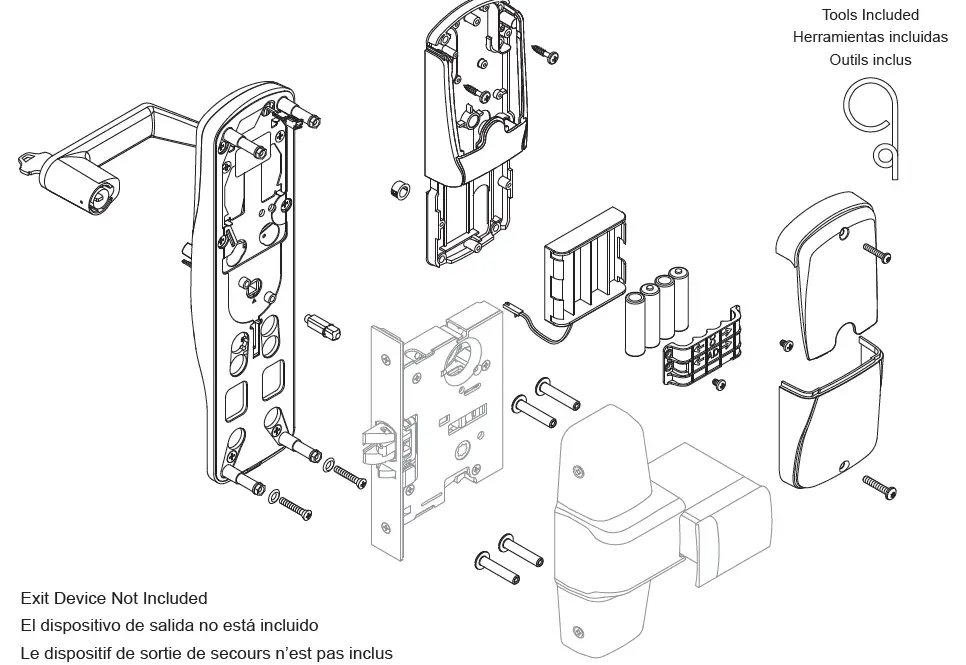

Prepare door

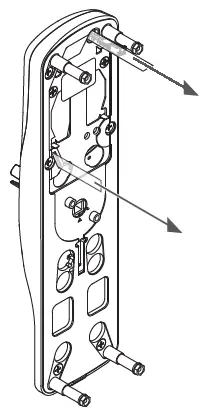

If insulator strip is present, carefully remove it.

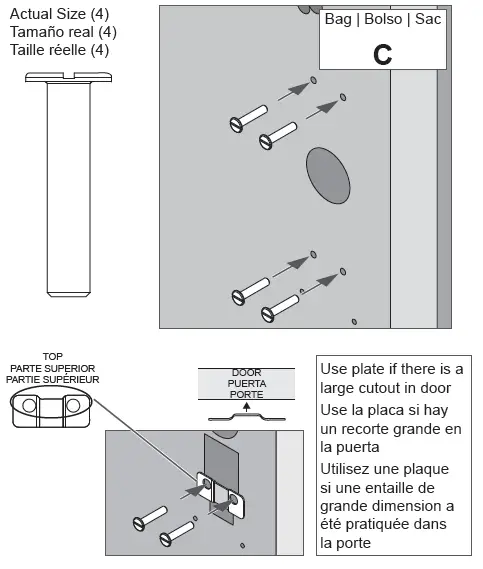

Install sex bolts to secure device.

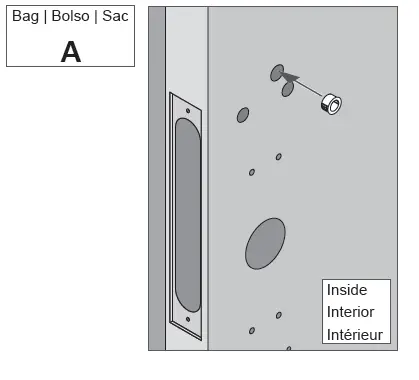

Install grommet.

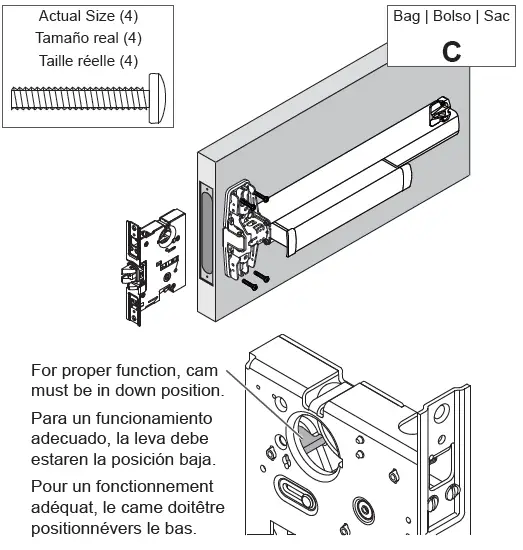

Install device per manufacturer instructions.

Install spindle into assembly.

Check lever handing.

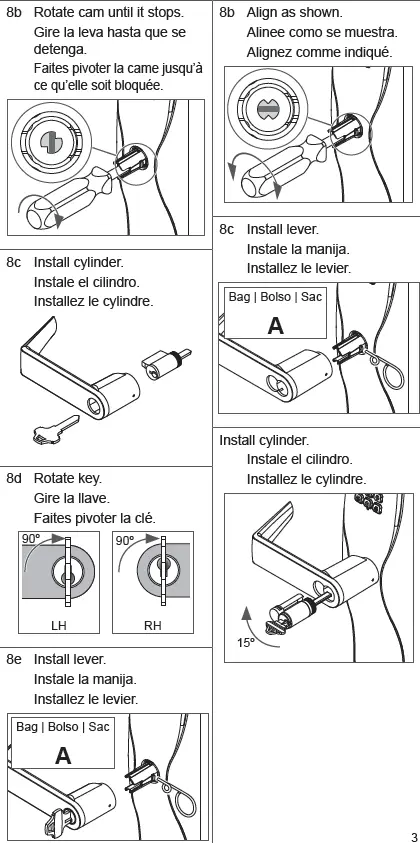

Install cylinder and lever.

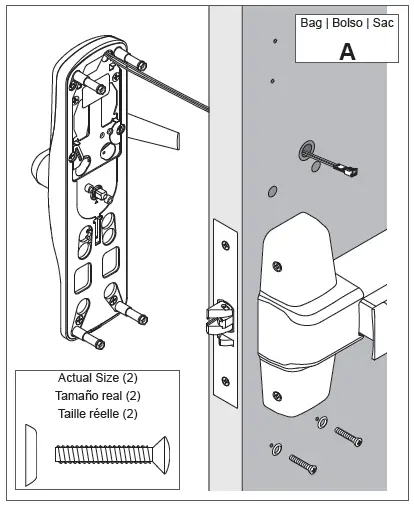

Install outside assembly

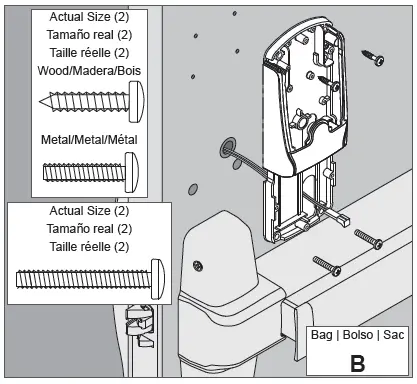

Install inside assembly.

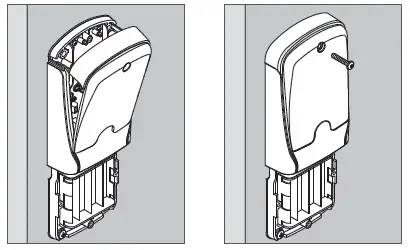

Install cover and screw.

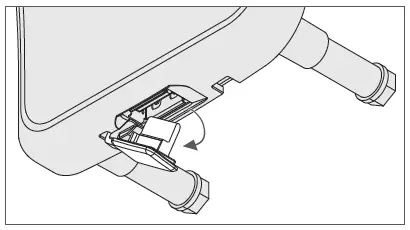

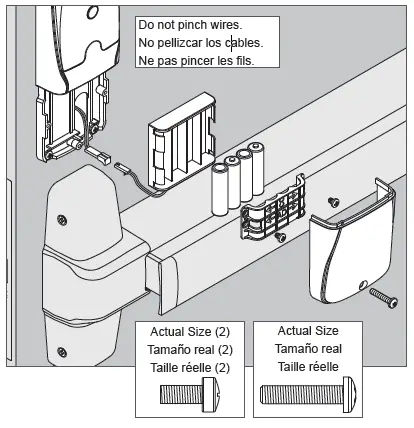

Install batteries.

Set up lock.

After installing the lock, see the user guide for setup and operation.

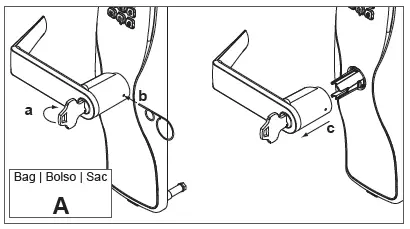

Lever Removal

Changing the cylinder’s tailpiece

• Remove USB plug.

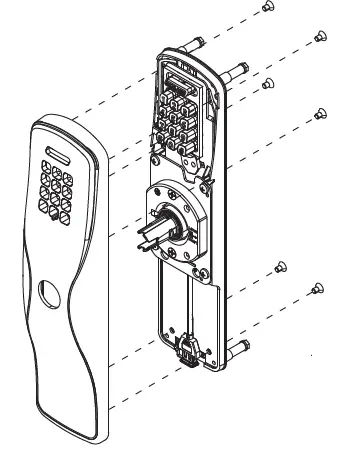

• Remove cover from baseplate.
• Remove spring cage.

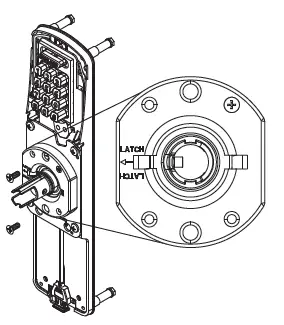

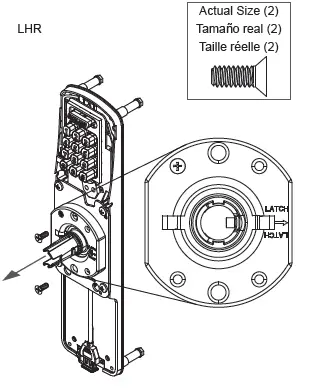

• Move lever stop to opposite side − Align arrow with latch.
• Reinstall springcage.
• Reassemble cover and baseplate.

IMPORTANT: Do not pinch the ribbon cable duringreassembly. Vuelva a ensamblar la cubierta y la placa base.
