Keypad Locks Programming Manual

Keypad Locks
Programming Guide

Codes

Programming Code (Six Numbers)

• • • Used to program the lock.
    • DOES NOT unlock the lock.
    • If you forget the Programming Code, you can reset your lock back to factory settings. See the Keypad Locks User Guide for more information.
    • Lock comes preset with a default Programming Code.

User Codes (Four Numbers)

• • • Used to unlock the lock.
    • Up to 19 possible User Codes can be stored in the lock at a time.
    • Lock comes preset with two default User Codes.

Default Programming Code > Place Label Here > Default User Codes

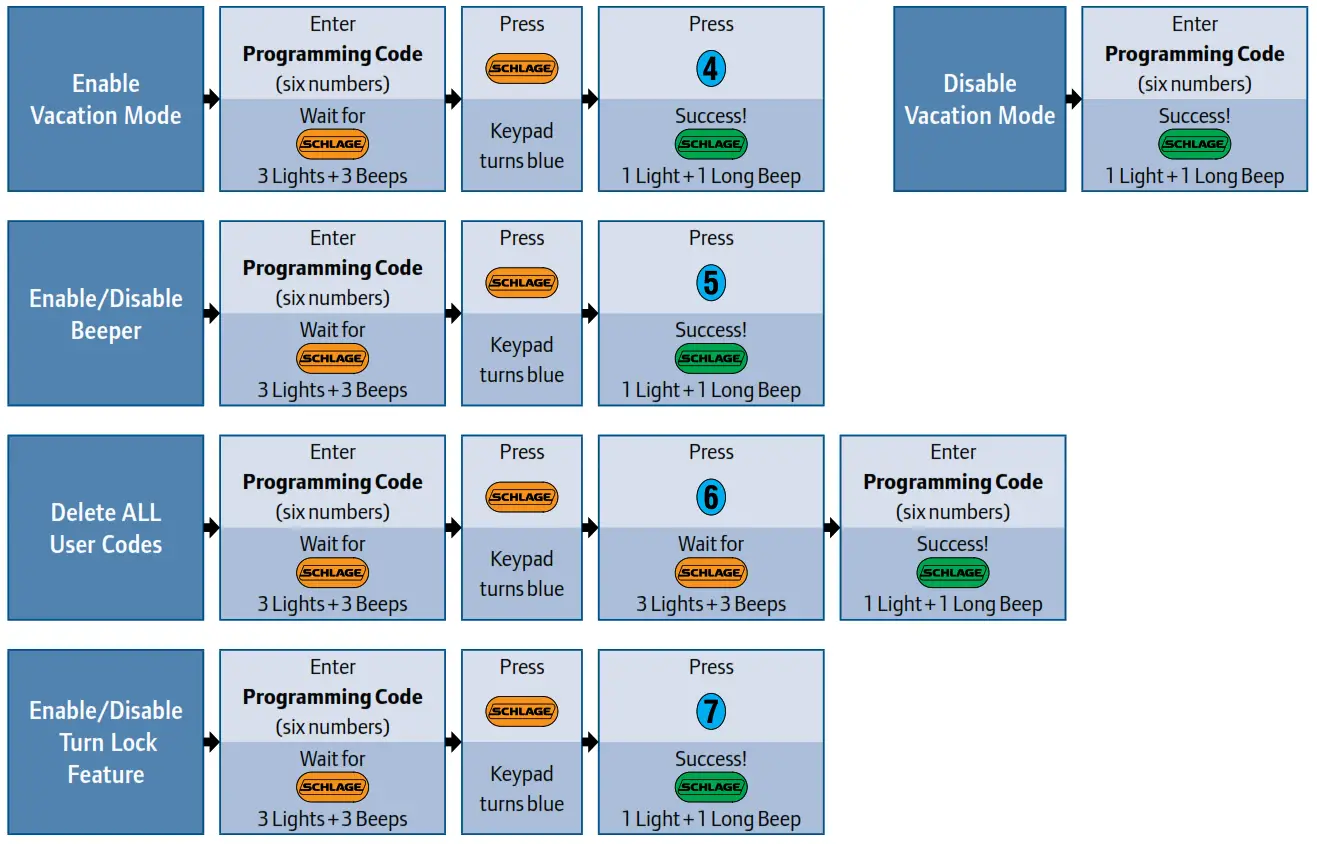

Functions

See reverse for function descriptions. Beeps sound only when beeper is enabled.

Need Help?

keypad.schlage.com

Calling From:
U.S.A.: (888) 805-9837
Canada: (800) 997-4734
Mexico: 018005067866

Get the free mobile app at
gettag.mobi

© Allegion 2014
Printed in U.S.A.
23780034 Rev. 01/14-b
