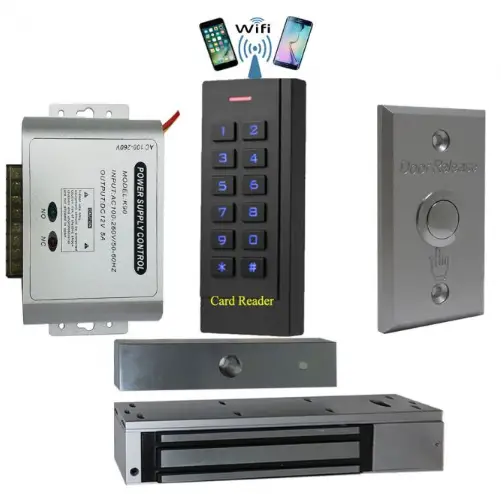

The device is a standalone access control and proximity card reader which supports EM & MF card types. It builds-in STC microprocessor, with strong anti-interference ability,high security and reliability,powerful function and convenient operation. It’s widely used in high-end buildings, residential communities and other public places.

Features

Ultra-low Power	Standby current is less than 30mA
Wiegand Interface	WG26 or WG34 input and output
Searching time	Less than 0.l s after reading card
Backlight keypad	Operate easily at night

Access ways	Card, Pin code, Card & Pin code, APP on the phone.
Independent codes	Use codes without related card
Change codes	Users can change codes by themselves
Delete users by card No.	The lost card can be delete by keyboard

Specifications

Working Voltage: DC12-24V	Standby Current: :530mA
Card Reading Distance: 1~ 3cm	Capacity: 2000 users
Working Temperature: -40°C ~ 60°C	Working Humidity: 10%~ 90%
Lock output load: :53A	Door Relay time: 0~ 99S (Adjustable)

Installation

Drill hole according to the size of the device and fix the back shell with the equipped screw.Thread the cable through the cable hole. connect the wires according to your required function, and wrap the unused wires to avoid short circuit. After connecting the wire, install the machine. (as show below)

Wiring

Color	ID	Description
Green	DO	Wiegand lnput(Wiegand Output in Card Reader Mode)
White	Dl	Wiegand lnput(Wiegand Output in Card Reader Mode)
Yellow	OPEN	Exit Button input terminal
Red	+12V	12V + DC Regulated Power Input
Black	GND	12V – DC Regulated Power Input
Blue	NO	Relay normally-on terminal
Purple	COM	Relay Public terminal
Orange	NC	Relay normally-off terminal

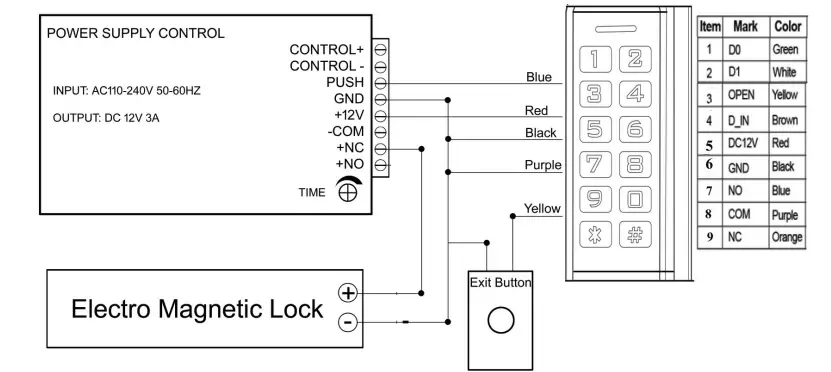

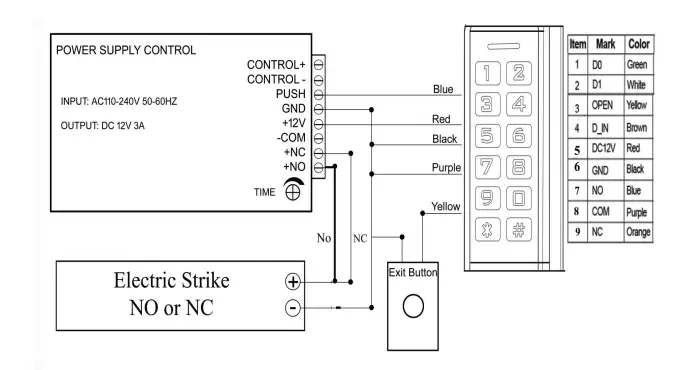

Diagram

Common Power Supply

Special Power Supply

Reader Mode

Sound & Light indication

Operate Status	LED Light Color	Buzzer
Standby	Red
Keypad		Beep
Operation Successful	Green	Beep-
Operation Failed		Beep-Beep-Beep

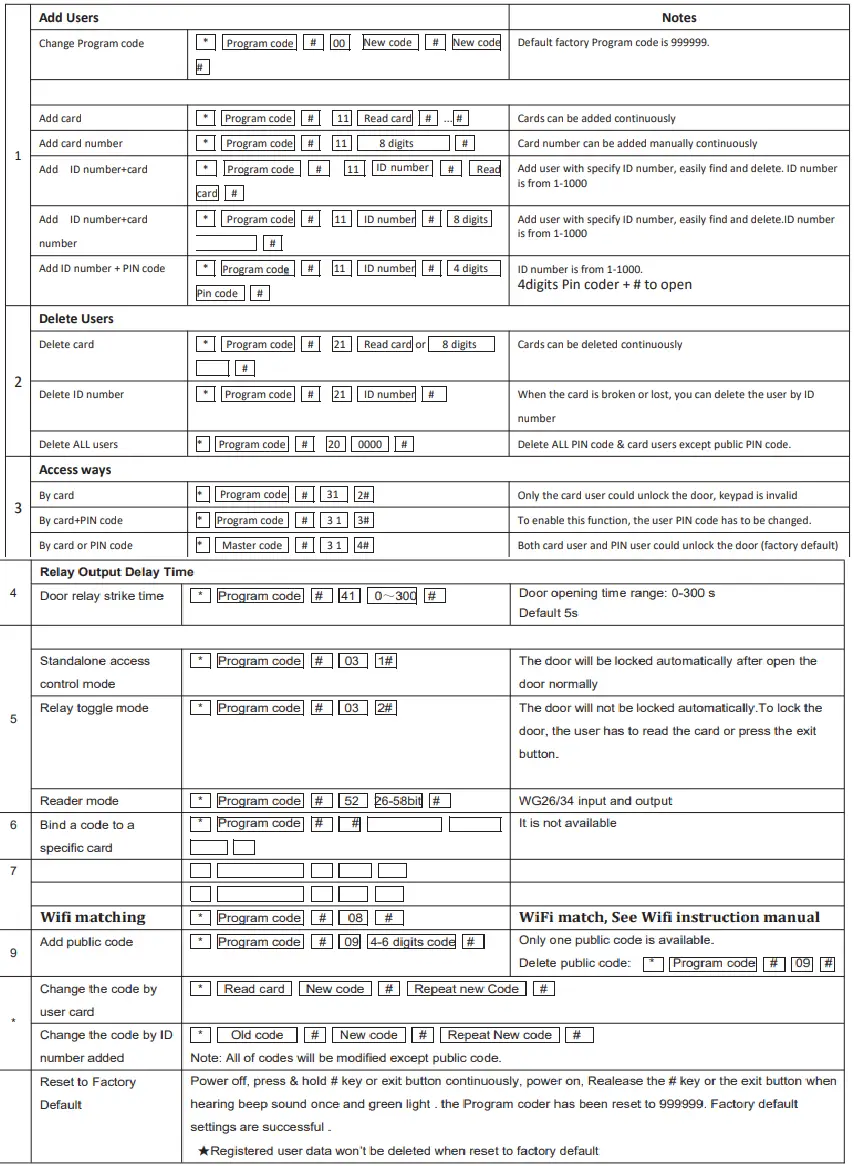

Entering into Programming	Flash Red Slowly	Beep –
Programmable Status	Orange
Exit Programming	Red	Beep-
Door Opening	Green	Beep-
