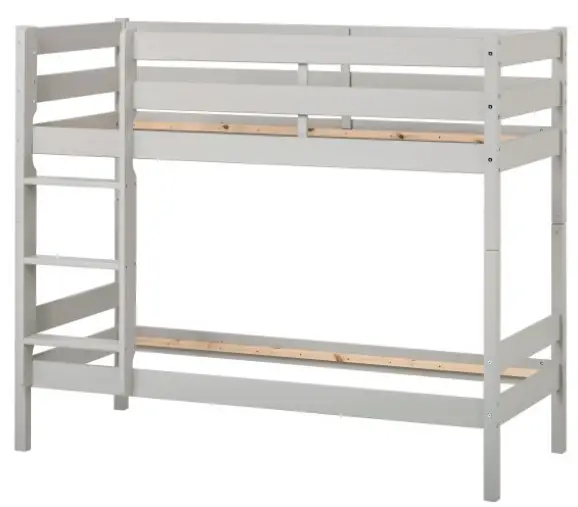

hoppekids 30-0010-00-07M ECO Comfort Bunk Bed 70×160 cm Dove Grey

hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-PRODACT-IMG

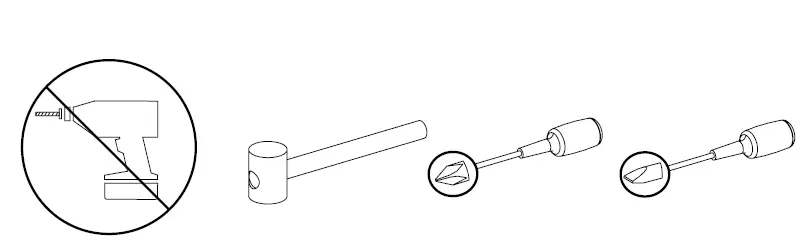

TOOLS RIQUIED

hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-2hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-16

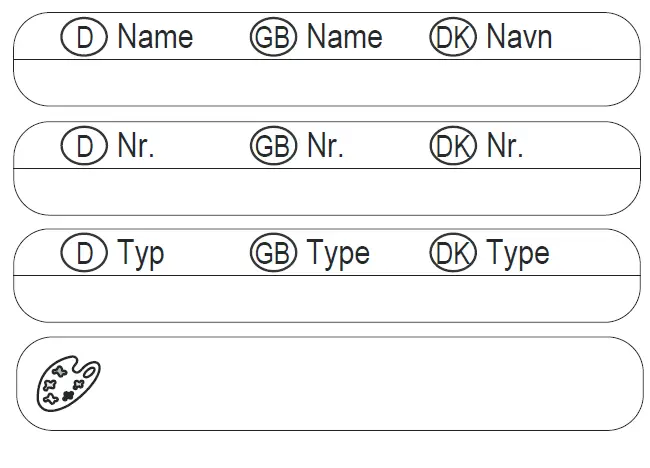

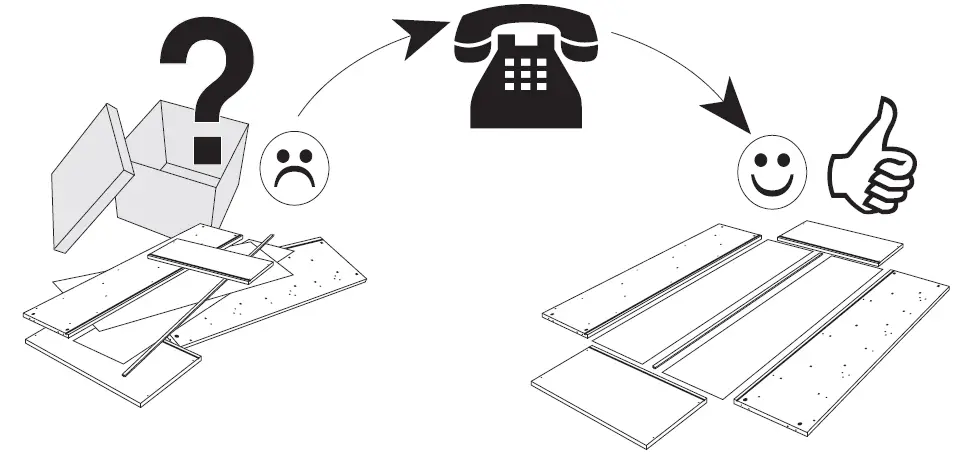

Service

hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-14hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-15

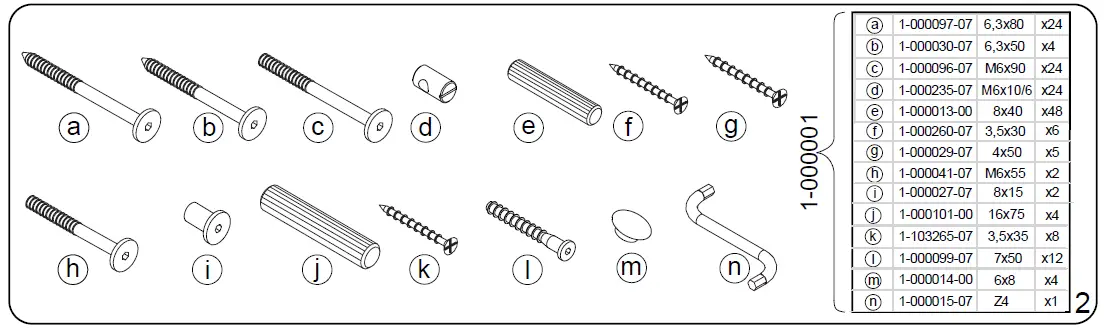

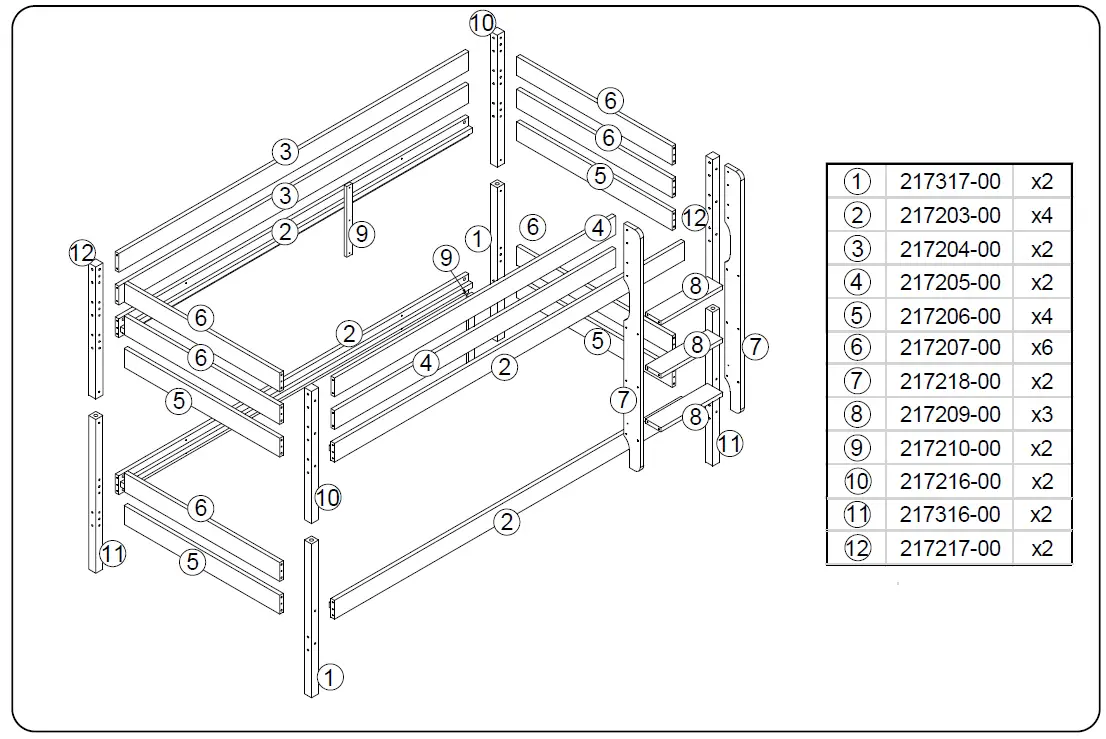

PARTS

hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-1

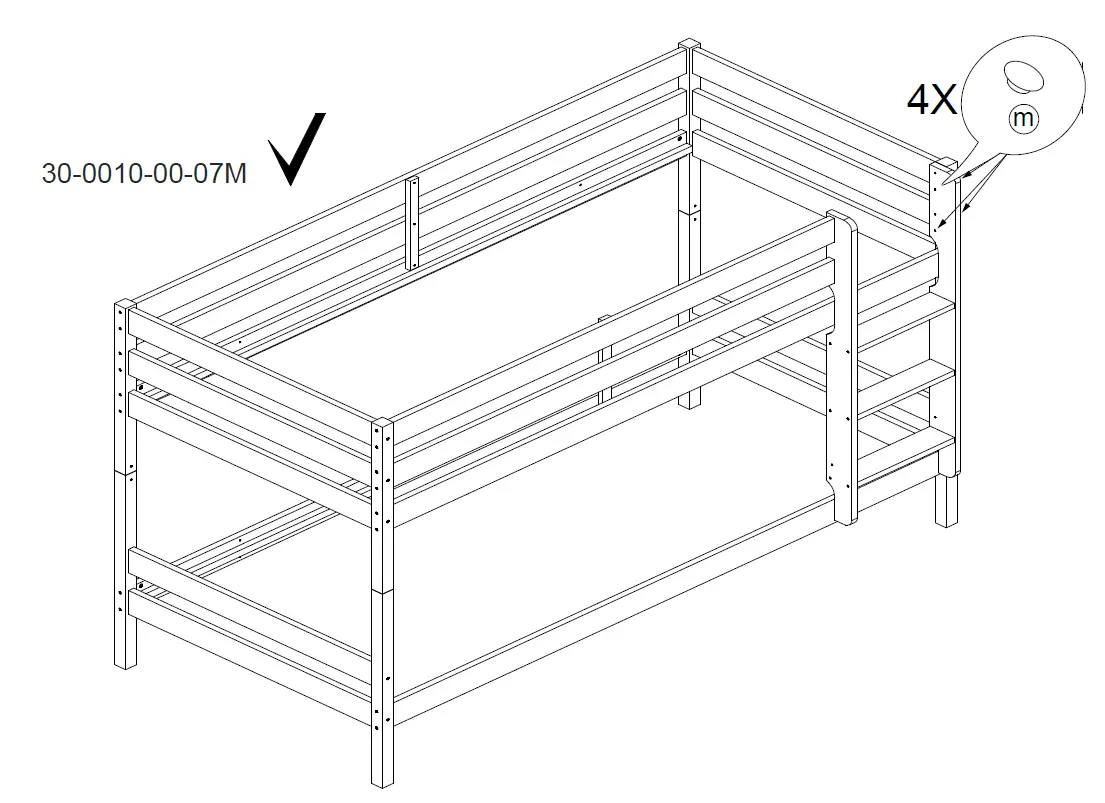

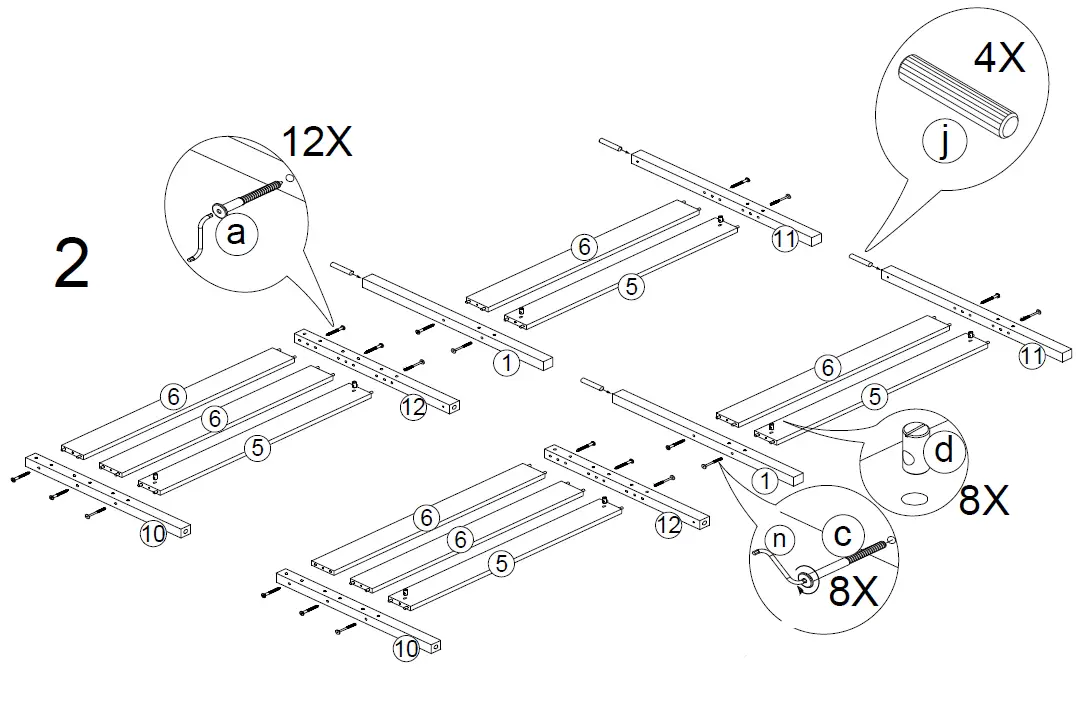

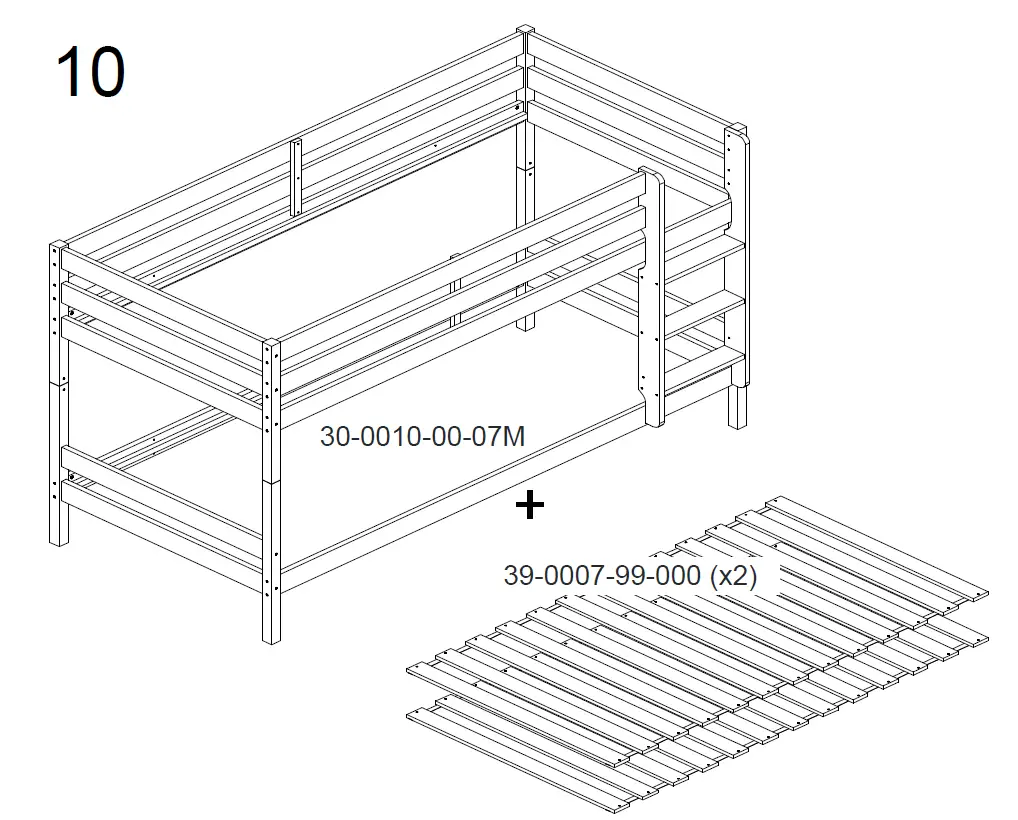

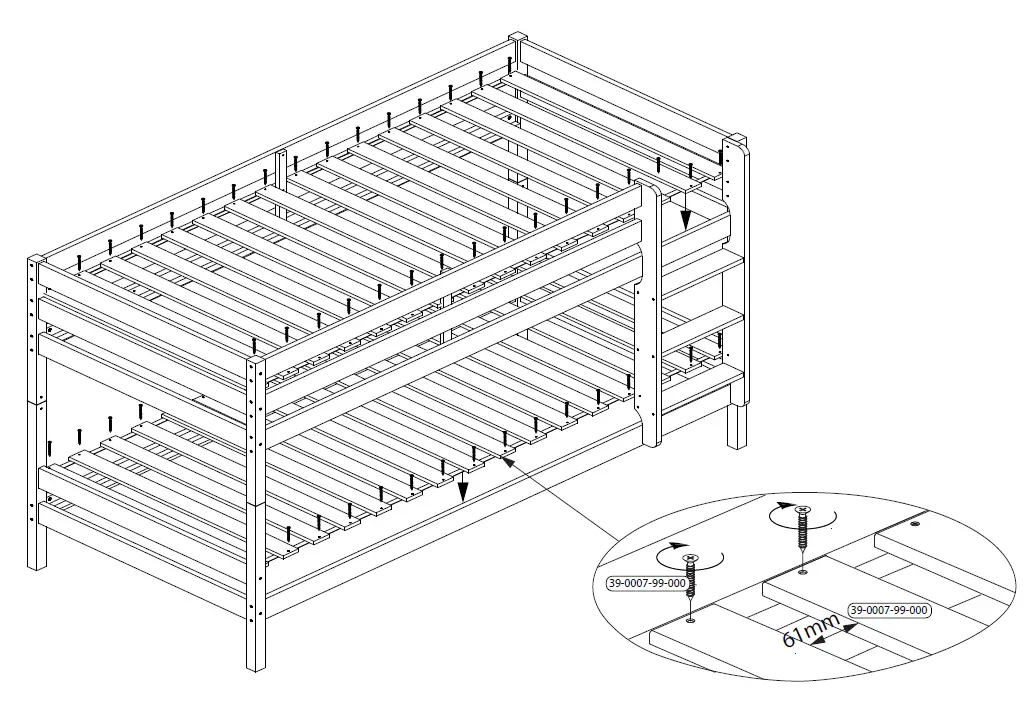

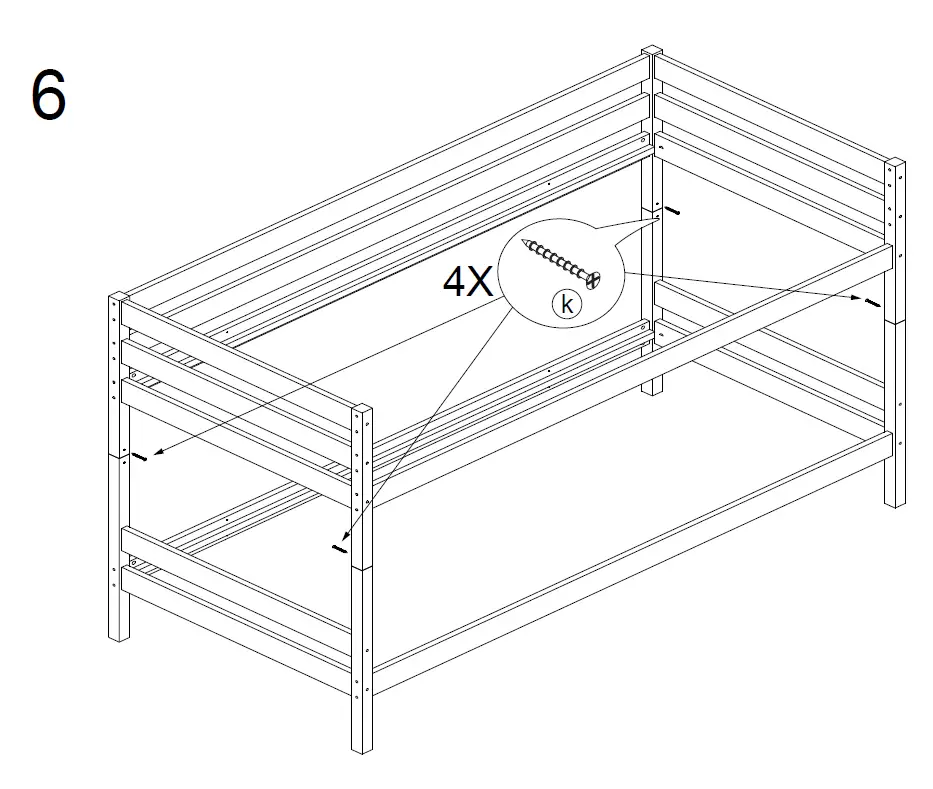

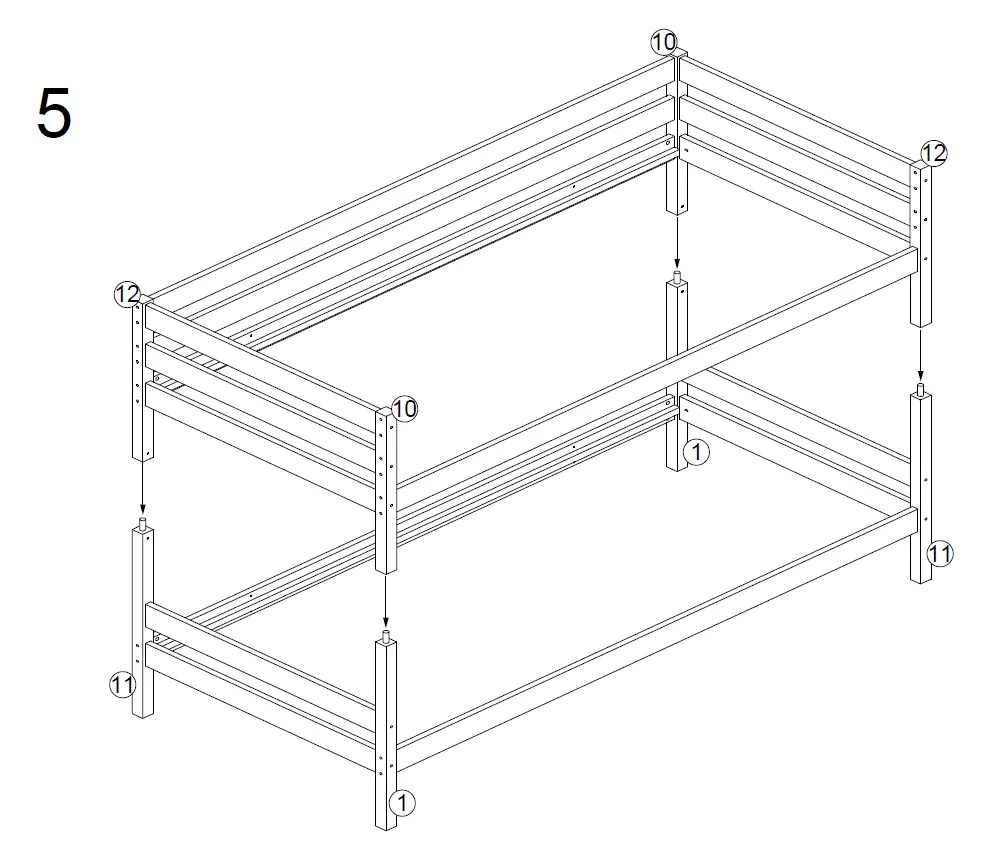

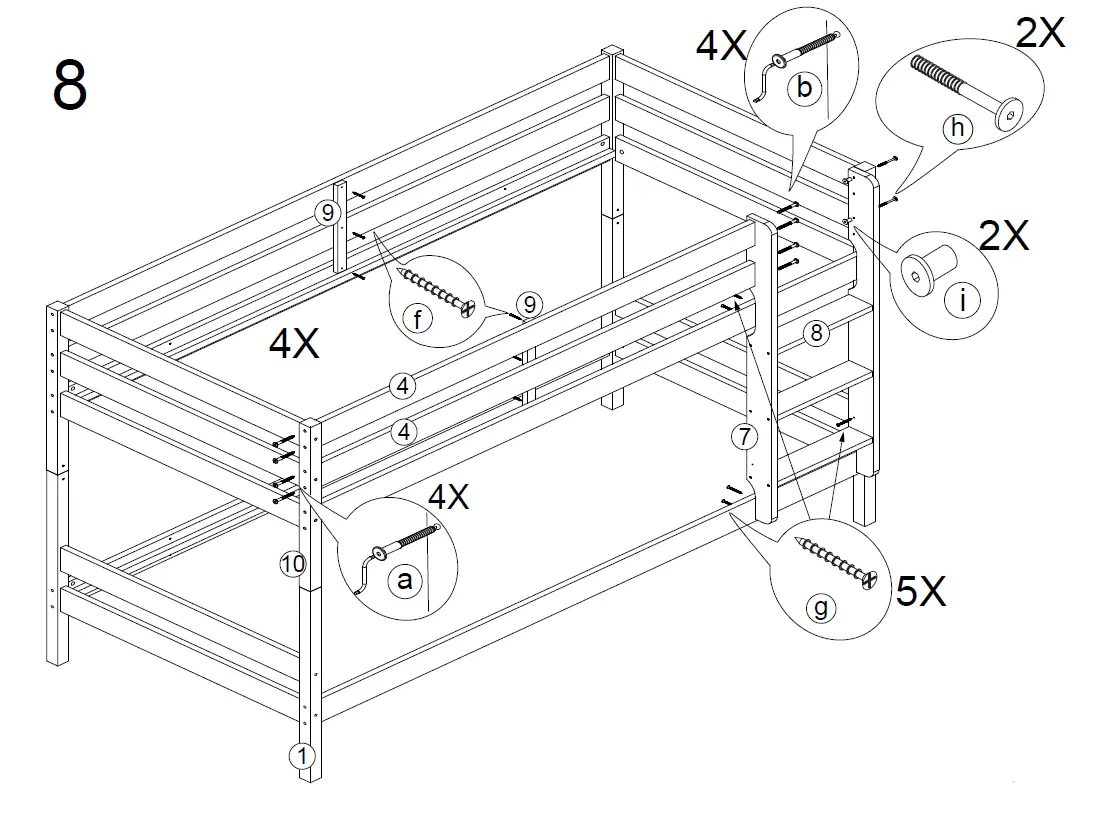

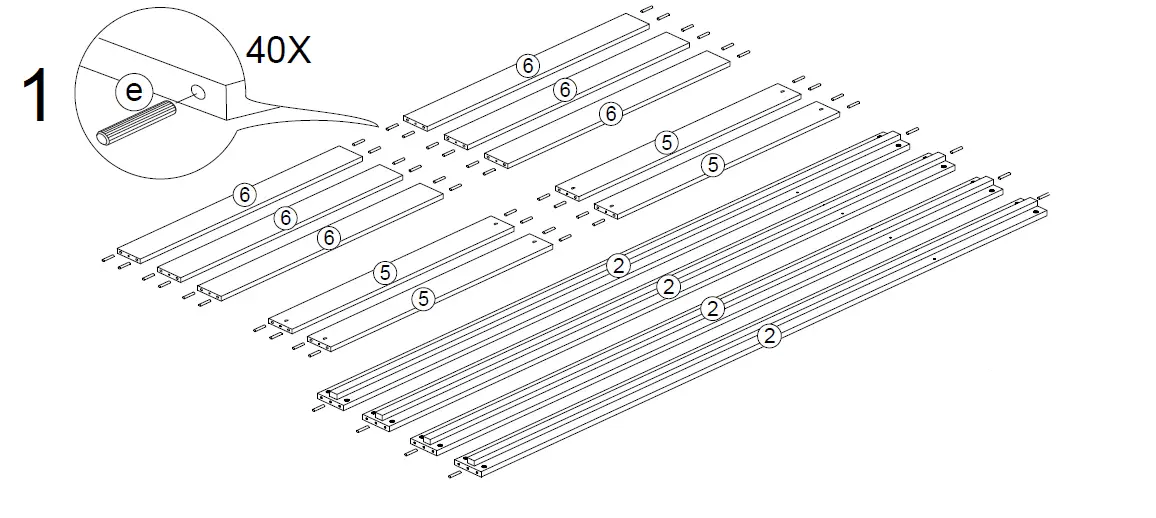

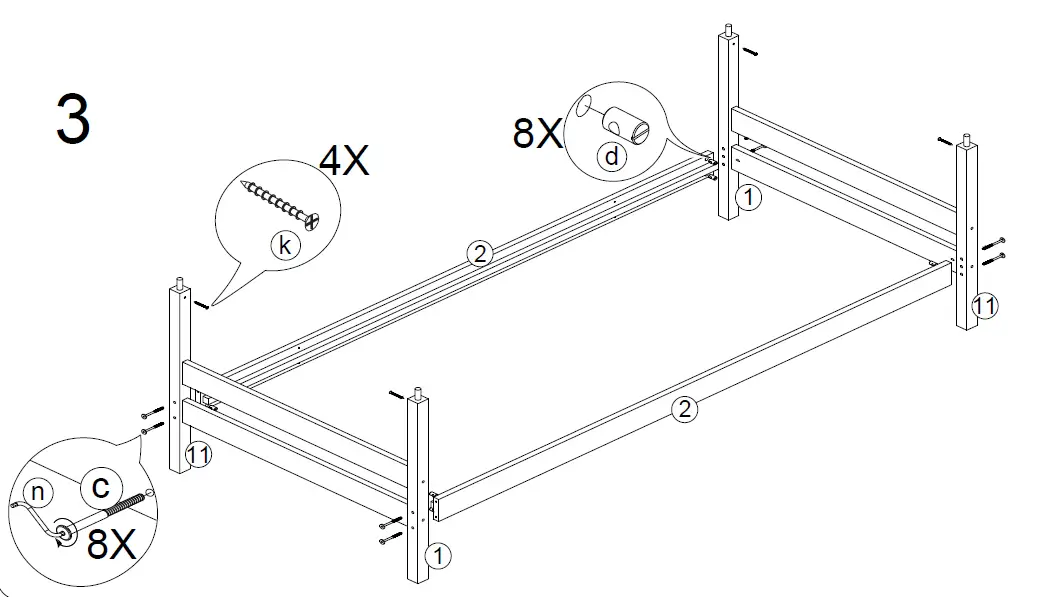

INSTALLATION

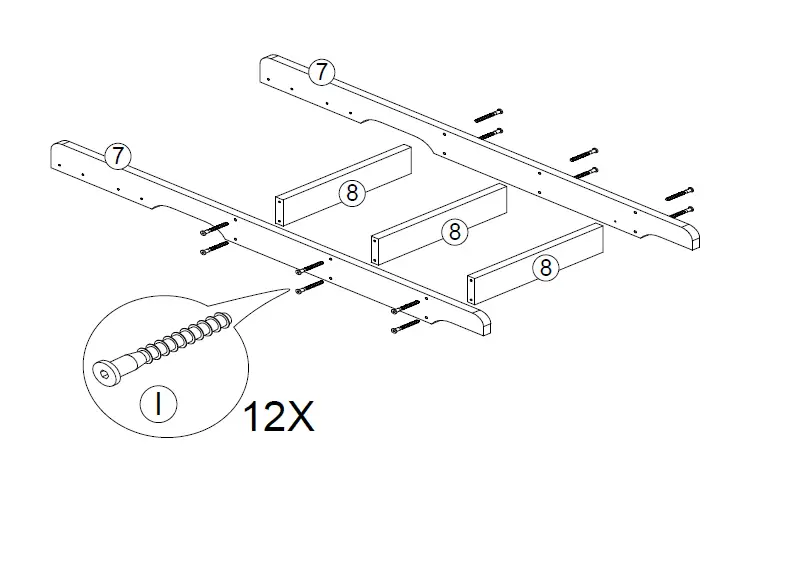

hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-3hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-4hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-5hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-6hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-7hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-8hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-9hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-10hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-11hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-12hoppekids-30-0010-00-07M-ECO-Comfort-Bunk-Bed-70-160-cm-Dove-Grey-FIG-13

WARNING

Always follow the manufacturer’s instructions.

WARNING “High beds and the upper bed of bunk beds are not suitable for children under six years due to the risk of injury from falls”

WARNING Do not use the bunk bed/high bed if any structural part is broken or missing.

  • The recommended size of the mattreses = 9x70x160cm; 12x70x160cm
  • A statement that ventilation of the room is necessary in order to keep the humidity low and to prevent mould in and around the bed.
  • A statement to check regularly that all assembly fastenings are propertly tightening.

WARNING “Bunk beds and high beds can present a serious risk of injury from strangulation if not used correctly. Never attach or hang items to any part of the bunk bed that are not designed to be used with the bed, for example, but not limited to ropes, strings, cords, hooks, belts and bags.”

WARNING “Children can become trapped between the bed and the wall, a roof pitch, the ceiling, adjoining pieces of furniture (e.g. cupboards) and the like. To avoid risk of serious injury the distance between the top safety barrier and the adjoining structure shall not exceed 75 mm or shall be more than 230 mm.”
