Seafuloy 304 Black White Full Triple Bunk Bed Instruction Manual

SEAFULOY 304 Black White Full Triple Bunk Bed Instruction Manual

ASSEMBLY INSTRUCTIONS

ASSEMBLY TIPS

1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.

WARNING!

1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store immediately.
2. This product is for home use only and not intended for commercial establishments.

Assembly Time: 90 Minutes

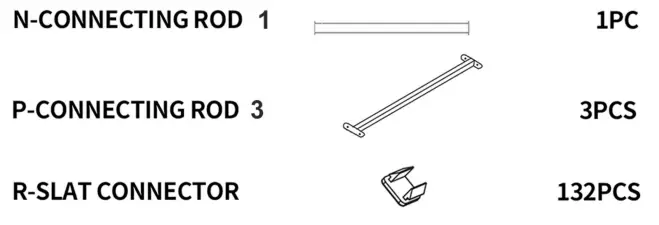

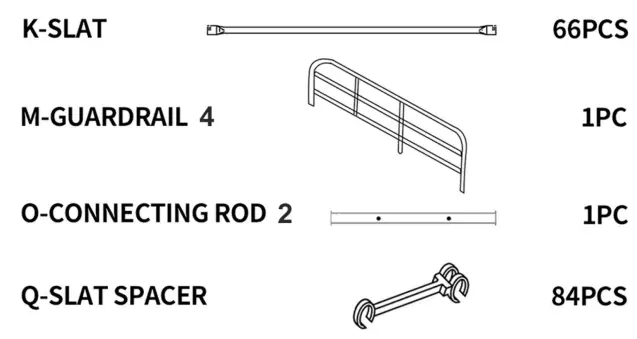

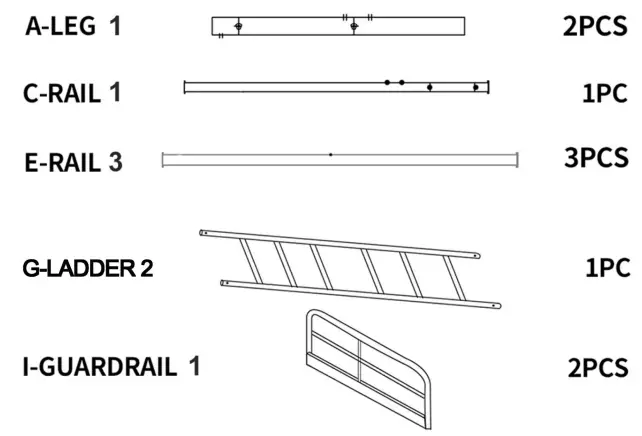

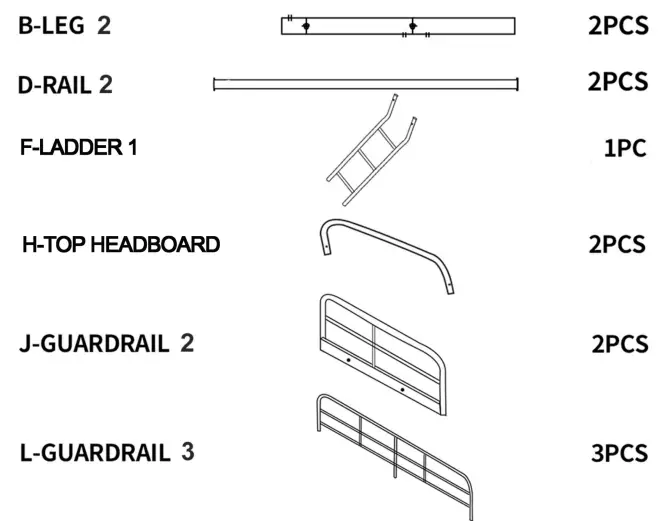

PARTS IDENTIFICATION

HARDWARE IDENTIFICATION

Z – HARDWARE

1. BOLT(Ø 1/4″x 20 MM) 60PCS

2. BOLT( Ø 1/4″x 35 MM) 22PCS

3. BOLT(Ø   1/4″x 65 MM) 5PCS

4. ALLEN WRENCH(1/4″) 2PCS

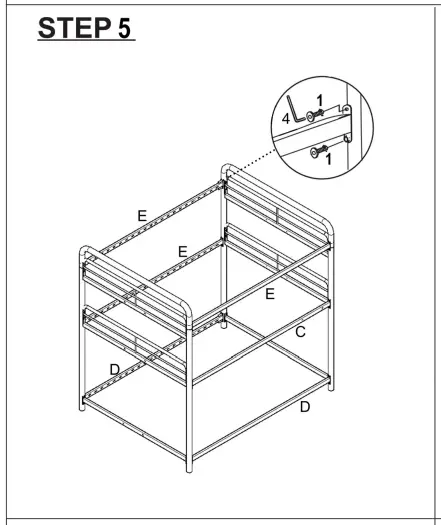

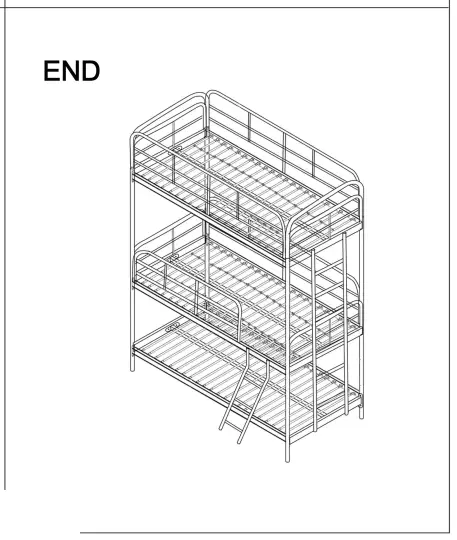

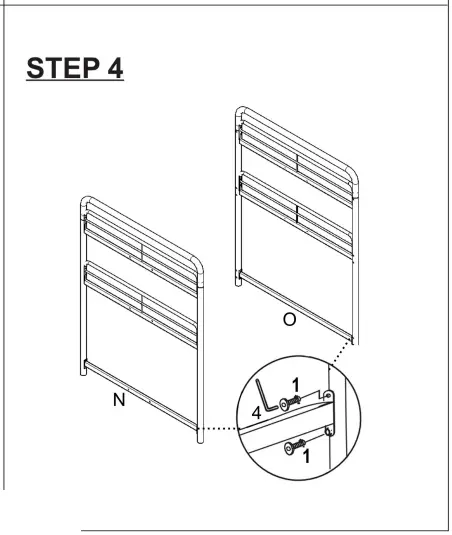

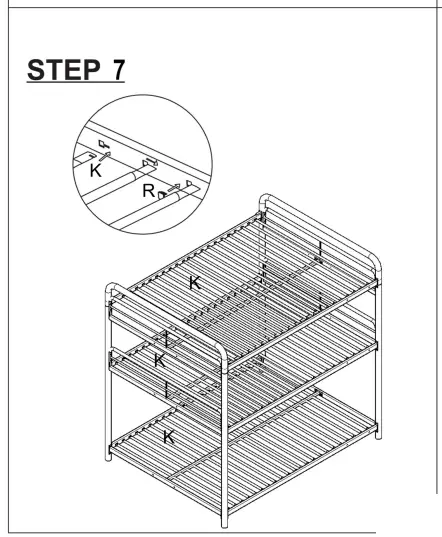

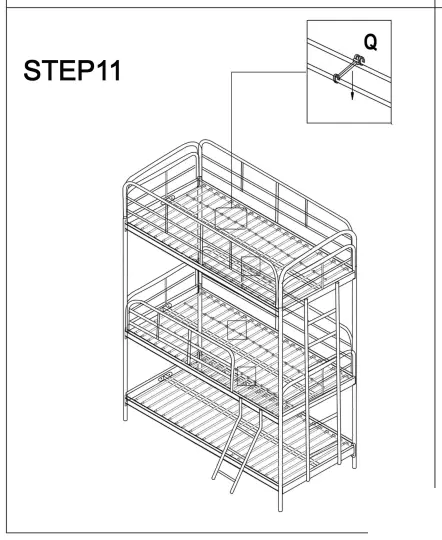

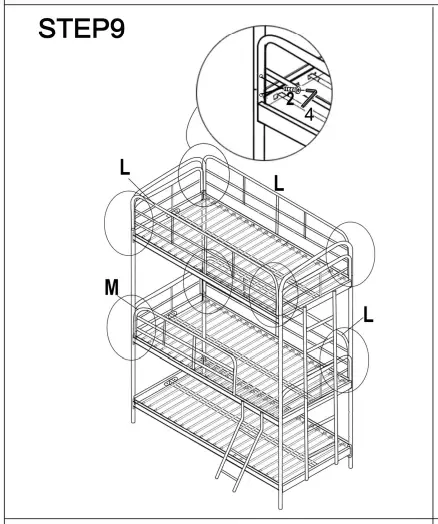

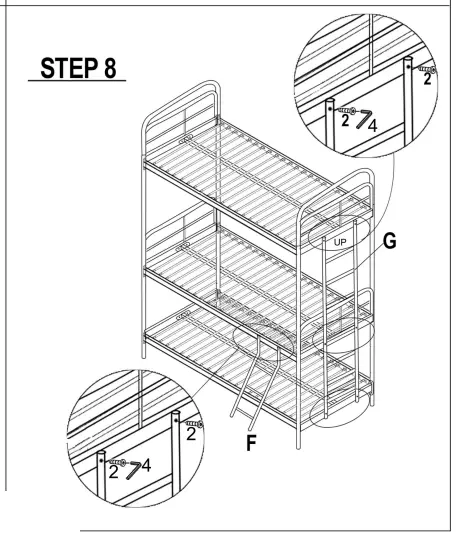

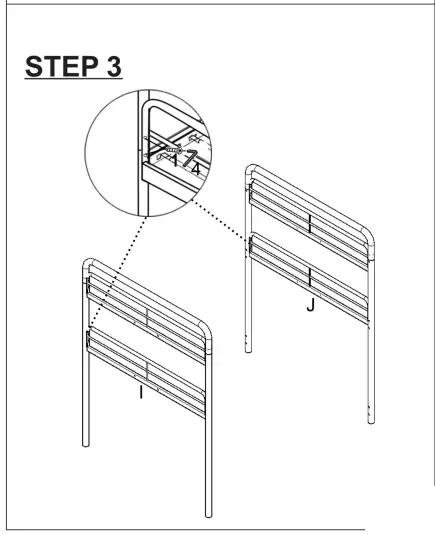

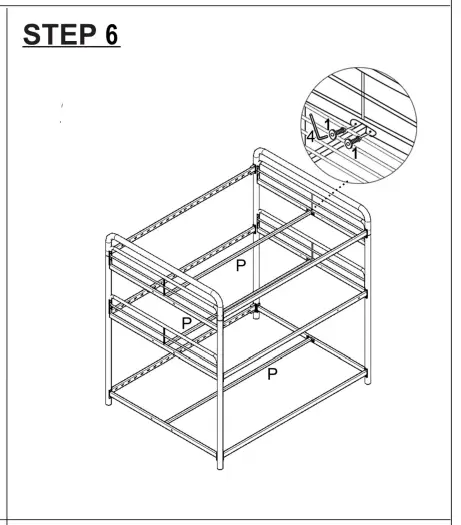

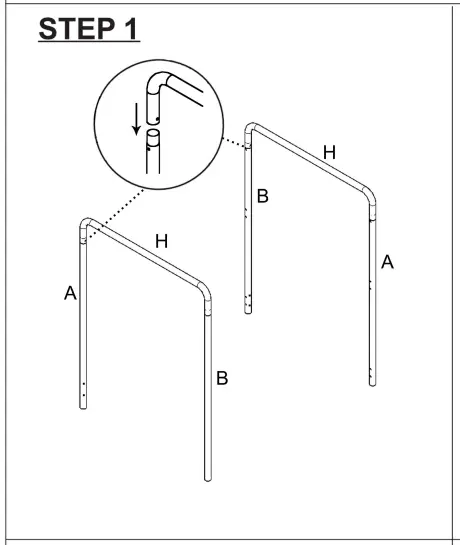

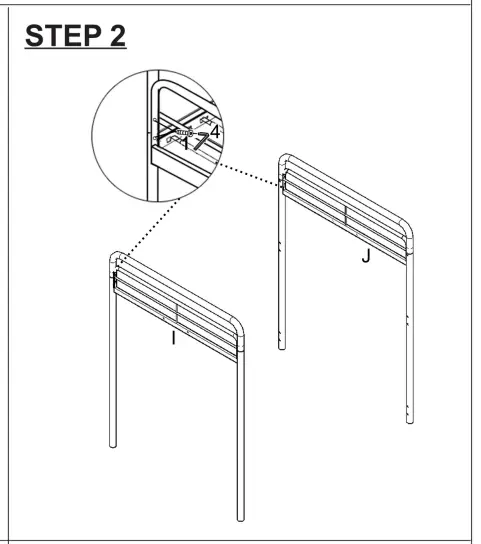

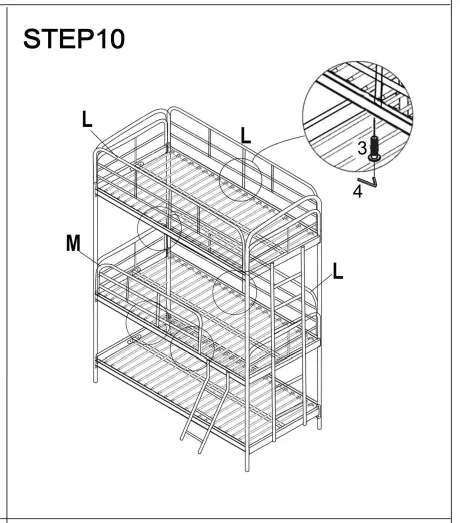

ASSEMBLY INSTRUCTIONS

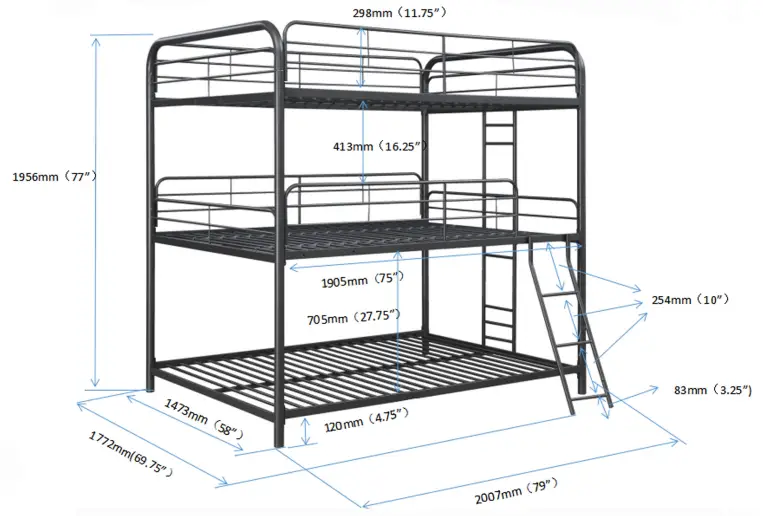

DIMENSIONAL DRAWING

Note: Dimension tolerance ± 5%
