ASSEMBLY INSTRUCTIONS
TWIN TWIN HOUSE BUNK BED

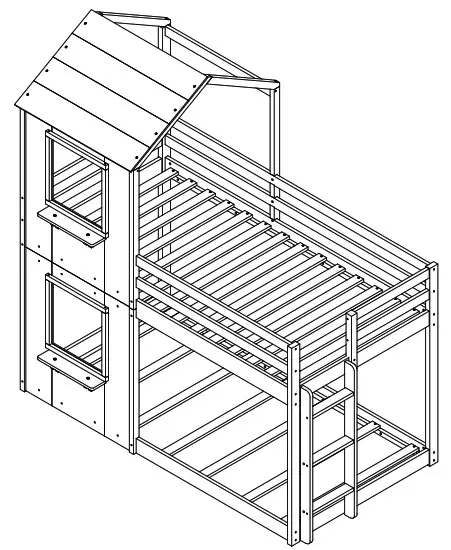

QualFurn WF286205 Twin Twin House Bunk Bed - cover

If you have any questions, please feel free to contact us.
Email: [email protected]
WF286205
WF286206

Contents hide

1 WF286205 Twin Twin House Bunk Bed

2 PARTS LIST

3 HARDWARE LIST

4 Documents / Resources

5 Related Posts

WF286205 Twin Twin House Bunk Bed

SAFETY WARNINGS

This bed is designed for use only mattress (es) meeting the following specifications on the upper bunk, and lower bunk:
Upper bunk (bunk bed and tribed included)
Bed Type Length Width Thickness
Twin Standard 74″ – 75″ 37 1- 2″ – 38 1-2″ 6″ max
Lower bunk
Bed Type Length Width Thickness
Twin Standard 74″ – 75″ 37 1-2″ – 38 1-2″ ” 8″
Replacement parts, including additional guardrails, maybe obtained from any of our (GIGACLOUD TECHNOLOGY (USA) INC. 18961 ARENTH AVENUE CITY OF INDUSTRY, CA, 91748) dealers
Follow the information on the warnings appearing on the upper bunk bed end structure and on the carton.
Do not remove warning label from bed.
Always use the recommended size mattresses or mattress supports, or both, to help prevent the likelihood of entrapment or falls.
Surface of mattress must be at least 5″ (127mm) below the upper edge of guardrails.
Do not allow children under 6 years of age to use the upper bunk.
Periodically check and ensure that the guardrail, ladder, and other components are in their proper position, free from damage, and that all connectors are tight.
Do not allow horseplay on or under the bed and prohibit jumping on the bed.
Always use the ladder for entering and leaving the upper bunk.
Do not use substitute part. Contact the manufacture or dealer for replacement part.
Use of a night light may provide added safety precaution for a child using the upper bunk.
Always use guardrails on both long sides of the upper bunk. If the bunk bed will be placed next to the wall, the guardrail that runs the full length of the bed should be placed against the wall to prevent entrapment between the bed and wall.
The use of water or sleep flotation mattresses is prohibited.
STRANGULATION HAZARD – Never attach or hang items to any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hook, belts and jump ropes.
Keep these instruction for future reference.
Prohibit more than one person on upper bunk
We recommend assembling your bunk bed on the shipping carton to protect your floor or carpet.
Be certain all staples are out of the box before beginning assembly on the shipping carton.

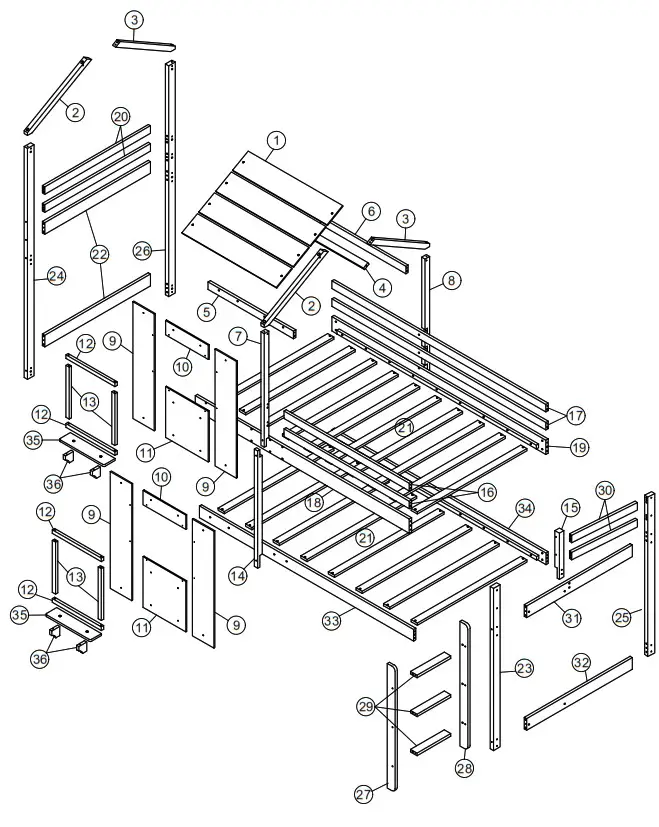

QualFurn WF286205 Twin Twin House Bunk Bed - overview 1

PARTS LIST

WF286205

1	Roof panels	4pcs	21	Slats (upper 14pcs / lower 7pcs)	21pcs
4	Roof top supports	1pc	22	Head board panels	2pcs
5	Top front support	1pc	27	Ladder – left leg	1pc
6	Top back support	1pc	28	Ladder – right leg	1pc
9	Window side panels	4pcs	30	Head board panels	2pcs
10	Window upper panel	2pcs	31	Head board panel	1pc
11	Window lower panel	2pcs	32	Head board panel	1pc
20	Head board panels	2pcs

HARDWARE LIST

(WF286206

A	Ø4×30	42PCS	G	1/4×75	16PCS
B	Ø4×25	24PCS	H	1/4×35	8PCS
C	6.5×100	14PCS	I	1/4×25	16PCS
D	6.5×80	18PCS	J	Ø10×40	60PCS
E	6.5×60	22PCS	K	4×58	1PC
F	6.5×40	8PCS

PARTS LIST
WF286206 ( Hardware in this SKU)

2	Roof front supports	2pcs	19	Upper back side rail	1pc
3	Roof back supports	2pcs	23	Left front leg	1pc
7	Roof bottom front support	1pc	24	Right front leg	1pc
8	Roof bottom back support	1pc	25	Left back leg	1pc
12	Window frame	4pcs	26	Right back leg	1pc
13	Window frame	4pcs	29	Ladder steps	3pcs
14	Roof bottom front support	1pc	33	Lower front side rail	1pc
15	Front guard rails support	1pc	34	Lower back side rail	1pc
16	Front guard rails	2pcs	35	Window bars	2pcs
17	Back guard rails	2pcs	36	Window bar supports	4pcs
18	Upper front side rail	1pc
