RAIN HARVESTING HW0910 PVC SNAP T-JUNCTION Easy Fit Suitable Installation Guide
PRODUCT DETAILS

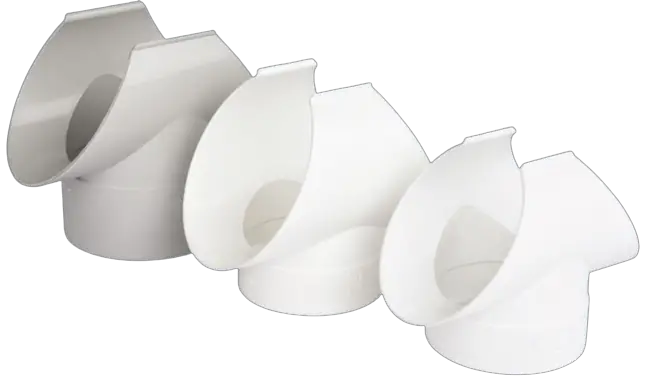

Easily create secure T-junction cut-ins with the snap-on PVC Easy Tee Junction, suitable for 90mm and 100mm pipes.
| Code | Size | Country |
| HW0910 | 90mm | |
| HW0911 | 90mm | Australia |
| HW0912 | 100mm |
Installation
WHAT’S IN THE BOX?
- Easy Tee Junctio
TOOLS/MATERIALS YOU MAY REQUIRE
- Priming fluid
- Solvent weld glue
- Drill
- 86mm hole saw or 102mm hole saw
PRODUCT SELECTION GUIDE
For an existing 90mm pipe:
- HW0910 (90mm X 90mm) – Allows you to connect a 90mm branch/off take
For an existing 100mm pipe:
- HW0911 (100mm x 90mm) – Allows you to connect a 90mm branch/offtake
- HW0912 (100mm x 100mm) – Allows you to connect a 100mm branch/offtake
EASY TEE
- Select your desired installation point. The Easy Tee Junction can be installed on vertical and horizontal pipes.
- Use primer to clean the pipe around your chosen installation point and to clean the inside of your Easy Tee “Snap on cradle” and branch/offtake socket.
- Apply solvent weld glue to the inside of your Easy Tee “Snap on cradle” and to the pipe of your installation point, push the cradle over the pipe and hold in position for a minimum of 60 seconds or until secure.
- Allow the solvent weld glue to dry.
- Using the appropriately sized hole saw and drill (86mm for 90mm and 102mm for 100mm) cut a hole in the pipe through the branch/offtake socket of your Easy Tee Junction and install your 90mm or 100mm branch/offtake pipe.
Product Specifications

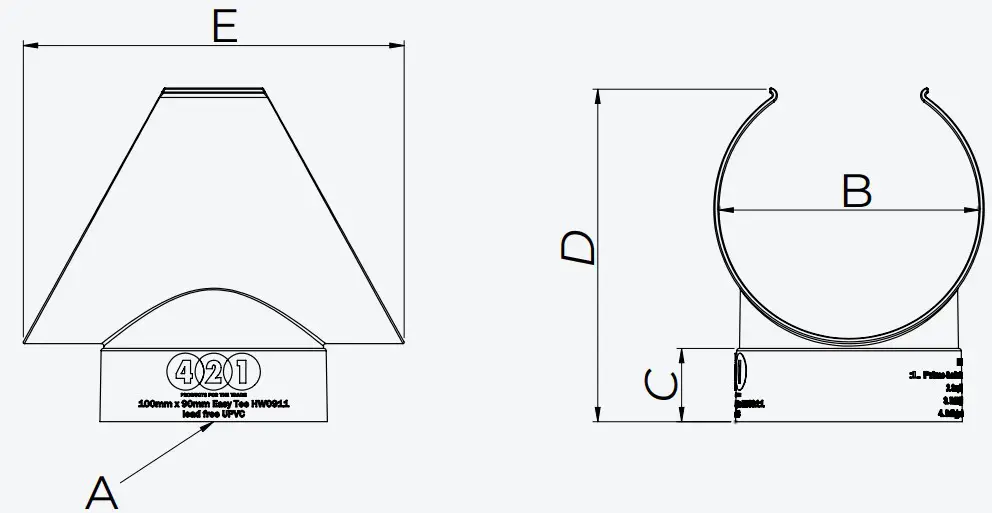

Dimensions & Pipe Fittings
| Country | Code | A | B | C | D | E |
| Australia | HW0910 | 90 F | 90 F | 31 | 122 | 159 |
| HW0911 | 90 F | 100 F | 31 | 139 | 159 | |
| HW0912 | 100 F | 100 F | 53 | 149 | 189 |
All dimensions are in mm unless otherwise stated.
Fitting guide:
F = Female / Socket Fitting
M = Male / Spigot Fitting (Pipe size)
IP = In-Pipe Fitting
Maintenance
When properly installed, your Easy Tee Junction should be maintenance-free.
A common misconception about collecting rainwater is that all you need is a roof, a tank and some rain. This ‘tanking’ approach cannot always be relied on to deliver the volume – or quality – of water that you require. That is where we can help.
With some thought, your rain harvesting system can provide you with cleaner water and lots of it. Whether you’re completely reliant on tank water or wanting to keep the garden green, our simple steps will help you achieve your goal.
The Rain Harvesting approach to rainwater collection involves using tested and proven products to make quality rainwater available for use in and around your property. You don’t need much to get started and you will be surprised how easy it is to get the most out of your rainwater system
How can we help you?
COMPLIANCE
- Australian Standard AS/NZS 4020:2005 (Testing of products for use in contact with drinking water)
DISCLAIMER This product specification is not a complete guide to product usage. Further information is available from Rain Harvesting Pty Ltd and from the Installation and Operating Instructions. This specification sheet must be read in conjunction with the Installation and Operating Instructions and all applicable statutory requirement. Product specifications may change without notice. © Rain Harvesting Pty Ltd
