Rain Harvesting TAVC01 Vent Cowls
Product Information

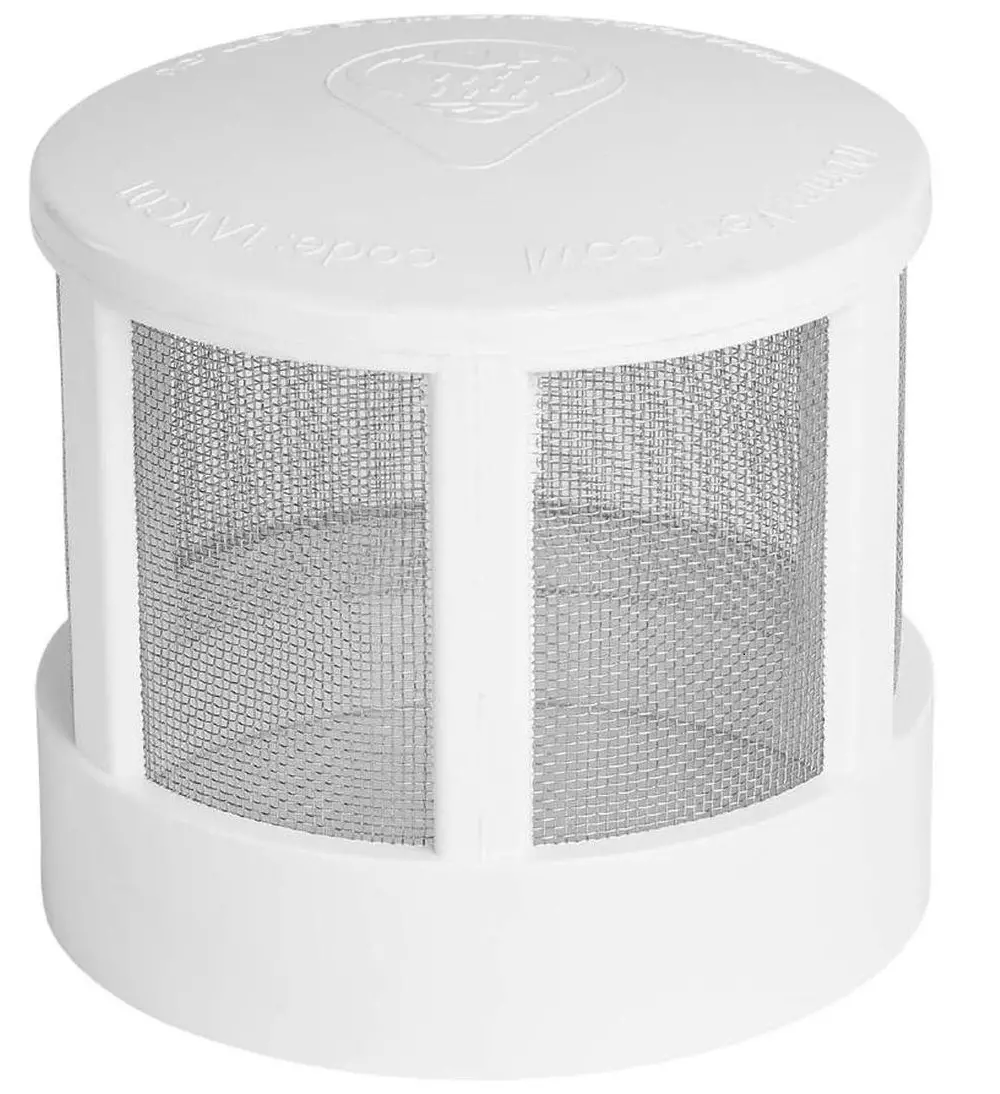

The Vent Cowls are designed to improve ventilation and promote efficient water flow in tanks or pipework. They feature a vented mesh area that allows air to circulate freely while keeping out mosquitoes and pests.
- Code: TAVC01 (100mm), TAVC03 (50mm)
- Size: 100mm (TAVC01), 50mm (TAVC03)
- Country: Australia
- Manufacturer: rainharvesting.com
Product Usage Instructions
What’s in the Box?
- Vent Cowl
Tools/Materials You May Require
- Male pipe or flanged fitting
- Holesaw
- Solvent weld glue
- Silicone (if using a flanged fitting)
- Screws (if using a flanged fitting)
- Screwdriver (if using a flanged fitting)
Vent Cowls Installation Steps
- Your Vent Cowl has a female socket, so it requires a male pipe or flanged fitting for installation.
- Use a holesaw to cut an appropriate sized hole in your rainwater tank to fit your pipe or flanged fitting.
- If installing your Vent Cowl with a pipe, insert the pipe into the hole you’ve cut and glue it in place with an appropriate sealant.
- If installing your Vent Cowl with a flanged fitting, place silicone on the underside of the flange, press it down onto the tank over your cut hole, and screw the flange to the tank surface.
- Install your Vent Cowl by placing it over the male pipe or flanged fitting and glue it in place using solvent weld glue.
PRODUCT DETAILS
Improve ventilation and promote more efficient water flow in your tank or other pipework. The vented, mesh area lets air circulate freely while keeping mosquitoes and pests out.
| Code | Size | Country |
| TAVC01 | 100mm |
Australia |
| TAVC03 | 50mm |
Product Specifications

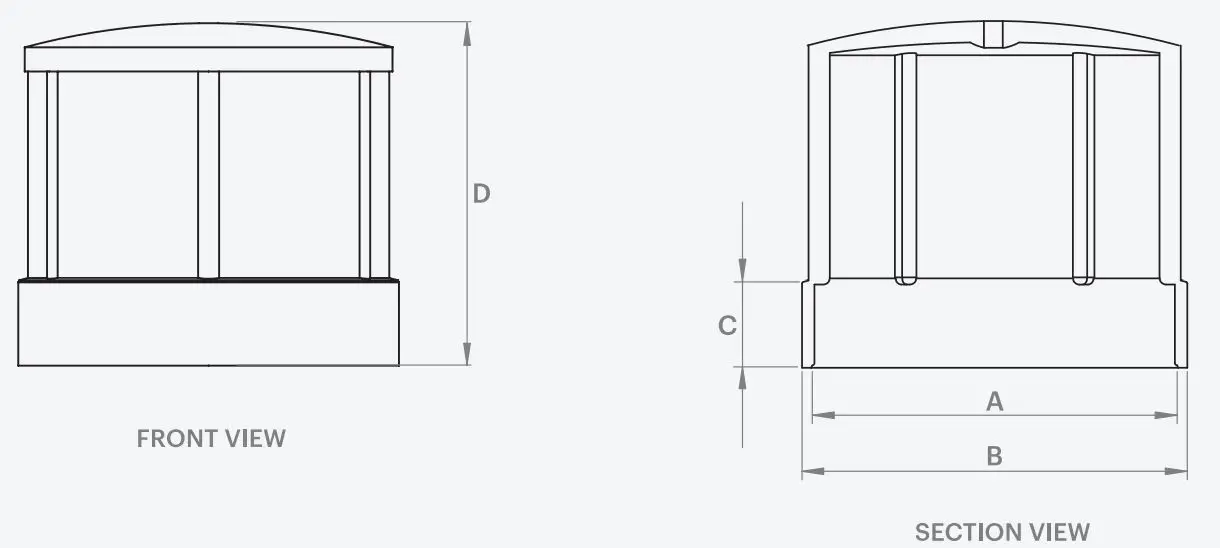

Dimensions & Pipe Fittings
| COUNTRY | CODE | A | b | C | D |
| Australia | TAVC01 | 100 F | 118 | 26 | 106 |
| TAVC03 | 50 F | 62 | 32 | 84 |
All dimensions are in mm unless otherwise stated.
Fitting guide:
- F = Female / Socket Fitting
- M = Male / Spigot Fitting (Pipe size)
- IP = In-Pipe Fitting
Maintenance
When properly installed, your vent cowl should be maintenance-free.
A common misconception about collecting rainwater is that all you need is a roof, a tank and some rain. This ‘tanking’ approach cannot always be relied on to deliver the volume – or quality – of water that you require. That is where we can help.
With some thought, your rain harvesting system can provide you with cleaner water and lots of it. Whether you’re completely reliant on tank water or wanting to keep the garden green, our simple steps will help you achieve your goal.
The Rain Harvesting approach to rainwater collection involves using tested and proven products to make quality rainwater available for use in and around your property. You don’t need much to get started and you will be surprised how easy it is to get the most out of your rainwater system.
COMPLIANCE
AS/NZS 4020:2005 – Testing of products for use in contact with drinking water
DISCLAIMER This product specification is not a complete guide to product usage. Further information is available from Rain Harvesting Pty Ltd and from the Installation and Operating Instructions. This specification sheet must be read in conjunction with the Installation and Operating Instructions and all applicable statutory requirement. Product specifications may change without notice. © Rain Harvesting Pty Ltd
