Rain Harvesting Tsef44 Easy Fit Solid Wall Tank Screen And Solar Shield Kit Installation Guide

TSEF44 Easy Fit Solid Wall Tank Screen And Solar Shield Kit
w/Screw Down Ring
Installation Guide

PRODUCT DETAILS

Suitable for any tank type, this tank screen system requires no tools for maintenance. It means you can easily remove and clean your tank screen to keep it clean and functioning smoothly.
The kit includes a Solar Shield, which shields your tank from sunlight, reducing algae growth.

Installation

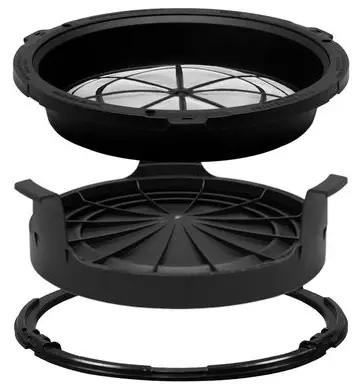

WHAT’S IN THE BOX?

• Easy Fit Solid Wall Tank Screen
• Easy Fit Solar Shield
• Easy Fit Screw Down Inlet Ring

TOOLS/MATERIALS YOU MAY REQUIRE

• Drill
• Screws

INSTALLATION

1. Secure your Inlet Ring by installing screws at 3 points around the perimeter. Make sure to use a screw that is appropriate for your tank material.
2. To install the Solar Shield, place it in to the ring so it is suspended in the tank inlet hole with the 3 arms resting in the location features on the ring. If the arms are not properly seated rotate the solar shield until the arms drop into the location features on the ring.
3. To secure your Easy Fit Solid Wall Tank Screen, place it over the ring so that the 3 clips on the Easy Fit Solid Wall Tank Screen align with the clips on the Inlet Ring. Push down firmly on each of the 3 clips until you hear them click into place. Ensure all 3 clips are secured.
4. Install your inlet pipes as close to the bottom screen as possible, whilst still allowing space for debris clearance and removal of the Easy Fit Solid Wall Tank Screen for maintenance.
5. To remove your Easy Fit Solid Wall Tank Screen, lift each of the release tabs until they disengage, and the screen can be lifted off.

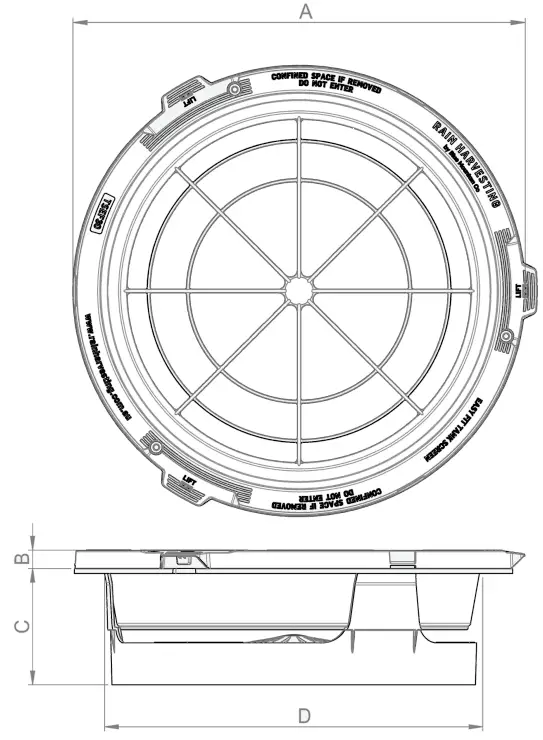

Product Specifications

Easy Fit Solid Wall Tank Screen and Solar Shield Kit w/ Screw Down Ring

All dimensions are in mm unless otherwise stated.

Maintenance

You should regularly inspect your Easy Fit Solid Wall Tank Screen and remove any leaves or debris.
For a more thorough clean, simply unclip your Easy Fit Solid Wall Tank Screen and hose it off before reattaching to your tank.

A common misconception about collecting rainwater is that all you need is a roof, a tank and some rain. This ‘tanking’ approach cannot always be relied on to deliver the volume – or quality – of water that you require. That is where we can help.
With some thought, your rain harvesting system can provide you with cleaner water and lots of it. Whether you’re completely reliant on tank water or wanting to keep the garden green, our simple steps will help you achieve your goal.
The Rain Harvesting approach to rainwater collection involves using tested and proven products to make quality rainwater available for use in and around your property. You don’t need much to get started and you will be surprised how easy it is to get the most out of your rainwater system.
How can we help you?

DISCLAIMER This product specification is not a complete guide to product usage. Further information is available from Rain Harvesting Pty Ltd and from the installation and Operating instructions. This specification sheet must be read in conjunction with the installation and Operating Instructions and all applicable statutory requirement. Product specifications may change without notice.
