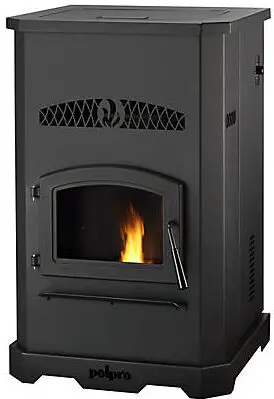

pelpro PP150 Pellet Stove
 | ||||
| IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual must be ordered from a dealer. | Stocked at Depot | |||

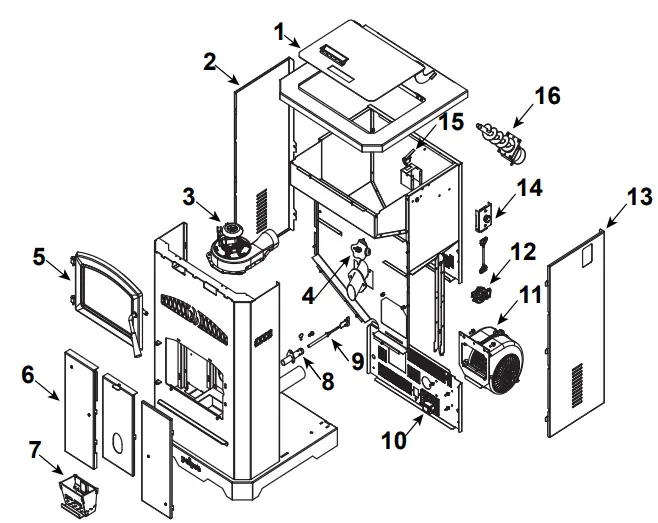

| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| 1 | Hopper Lid Assembly | SRV7086-019 | ||
| Hopper Extension | PPHE200 | |||
| Handle, Hopper Lid | SRV200-0110 | |||
| 2 | Side Curtain, Left Hand | SRV8104-154 | Y | |
| 3 | Exhaust Combustion Blower | 812-4400 | Y | |
| Gasket, Between Blower Housing and Stove | SRV240-0812 | Y | ||
| Gasket, Between Blower Housing and Motor | 812-4710 | Y | ||
| 4 | Snap disc, Manual Reset | SRV230-0080 | Y | |
| 5 | Door Assembly | SRV7086-021 | Y | |
| 6 | Baffle Kit | SRV7077-006 | ||
| 7 | Firepot | SRV7077-003 | Y | |
| 8 | Igniter Chamber Kit | SRV7077-110 | ||
| 9 | Igniter Kit | SRV7000-660 | Y | |
| 10 | Control Board | SRV7104-050 | Y | |
| 11 | Convection Blower | KS-5020-1052 | Y | |
| Convection Blower Gasket | SRV7081-195 | |||
| Convection Blower Bracket | SRV7081-210 | |||
| 12 | Vacuum Switch | SRV7000-531 | Y | |
| Vacuum Hose, 5/32 ID | 3 Ft | SRV240-0450 | Y | |
| Hose, Barb Assembly | SRV229-0920 | |||
| 13 | Side Curtain, Right Hand | SRV8104-153 | Y | |
| 14 | Dial Control | SRV7083-036 | Y | |
| Wire Harness, Dial Control | SRV7000-667 | Y | ||
| 15 | Hopper Switch | SRV7000-612 | Y | |

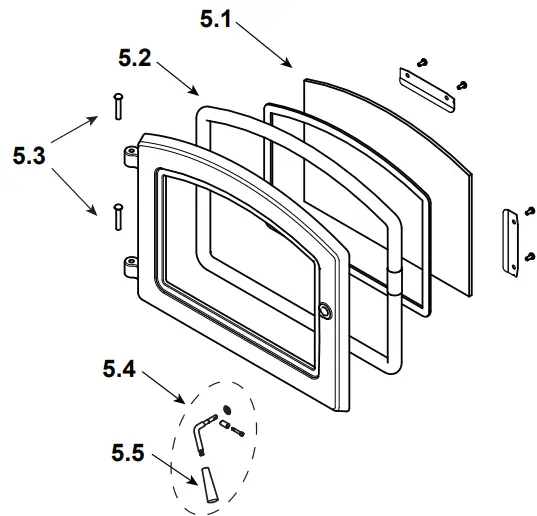

Door Assembly | ||||
| IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual must be ordered from a dealer. | Stocked at Depot | |||
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| 5 | Door Assembly | SRV7086-021 | Y | |
| 5.1 | Glass Assembly | SRV7081-173 | ||
| 5.2 | Rope, Door, 3/4” x 84” | 832-1680 | ||
| 5.3 | Hinge Pins | Pkg of 2 | 433-1590/2 | |
| 5.4 | Threaded Handle Assembly Kit | SRV7093-024D | Y | |
| 5.5 | Handle Black Phenolic Kit | KS-5140-1442 | Y | |

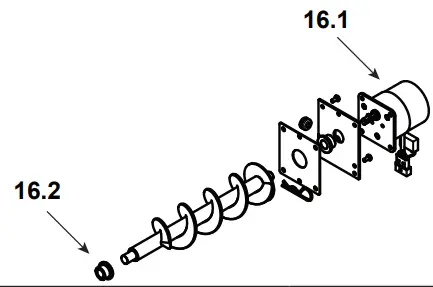

| #16 Feed Assembly Kit
| ||||
| 16 | Feed Assembly Kit | SRV7077-014 | Y | |
| 16.1 | Feed Motor | SRV7000-670 | Y | |
| 16.2 | Feed Shaft Bushing | Pkg of 2 | 7000-600/2 | Y |
| Power Cord | 812-1180 | Y | ||
| Ambient Probe | SRV7000-668 | Y | ||
| Component Pack | SRV8104-028 | |||
| Exhaust Probe | SRV7000-669 | Y | ||
| Wire Harness | SRV7093-184 | Y | ||
| Wire Clip | Pkg of 10 | 7000-400/10 | Y | |
Beginning Manufacturing Date: Aug 2021
Ending Manufacturing Date: Active
