CP57IQT369SB CP5 Series 48 Inch Standard Style Range Hood
User Manual
CP5 Series

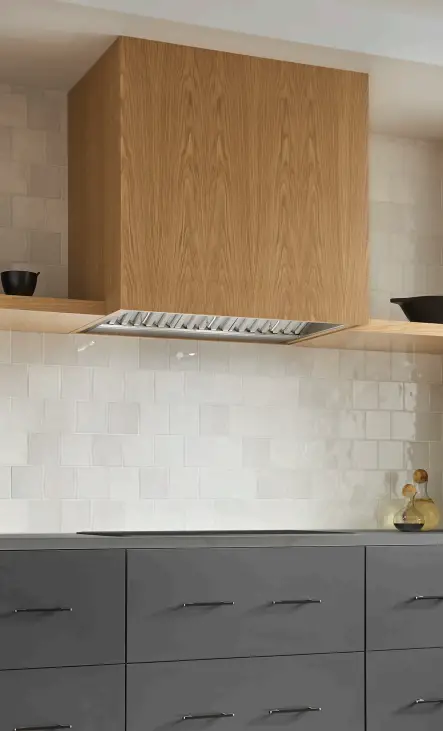

All-in-one built-in design includes liner, blower, filtration, controls, lighting, and damper for easy installation into custom canopy hoods.
- Powered by the exclusive iQ Blower System™ with either 800 or 1500 MAX blower CFM with GPS Technology for the quietest, most energy efficient and fastest smoke and odor removal available in a range hood. Ultra-quiet 0.3 sones at normal setting. External blower options also available.

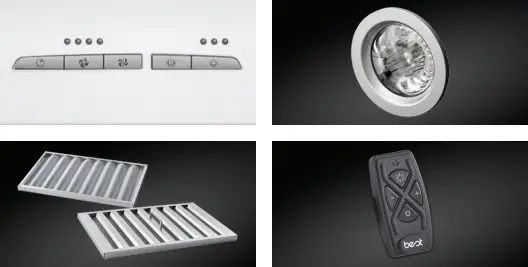

- 4-speed electronic controls with a 10 minute delay-off feature keep the hood running after cooking to ensure smoke and odors have cleared the environment, and the filter clean reminder helps ensure optimal performance.
- Integrated LED modules provide even lighting over the cooktop.
- Distinctive, hybrid aluminum mesh and stainless steel Hi-Flow™ baffle filters effectively capture grease and are dishwasher safe making it easier to have a cleaner, odor-free kitchen.
- CRT Technology for Code Ready™ Technology (CRT) provides ability to reduce airflow to 300 or 400 CFM to address local codes or make-up air requirements.
- Optional recirculation kit for non-ducted capability.
- The optional remote control allows the busy cook to stay in control from anywhere in the kitchen.
At BEST, we make high-performance range hoods that perform beautifully. Astonishingly quiet. Impressively effective. Remarkably efficient. And perfectly suited for the most distinguished kitchens.
Whether it’s the centerpiece of the room or letting its surroundings shine, BEST is where high-end performance inspires.
Installation height above the cooking surface: 24″–30″
If needed, ask a recommended installer to limit discharge to 300 or 400 CFM.
HVI PERFORMANCE
INTERNAL BLOWER – CP55IQ
| SONES | |||
| Speed 1 <0.3 | Speed 2* 2.0 | Speed 3* 5.5 | Speed 4 9.5 |
| CFM | ||||
| Speed 1 150 | Speed 2* 290 | Speed 3* 450 | Boost 0.25 in. w.g. 560 | Boost 0.1 in. w.g. 600 |
INTERNAL BLOWERS – CP57IQT
| SONES | |||
| Speed 1 0.3 | Speed 2* 4.0 | Speed 3* 7.0 | Speed 4 11.0 |
| CFM | ||||
| Speed 1 290 | Speed 2* 625 | Speed 3* 875 | Boost 0.25 in. w.g. 1050 | Boost 0.1 in. w.g. 1100 |
* Where noted performance rating is not HVI certified but was established in accordance with HVI Standardized test procedure.

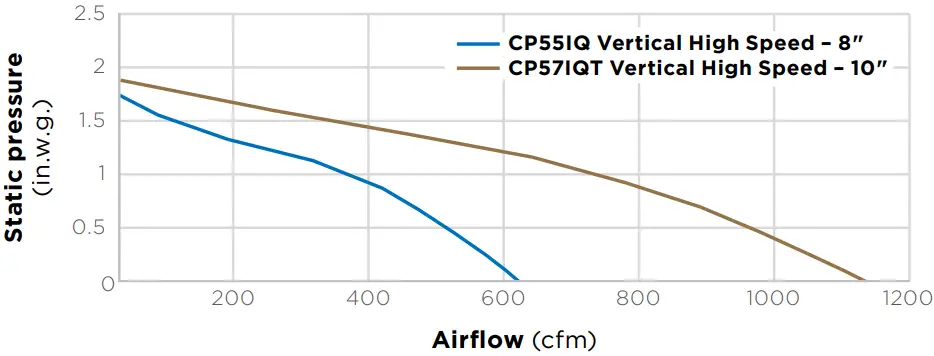

AIRFLOW PERFORMANCE
HOOD SIZES*
Internal Blower, Single – Depth: 19-1/4″
36″ CP55IQ369SB
42″ CP55IQ429SB
Internal Blower, Dual – Depth: 19-1/4″
36″ CP57IQT369SB
48″ CP57IQT489SB
Internal Blower, Dual – Depth: 22-1/2″
48″ CP57IQT482SB
54″ CP57IQT542SB
60″ CP57IQT602SB
66″ CP57IQT662SB
External (blower sold separately) – Depth: 22-1/2″
36″ CP57E362SB
48″ CP57E482SB
60″ CP57E3602SB

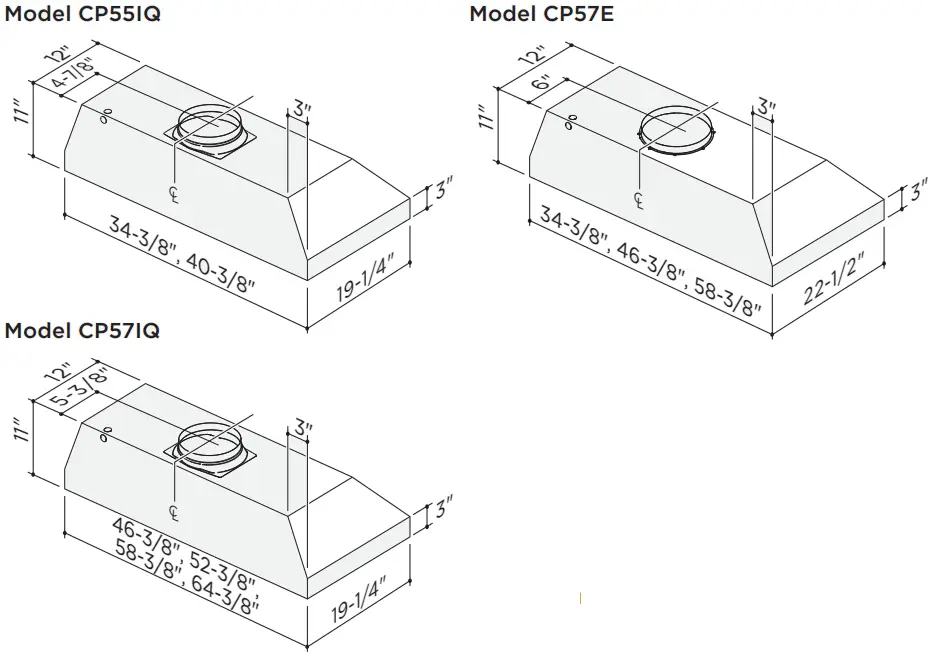

* For exact dimensions, please refer to the technical drawing of each model
FEATURES
| Finish | Brushed Stainless Steel (Grade 430) |
| Lighting Type | LED 6W, 3000K |
| Number of Lamps | 2 – on 36″, 42″ and 48″ 4 – on 54″, 60″ and 66″ |
| Lighting Levels | 1 |
| Lighting Lamps Included | Yes |
| Control Type | 3-speed Plus Boost Electronic Pushbutton |
| Control Features | Heat Sentry ™, Delay Off, Filter Clean Reminder |
| Remote Control | Optional ACR3 |
| Filter Type | Hi-Flow Baffle |
| Non-ducted Capability | Yes for CP55 |
| HOOD BLOWER INCLUDED | CP55IQ | CP57IQT |
| Internal | iQ6¹ | iQ12 |
| Max Blower CFM* | 800 | 1500 |
¹ If needed, ask a recommended installer to limit discharge to 300 or 400 CFM.
HOOD BLOWER OPTIONS (blower sold separately)
Refer to the external blower’s specification sheets for HVI performance (sones & CFM).
| External In-line | ILB3 | ILB6 | ILB9 | ILB11 |
| Max Blower CFM* | 300 | 675 | 900 | 1500 |
| External Exterior | EB6 | EB9 | EB12 | EB15 |
| Max Blower CFM* | 665 | 890 | 1300 | 1650 |
ACCESSORIES
| Non-Duct Kit | ANKCP55 (use with CP55IQ only) |
| Non-Duct Filter | AFCROUND2 (use with CP55IQ only) |
| Universal MUA Damper | MD6TU, MD8TU, MD10TU (Requires Fresh Air Inlet) |
| Fresh Air Inlet | 641FA, 643FA, 610FA |
INSTALLATION REQUIREMENTS
| Amps @ 120V: Internal Blower | CP55IQ: 4.7, CP57IQT: 8.3 |
| Electrical Connection | Direct Wire |
| Duct Size: Internal Blower | iQ6: 8″, iQ12: 10″ |
| Duct Size: External Blower | 10″ |
| Duct Direction | Vertical |
| Backdraft Damper | Included |
*MAX Blower CFM indicates the performance of the hood blower in the open air.
 | HVI-2100 CERTIFIED RATINGS comply with new testing technologies and procedures prescribed by the Home Ventilating Institute, for off-the-shelf products, as they are available to consumers. Product performance is rated at .01 in. static pressure, based on tests conducted in AMCA’s state-of-the-art test laboratory. Sones are a measure of humanly-perceived loudness, based on laboratory measurements. |
BESTRANGEHOODS.COM
USA 800-558-1711
BESTRANGEHOODS.CA
CANADA 800-567-3855
99045170E 10/21
