Edision Nano T265+ Digital Terrestrial & Cable Hdmi Dongle Receiver Instruction Manual

Edision Nano T265+ Digital Terrestrial & Cable Hdmi Dongle Receiver Instruction Manual

EDISION LogoEDISION nano T265+ Digital Terrestrial & Cable HDMI Dongle Receiver - iconnano T265+ Digital Terrestrial & Cable HDMI Dongle Receiver
Instruction Manual

Receptor Terrestre Digital y Cable DVB-T2/C H.265/HEVC

USB WiFi y Admite Online Software Update

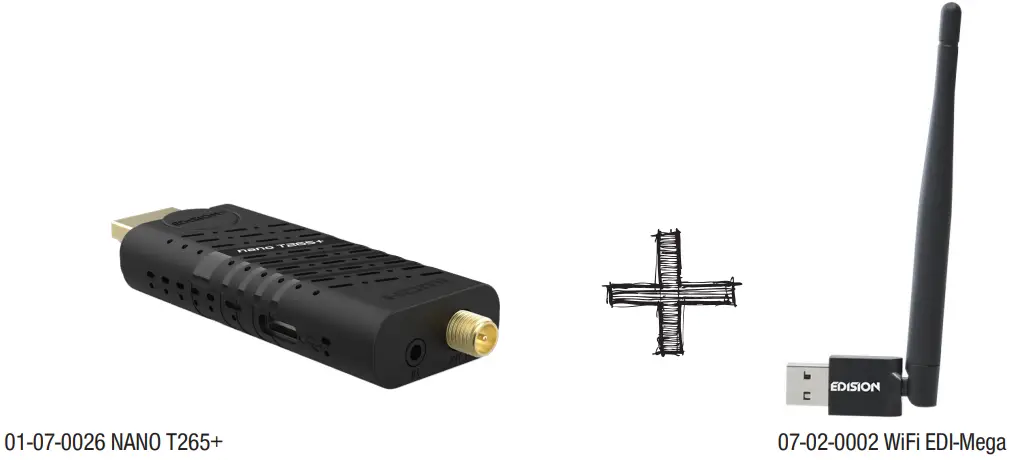

EDISION nano T265+ Digital Terrestrial & Cable HDMI Dongle Receiver - Fig 1

The NANO T265+ Terrestrial and Cable Receiver supports USB WiFi for the following Internet applications.
* The connection is made with an optional USB WiFi Dongle (07-02-0002 WiFi EDI-Mega).
Advantage:
• Supports USB WiFi for Internet applications* such as YouTube, Weather, and HTTP online software updates.

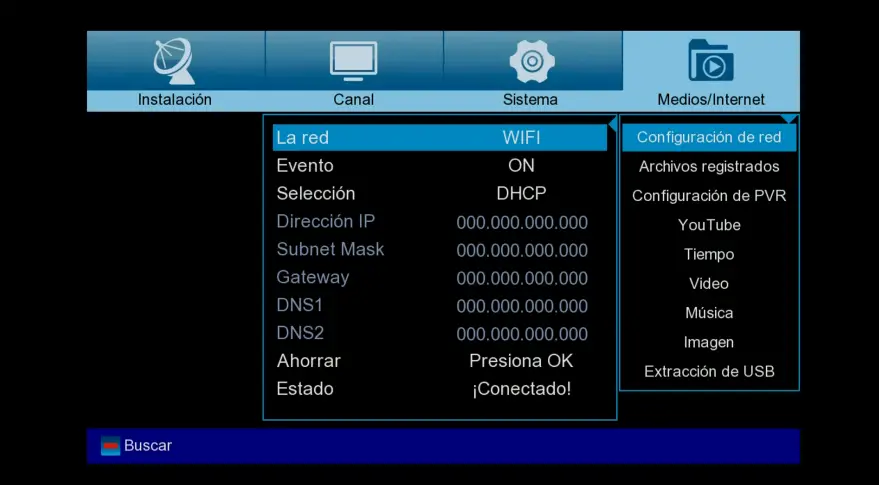

Step 1. Menu -> Media / Internet -> Network Settings -> Network -> WiFi -> Search (red button)

EDISION nano T265+ Digital Terrestrial & Cable HDMI Dongle Receiver - Fig 2

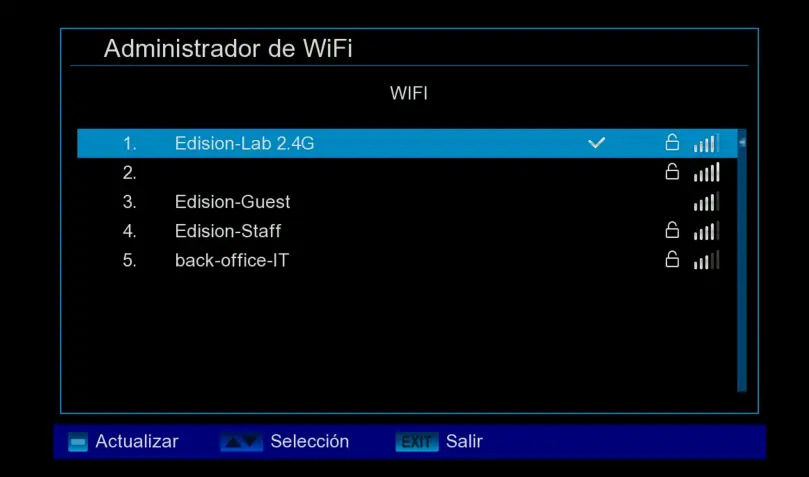

Step 2. Select SSID and set WiFi password

EDISION nano T265+ Digital Terrestrial & Cable HDMI Dongle Receiver - Fig 3

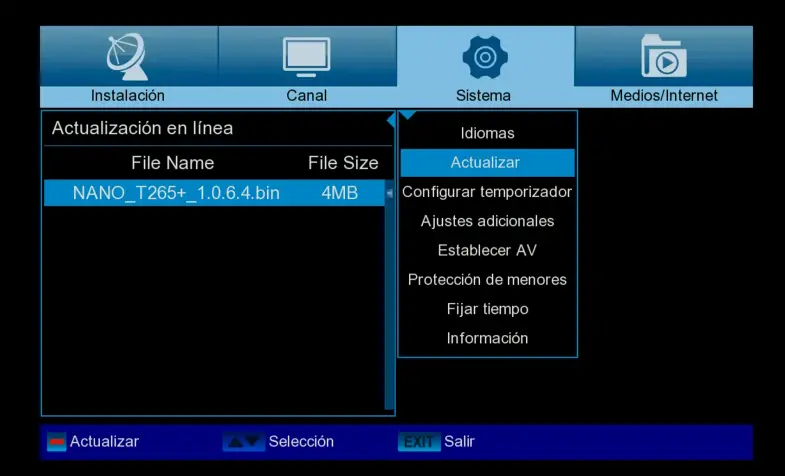

Step 3. Menu -> System -> Update -> Online update -> Select software file -> Select Software & Loader or only Software -> Press OK or red button to start the update software EDISION nano T265+ Digital Terrestrial & Cable HDMI Dongle Receiver - Fig 4

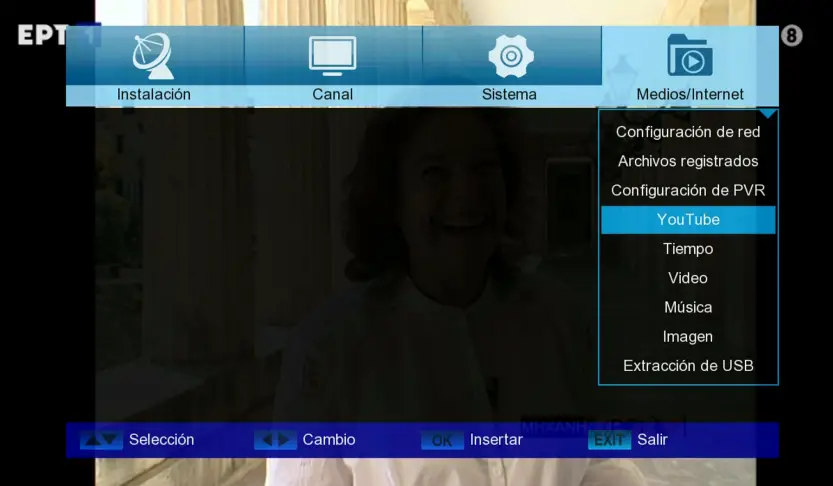

Step 4. Menu -> Media / Internet -> YouTube, Weather

EDISION nano T265+ Digital Terrestrial & Cable HDMI Dongle Receiver - Fig 5

Step 5. Menu -> Media / Internet -> YouTube App

EDISION nano T265+ Digital Terrestrial & Cable HDMI Dongle Receiver - Fig 6

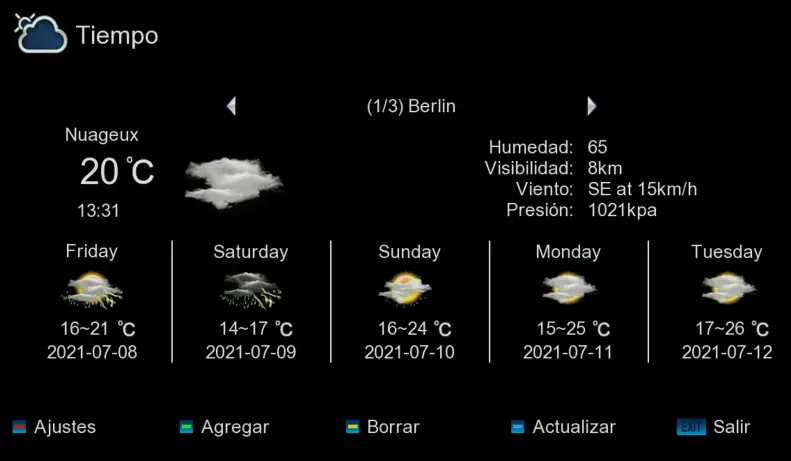

Step 6. Menu -> Media/Internet -> Weather App

EDISION nano T265+ Digital Terrestrial & Cable HDMI Dongle Receiver - Fig 7

EDISION Logo EDISION HELLAS LTD
FARMAKEIKA – 57001 N. RISIO
SALÓNICA – GRECIA
