STELPRO - logo

USER’S GUIDE
AWF/ACF SERIES
WALL/CEILING AEROCONVECTOR
REPLACEMENT COMPONENT LIST INCLUDED

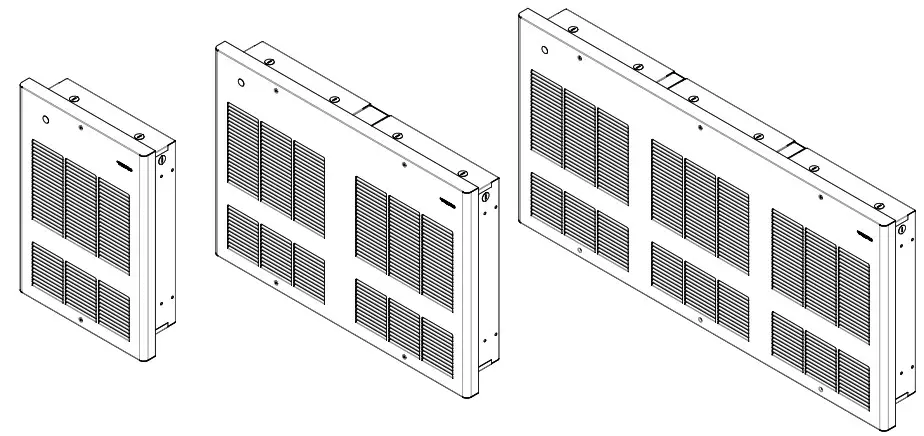

STELPRO AWF1501 AWF Series Wall Ceiling Aeroconvector - cover

This unit complies with CSA and UL standards

SPECIFICATIONS

UNITTYPE WATTSVOLTSKGLB
SIMPLEAWF15011500120920
SIMPLEAWF15021500240920
SIMPLEAWF20022000240920
SIMPLEAWF30023000240920
SIMPLEAWF40024000/2000240920
SIMPLEAWF48024800240920
SIMPLEAWF15081500208920
SIMPLEAWF20082000208920
SIMPLEAWF30083000208920
SIMPLEAWF40084000/2000208920
SIMPLEAWF48084800208920
SIMPLEAWF15071500277920
SIMPLEAWF20072000277920
SIMPLEAWF30073000277920
SIMPLEAWF40074000/2000277920
SIMPLEAWF48074800277920
SIMPLEACF15011500120920
SIMPLEACF15021500240920
SIMPLEACF20022000240920
SIMPLEACF30023000240920
SIMPLEACF40024000/2000240920
SIMPLEACF15081500208920
SIMPLEACF20082000208920
SIMPLEACF30083000208920
SIMPLEACF40084000/2000208920
SIMPLEACF15071500277920
SIMPLEACF20072000277920
SIMPLEACF30073000277920
SIMPLEACF40074000/2000277920

Add W for white, SW for soft white, S for silver or SS for stainless steel

Several other models with control are available in higher voltages and wattages. For a complete model list, consult our online catalog at www.stelpro.com

IMPORTANT INSTRUCTIONS

WARNING
Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this product.
This product must be installed by a qualified person and connected by a certified electrician, according to the electrical and building codes effective in your region.
The following instructions must be adhered to in order to avoid personal injuries or property damages, serious injuries and potentially fatal electric shocks.
Protect the heating unit with the appropriate circuit breaker or fuse, in accordance with the nameplate.
Make sure the line voltage (volt) is consistent with that indicated on the unit’s nameplate.
This unit must be grounded.
Switch off the power at the circuit breaker/fuse before installing, repairing and cleaning the unit.
Make sure the unit is appropriate for the intended use (if needed, refer to the product catalog or a representative). Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. Do not use outdoors.

RECOMMENDED HEATING CAPACITY: 1.25 W/cubic foot (0.03 m³)
It corresponds to 10 W/square foot (0.09 m²) based on a standard ceiling height of 8 feet (2.44 m). The recommended capacity is usually sufficient for normal heating needs. Please note that the insulation quality of walls and windows are some of the factors that influence heat losses, which modify the required capacity to heat a room. If needed, refer to a specialist (industrial and commercial buildings) who will be able to calculate these heat losses and optimize the required capacity or consult the “Online heating calculation” section of the Stelpro Design Web site (residential buildings). To heat a large room and to increase your comfort, it is recommended to install several units instead of one. For example, 2 X 1000 W rather than 1 X 2000 W.
Do not install the unit where objects or pieces of furniture could be heat damaged.
If the unit capacity is insufficient for the size of the room, it will be in operation continuously, and may become defective earlier and turn yellow.
Respect distances and positions indicated in the installation section.
If the installer or the user modifies the unit, he will be held responsible for any damage resulting from this modification, and the CSA certification could be void.
This unit must not come into contact with a water source and must be protected from splashes. Do not use it if any part has been immersed.
When mounting the unit, make sure that the anchorage used can support the total weight of the unit with the mounting brackets.
When cutting or drilling into a wall or a ceiling, do not damage electrical wiring and other hidden utilities.
When starting up the unit for the first time or after a long period, it is normal that it produces some temporary odours and whitish smoke.
Because this unit is hot when in use, it may pose risks even in normal operation. Therefore, be careful and responsible when using it. To avoid burns, do not let bare skin touch hot surfaces. The unit must cool down for few minutes since it will stay warm for some time after shut-down. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
This unit must be installed at least 6 inches (15.2 cm) from surrounding walls and 6 inches (15.2 cm) from the floor. The triple unit must be installed at least 12 inches (30.4 cm) from surrounding walls and 8 inches (20.32 cm) from the floor.
CAUTION – High Temperature, risk of fire, keep electrical cords, drapery, furnishings, and other combustibles at least 3 feet (0.9 m) from the front of the heater and away from the side and rear.
Do not install on a wall behind a door.
Never block air vents (with objects or other items). You risk damaging the heater and the obstruction could lead to electric shock or overheating, which could result in a fire.
Do not insert or allow foreign objects to enter any air vent as this may cause electric shocks, fires, or damages to the unit.
This unit has hot and arcing or sparking parts inside. It is not designed to be used or stored in wet areas or areas containing flammable liquids, combustible materials or corrosive, abrasive, chemical, explosive and flammable substances such as, but not limited to, gasoline, paint, chlorine, sawdust and cleaning products.
Some areas are dustier than others. Thus, it is the user’s responsibility to evaluate if the unit must be cleaned based on the amount of dirt accumulated on and inside air vents. Accumulated dirt can lead to a component malfunction or discoloration (yellow). It may cause a fire hazard if not installed and maintained in accordance with these instructions.
The thermal protection activation indicates that the unit has been subjected to abnormal operating conditions. If the thermal protection remains activated or activates and deactivates repeatedly, it is recommended that a qualified electrician or a certified repair centre examine the unit in order to make sure it is not damaged. (Refer to the limited warranty)
Before unplugging the unit, all controls must be in the “OFF” position and the current from the main breaker panel should be cut. (The general switch may be used also, if included.) If the unit is damaged or defective, discontinue use, cut off power supply at circuit breaker and contact a certified electrician or certified repair centre. (Refer to the limited warranty)
Make sure that all the electrical connections have been secured and made properly. Pull each wire to ensure it is not loose in the connector or the terminal board as this may cause a fire.
If an option must be added, make sure it has been approved by Stelpro. This way, it will ensure that it has been tested in accordance with our safety rules and that an appropriate installation has been planned into the unit.

SAVE THESE INSTRUCTIONS

Note: When a part of the product specification must be changed to improve operability or other functions, priority is given to the product specification itself. In such instances, the instruction manual may not entirely match all the functions of the actual product. Therefore, the actual product and packaging, as well as the name and illustration, may differ from the manual.

TECHNICAL DRAWINGS

TECHNICAL DRAWINGS

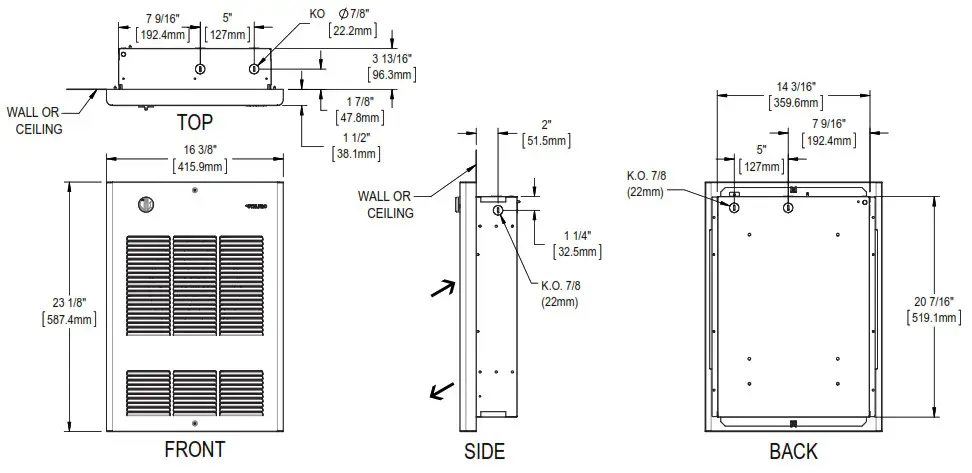

SIMPLE UNIT

STELPRO AWF1501 AWF Series Wall Ceiling Aeroconvector - TECHNICAL DRAWINGS 1

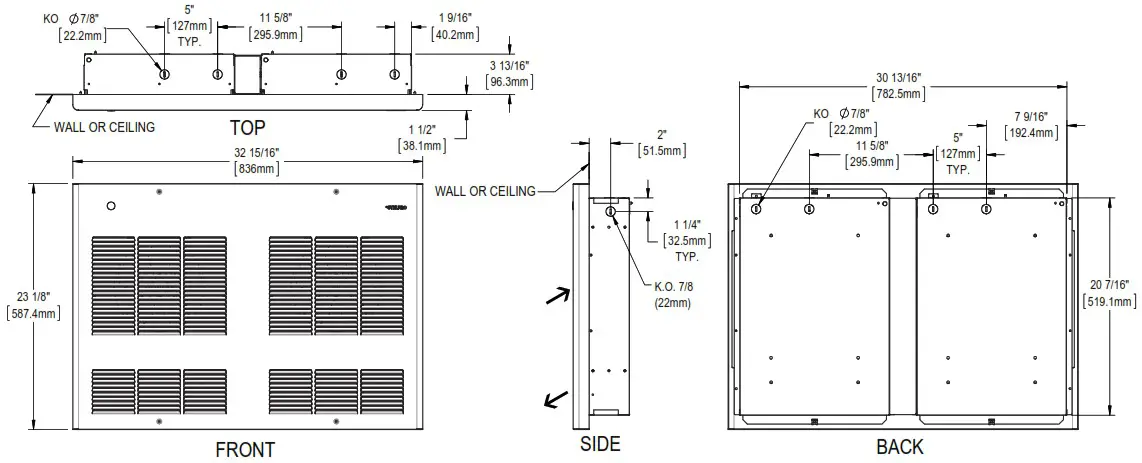

DOUBLE UNIT

STELPRO AWF1501 AWF Series Wall Ceiling Aeroconvector - TECHNICAL DRAWINGS 2

TRIPLE UNIT

STELPRO AWF1501 AWF Series Wall Ceiling Aeroconvector - TECHNICAL DRAWINGS 3

INSTALLATION

N.B. Cut off power supply at circuit breaker/fuse before proceeding to the installation and wiring connections. This product must be connected by a certified electrician, according to the electrical and building codes effective in your region.
Consult the wiring plan found on the unit.
To reduce the risk of fire, do not store or use gasoline or other flammable vapors and liquids in the vicinity of the heater. Do not mount in contact with combustible material. Do not mount in close proximity to another unit.
Keep the front and upper sides of the unit at least 3 feet (91 cm) from any adjacent surfaces. Moreover, make sure objects or pieces of furniture such as, but not limited to, blankets, towels, beds, laundry baskets, clothing, papers, electric wires and other flammable items, do not come into contact with the unit and keep them at least 3 feet (91 cm) from the unit. Failure to comply with this warning could lead to a fire. Some materials are more heat-sensitive than others, so make sure those near the unit can withstand heat.
When the unit is recessed, the flanged shoulders must rest on the finished surface of the wall or ceiling.

WARNINGS

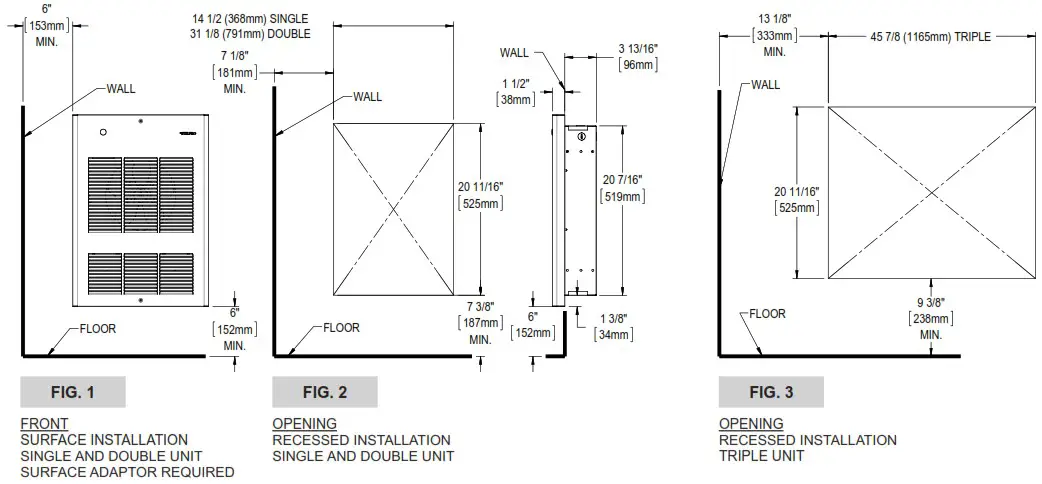

  1. Recessed and surface installation of AWF units (wall mounting) must meet the minimum distances for single and double units (see figures 1 and 2). For ACF units (ceiling mounting), must be installed at no less than 12” (305 mm) from adjacent walls and between 8’ (244 cm) and 10’ (305 cm) from the floor (see figure 4).
  2. Triple units must meet a minimum distance of 12 inches (305 mm) from surrounding walls and 8 inches (203 mm) from the floor. For recessed installation opening for triple units, see figure 3.
  3. Recessed structure requirement on outside walls for AWF (wall mounting) and ACF (ceiling mounting) units is the same as for a window structure (refer to the applicable building codes effective in your area).
  4. For surface installation, put a wooden plate at the back of the gypsum in order to fix the unit to the wall securely. For the wooden plate dimensions, refer to the opening for the recessed application (see figures 2 and 3).
    Use the same dimensions for ceiling application (ACF).

STELPRO AWF1501 AWF Series Wall Ceiling Aeroconvector - INSTALLATION 1

STELPRO AWF1501 AWF Series Wall Ceiling Aeroconvector - TECHNICAL DRAWINGS 4

STELPRO AWF1501 AWF Series Wall Ceiling Aeroconvector - INSTALLATION 2

SURFACE INSTALLATION

  1. Make sure you use the proper sleeve surface depending on the device you are installing: WFSA1 (single units), WFSA2 (double units), WFSA3 (triple units).

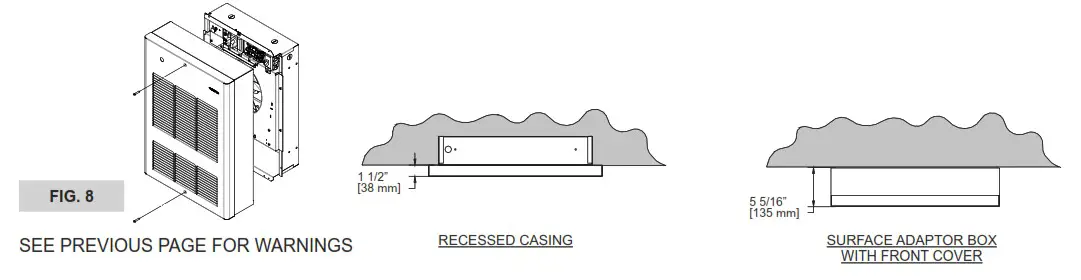

  2. Unscrewed the two (2) screws holding the grille (see figure 8) and remove.
  3. Remove the inlet of the frame (see figure 5) by unscrewing the four (4) screws.
  4. Open the KO to be used and insert the wire with connector.
  5. Place the frame against the wall, level and tighten with four (4) wood screws (not included) into the holes provided for this purpose (see figure 6).
  6. Replace the inlet, make the required electrical connections. Insert the sleeve surface into the grille and put back (see figures 5 and 8).

RECESSED INSTALLATION

  1. The opening in the wall must be made in accordance with acceptable standards (see figures 2 and 3, and Warning).
  2. Unscrew the two (2) screws holding the grille (see figure 8).
  3. Remove the inlet of the frame (see figure 5) by unscrewing the four (4) screws.
  4. Open the KO to be used and insert the wire with connector.
  5. Insert the frame into the opening, press the flap against the wall. Screw in wood screws (not included) in the left and the right studs, through holes provided for this purpose (see figure 7).
  6. Replace the inlet, make the required electrical connections and replace the grille.

SELECTING THE POWER

WARNING: risk of electric shock or fire hazard.
Modification must be done by qualified electrician.
Turn off power at the circuit breaker panel before switching the wattage.
To reduce the full factory wired wattage output by half, remove the jumper [A] to switch from 4000W to 2000W.

STELPRO AWF1501 AWF Series Wall Ceiling Aeroconvector - INSTALLATION 3

OPERATION, MAINTENANCE & TROUBLESHOOTING

OPERATION
WARNING : the unit must be properly installed before being used.

Electric Warning Icon MAINTENANCE
All other repairs and maintenance other than those described in this guide should be performed by qualified service personnel. In order for the warranty to be valid, the unit must be cleaned regularly. Cut off power supply at circuit breaker/ fuse and wait for the unit to cool down before cleaning.
Use a soft rag for dusting. When cleaning, use only a damp rag and nonabrasive dish soap. If you use a cleaning product, always wipe the product off properly to avoid the discoloration of the unit. Do not use abrasive or chemical cleaners because they may damage the finishing. If the unit is used in a very dusty location, use a vacuum brush to remove  ust and other foreign objects from the grilles. If needed, vacuum out the dust inside the unit. Note that cigarette smoke could yellow the discharge grille and that the best way to prevent it is to clean the unit on a regular basis.
Do not use cleaning products identified with these symbols:

N.B. There is electrical current linked to the unit even if the thermostat is setto “OFF”. This means that there is a risk of electric shock as long as the unit is energized.

TROUBLESHOOTING

PROBLEMDEFECTIVE PART OR PART TO CHECK
The unit does not work• The circuit breaker is in the OFF position or removed fuse
• Defective thermostat or wrong thermostat setting
• Activated thermal protection
• Faulty connections
• Burned fuse link
The unit runs continuously• Defective thermostat or wrong thermostat setting
•  Heat losses higher than the unit capacity
The enclosure is extremely hot• Defective thermal protection
• Blocked air vents
The desired ambient temperature can never be reached• One or more elements are defective
• Defective thermostat or wrong thermostat setting
• Voltage lower than that written on the nameplate
•  Heat losses higher than the unit capacity
Overheating• Defective thermostat or wrong thermostat setting
The unit cycles under control of the thermal protection
(overheat indicator)
• Blocked air vents
• Defective motor
The breaker trips when the heater is turned on• Faulty connections
• Voltage higher than that written on the nameplate

N.B. If you do not solve the problem after checking these points, cut off the power supply at the main electrical panel and contact our customer service (see the “Limited warranty” section to obtain the phone numbers).

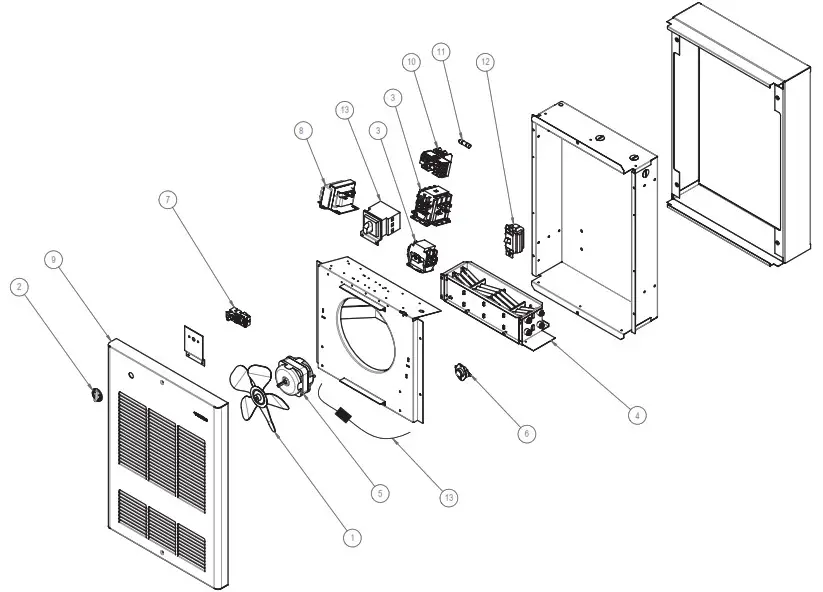

REPLACEMENT COMPONENT LIST

REF #PART #DESCRIPTION
1AWF/ACFBLA-003FAN BLADE 8″
2AWF/ACFBOUT-019THERMOSTAT BUTTON. WHITE
2AWF/ACFBOUT-020THERMOSTAT BUTTON. BLACK
2AWF/ACFBOUT-021THERMOSTAT BUTTON, ALMOND
3AWF/ACFCONT-3002CONTACTOR 2P/24V/30A RESISTIVE
3AWF/ACFCONT-3022CONTACTOR 2P1240-208V/30A RESISTIVE
3AWF/ACFCONT-3503CONTACTOR 3P/24V/35A RESISTIVE
3AWF/ACFCONT-4023CONTACTOR 3P/240-208V/40A RESISTIVE
3AWF/ACFCONT-5002CONTACTOR 2P/24V/50A RESISTIVE
3AWF/ACFCONT-5023CONTACTOR 2P/240-208V/50A RESISTIVE
4AWF/ACFELF-WF1502ELEMENT ASSEMBLY WF1502
4AWF/ACFELF-WF1503ELEMENT ASSEMBLY WF1503
4AWF/ACFELF-WF1506ELEMENT ASSEMBLY WF1506
4AWF/ACFELF-WF1507ELEMENT ASSEMBLY WF1507
4AWF/ACFELF-WF2002ELEMENT ASSEMBLY WF2002
4AWF/ACFELF-WF2003ELEMENT ASSEMBLY WF2003
4AWF/ACFELF-WF2006ELEMENT ASSEMBLY WF2006
4AWF/ACFELF-WF2007ELEMENT ASSEMBLY WF2007
4AWF/ACFELF-WF2008ELEMENT ASSEMBLY WF2008
4AWF/ACFELF-WF3002ELEMENT ASSEMBLY WF3002
4AWF/ACFELF-WF3003ELEMENT ASSEMBLY WF3003
4AWF/ACFELF-WF3006ELEMENT ASSEMBLY WF3006
4AWF/ACFELF-WF3007ELEMENT ASSEMBLY WF3007
4AWF/ACFELF-WF4002ELEMENT ASSEMBLY WF4002
4AWF/ACFELF-WF4003ELEMENT ASSEMBLY WF4003
4AWF/ACFELF-WF4006ELEMENT ASSEMBLY WF4006
4AWF/ACFELF-WF4007ELEMENT ASSEMBLY WF4007
4AWF/ACFELF-WF4008ELEMENT ASSEMBLY WF4008
4AWF/ACFELF-WF4802ELEMENT ASSEMBLY WF4802
4AWF/ACFELF-WF4803ELEMENT ASSEMBLY WF4803
4AWF/ACFELF-WF4805ELEMENT ASSEMBLY WF4805
4AWF/ACFELF-WF4806ELEMENT ASSEMBLY WF4806
4AWF/ACFELF-WF4807ELEMENT ASSEMBLY WF4807
4AWF/ACFELF-WF4808ELEMENT ASSEMBLY WF4808
5AWF/ACFMO-016MOTOR 208/240V 50/60HZ 0.4A
6AWF/ACFPROT-006THERMAL PROTECTION L150-40F
6AWF/ACFPROT-007THERMAL PROTECTION 1.200-40F
7AWF/ACFST-007THERMOSTAT SP 125-250-277V/25A. 600V/10A
7AWF/ACFST-013THERMOSTAT DP 125-250-277V/25A, 600V/10A
7AWF/ACFST-017THERMOSTAT SP 240/347/600V 22/11/10A
8AWF/ACFTRF200040DTRANSFORMER 208-240/24/40VA CL2
8AWF/ACFTRF300040TRANSFORMER 347/24/40VA CL2
8AWF/ACFTRF320025TRANSFORMER 347/240/25VA
8AWF/ACFTRF500025DTRANSFORMER 240-480/12-24/25VA
8AWF/ACFTRF520025TRANSFORMER 480/240/25VA
8AWF/ACFTRF520100TRANSFORMER 480240/100VA
8AWF/ACFTRF600040TRANSFORMER 600/24/40VA CU
8AWF/ACFTRF620025TRANSFORMER 600240/25VA
8AWF/ACFTRF620100TRANSFORMER 600/240/100VA
8AWF/ACFTRF700025TRANSFORMER 277/240/25VA
8AWF/ACFTRF720025TRANSFORMER 277/240/25VA
8AWF/ACFTRF720100TRANSFORMER 277/240/100VA
9AWF’M-WF112ZWF-1 COVER
9AWF’M-WF212ZWF-2 COVER
9AWF’M-WF312ZWF-3 COVER
9ACPM-CF112ZCF-1 COVER
9ACPM-CF212ZCF-2 COVER
9ACPM-CF312ZCF-3 COVER
10AWF/ACFHOLD-005FUSE HOLDER 2 POLES 30A 600V TYPE CC
11AWF/ACFFS-005FUSE 15A CLASS CC 600V T.D.
11AWF/ACFFS-024FUSE. 25A, 600V AC CLASS CC. TIME DELAY
12AWF/ACFSWI-027MOTOR SWITCH 600V/30A, 2 POLES
12AWF/ACFSWI-028DISCONNECT SWITCH 600V/40A 2POLES/3POLES
12AWF/ACFSWI-029DISCONNECT SWITCH 600V/60A 2POLES13POLES
13ACFFLK-AWF01FUSE LINK – 117C (KIT) AWF01
13AWFFLK-AWF02FUSE LINK – 84C (KIT) AWF02
13AWF/ACFFLK-AWF03FUSE LINK – 104C (KIT) AWF03

STELPRO AWF1501 AWF Series Wall Ceiling Aeroconvector - REPLACEMENT 1

LIMITED WARRANTY

This limited warranty is offered by Stelpro Design inc. (“Stelpro”) and applies to the following products made by Stelpro: models AWF and ACF. Please read this limited warranty carefully. Subject to the terms of this warranty, Stelpro warrants its products and their components against defects in workmanship and/or materials for the following periods from the date of purchase: 3 years. This warranty applies only to the original purchaser; it is non-transferable and cannot be extended.

CLAIM PROCEDURE
If at any time during the warranty period the unit becomes defective, you must cut off the power supply at the main electrical panel and contact 1) your installer or distributor, 2) your service center or 3) Stelpro’s customer service department. In all cases, you must have a copy of the invoice and provide the information written on the product nameplate. Stelpro reserves the right to examine or to ask one of its representatives to examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or repair a defective part. Please note that repairs made within the warranty period must be authorized in advance in writing by Stelpro and carried out by persons authorized by Stelpro.
Before returning a product to Stelpro, you must have a Stelpro authorization number (RMA). To obtain it, call the customer service department at: 1-800-363-3414 (electricians and distributors – French), 1-800-343-1022 (electricians and distributors – English), or 1-866-766-6020 (consumers). The authorization number must be clearly written on the parcel or it will be refused.

CONDITIONS, EXCLUSIONS AND DISCLAIMER OF LIABILITY
This warranty is exclusive and in lieu of all other representations and warranties (except of title), expressed or implied, and Stelpro expressly disclaims and excludes any implied warranty of merchantability or implied warranty of fitness for a particular purpose.
Stelpro’s liability with respect to products is limited as provided above. Stelpro shall not be subject to any other obligations or liabilities whatsoever, whether based on contract, tort or other theories of law, with respect to goods or services furnished by it, or any undertakings, acts or omissions relating thereto. Without limiting the generality of the foregoing, Stelpro expressly disclaims any liability for property or personal injury damages, penalties, special or punitive damages, damages for lost profits, loss of use of equipment, cost of capital, cost of substitute products, facilities or services, shutdowns, slowdowns, or for other types of economic loss or for claims of a dealer’s customers or any third party for such damages. Stelpro specifically disclaims all consequential, incidental and contingent damages whatsoever.
This warranty does not cover any damages or failures resulting from: 1) a faulty installation or improper storage; 2) an abusive or abnormal use, lack of maintenance, improper maintenance (other than that prescribed by Stelpro) or a use other than that for which the unit was designed; 3) a natural disaster or an event out of Stelpro’s control, including, but not limited to, hurricanes, tornadoes, earthquakes, terrorist attacks, wars, overvoltage, flooding, water damages, etc. This warranty does not cover any accidental or intentional losses or damages nor does it cover damages caused by negligence of the user or owner of the product. Moreover, it does not cover the cost of disconnection, transport, and installation.
The warranty is limited to the repair or the replacement of the unit or the refund of its purchase price, at the discretion of Stelpro. Any parts replaced or repaired within the warranty period with the written authorization of Stelpro will be warranted for the remainder of the original warranty period. This warranty will be considered null and void and Stelpro will have the right to refuse any claims if products have been altered without the written authorization of Stelpro and if the nameplate numbers have been removed or modified. This warranty does not cover scratches, dents, corrosion or discoloration caused by excessive heat, chemical cleaning products and abrasive agents. It does not cover any damage that occurred during the shipping.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages and some of them do not allow limitations on how long an implied warranty lasts, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary from state to state or from province to province.

STELPRO DESIGN INC. | Saint-Bruno-de-Montarville | Québec | J3V 6L7
INSAWFACF0522
