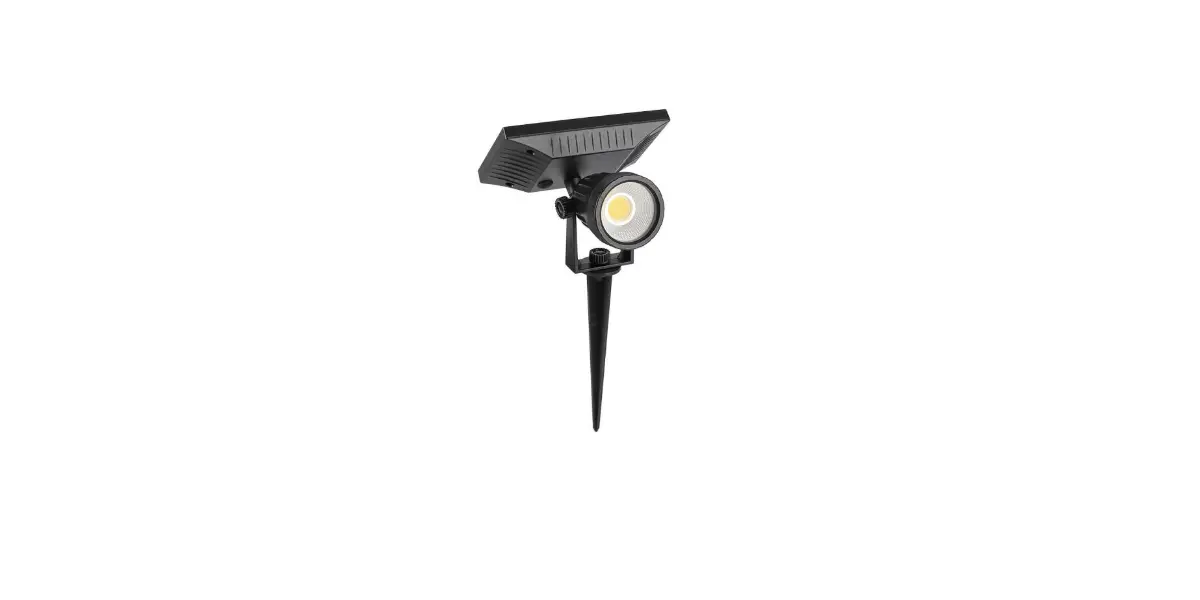

V-TAC VT-952 Led Solar Spike Light Instruction Manual
WEEE Number: 80133970
TECHNICAL DATA
| MODEL | VT-952 |
| LUMENS | 40LM |
| CRI | >80 |
| BODY TYPE | ABS |
| DIMENSION | 280x140mm |
| BATTERY CAPACITY | AC: 3.7V, 1200mAh, Li-ion |
SOLAR PANEL DATA
| SOLAR PANEL WATTS | 2W, DC: 5.5V, POLYCRYSTALLINE |
| CHARGING TIME | 6-8 Hours |
| WORKING TIME | 10-12 Hours |
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 3 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. This product is warranted for manufacturing defects only.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
WARNING!
- Installation must be performed by a qualified person.
- The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire should be replaced.
- Replace any cracked protective shield.
- Don’t immerse in the water
- Luminaire cannot be installed in low-lying areas, so as not to soak.
This marking indicates that this product should not be disposed of with other household wastes.
Caution, risk of electric shock.

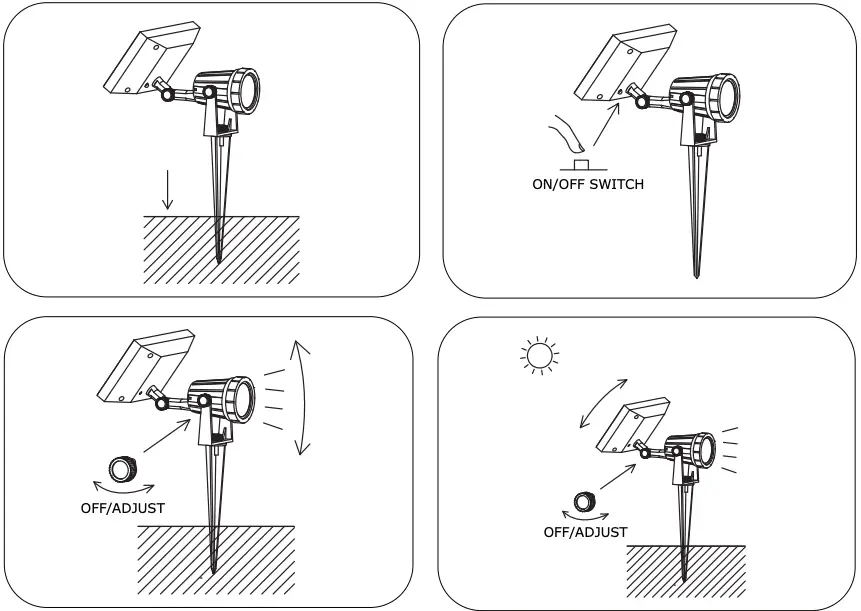

INSTALLATION DIAGRAM
INSTALLATION INSTRUCTIONS
- Fix the lamp on the grass.
- Press the switch to start the working mode.
- Adjust the direction of light.
- Adjust the solar panel to face the sunlight.
MAINTENANCE
- Clean the light with a dry, lint-free cloth.
- Check the solar panel for dirt regularly. If dirt or is present remove it to guarantee flawless function of the product.
- Especially during the winter, keep the product free from snow and ice.
- Confirm installation direction is correct.
- Confirm no objects blocking the solar panel to receive sunlight
