REAL-EL GDX-7590 Stereo Headphones WITH Microphone
Congratulations on your purchase of the TM REAL-EL!
COPYRIGHT
2022. ENEL GROUP Ou.
This Manual and the information contained in are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information in this Manual is given on “as is” terms. The author and the publisher do not bear any liability to a person or an organization for loss or damage, which has arisen from the information contained in this Manual.
APPLICATION

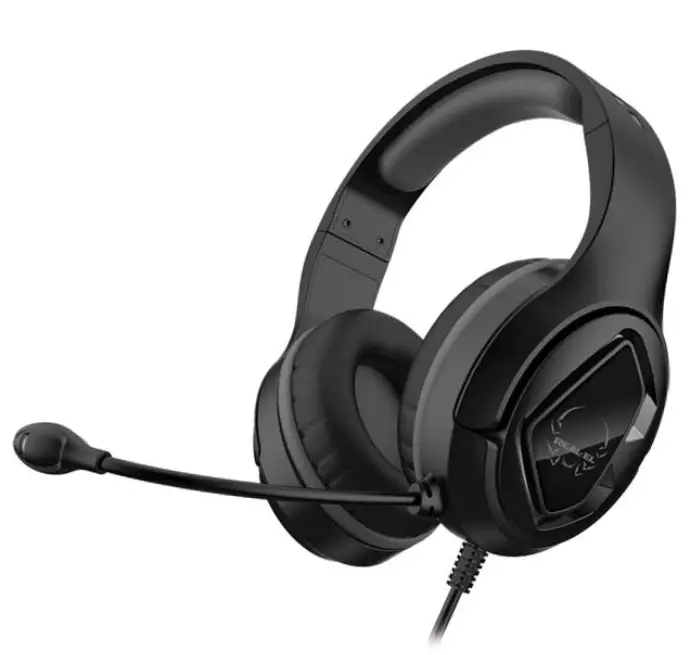

REAL-EL GDX-7590 stereo headphones with a microphone provide a powerful realistic sound, creating a feeling of full immersion in the game. Compatible with Media players and PC.
PACKAGE CONTENTS
- Stereo headphones with microphone- 1 pc
- Adapter 03.5 mm to 2″0 3.5 mm stereo mini jack- 1 pc
- User Manual 1 pc
- Warranty card 1 pc
SAFETY PRECAUTIONS
- Don’t use earphones while driving.
- Don’t use the stereo earphones at high volume for a long time (more than 15 minutes), as this may
- cause hearing impairment.
SPECIAL FEATURES
- Powerful realistic sound
- 03.5 mm plug (4 pins) for mobile devices
- Adjustable headband
- Fabric braided cable
- An adapter for connecting to PC included
CONNECTION AND OPERATION

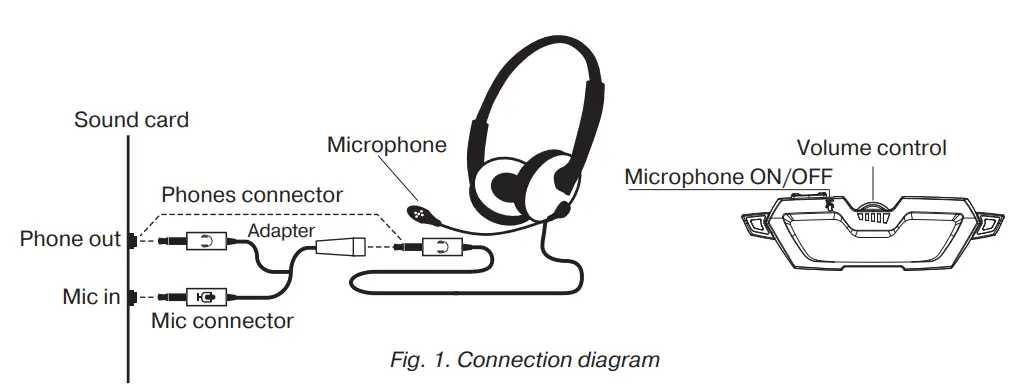

- Connect the headphones plug to the audio output jack of your audio source (PC, laptop, MP3 player, etc.), as shown in Fig. 1.
- Insert the microphone connector into the microphone input jack of your audio source.
TECHNICAL SPECIFICATIONS
| Parameter | Value, the measurement unit |
| Sensitivity | headphone: 108 ± 3 dB microphone: -38 ± 3 dB |
| Frequency range | headphone: 20 – 20 000 Hz microphone: 30–16 000 Hz |
| Impedance | 32 Ohm |
| Membrane | Ø 40 mm |
| Connector type | mini jack Ø 3.5 mm (4 pin) or Adaptor for PC Ø 3.5 mm to 2*Ø 3.5 mm |
| Cable length | 1.5 + 1 m (adapter for PC) |
| Waga | 280 g |
Notes:
- Technical specifications given in this table are supplemental information and cannot give occasion to claims.
- Technical specifications and package contents are subject to change without notice due to the improvement of TM REAL-EL production.
- Technical support: www.real-el.com
- Manufacturer: ENEL GROUP OU, Harju maakond, Rae valid, Jüri alevik, Aruküla tee 55a, 75301, Estonia.
Registered Trademark of ENEL GROUP OU. Estonia.
REAL-EL
