SVEN AP-015MV Stereo Headphones with Microphone
Congratulations on your purchase of the SVEN headphones!
APPLICATION
Sven AP-015MV stereo headphones with a microphone are designed for operation with PC sound cards and other compatible systems. They can be also used in VoIP telephony, video conferencing, multimedia applications, interactive games, for speech recognition and learning foreign languages.
SAFETY PRECAUTIONS
- Don’t use the stereo headphones while driving.
- Don’t use the stereo headphones at high volume for a long time (more than 15 minutes), as this may cause hearing impairment.
SPECIAL FEATURES
- 2*3.5 mm (3 pin) connector for PC
- Adjustable headband
- Flexible microphone arm
- Volume control wheel on the cable
CONNECTION AND OPERATION

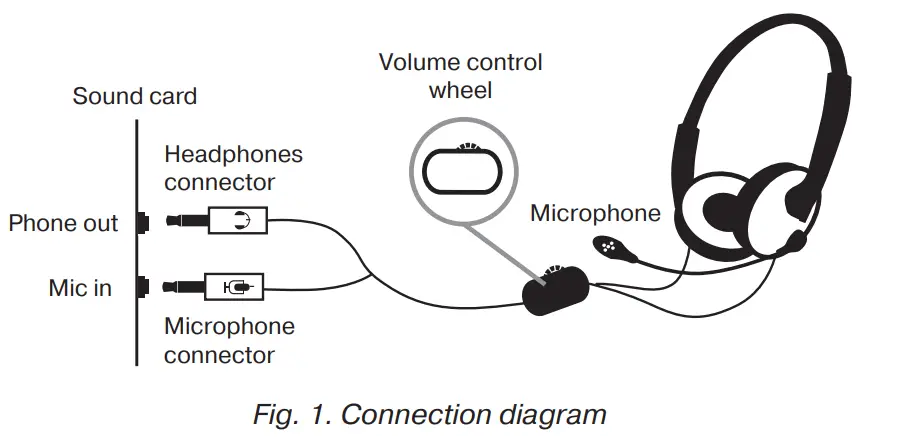

- Connect the headphones connector to the audio output jack of your audio source (PC, laptop, MP3 player), as shown in Fig. 1.
- Insert the microphone connector into the microphone input jack of your audio source.
- Adjust the headphones volume level as desired with the volume control wheel on the cable.
TECHNICAL SPECIFICATIONS
| Parameter, measurement unit | Value |
| Sensitivity, dB | headphones: 105 ± 4 microphone: -58 ± 3 |
| Frequency range, Hz | headphones: 20 – 20,000 microphone: 30 – 16,000 |
| Membrane, mm | Ø 27 |
| Connection type | Ø 2*3.5 mm (3 pin) stereo mini-jack |
| Cable length, m | 2.0 |
| Weight, g | 72 |
Notes
- Technical specifications given in this table are supplemental information and cannot give occasion to claims.
- Technical specifications are subject to change without notice due to the improvement of SVEN production.
Technical support is on www.sven.fi
