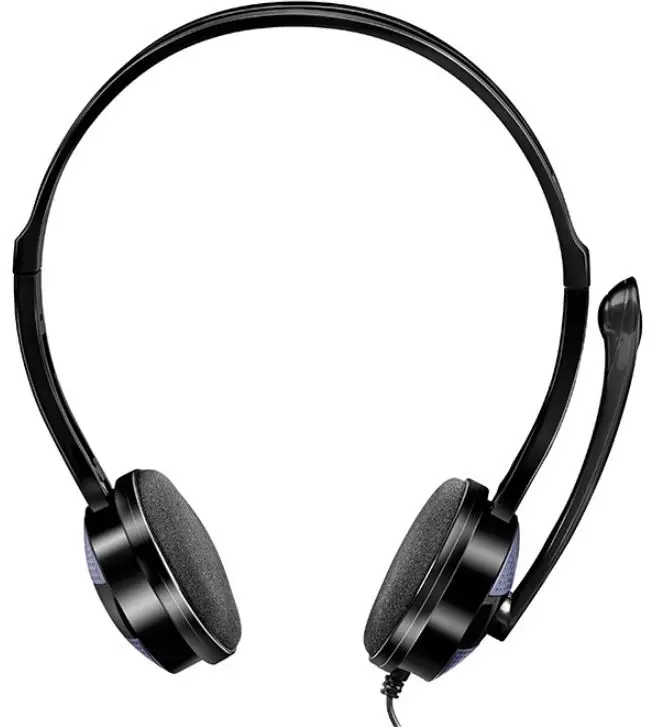

SVEN AP-151MV Stereo Headphones with Microphone
Congratulations on your purchase of the SVEN headphones!
APPLICATION
Sven AP-151MV stereo headphones with a microphone are designed for operation with PC sound cards and other compatible systems.
PACKAGE CONTENTS
- Stereo headphones – 1 pc
- User’s Manual – 1 pc
- Warranty card – 1 pc
SAFETY PRECAUTIONS
- Don’t use the stereo headphones while driving.
- Don’t use the stereo headphones at high volume for a long time (more than 15 minutes), as this may cause hearing impairment.
SPECIAL FEATURES
- 3.5 mm (4 pin) connectior for PC
- Unilateral connection of the cable
- Compact size
- Adjustable headband
- Rotary microphone arm
- Relief plastic finishing
- Volume control wheel on the cable
CONNECTION AND OPERATION
- Connect the headphones connectior to the audio output jack of your audio source (PC, laptop, MP3 player), as shown in Fig. 1.
- Adjust the headphones volume level as desired with the volume control wheel on the cable.
Fig. 1. Connection diagram
TECHNICAL SPECIFICATIONS
| Parameter, measurement unit | Value |
| Sensitivity, dB | headphones: 105 microphone: -58 ± 3 |
| Frequency range, Hz | headphones: 20 – 20,000 microphone: 30 – 16,000 |
| Membrane, mm | Ø 40 |
| Connector type | Ø 3.5 mm (4 pin) mini-jack |
| Cable length, m | 1.2 |
| Weight, g | 80 |
Notes:
- Technical specifications given in this table are supplemental information and cannot give occasion to claims.
- Technical specifications are subject to change without notice due to the improvement of SVEN production.
Technical support is on www.sven.fi.
Model: AP-151MV
www.sven.fi.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.
