SVEN AP-G888MV Gaming Stereo Headphones with Microphone
Congratulations on your purchase of the SVEN stereo headphone
COPYRIGHT
© 2016. SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved.
APPLICATION
SVEN AP-G888MV gaming stereo headphones with microphone are designed for professional gaming. Closed style of the headphones with passive noise reduction and superior sound quality gives you the opportunity to hear the enemy before he will hear you.
Stereo earphones are compatible with a variety of Media-players.
PACKAGE CONTENTS
- Gamings tereo headphones – 1 pc
- Connector: 3.5 mm (4 pin) mini-jack to 2 * 3,5 mm (3 pin) mini-jack – 1 pc
- User’s Manual – 1 pc
- Warranty card – 1 pc
SAFETY PRECAUTIONS
- Don’t use the stereo headphones while driving.
- Don’t use the stereo headphones at high volume for a long period of time (more than 15 minutes), as this may cause hearing impairment.
SPECIAL FEATURES
- Designed for professional gaming
- Closed style of the headphones with passive noise reduction
- Superior sound quality
- Compatible with a variety of Media-players
- Volume control on the cable
- Non-tangling cable with fabric braid
- 3.5 mm (4 pin) connector for mobile devices
- Connector: 3.5 mm (4 pin) mini-jack to 2 * 3,5 mm (3 pin) mini-jack
- Comfortable seating
CONNECTION AND OPERATION

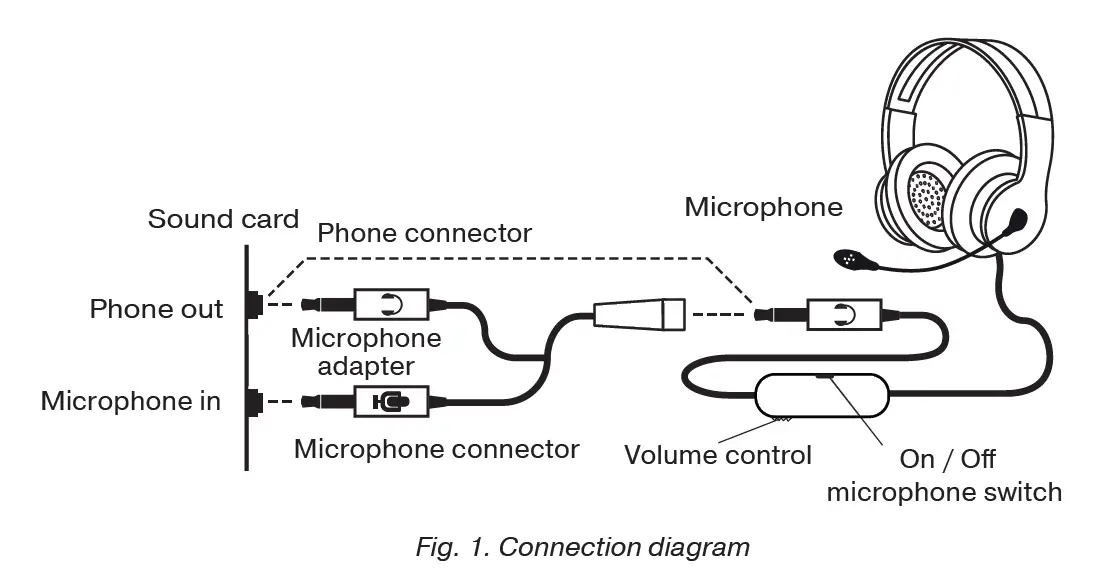

- Connect the headphones connector to the audio jack of your audio source (PC sound card, laptop, MP3 player, etc.), as shown in Fig. 1.
- To use the headphones jointly with a PC, use a microphone adapter (included)
TECHNICAL SPECIFICATIONS
| Parameter, measurement unit | Value |
| Sensitivity, dB | headphones: 110 (max) microphone: -58 ± 3 |
| Frequency range, Hz | headphones: 20 – 20,000 microphone: 30 – 16,000 |
| Impedance, Ohm | 32 ± 15 |
| Membrane, mm | Ø 40 |
| Connection type | Ø 3.5 mm (4 pin) or Ø 2*3.5 mm (3 pin) mini-jack |
| Cable length, m | 1.2 + 1 (adapter for PC) |
| Weight, g | 298 |
Notes:
- Technical specifications given in this table are supplemental information and cannot give occasion to claims.
- Technical specifications are subject to change without notice due to the improvement of SVEN production.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.
www.sven.fi.
