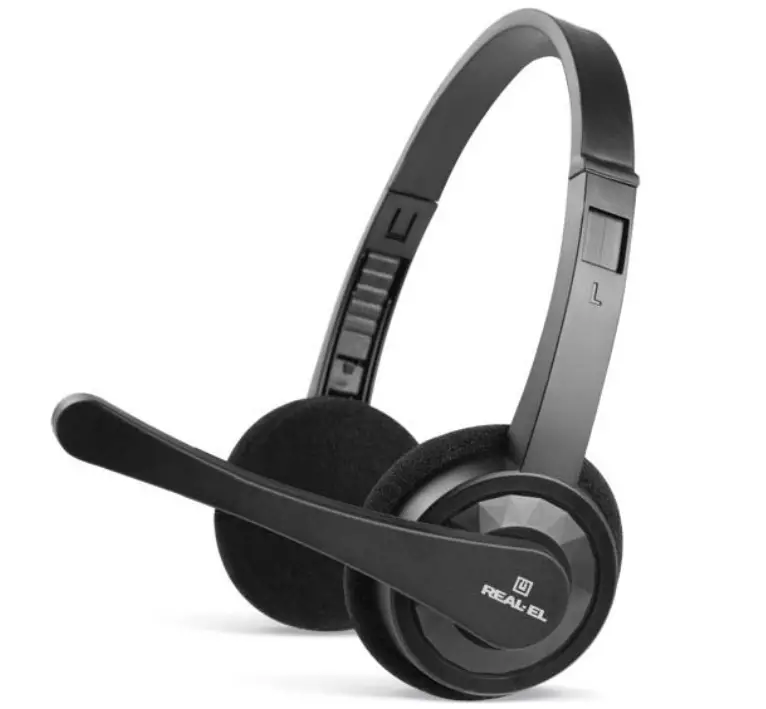

GD-012 Microphone Stereo Headphones
User Manual
STEREO HEADPHONES
WITH MICROPHONE
GD-012
Congratulations on your purchase of the TM REAL-EL !
COPYRIGHT
© 2021. ENEL GROUP OU.
This Manual and information contained in are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
information in this Manual is given on “as is” terms. The author and the publisher do not bear any contained in this Manual.
APPLICATION
REAL-EL GD-012 Stereo Headsets with microphone are designed to work with all compatible audio
PACKAGE CONTENTS
Stereo headphones – 1 pc
User Manual – 1 pc
Warranty card – 1 pc
SAFETY PRECAUTIONS
Don’t use the earphones while driving.
cause hearing impairment.
SPECIAL FEATURES
Rotary microphone arm
CONNECTION AND OPERATION

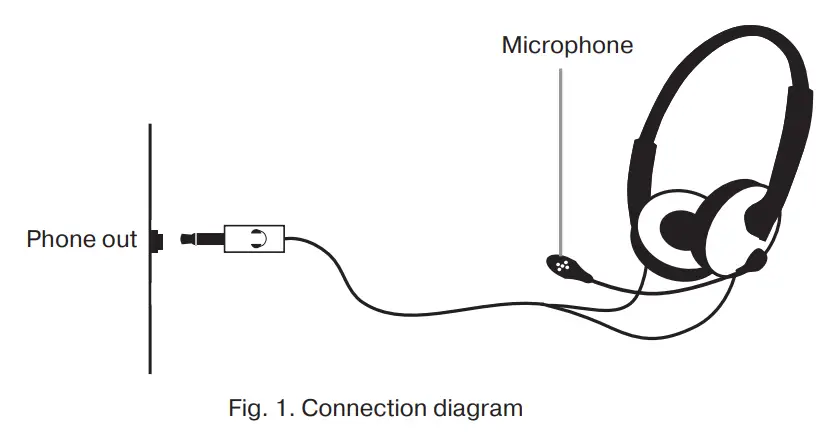

- Connect the headphones plug to the audio output jack of your audio source (PC, laptop, MP3 player, etc.), as shown in Fig. 1.
TECHNICAL SPECIFICATIONS
| Parameter, measurement unit | Value |
| Sensitivity, dB | headphones: 105 ± 3 microphone: -58 ± 2 |
| Frequency range, Hz | headphones: 20 – 20 000 microphone: 30-16 000 |
| Impedance, Ohm | 32 |
| Membrane, mm | 40 |
| Connector type | 0 3.5 mm (4 pin) stereo mini-jack |
| Cable length, m | 1.5 ± 5% |
| Weight, g | 80 |
Notes:
- Technical specifications given in this table are supplemental information and cannot give occasion to claims.
- Technical specifications and package contents are subject to change without notice due to improvement of TM REAL-EL production.
Manufacturer: ENEL GROUP OU, Harju maakond, Rae vald, JOri alevik, ArukUla tee 55a, 75301,
Estonia. ® Registered Trademark of ENEL GROUP OU. Estonia.
REAL-EL
