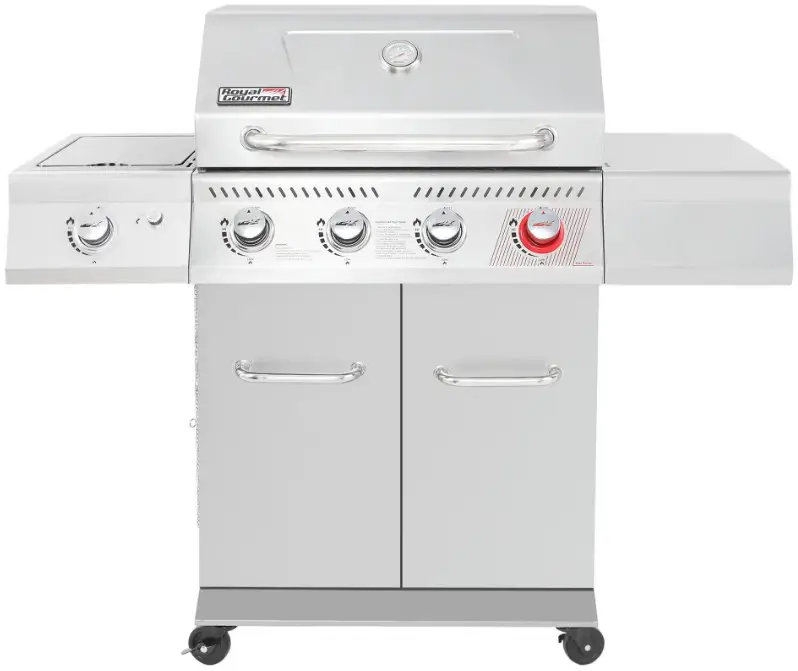

ROYAL GOURMET GA4402S Stainless Steel 4-Burner BBQ Cabinet Style Instruction Manual
Prats Diagram
Parts List
| No. | # | QYT | Description | Image |

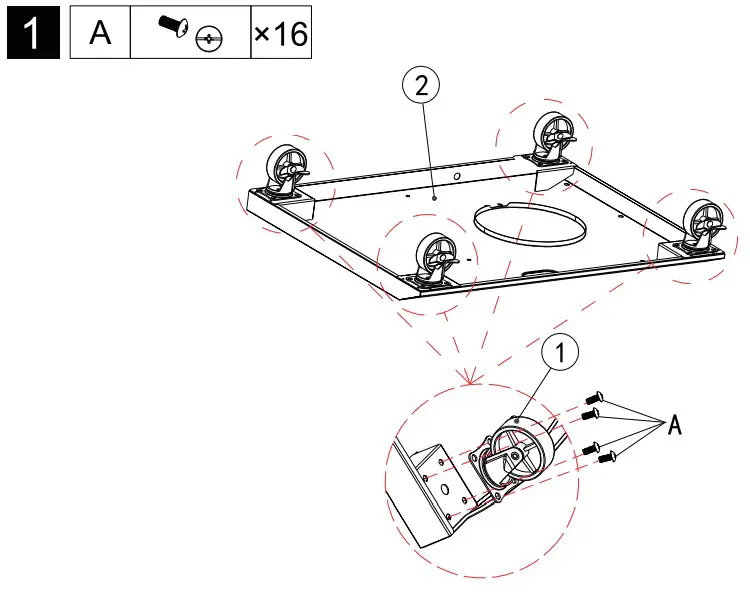

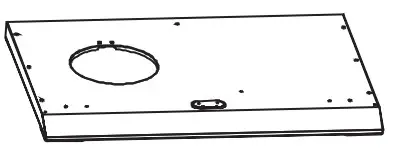

| 1 | WL002 (W-52930001) | 4 | Caster |  |
| 2 | AHCJ80DB4B | 1 | Bottom shelf |  |
| 3 | AHQBGDZ | 1 | Screw bushing |  |

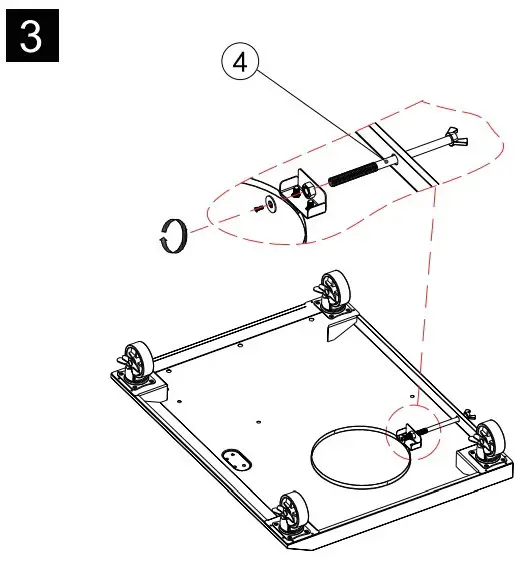

| 4 | DG01 | 1 | LP cylinder screw |  |
| 5 | AHCJ80CBL | 1 | Left panel |  |
| 6 | AHCJ80CBR | 1 | Right panel |  |

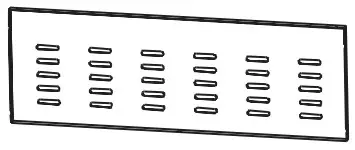

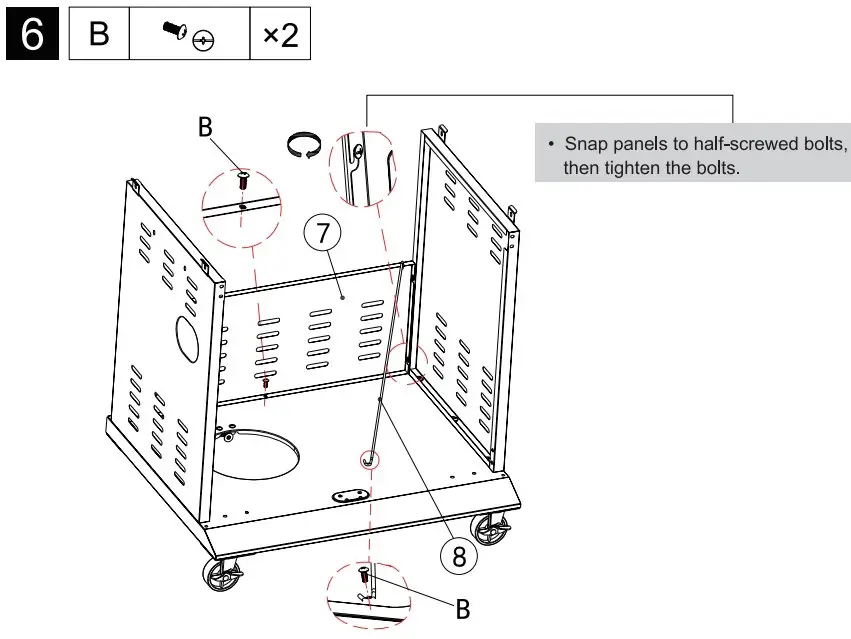

| 7 | ACJ80HB4B | 1 | Rear panel |  |

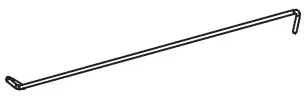

| 8 | AZX001 | 1 | LP cylinder barrier bar |  |

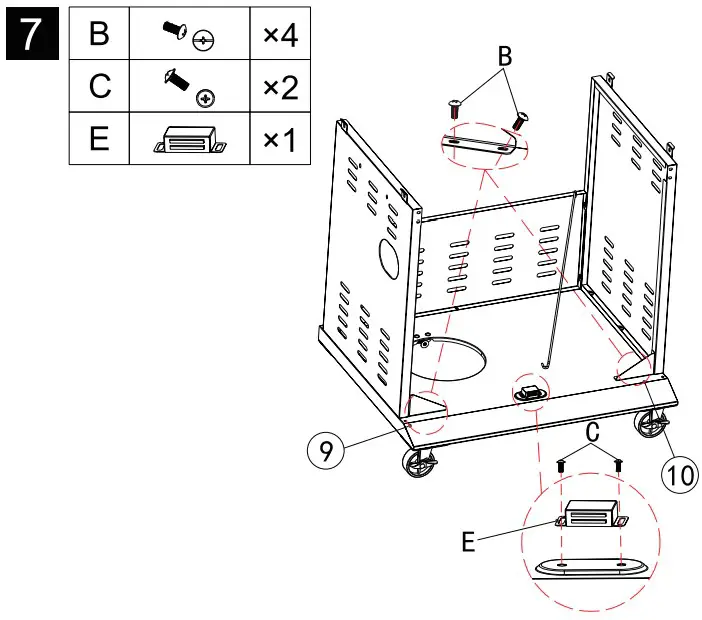

| 9 | ACJ53SJPL | 1 | Triangle support plate (L) |  |
| 10 | ACJ53SJPR | 1 | Triangle support plate (R) |  |

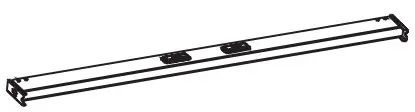

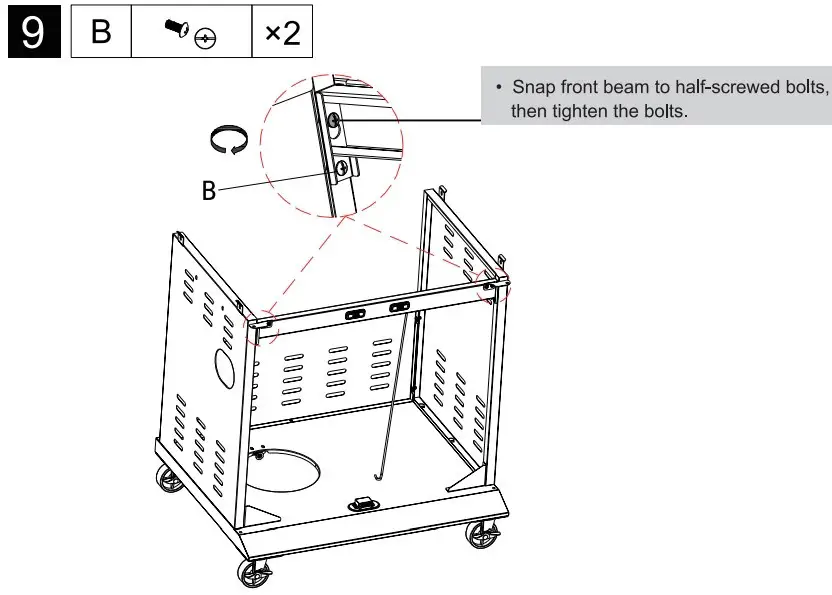

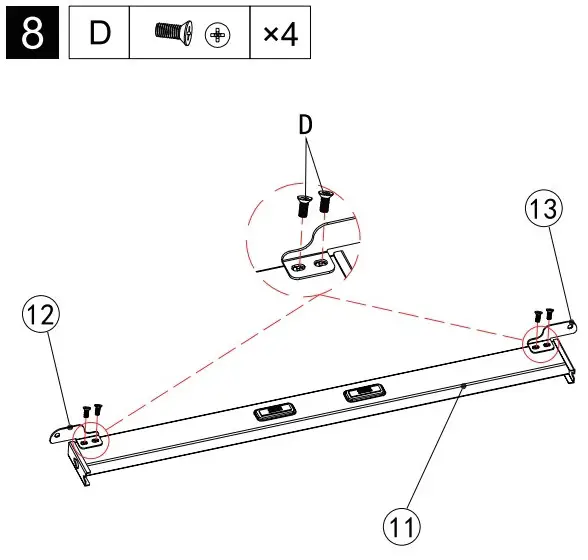

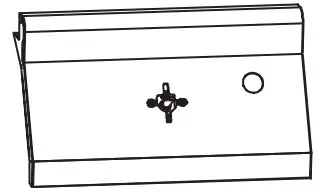

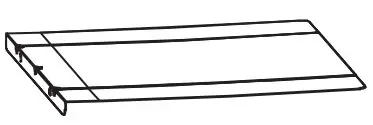

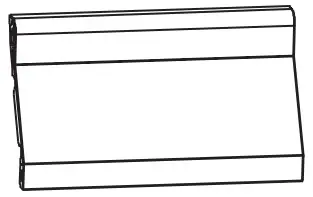

| 11 | AHCJ80QHL4B | 1 | Cart front beam |  |
| 12 | EHCJSOHL-GDPL | 1 | Beam connector (L) |  |
| 13 | EHCJSOHL-GDPR | 1 | Beam connector (R) |  |
| 14 | AQPGB | 1 | Thermal baffle |  |

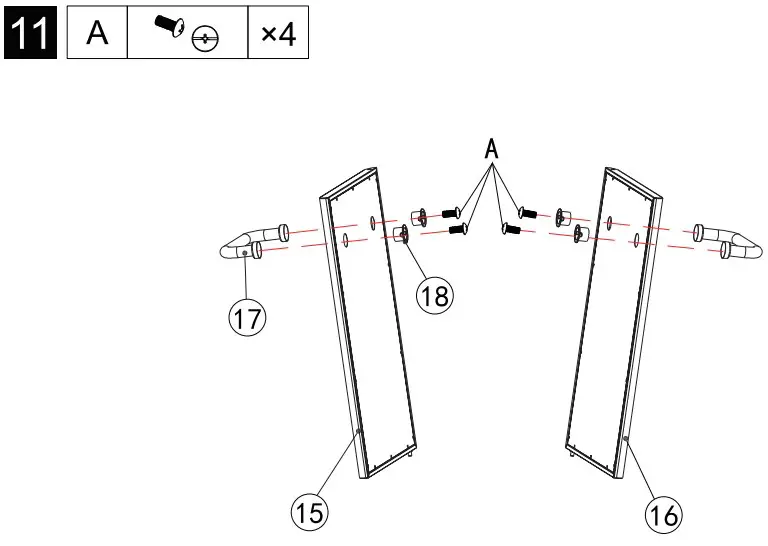

| 15 | ACJ80MBL4B | 1 | Cabinet door (L) |  |
| 16 | ACJ80MBR4B | 1 | Cabinet door (R) |  |
| 17 | MS005 | 2 | Door handle |  |
| 18 | BZ003(W-A0403) | 4 | Handle sleeve |  |

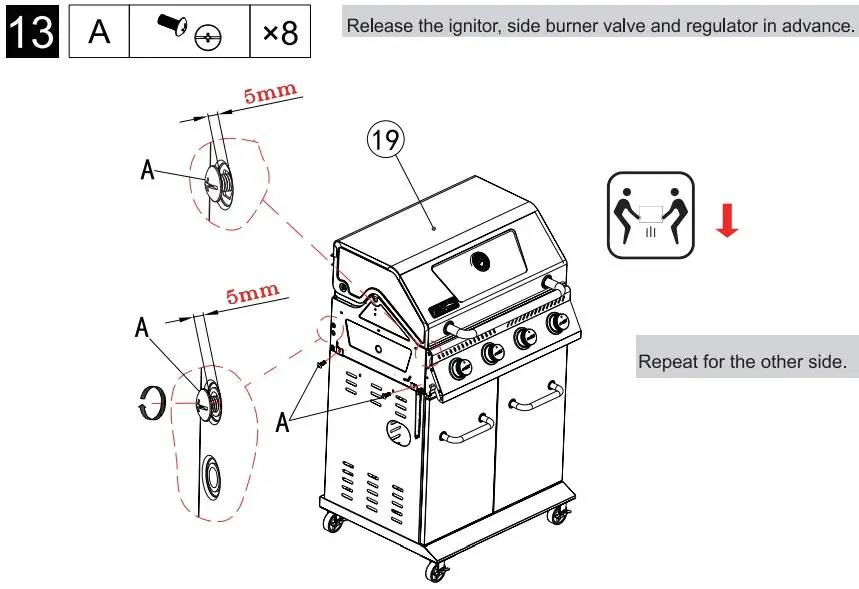

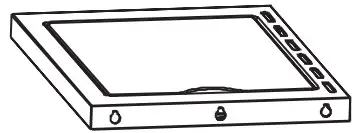

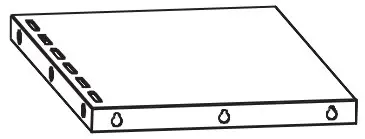

| 19 | 1 | Main body |  | |
| 20 | ABLGRB | 1 | Side burner thermal baffle |  |
| 21 | ABLNMBL | 1 | Side burner shelf |  |
| 22 | ACTNMBR | 1 | Side table |  |
| 23 | AHBLNZSJL | 1 | Side burner decoration board |  |
| 24 | AHCTNZSJR | 1 | Side table decoration board |  |
| 25 | ACTNSZJL | 1 | Side burner support plate |  |
| 26 | ACTNSZJR | 1 | Side table support plate |  |

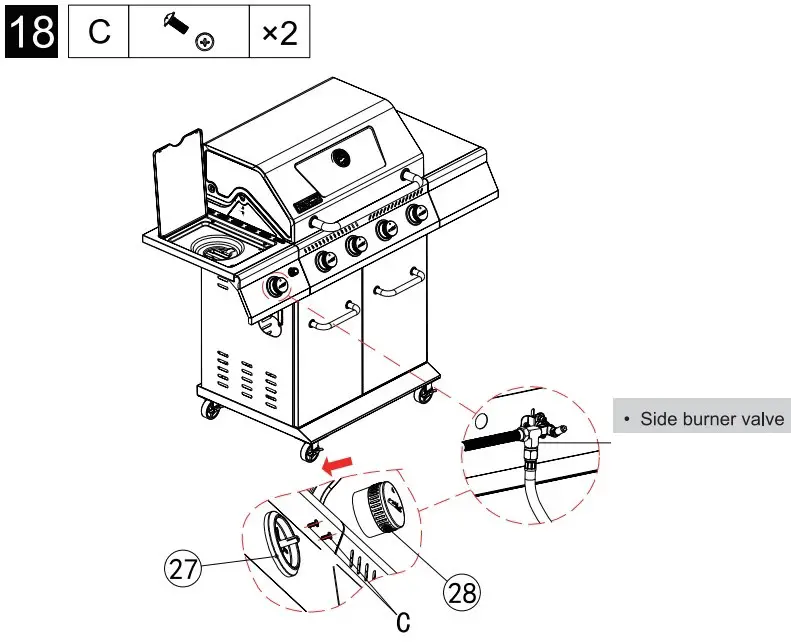

| 27 | XZ103 (W-20120007) | 1 | Knob base |  |
| 28 | XN101RGC-BK | 1 | Knob |  |
| 29 | ABLT001 | 1 | Side burner |  |

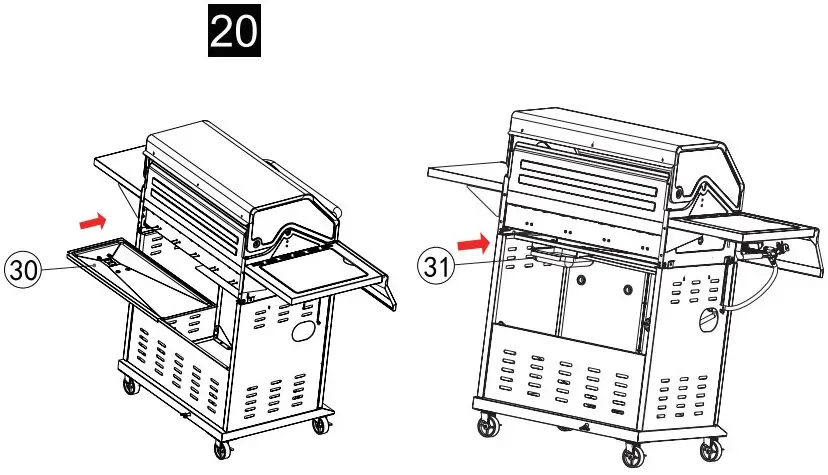

| 30 | ALTJYP4B | 1 | Grease tray |  |
| 31 | Z-GD800109 | 1 | Grease cup |  |

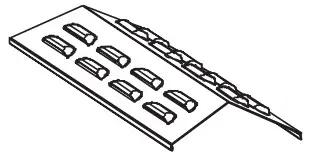

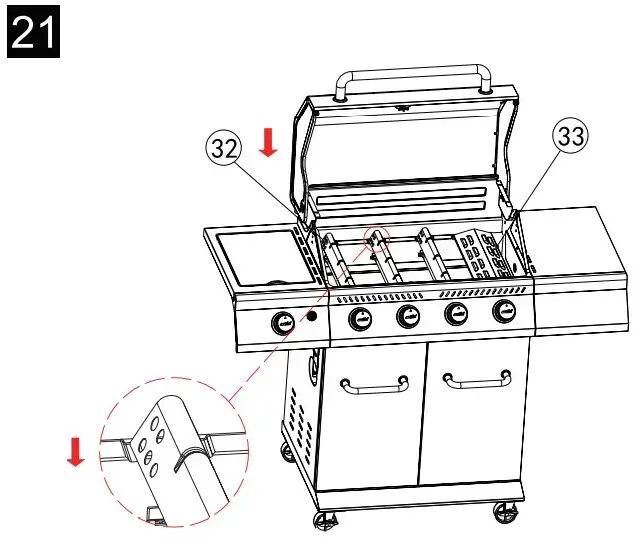

| 32 | ADB01 | 3 | Flame tamer |  |
| 33 | AGDB01 | Flame tamer (big) |  | |

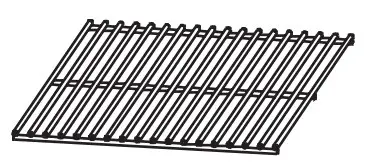

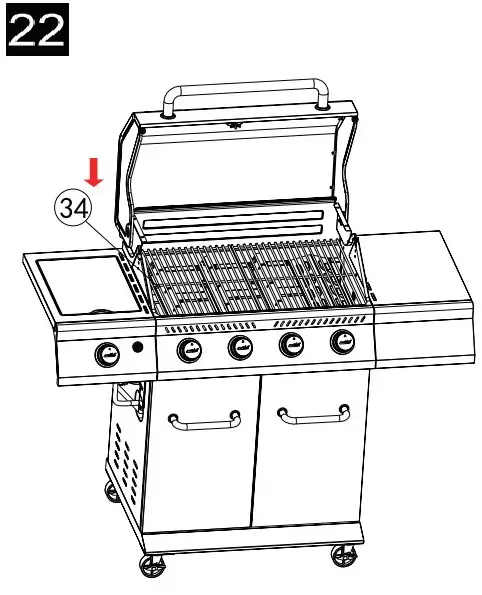

| 34 | AKW004 | 2 | Cooking grate |  |

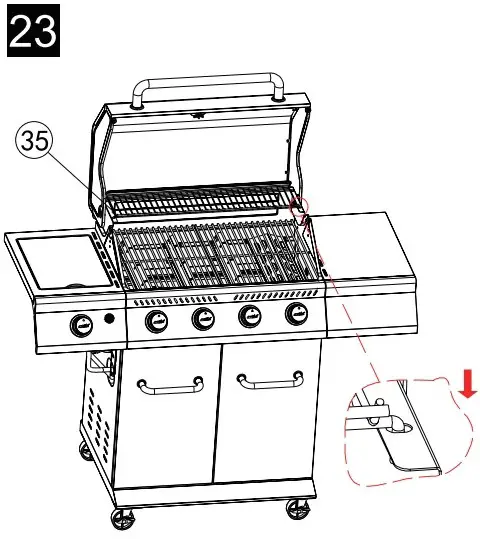

| 35 | ABW104-4B | 1 | Warming rack |  |
| 36 | AGJ001 | 1 | Side burner grate |  |
| Key | Description | QTY | Image |
| A | M6x12 | 46 |  |
| B | M5x10 | 34 |  |
| M4x8 | 6 |  | |
| D | M4x10 | 4 |  |
| E | Magnet | 1 |  |
| TOOLS REQUIRED | ||
| Description | Image | |

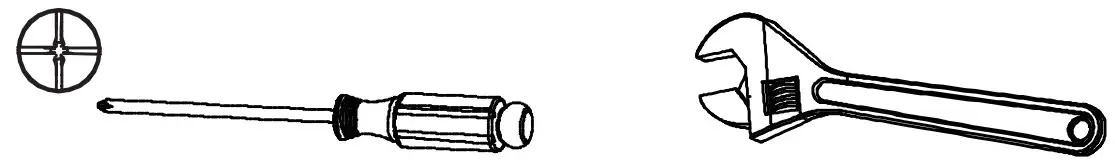

| Phillips screwdriver | Wrench |  |
Before beginning assembly, make sure all parts are present. If any parts are missing or damaged, do not attempt to assemble the products. Contact customer service for replacement parts via telephone or email.
- Tools needed (not included): Phillips screwdriver and wrench
- Approximate assembly time: 60 minutes
- Note: The right and left sides of the grill are designed as if you are facing the front of the grill.

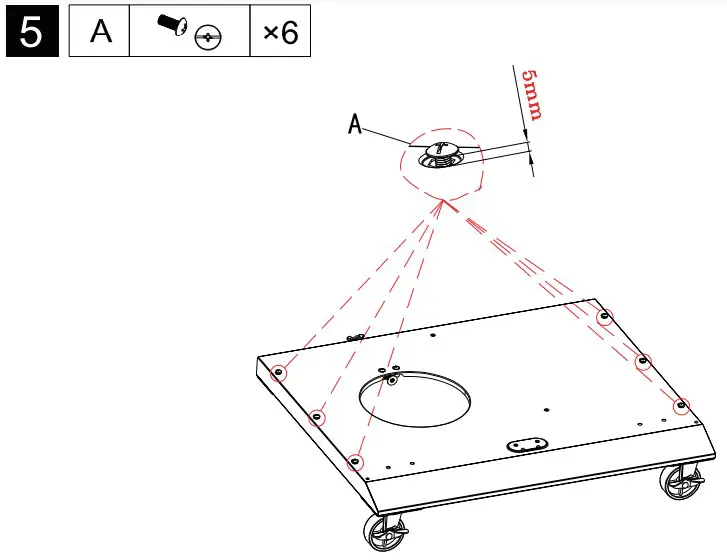

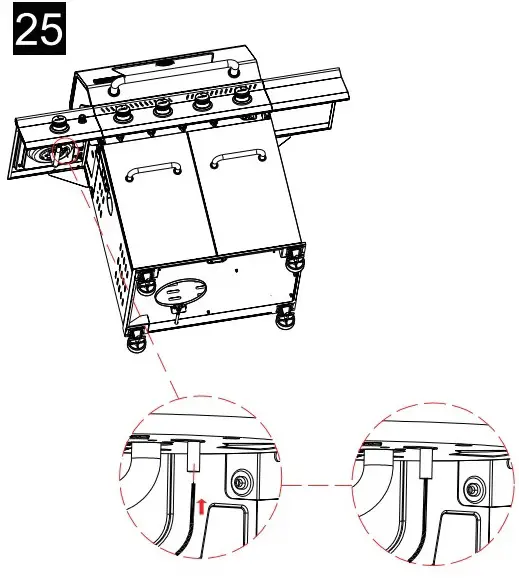

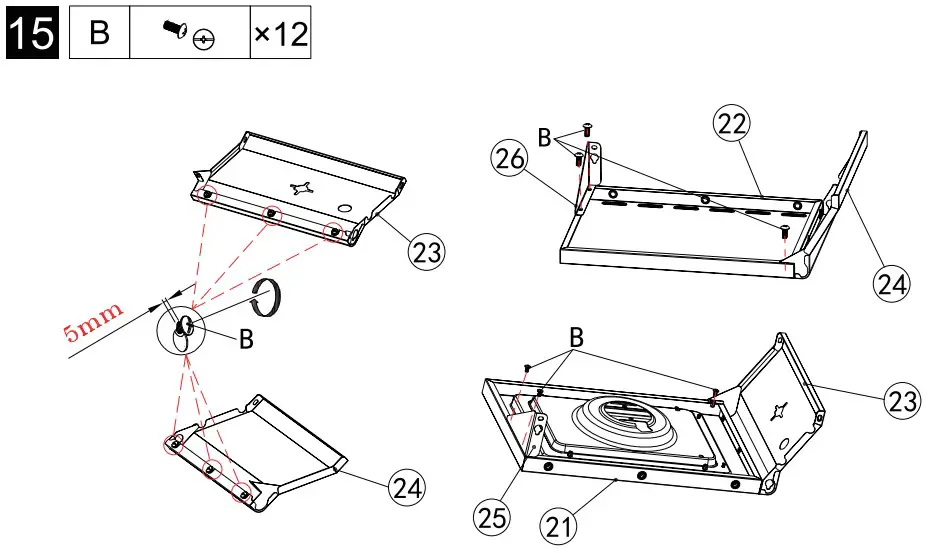

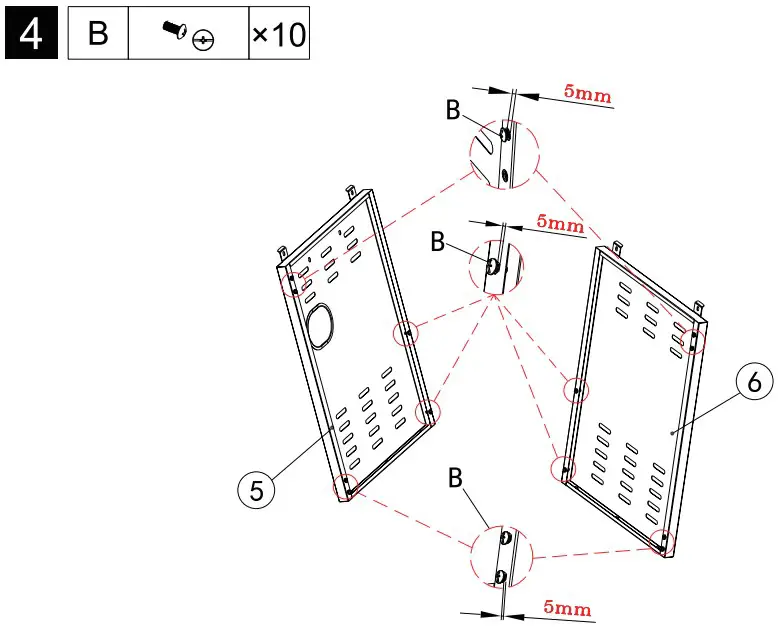

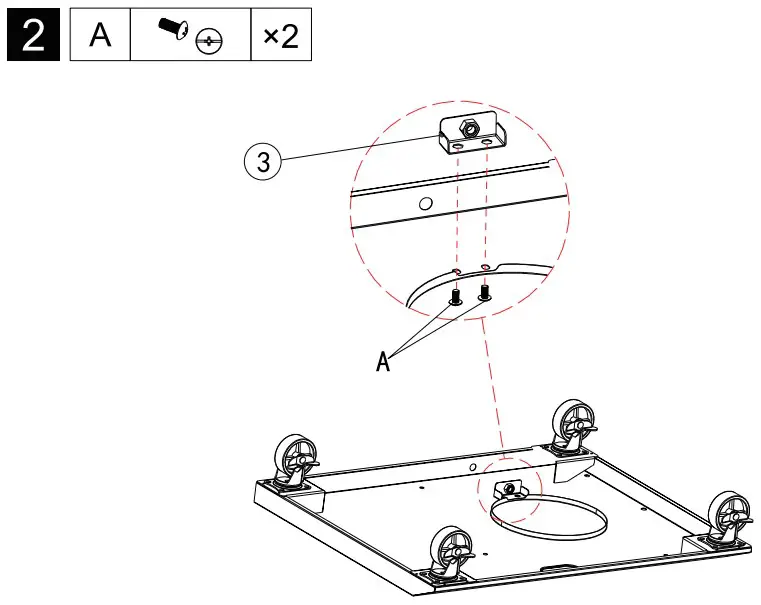

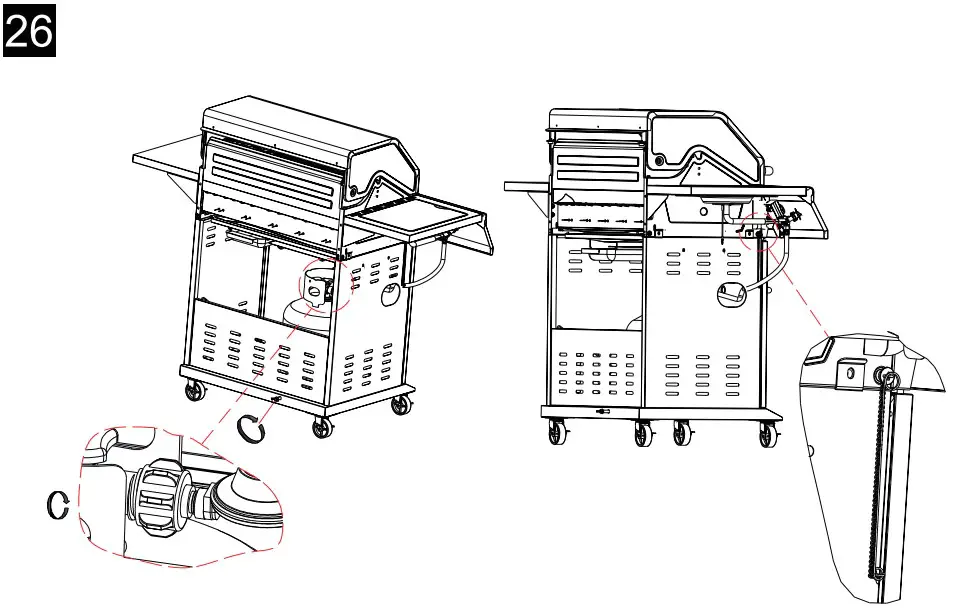

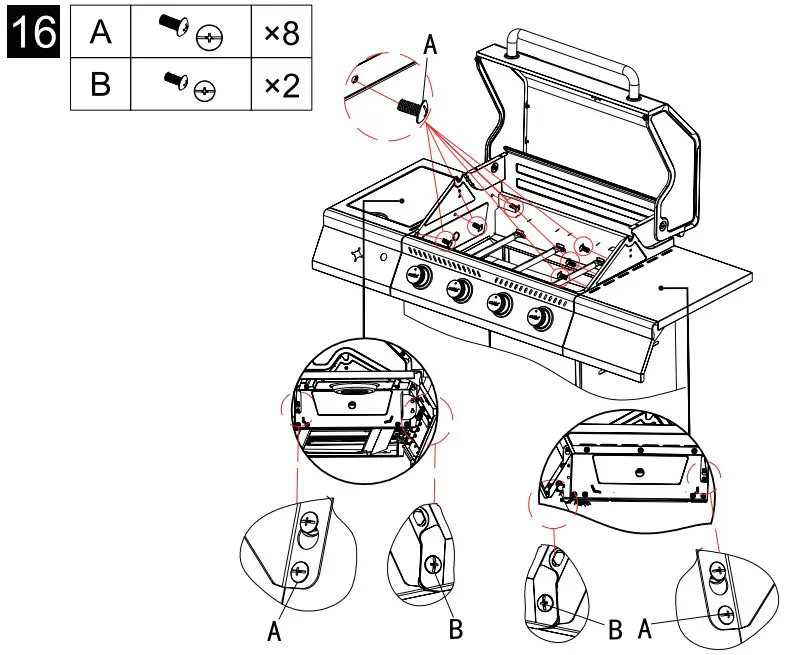

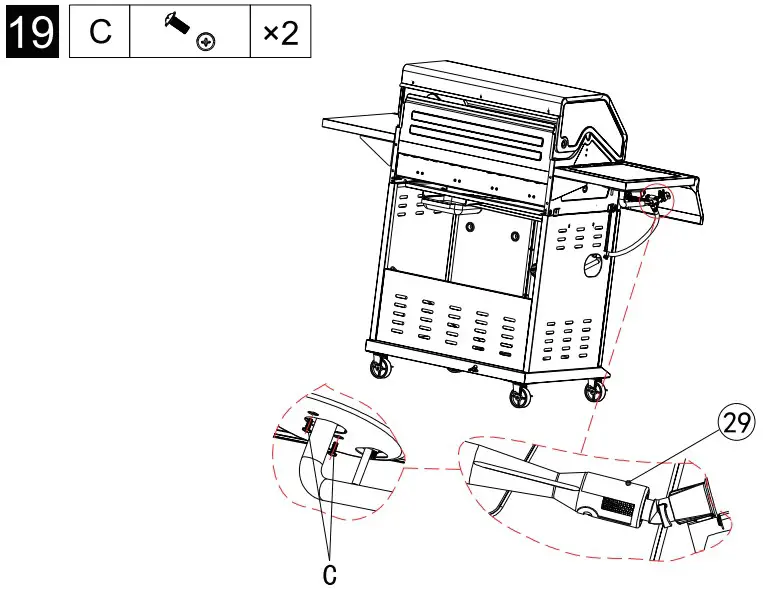

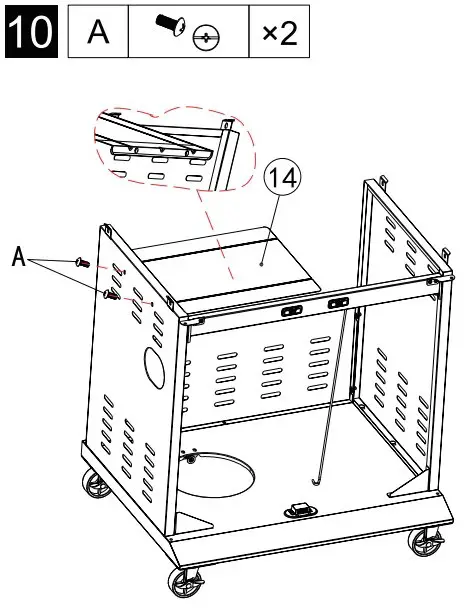

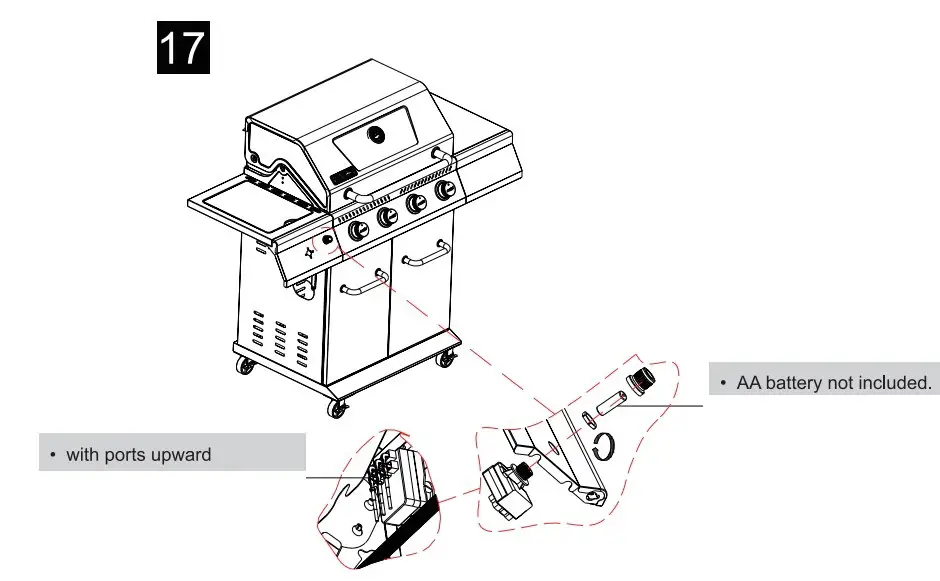

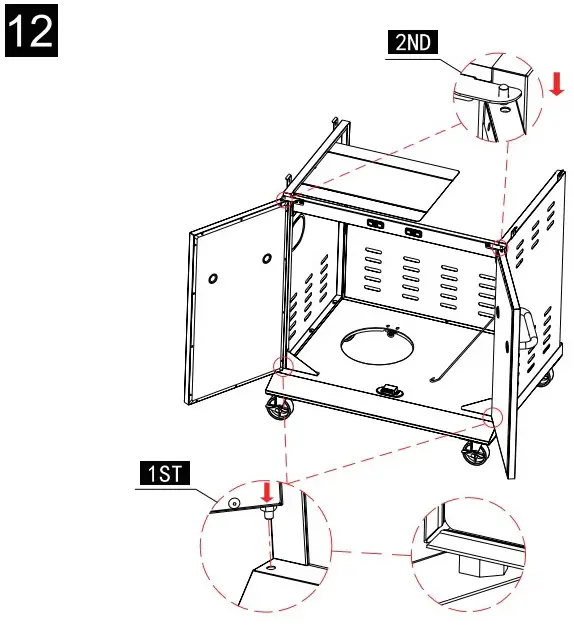

Assembly
