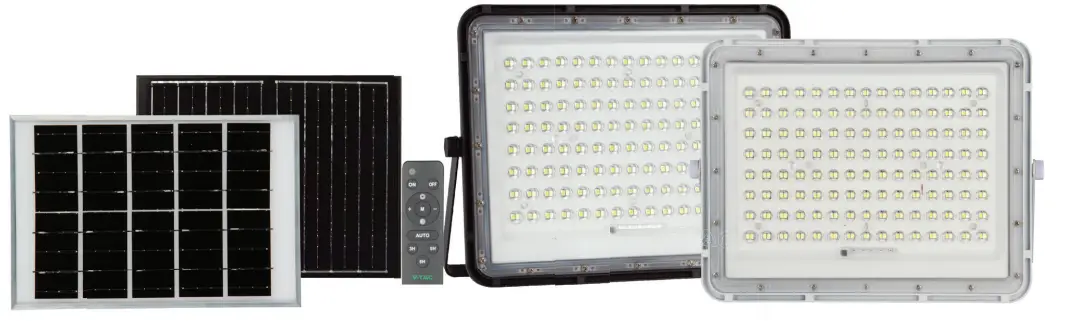

V-TAC VT-40W LED Solar Floodlight
- Time s witch
- lntelligent light control
- Wireles s remote control
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installing and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormalwear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. This product is warranted for manufacturing defects only.
TECHNICAL DATA
|
MODEL |
SKU |
LUMENS | DC VOLTAGE | SOLAR PANEL WATTS |
PANEL SIZE |
UNIT SIZE | BATTERY CAPACITY | OPERATION TEMPERATURE | CHARGING TIME | WORKING TIME | INSTALLATION HEIGHT |
| VT-40W | 7821,7822 7839,7840 | 400LM | 6V | 6W | 174x260mm | 170x190x55mm | 3.2V, 5000mah | -20 C~60 C | 4-6 H | 12 H | 2.5 – 3 M |
| VT-80W | 7823,7824 7841,7842 | 800LM | 6V | 10W | 174x340mm | 170x190x55mm | 3.2V, 6000mah | -20 C~60 C | 4-6H | 12H | 3 – 3.5 M |
| VT-120W | 7825,7826 7843,7844 | 1200LM | 6V | 15W | 235x350mm | 180x235x55mm | 3.2V, 12000mah | -20 C~60 C | 4-6H | 12H | 3.5 – 4 M |
| VT-180W | 7827,7828 7845,7846 | 1800LM | 6V | 20W | 390x300mm | 235x290x55mm | 3.2V, 16000mah | -20 C~60 C | 4-6H | 12H | 4 – 4.5 M |
| VT-240W | 7829,7830 7847,7848 | 2600LM | 6V | 30W | 390x340mm | 260x365x55mm | 3.2V, 20000mah | -20 C~60 C | 4-6H | 12H | 4.5 – 5 M |
WARNING
- Please make sure to turn off the power before starting the
- Installation must be performed by a qualified
- The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a
- Replace any cracked protective

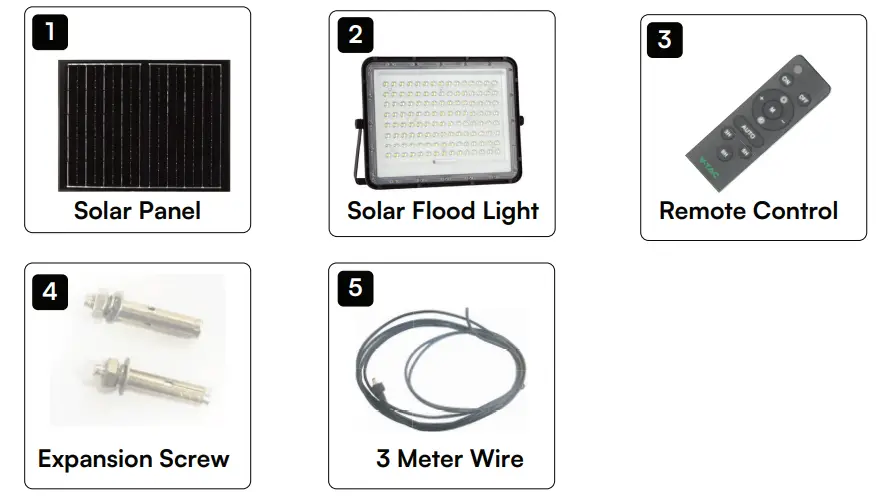

PARTS INCLUDED
REMOTE CONTROL

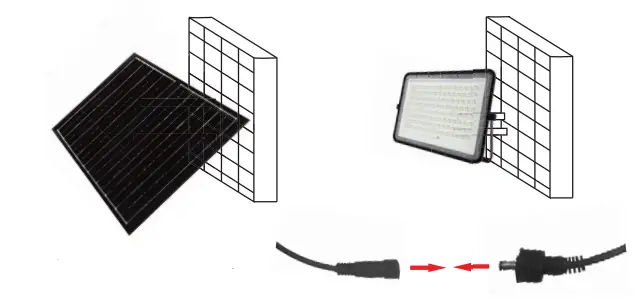

INSTALLATION
- Us e 2 expans ion s crews to fix the s olar panels on the wall
NOTE: The battery must be fully charged before using 3-5 rainy days - Us e 2 expans ion s crews t o fix the s olar lamp on the wall
- Plug the twis t after the twis t cap
INSTALLATION GUIDE
- Before installing please remove all the parts to check if all are in good condition or not.
- The luminaire is connected to the solar panel against the sun light. Please makes sure the solar panel is adjusted in correct angle in order to receive sunlight.
- The remote control is designed with an operation distance of 8-15m
- A. The lamp comes with two inflated studs as shown in the parts included section.
- B. The solar panel Angle must be adjusted in correct direction to receive sunlight.
- C. Lamps cannot be installed in low-lying areas, so as not to soak;
- Plug the male and female plugs and tighten the waterproof cap and install it.
- AŠer installation test the light using the remote control.
MAINTENANCE & WARNING
- Do not use solvents, petrol, etc. Otherwise the light will be damaged.
- Clean the light with a dry, lint-free cloth.
- Check the solar panel for dirt regularly. If dirt or is present remove it to guarantee flawless function of the product.
- Especially during the winter, keep the product free from snow and ice.
- Confirm installation direction is correct (solar panel should be at top)
- Confirm no objects blocking the solar panel to receive sunlight
- Keep away from the fire.
- Don’t immerse in the water
MULTI-LANGUAGE MANUAL QR CODE
Please scan the QR code to access the manual in multiple languages.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
