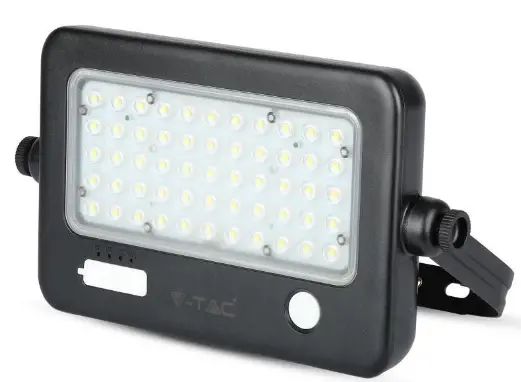

V-TAC VT-788-10 LED Solar Floodlight
INSTALLATION

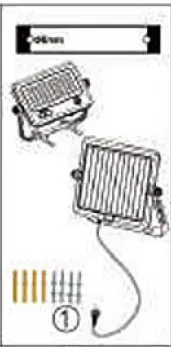

- Take out of the whole lamp from package,confinn the installation location and wire length.

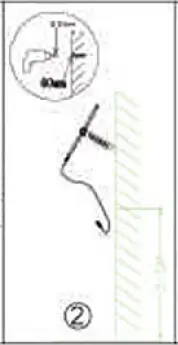

- Use the card to measure hole position correctly and dnl14 holes of 8mm w,tll depth 60mm on the wall.

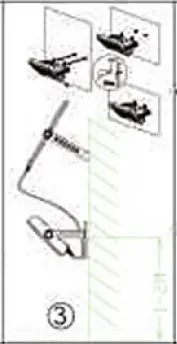

- Fix expansion screw Into the holes with a spare spaoe,then fix the solar panel & LED lamps

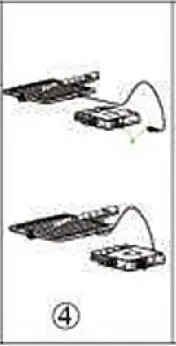

- 0pen the silicon cover at the bottom of the lamp.connect the wire from tile solar panel to the lamp and screw it tightly

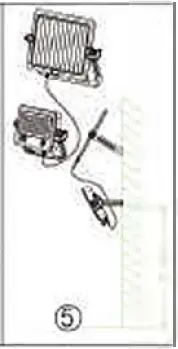

- .Adjust the solar panel and LED lamp to the right position according focal
NOTICE AND WARNING
- This is a solar-powered lamp, please install it in a location where can gel enough sunshine.
- Please note the lighting time depends on sunshine duration & weather.
- Built.in intelligent IC with overcharge, over,(discharge and over-voltage protection.
- The lamp Is equipped with an Internal battery pad<, which Is replaceable. If any need, please contact seller for correct new battery pack.
- Non-professionals please do not disassemble the lamp.
- Please do not dispose the battery with household garbage to avOid explosion
SPECIFICATIONS
| SKU | 8674 |
| Power/Lumen | 10W/1100LM |
| LED Type | SMD2835’55PCS |
| Battery | 3.7V/7200mAh Lithium battery.replaceable |
| Solar Panel Detection Nea | 6.5Wp+4.5Wp Mono-Crystalline Silicon <Sm (Radar Sensor) |
| Beam Angle | 90′ |
| Lffespan | 35000hrs |
| IP Class | IP65 |
| Wire length | 3Melers |
| USS Discharge | 5.0V/1.0A |
| DC-Micro Charge | 5.0V/1.0A |
FEATURES
- Solar Powered
- Light on/off Automatically
- 4 Working Modes
- Battery replaceable
- Zero Electricity Cost
- Power bank

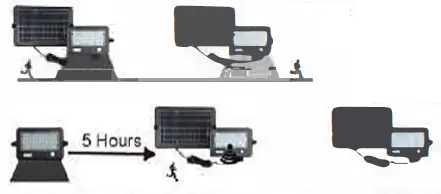

WORKING MODE
According to the connect.ion of the lamp body with solar panel, the tamp will automatically recognize the Sensor mode &Constant lighting mode & Power bank function
Mode A: Constant Lighting Mode Lam separate with Solar Panel)
Under this work model,the Radar sensor &Photocell induction will not work.
- Mode A 1: Press @ 1st time to 50% Constant Btightness
- Mode A2: Press@ 2nd time to 100% Constant Brightness.
- Mode A3; Press @) 3rd lJfTl@ turn off
Mode B SENSOR Mode Lamp Body Connect With SOLAR Panel
Under this work mode.the lamp will automatically tum on al night turn off at day time
- Mode B1: Automatically turns on full brightness(11001m) when motlon is detected in the range8m and then turns to 5% brightness,n 20 seconds of no motion.
- Mode B2: Automatically turns on and remain 100% brightness(1100lm) for 5hours. After Hours or when battery capacity < 30% rt turns to Mode 81.
- Mode B3:Press 3rd time.tum off
Additional Power Bank Fuction
