Ado A16 Folding Electric Bike Installation Guide

ADO A16 Folding Electric Bike

ADO A16, A20, A20F, Ebike
Quick Installation Guide

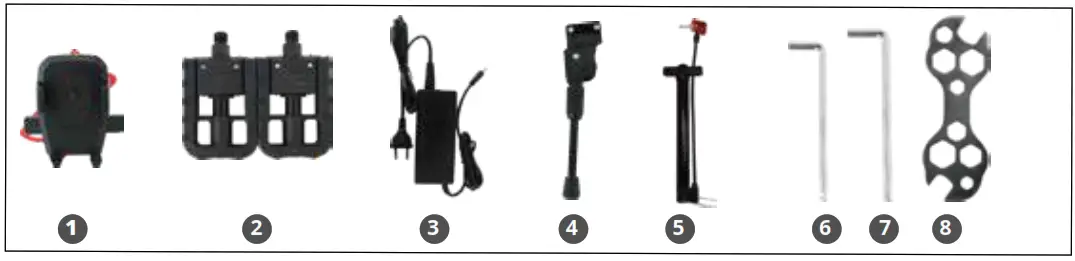

Accessories list

Installation Guide

Depending on the model, some steps have already been installed, just check it.

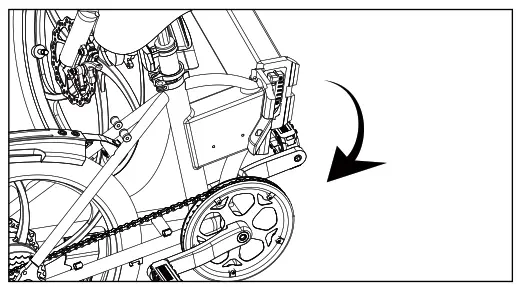

1. After opening the carton, take out the accessories, tools, and bicycle.	2. Unroll the body

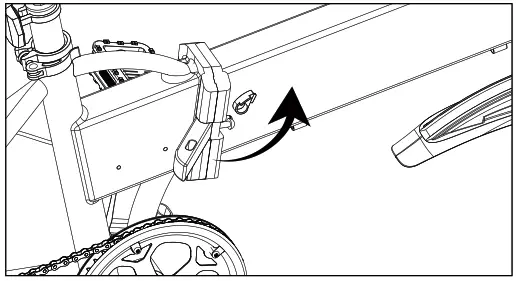

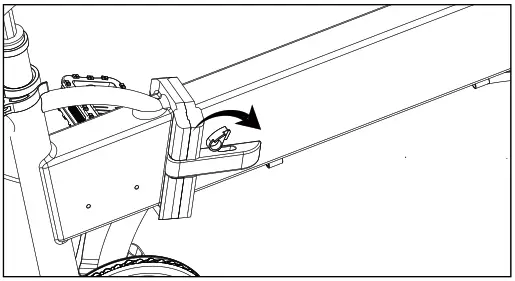

3. Close the body lock.	4. Fasten the safety lock

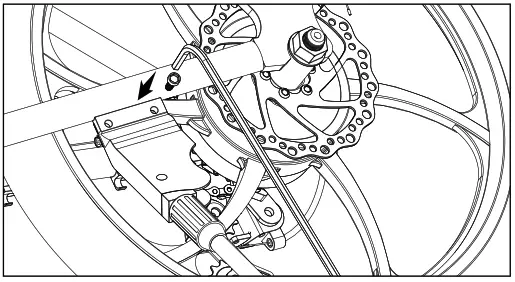

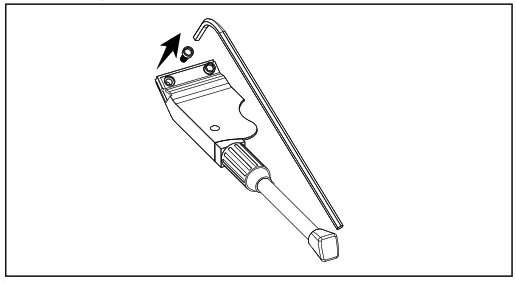

5. Prepare foot brace, use the tool to take out two  65mm hexagon screws locked in the foot brace.	6. Place the foot brace behind the fender, use tool 6 to lock the screws.

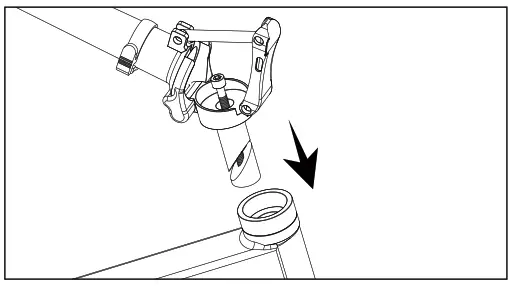

7. Place the head tube into the front fork head tube	8. Straighten the head and make sure that the arrow on the label is aligned with the marking line. Make sure that the bicycle head and the body are vertical to each other.

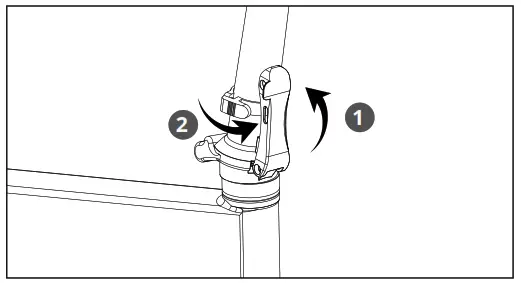

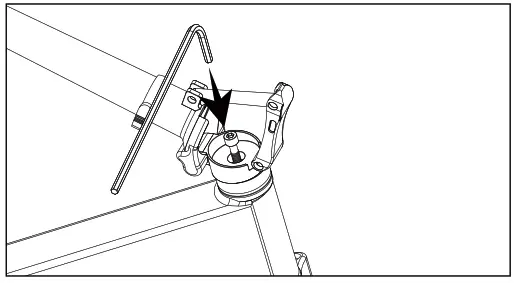

9. Open the lock firstly. After alignment, put down the tube, and use the7 tool to lock the screws.	10. Put the tube up, close the headlock, and snap the safety lock into the headlock

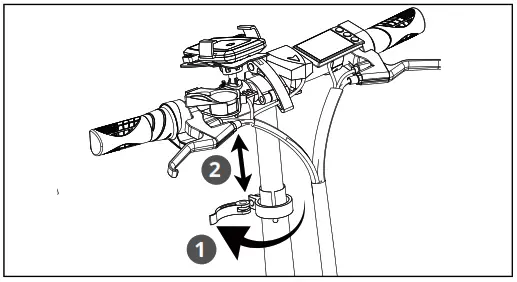

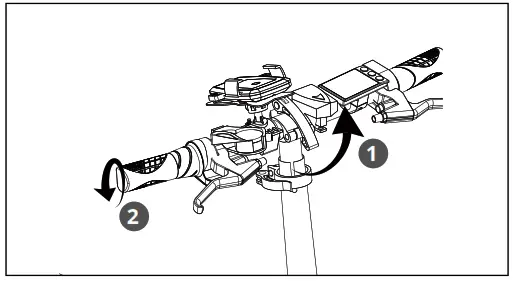

11. Open the handlebar lock, adjust the height of the head, and then lock tightly.	12. Open the cross handle lock, adjust the direction of the head grip, and then lock tightly.

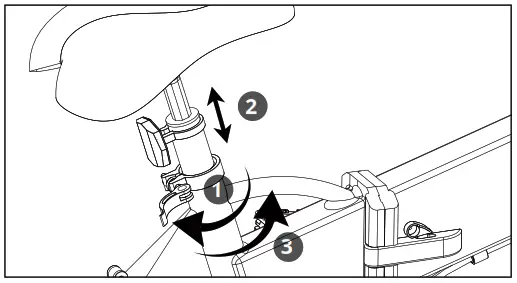

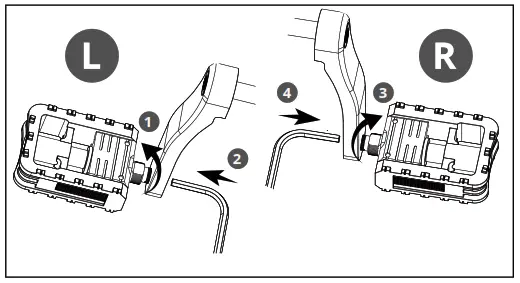

13. Insert the saddle into the saddle tube. Adjust the height of the saddle, and then lock tightly.	1. Align the left pedal ( with the “L” mark ) to the crank thread and rotate the pedal counterclockwise. 2. Align the right pedal ( with the “R” mark ) to the crank thread and rotate the pedal clockwise. 3. Tighten the pedals with a Hexagon screwdriver.

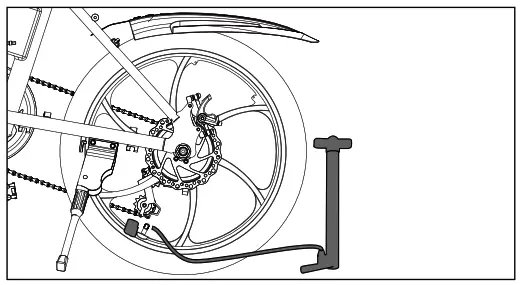

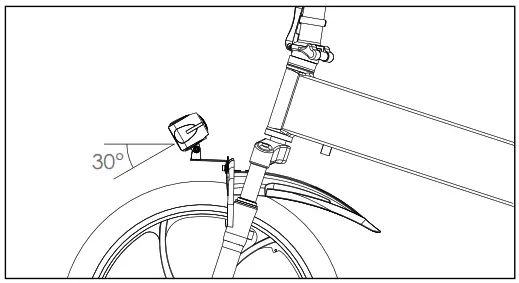

15. Turn the headlight to the front 30 degrees down position，use the. 8 tool to twist the screws	16. Finish the installation, use the pump to inflate the tires.

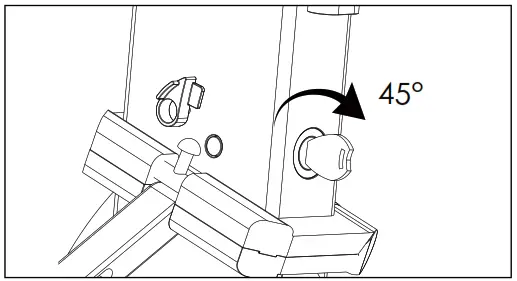

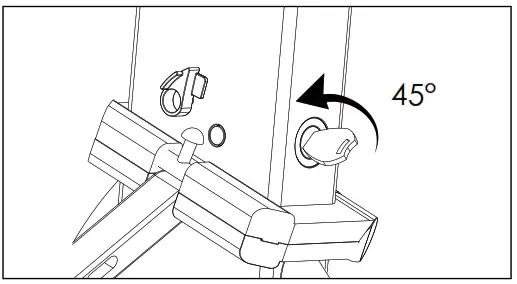

17. Before using the bicycle, insert the key and twist 45°counterclockwise, the battery has been started.	18. Finished using the bicycle, turn the key 45°clockwise, the battery has been disconnected, and take out the key.

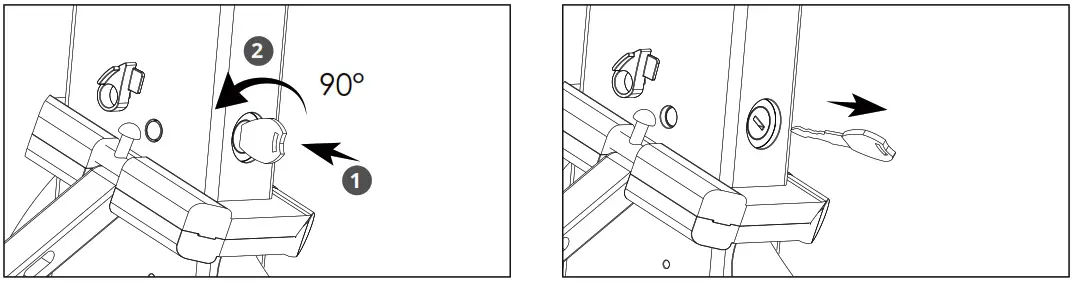

	19. The step of removing the battery, inserting the key, pressing upward, and then rotate 90°clockwise. Note: Remove the key firstly, then take out the key and then take out the battery to avoid damaging the key.

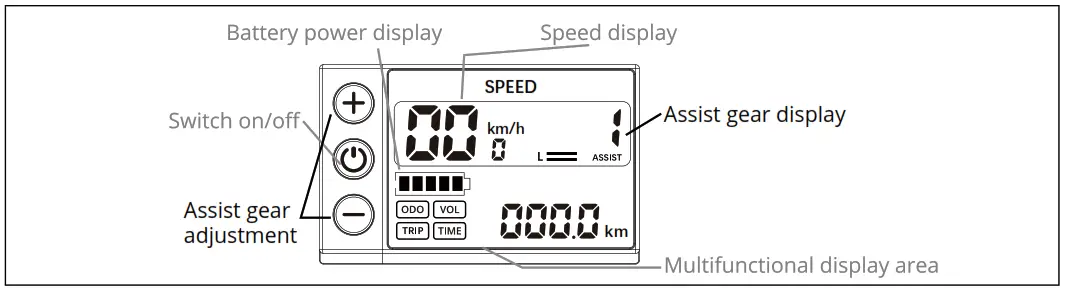

 Operation Guide

1. In the shutdown state, long press the Power key for 3 seconds to start the bike;
2. In the power-on state, Long press the Power key for 3 seconds to off the ebike;
3. In the power-on state, press POWER KEY, and the multi-function area will display ODO, VOL, TRIP, and TIME.
   ODO: The total mileage of this bicycle when it is turned on
   VOL: Current battery voltage value display
   TRIP: Mileage traveled after this start
   TIME: The time since the start of this ride
4. Press the “+” button to increase the gear. The higher the gear, the faster the speed.
5. Press the “-” button to lower the gear. The lower the gear, the slower the speed.
