Blaupunkt Fiete 500 Folding Electric Bike User Guide

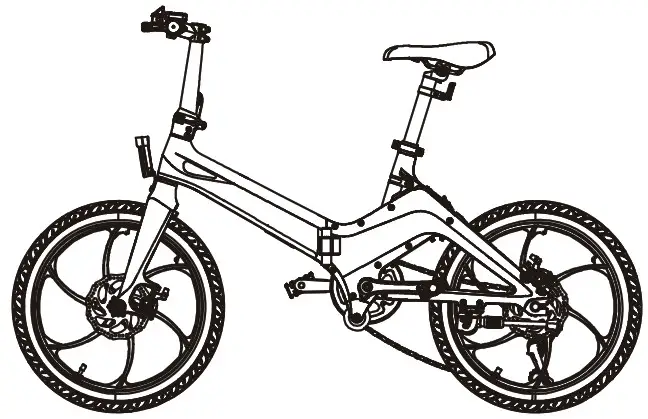

FIETE 500 Folding Electric Bike
User Guide

Read First

Thank you for choosing  E-BIKE
Please read this entire user manual carefully when first use, including safety notes and correct instructions.
This manual will help you

1. Understand the basic operating steps and how to use the control panel;
2. Familiar with riding principles, makes you ride safe and happy;
3. Understand the product structure and how it works, learn the daily maintenance methods to extend product life understand the product structure and how it works, learn the daily maintenance methods to extend product life.

Mount the handle bar

Note: It is advisable to have a second person help you to hold the loose handlebar/tools.

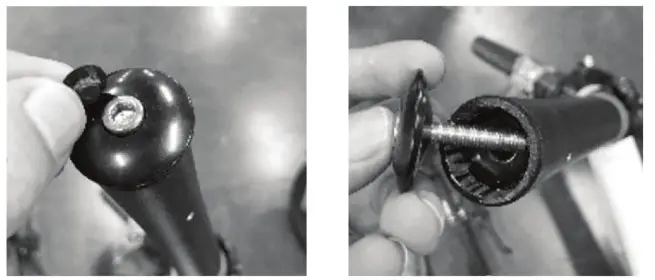

After unpacking the e-folding bike, fold up and lock the handlebar. Use the included tool (Allen key) to loosen the Allen screw under the handlebar cover (carefully remove the small cap on the screw beforehand).

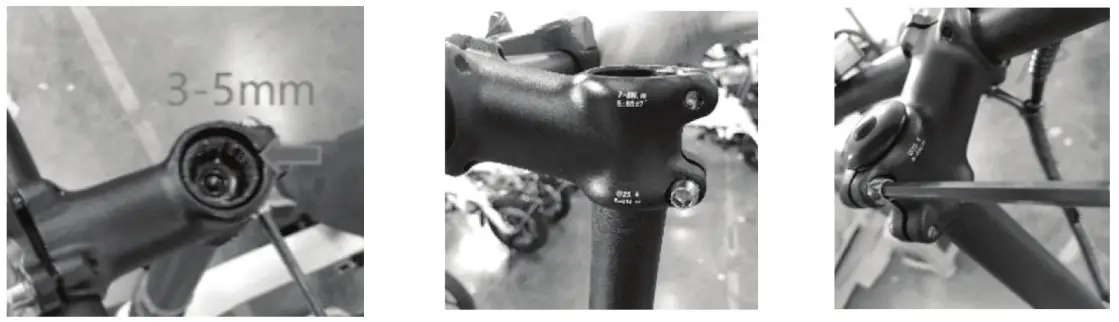

Carefully place the handlebar on the rod until the upper edge of the stem is max. 3-5mm above the top edge of the handlebar. If needed, lose the two screws on the side of the stem. Tighten the two screws again, tighten the screws alternately until the handlebar can no longer be moved on the stem. Check handlebars for strength and correct position. Reassemble the cap.

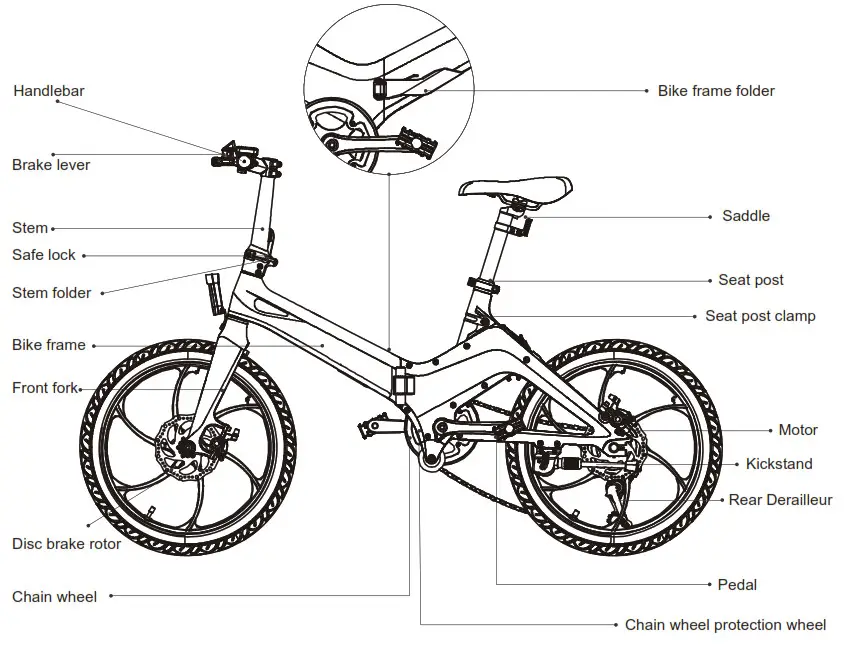

Components

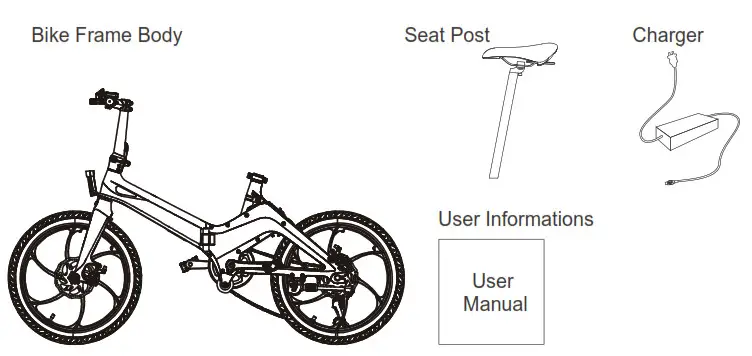

Packing List

Initial Use
Suggest to wear the helmet and gear for safety when first use, and riding in open spaces.
Pay attention: This S9 E-bike is only designed for city road, forbidden riding under non-urban road environment.

Quick Start

1. Unfold the bike

1. Hold the vehicle body, unfold the frame

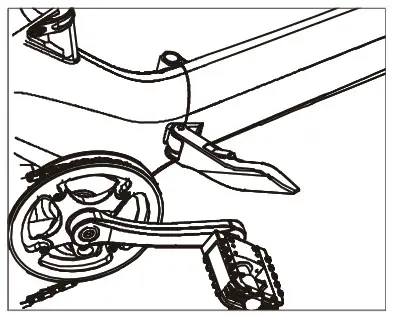

2. As a picture, lock the folder clamp tightly, please finish steps 3) & 4) before locking the clamp

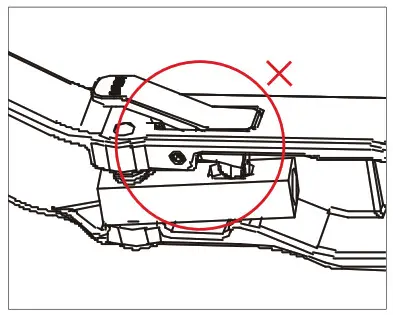

3. If the fastener shows as the picture, need to press it down to release the convex piece

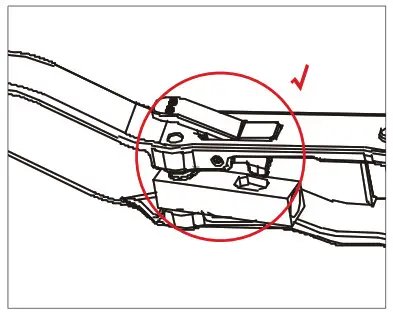

4. If the fastener shows as the picture, then can operate step 2) to lock the frame

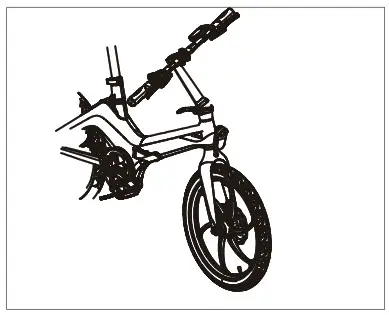

Unfold the stem

1. Hold the bike body and turn the stem upright to ensure that the stem is seamlessly connected to the underside

2. Fasten the folding wrench directly in the direction of the stem

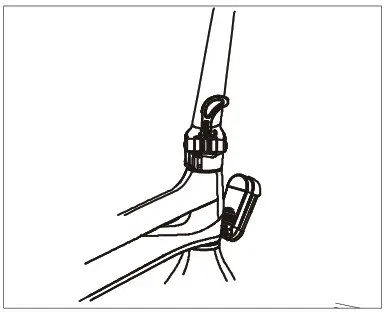

3. Slightly shake the stem and check if the security buckle is fully buckled.

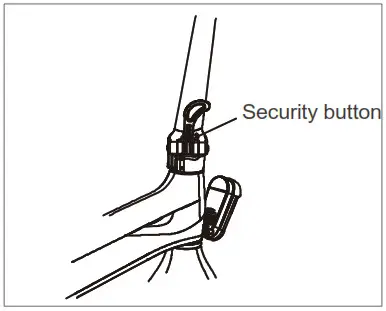

4. When folding the stem, you need to press the security buckle and then open the folding wrench to it

Seat post assembling

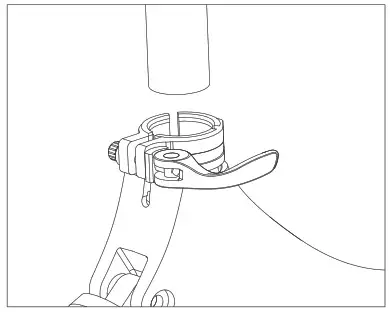

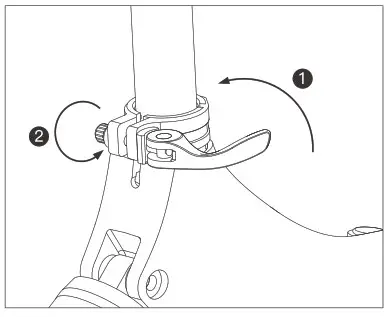

1. Loosen the seat post clamp, keep the bike steady, insert the seat post in the frame.

2. Adjust the screw, tighten the clamp, then press the saddle at full tilt to ensure the seat post is locked tight enough and doesn’t rotate or move up and down.


Adjustment of saddle height

1. When you need to adjust the height of the saddle, first loosen the seat post clamp, then move the seat post to the preferred height, tighten the seat post clamp

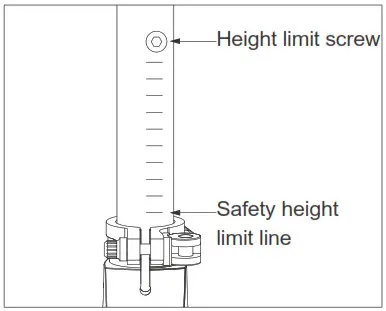

2. The saddle height mustn’t exceed the height limit screw or safety height limit line


Unfold & Fold the pedals

1. Hold the vehicle body and unfold the pedals

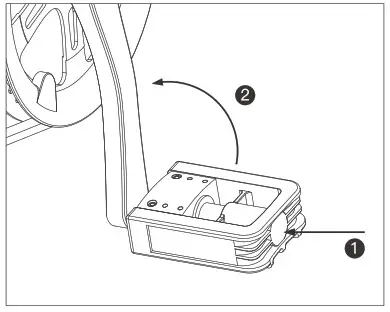

2. Press the pedal towards the crank, and fold it up.


Power on operation

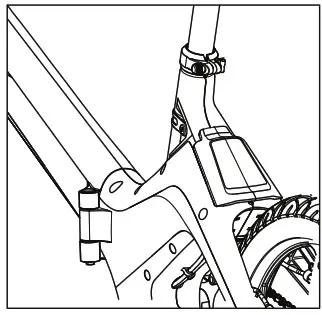

1. Charge the battery before your first ride. Note: When charging is completed, please cover the plug to avoid the water intake of the charging port.

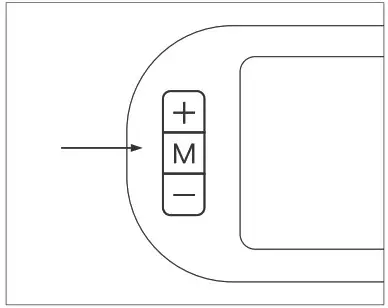

2. Press M button for 3 seconds to boot.

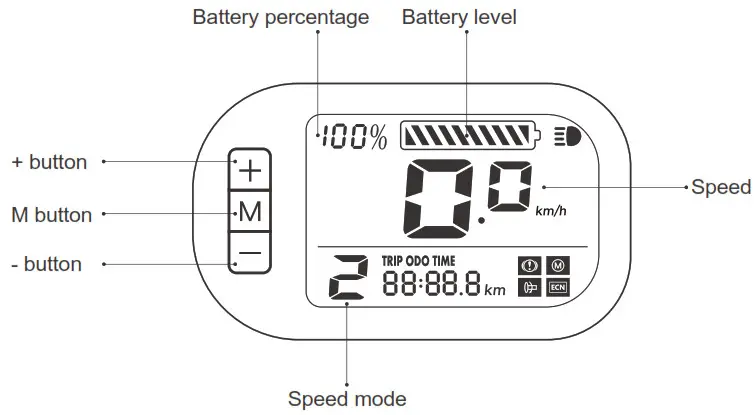

Odometer

Button functions:
M: the multifunctional button, long press for 3 seconds to switch on/off the bike; short press to switch the display of single trip mileage, total mileage, and running time +: long press for 3 seconds to turn on/off the front light, short press to switchgear – : short press to switchgear
Speed modes:
Speed mode 0: no assistance, pure pedaling mode
Speed mode 1: low assistance, top speed 12km/h
Speed mode 2: mid assistance, top speed 18km/h
Speed mode 3: high assistance, top speed 25km/h
Icons’ meaning:
Indicates the front light is on
Indicates the brake is working
Indicates the throttle is not working or not working properly
Indicates the motor is not working or not working properly
Indicates the controller is not working or not working properly

TRIP ODO TIME
Switch among single trip mileage, total mileage, and running time

The figures of single trip mileage, total mileage, and running time

Other Operations

Uninstall&Install battery

1. Power off the vehicle, unlock the battery, then pull out the battery box with the lifting handle as the picture shows.
2. When installing the battery, lock the battery with the key and take the key away, press the battery handle to be flat, and unfold the bike frame.

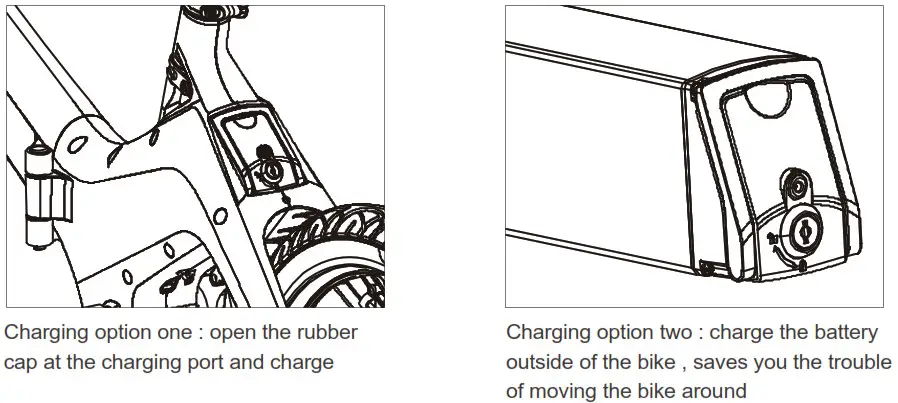

Charging

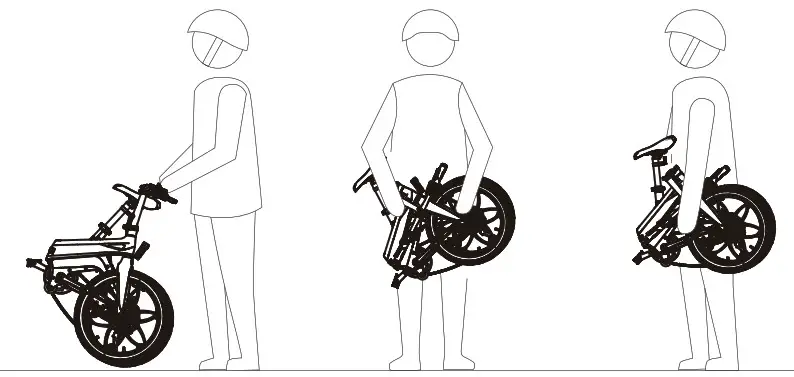

Strolling and carrying

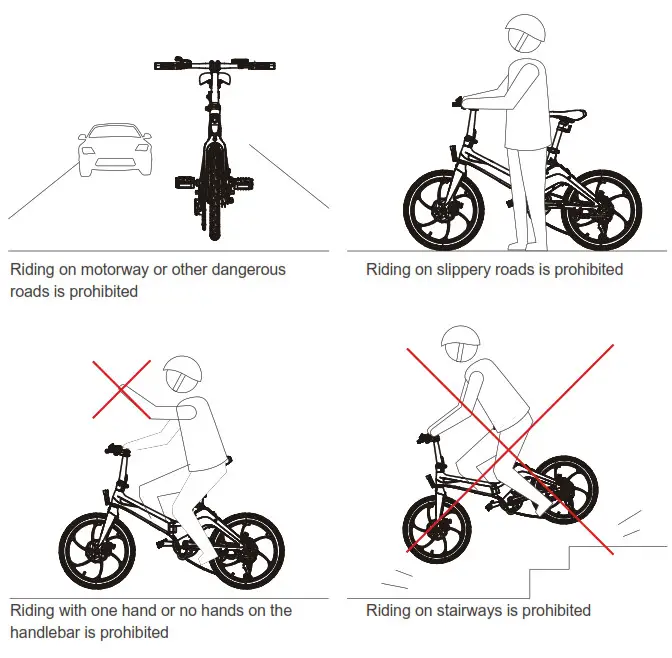

Safety tips

Parameters

Remarks:

1. Mileage is subjected to weight, road condition, temperature, wind speed, riding habit, etc. conditions, and the mileage on the UM is tested under the condition of loading 65kg, 25℃ temperature, riding on a flat road, wind less than 10Km/h with full electric.
2. Pls, use the original charger to charge the bike/battery.
3. Pls, don’t modify the bike without authorization.

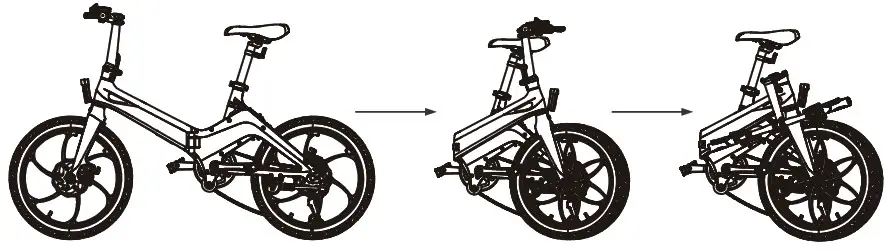

Quick folding

Hazardous material and contents

This chart is subject to the regulation of SJ/T 1136
0 means the ratio of the hazardous material in the parts is within the GB/T 26572 standard
× means the ratio is beyond the GB/T 26572 standard in at least one part

Matters need attention

1. Please take the initiative to understand and comply with local traffic regulations before riding.
2. In case of accidents and injury, you should wear protective appliances well before riding, like helmets, gloves, elbow pads, knee pads etc.
3. You should check your bike conditions before riding. (make sure that brakes work well, the battery is fully charged, enough tire pressure, no abnormal sound, no screws loosen, etc)
4. Do not ride on slippery road conditions, especially on snowy and watery roads.
5. Do not ride on slopes over 15°.
6. If you must ride when it’s raining or snowing, keep it at a low speed and a long distance from the vehicles in front of you, in case of emergency stops.
7. Kids under age 12 are not allowed to ride the e-bike.
8. Avoid sudden acceleration and deceleration, do not exaggerate lean, either forwards or back while riding, and keep it at a limited speed.
9. When the remaining battery power is low, please ride at a low constant speed and charge the battery as soon as possible.
10. If a fall is inevitable, always keep your safety prior to the bike.
11. Do not put your hands in your pocket while riding in case of emergency.
12. Do not store your bike in the car trunk for a too long a time in hot weather.
13. Please study the local traffic laws and regulations before riding, keep civilized riding
14. Keep an eye on the surroundings, ride in a controllable condition and avoid any collisions that might occur.
15. Keep a safe distance from others while riding, and do not ride neck by neck on the road.
16. Do not ride in dim environments, if necessary, be cautious and lower your speed or stroll your bike.
17. Do not ride backward and do not do any actions that might endanger yourself or others while riding.
18. Do not lend your bike to those who are not familiar with the manual.
19. Do not ride while you don’t feel well, nor after taking drugs or consuming alcohol.
20. Do not lift your bike from tires, to avoid that your fingers get stuck between the tire and the casing.
21. Please speed up slowly. Sudden acceleration may cause out-off balance and injure yourself.
22. Do check the brake function before riding, regularly adjust the brake wire tension
23. The Power Assist Sensor (PAS) will start to work when pedaling the 3/4~1 cycle. Beware of crank rotating when walking.
24. The brake lever control is left for the front brake, right for the rear brake

Battery and charging

1. Environmental temperature for charging is 0℃-45℃, for discharging is -20℃-60℃, please keep the battery in dry condition
2. Do not put the battery in acidic or alkaline liquid, keep it away from rain , fire, heat and a high-temperature environment.
3. Do not disconnect the negative and positive electrodes of the battery ; breaking, disassembling and short-circuiting the battery are prohibited.
4. Only charge the battery with the original charger of the bike , another charger may cause battery leaking , heating, smoking and in serious situations cause fire and explosion.
5. If the battery is not to be used in a long time , keep the battery in a dry and cool environment, and charge it for 2 hours every two months 6. Charging according to the manual requirements, or else we won’t take any responsibility for the damages that occurred
6. Charging in a dry and cool environment, do not charge in closed or high-temperature areas
7. Unplug the charger in time when the charging is done, do not plug the charger to a power source while not charging
8.  When charging, plug the battery first, then connect the power source; When charging is finished, disconnect the power source first , then unplug the  charger
9. If the charger indicator stops working or the charger overheats and causes a funny smell, unplug the charger immediately and repair or replace the charger
10. Keep the charger away from fluids while using and storage , in case of a short circuit, avoid any penetrations to the charger
11. Try not to carry the charger around with your bike , if you must, make sure it’s well protected and store it in your toolbox
12. Try to avoid the battery being fully discharged when using , to keep the battery in good condition and for a longer lifespan , try to only use the bike between battery level 20% to 100%
13. Do not disassemble or replace any parts of the charger by yourself
    Due to the capacity fade mechanisms of Lithium-Ion battery , the battery capacity will fade at different temperatures, at -10℃ the capacity will be  70%, at 0℃ the capacity will be 80% , at 20℃ the capacity will be 1 00%
14. Do not put the battery in places that may fall to the ground , in case it may cause battery leakage , overheating that could lead to fire or explosion

Storage and Maintenance

1. Keep the e bike in a place where there is no direct sunlight or no rain after riding.
2. Regularly check each screw of the e bike and to be tightened, and tighten it regularly; (Screw torque of each main position: the head tube screw: 180-220kgf.cm;Saddle screw: 180-220kgf.cm; front wheel nut: 250-300kgf.cm; rear wheel nut: 300-350kgf.cm)
3. If there is stain on the surface of the e-bike body, use a soft cloth to wipe by a small amount of water; do not use alcohol, gasoline or other chemical solvents with corrosive and volatile, otherwise, it will seriously damage the appearance or internal structure of the e-bike body.
4. Chain elastic standard: chain up and down ≤ 10mm; if the chain is loose, the rear wheel nut can be loosened, the chain tensioner can be adjusted to the chain fastening state, and the rear wheel nut can be tightened.
5. If the disc brakes and the disc plate friction, adjust the position to make them no interference friction. If the disc plate skews heavy or the disc brake is disabled, then the disc or disc brake needs to be replaced.
6. Every 3 months, apply grease to the frame folding wrench screws and maintain the chain smear chain anti-rust oil.
7. If the shock absorber fails or is damaged, it is necessary to disassemble the original shock absorber and replace a new shock absorber to achieve the best shock absorption effect.
   Do not flush the e-bike with water to avoid accidents caused by internal electronic components and wiring.

Regular maintenance & check

Tip: Please maintain and check the e-bike regularly, to keep it in the best riding condition.

Eliminate of frequent malfunction

Warranty Policy

Coverage
Notes:

1. Disassemble without permission, external collision, man-made damages are not under warranty.
2. Consumables parts (brake pads, brake wires, tires and tubes, mudguards, and other plastic parts) are not covered in the warranty.
3. Repairing of man-caused damages or beyond warranty time will be charged accordingly. Warranty validity: from the date of shipping.

Competence Center Car Multimedia & Foldable E-Bikes
Evo-Sales GmbH
Hastenbecker Weg 33
31785 Hameln/Deutschland
www.blaupunkt.com
